Component Locations

A
B
C

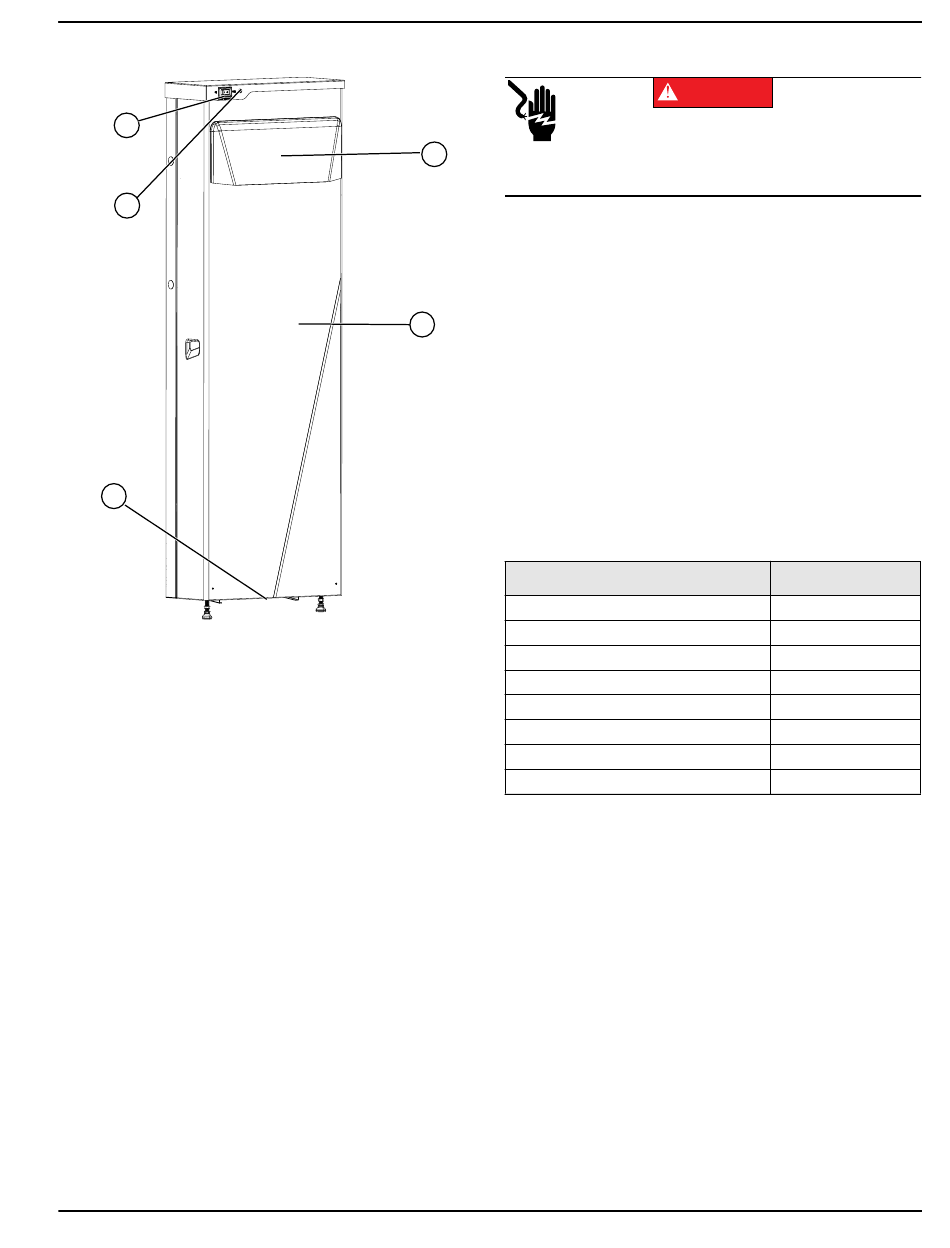

Figure 2-6. Component Locations
A Battery Disconnect Switch
B Battery Status LED
C Intake Filter
D Front Cover
E Exhaust Vent
Installation Manual for Generac PWRcell Battery

Battery Disconnect Switch

Electrocution. Initiate a system-wide shutdown and turn the
PWRcell DC Disconnect Switch OFF on all connected
E batteries before performing service. Failure to do so will
result in death, serious injury, or equipment and property
damage.
See Figure
disconnects the battery stack from the battery monitoring
system (BMS) electronics.
The Battery Disconnect Switch must be locked in the
OFF position during installation. The switch bracket
accepts a standard lockout / tagout lock.
D
NOTE: Turn Battery Disconnect Switch OFF and turn the
REbus DC disconnect for the battery OFF at the inverter
whenever the battery will be powered down and left
inactive for an extended period of time.

Battery Status LED

See
Figure
(B) communicates battery status.
LED Color / Interval
012637 Orange, solid
Orange, strobe (2s)
Green / Orange, alternating
Green, solid
Green, rapid blinking (0.5s)
Green, strobe (2s)
Red, rapid blinking (0.5s)
Red, strobe (8s)
General Information
DANGER
2-6. Battery Disconnect Switch (A)
2-6. The color and strobing interval of LED
Table 2-1. Battery Status LED
(000600)
Battery Status
Disabled
Waiting
Initializing
Charging
Discharging
Standby
Error
Sleeping
13
