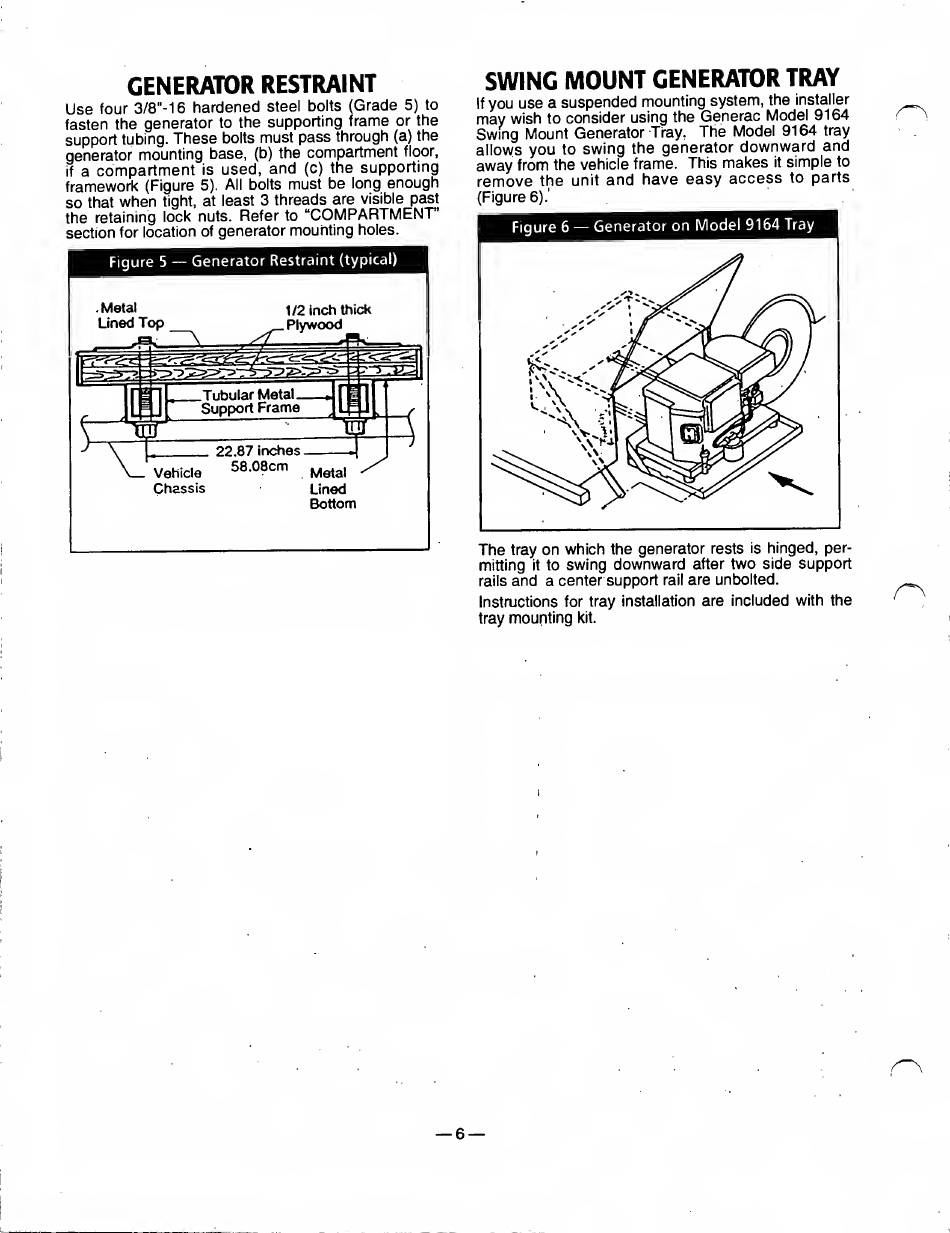

GENERATOR RESTRAINT
Use four 3/8''-16 hardened steel bolts (Grade 5) to
fasten the generator to the supporting frame or the
support tubing. These bolts must pass through (a) the
generator mounting base, (b) the compartment floor,
if a compartment is used, and (c) the supporting
framework (Figure 5). All bolts must be long enough
so that when tight, at least 3 threads are visible past
the retaining lock nuts. Refer to "COMPARTMENT'
section for location of generator mounting holes.
SWING MOUNT GENERATOR TRAY
If you use a suspended mounting system, the installer
may wish to consider using the Generac Model 9164
Swing Mount Generator Tray, The Model 9164 tray
allows you to swing the generator downward and
away from the vehicle frame. This makes it simple to
remove the unit and have easy access to parts
(Figure 6).'
The tray on which the generator rests is hinged, per¬
mitting it to swing downward after two side support
rails and a center support rail are unbolted.
Instructions for tray installation are included with the
tray mounting kit.
