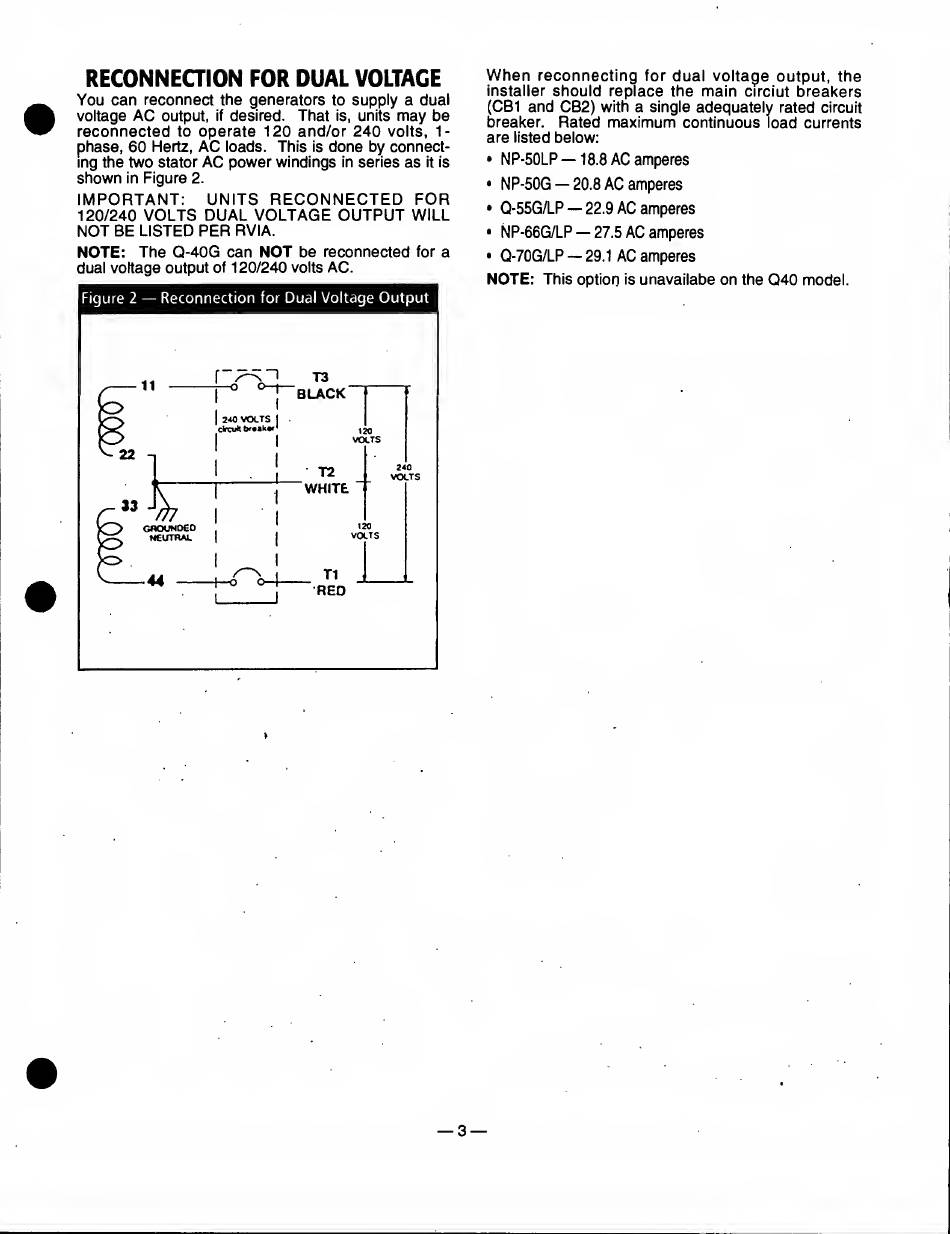

RECONNEaiON
FOR
DUAL VOLTAGE
You can reconnect the generators to supply a dual
voltage AC output, if desired. That is, units may be
reconnected to operate 120 and/or 240 volts, 1-
phase, 60 Hertz, AC loads. This is done by connect¬
ing the hwo stator AC power windings in series as it is
shown in Figure 2.
IMPORTANT:
UNITS RECONNECTED FOR
120/240 VOLTS DUAL VOLTAGE OUTPUT WILL
NOT BE LISTED PER RVIA.
NOTE: The Q-40G can NOT be reconnected for a
dual voltage output of 120/240 volts AC.
Figure 2 — Reconnection for Dual Voltage Output
When reconnecting for dual voltage output, the
installer should replace the main circiut breakers
(CB1 and CB2) with a single adequately rated circuit
breaker. Rated maximum continuous load currents
are listed below:
• NP-50LP —18.8 AC amperes
• NP-50G — 20.8 AC amperes
• Q-55G/LP — 22.9 AC amperes
• NP-66G/LP — 27.5 AC amperes
• Q-70G/LP — 29.1 AC amperes
NOTE: This option is unavailabe on the Q40 model.
— 3 —
