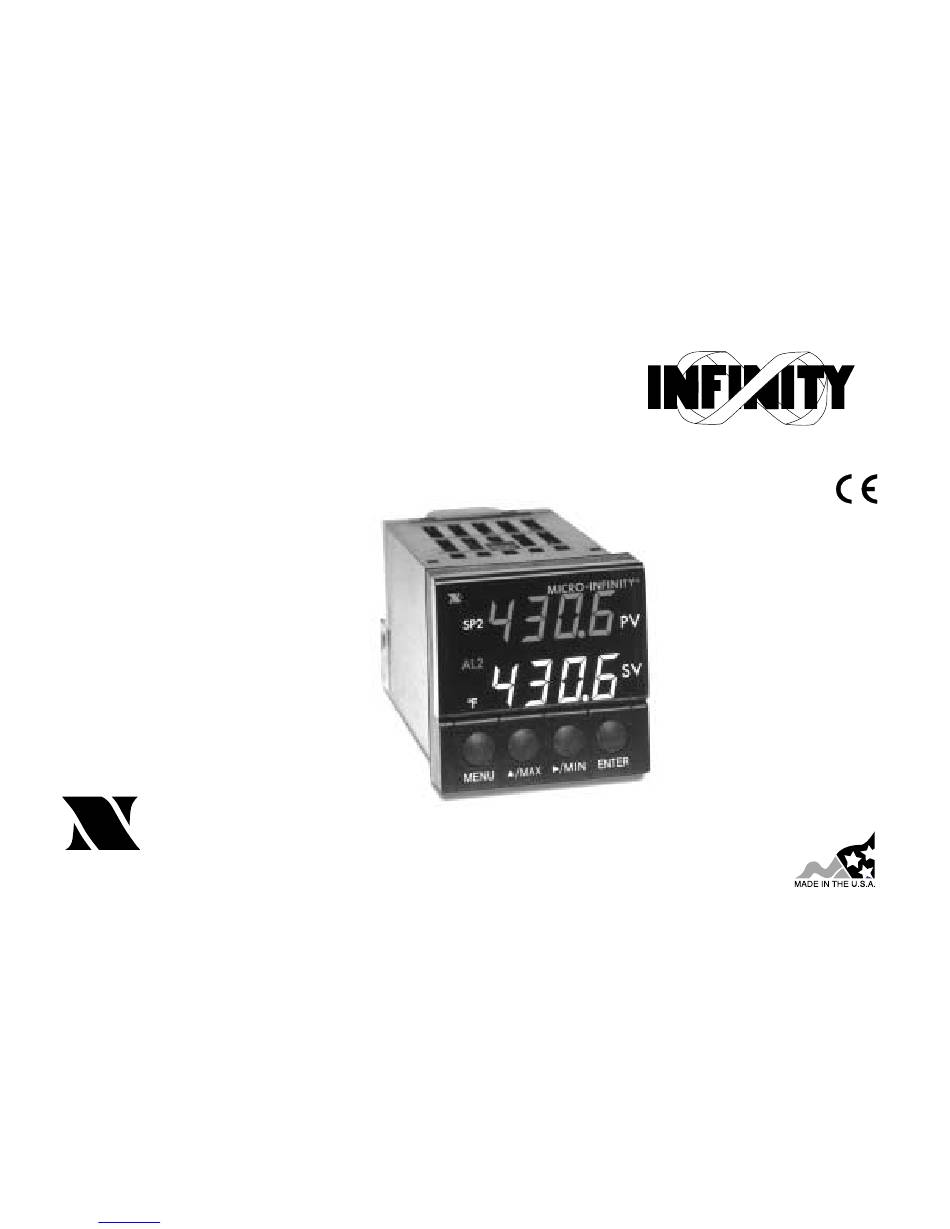

MICRO-INFINITY
SERIES
THE NEW STANDARD FOR QUALITY
ICN77000 Series Controller
Operator's Manual
®
NEWPORT Electronics, Inc.
http://www.newportUS.com/manuals
Downloaded from
Elcodis.com
electronic components distributor
