Summary of Contents for TECAi venet

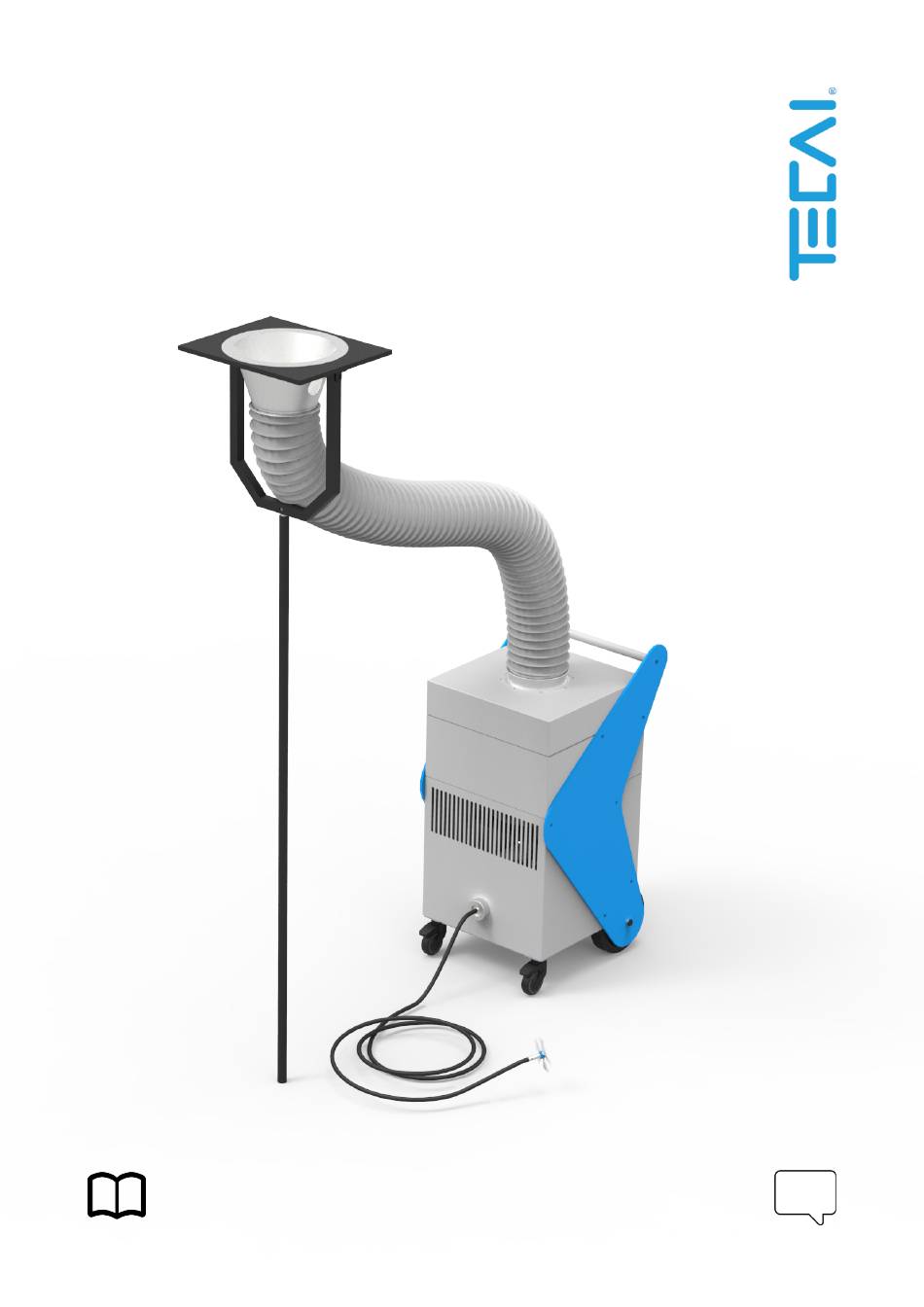

- Page 1 Electric brushing unit with built-in vacuum cleaner user manual original manual...
-
Page 2: Technical Service
We have all kinds of spare parts for your equipment, as well as related accessories. © This instruction manual is protected by copyright. We reserve all rights, especially the right to production, translation and processing with electronic systems. venet venet Electric brushing unit with built-in vacuum cleaner 2-29... - Page 3 5-29 safety warnings 6-29 envisaged conditions of use 7-29 know your machine 8-29 control panel 9-29 remote control 10-29 accessories and related equipment 11-29 operating instructions 14-29 venet venet Electric brushing unit with built-in vacuum cleaner 3-29...
- Page 4 24-29 maintenance and care 25-29 waste management 26-29 technical specifications 27-29 guarantee conditions 28-29 “EC” declaration of conformity 29-29 venet venet Electric brushing unit with built-in vacuum cleaner 4-29...
- Page 5 This symbol alerts you to a situation that may result in property damage without personal injury if you do not follow the instructions properly. IMPORTANT NOTE! This symbol alerts you to information regarding the optimal use of the equipment to avoid possible misuse. venet venet Electric brushing unit with built-in vacuum cleaner 5-29...
-
Page 6: Safety Warnings
VENET equipment must NOT be used for purposes other than those described in t h i s instruction manual. Before starting up the equipment, make sure that all electrical connections are correct. Before starting the equipment, make sure that the brush is inside the duct to be cleaned. - Page 7 VENET is an equipment for cleaning ventilation and/or air conditioning ducts of small dimensions, up to 400mm. Suitable accessories must be provided for each duct. It includes a 10 metre hose so that 20 metres of pipe can be cleaned from a single point on the pipe.
-
Page 8: Know Your Machine
10- Control panel 4- Shaft connection 11- Led indicator 5- Braked wheel 12- ON/OFF switch 6- Rear wheel 13- Filter cover fastening tab 7- Turbine ignition switch 14- Carrying hand venet venet Electric brushing unit with built-in vacuum cleaner 8-29... -
Page 9: Control Panel
Increases or decreases the speed of the brushing function Turbine switch Activates the suction of the equipment by turning on the turbine. LED Strip Indicates the status of the machine venet venet Electric brushing unit with built-in vacuum cleaner 9-29... -
Page 10: Remote Control
Automatic mode rotate for 10 seconds for each side. It will automatically start to rotate to the right. STOP General shutdown of any system in operation 1 Battery 12V. Alkaline 23A venet venet Electric brushing unit with built-in vacuum cleaner 10-29... -
Page 11: Accessories Included
Accessories included: Flexible shaft Ø6 Flexible shaft Ø6 of 10 metres for the brushing function of your VENET. Cod. AC3303614 Flexible shaft transport bag Fabric bag for protection and transport of the flexible shaft. Cod. AC3101210 Remote control Remote control unit with which you can operate your VENET equipment. - Page 12 Cod. AC1300007 Filter H13 High capacity filter with HEPA H13 classification. Frame made of galvanised steel. Cod. AC1300013 Nylon brush Ø250 Nylon brush recommended for cleaning ventilation ducts Cod. CP4000250 venet venet Electric brushing unit with built-in vacuum cleaner 12-29...
-
Page 13: Optional Accessories
Optional accessories: Flexible shaft Ø10 Flexible shaft Ø10 of 15 metres for the brushing function of your VENET. Cod. AC3303615 Anti-breakage protector Anti-breakage protector for the shaft and hose of your VENET equipment. Cod. AC3303112 Protective weatherstripping 5 metre protective weatherstrip for manhole. - Page 14 Pack of 3 fine nylon brushes recommended for cleaning circular ducts, with grade 1 dust (low dirt). The brushes range in size from 300mm to 400mm diameter. Cod. CP2103040 Dimensions Cod. 11,81 CP2010530 13,78 CP2010535 15,75 CP2010540 venet venet Electric brushing unit with built-in vacuum cleaner 14-29...
- Page 15 Pack of 3 double row nylon brushes recommended for cleaning square and rectangular ducts. The brushes range in size from 300mm to 400mm diameter.. Cod. CP2104055 Dimensions Cod. 11,81 CP2033040 13,78 CP2033550 15,75 CP2034055 venet venet Electric brushing unit with built-in vacuum cleaner 15-29...
- Page 16 Steps for a correct installation of your VENET: Placement of your VENET: Place your VENET on a smooth, stable surface and apply the wheel brakes.. Connection to the mains: The connection is made by means of the electrical connection cable supplied with the equipment.
- Page 17 Place the other end of the suction hose over the mouth of the adapter. Position the quick release flange and tighten it so that the suction hose and adapter are firmly connected venet venet Electric brushing unit with built-in vacuum cleaner 17-29...
- Page 18 Then pull the cover upwards and remove the filters. Insert the filters and close the lid again. venet venet Electric brushing unit with built-in vacuum cleaner...
-
Page 19: Switching On The Equipment
Selection of the function to be performed: Switching on the equipment: Switch on your VENET by pressing the on/off button. The LED strip will turn green up to the section that corresponds t o t h e minimum speed of the brush rotation, with intensity increases and decreases. - Page 20 Remote control: Pressing the button activates the remote control, leaving the equipment control panel deactivated. The LED strip will turn blue up to the section proportional to the selected rotational speed. venet venet Electric brushing unit with built-in vacuum cleaner 20-29...
- Page 21 Press the stop button on the control unit to end the function being performed by the equipment. The LED strip will turn blue up to the section proportional to the selected rotation speed, indicating that the equipment is paused awaiting orders. venet venet Electric brushing unit with built-in vacuum cleaner 21-29...
- Page 22 Ensure that the brush is not blocked, is of the correct size and is working at a speed appropriate to the type of duct. If the LED strip remains red, this indicates an internal problem with your equipment. Contact TEINNOVA Customer Service. venet venet Electric brushing unit with built-in vacuum cleaner 22-29...
-
Page 23: Equipment Shutdown
Turbine start-up: To activate the suction mode, press the turbine power button. To stop the suction mode, press the same button. DO NOT switch on your VENET if the filter cover is not properly closed. Switching off the equipment: Switch off your VENET by pressing the on/off button. The LED strip will turn off. - Page 24 Steps for a correct shutdown of your VENET: Disconnection from the mains: Disconnect the mains cable and store it in the device holder. Disconnection of the brushing hose: Disconnect the quick connector as shown in the picture. Disconnection of the suction hose from the equipment: Loosen the quick release clamp in order to detach the suction hose from the unit.
- Page 25 Disconnect suction hose from the adapter: Release the quick release clamp so that the suction h o s e can be detached from the adapter. venet venet Electric brushing unit with built-in vacuum cleaner 25-29...
- Page 26 Clean all parts of the machine thoroughly horizontal position (lying down) before loading it for transport. transport. This would result in serious damage to the machine and therefore in a malfunction of the machine. venet venet Electric brushing unit with built-in vacuum cleaner 26-29...
-
Page 27: Maintenance And Care
TEINNOVA has spare parts for all parts of the machine as well as consumables for all the maintenance tasks indicated in this manual. Should you require any parts or consumables, please contact TEINNOVA Customer Service on +34 941 44 50 56. venet venet Electric brushing unit with built-in vacuum cleaner... -
Page 28: Waste Management
Dispose of the materials in the appropriate container or go to your local collection points. Directive 2012/19/EU of 4 July 2012 on waste electrical and electronic equipment (WEEE). venet venet Electric brushing unit with built-in vacuum cleaner 28-29... -
Page 29: Technical Specifications
Features venet venet 230V / 50 - 60Hz 110V / 50 - 60Hz Maximum power of the equipment: 0,7 kW // 0,94 HP Maximum current consumption:: Suction power: 0,27 kW Maximum suction flow rate: 1600 m Maximum depression:... -
Page 30: Guarantee Conditions
In the event of coverage, established in paragraph (1). “TEINNOVA” may replace the product or determine TECAI INNOVA S.L. C/ Las Balsas 16-B, Pol. Ind. Cantabria. 26009 LOGROÑO (La Rioja), España. TEINNOVA reserves the right to make changes to equipment without prior notice... - Page 31 +34 941 25 24 71 Web: www.teinnova.net TECAI INNOVA, S.L., with full responsibility, certifies that the machine model described above complies with all the essential requirements of the following directives: Machinery Directive 2006/42/EC. Directive 2014/30/EU on electromagnetic compatibility, as amended.
