Summary of Contents for TECAi visioair HD

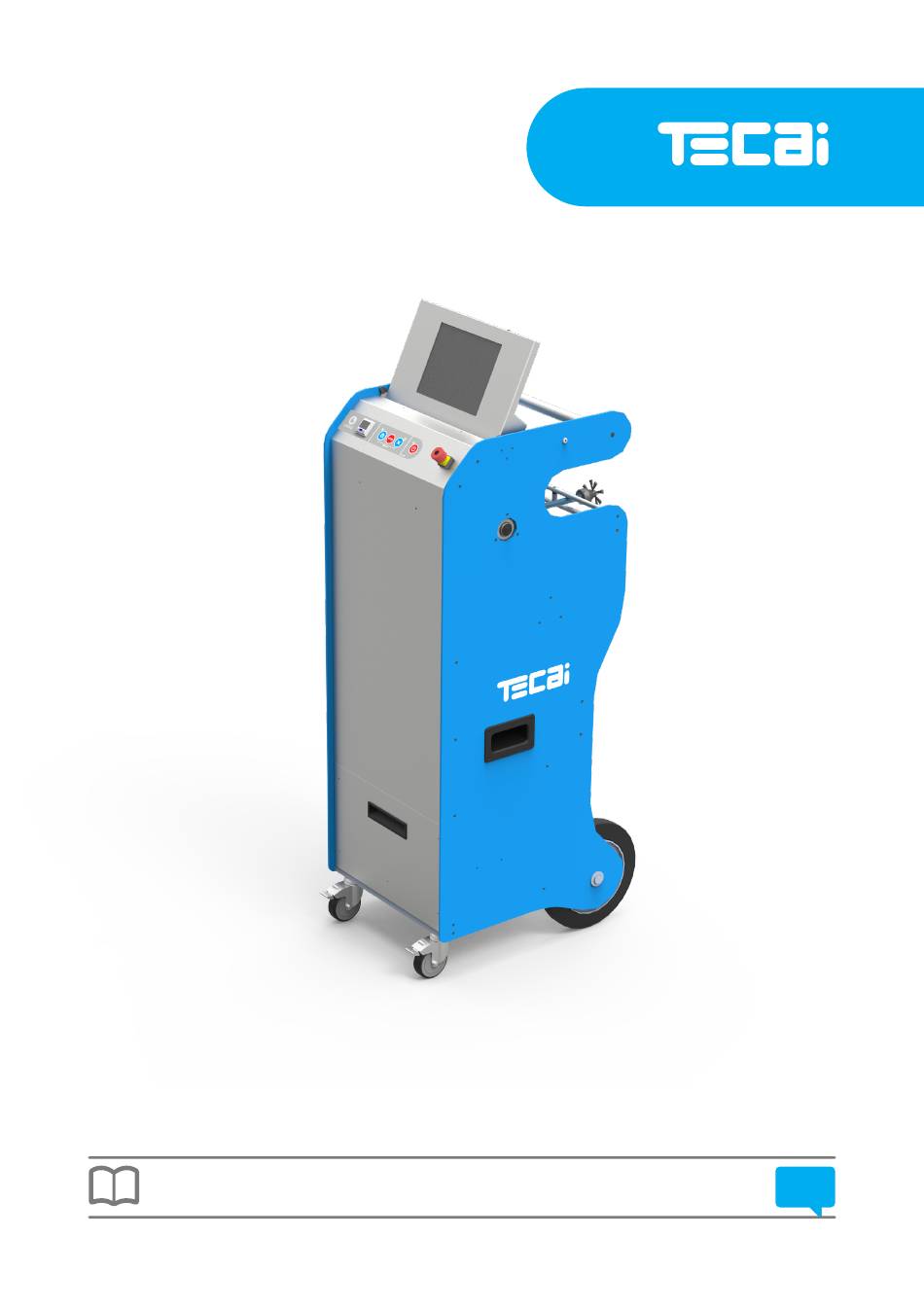

- Page 1 HD Duct cleaning system user manual visioair HD Duct cleaning system...
- Page 2 HD Duct cleaning system...
-
Page 3: Technical Service
We have all kinds of spare parts for your equipment, as well as related accessories. This instruction manual is protected by copyright. We reserve all rights, especially the rights to produce, translate and prepare using electronic systems. visioair HD Duct cleaning system 2-26... - Page 4 5-26 safety warnings 6-26 conditions of use 7-26 know your machine 8-26 control panel 9-26 remote control 11-26 accessories and related equipment 12-26 operating instructions 15-26 visioair HD Duct cleaning system 3-26...
- Page 5 21-26 maintenance and care 22-26 troubleshooting guide 23-26 technical specifications 24-26 guarantee conditions 25-26 declaration of conformity 26-26 visioair HD Duct cleaning system 4-26...
-
Page 6: Symbols Used
This symbol warns you of a situation that may cause damage to property, without causing injury, if the instructions given are not followed properly. IMPORTANT! This symbol alerts you to information about the best way to use the equipment avoiding any possible improper operation. visioair HD Duct cleaning system 5-26... -
Page 7: Safety Warnings
Everybody who uses the VISIOAIR HD equipment must be properly trained. Mechanical protection gloves and an overall should be worn when using the equipment. Make sure your VISIOAIR HD is placed on a flat and stable surface. Apply the wheel brakes to keep the machine stable. -
Page 8: Conditions Of Use
30 meters long from a single access point. It is moved forward by the escape of compressed air from the head. So to operate the VISIOAIR HD, you need to connect it to a compressed air supply system and connect it to the mains. -
Page 9: Know Your Machine
16- Blind nozzle 3- Emergency stop 17- Compressed air inlet 4- VISIOAIR HD compartment 18- Filtration and separation module 5- VISIOAIR HD compartment handle 19- VISIOAIR HD electrical connection 6- Front wheel Brake 20- Compressed air outlet 7- Front wheel... -
Page 10: Control Panel
Blind nozzle blind nozzle. selector Switches the VISIOAIR HD on or off. When the ON/OFF VISIOAIR HD is on, the smart nozzle camera and lighting are VISIOAIR also switched on. AIRE / AIR visioair HD Duct cleaning system 9-26... - Page 11 VISIOPRO HD control panel: Configuration Viewing and recording Showing and man- Help and settings video / pictures aging files Turn off the equipment visioair HD Duct cleaning system 10-26...
-
Page 12: Remote Control Panel
Unlock button This is a safety measure to avoid unwanted operations. You have to keep the unlock button pressed to be able to use the controls. Stop button Machine stop button visioair HD Duct cleaning system 11-26... -
Page 13: Accessories Included
Code. 999330808 Power cable An 8 meter long 1.5 mm cross-section cable, the electrical connection at the machine uses a VISIOAIR HD specific power supply connector. The connection to the mains uses a standard mains plug. Code. 999330053 Rotating nozzle Uses a combined cleaning action, thanks to the slicing effect of the pressurised air and the brushing, to remove all the dirt from the duct. -
Page 14: Optional Accessories
Optional accessories: Remote control This is a controller allowing you to activate and deactivate both the smart nozzle and the blind nozzle, without having to go to the VISIOAIR HD con- trol panel. Code AC3101206 Compressed air supply hose... -
Page 15: Related Equipment
Related equipment: Screw compressor that generates a compressed air flow of 1000 litres at 10 bar. Code TG3330700 visioair HD Duct cleaning system 14-26... - Page 16 (blue) for the machine at the other end. Connect the cable to the mains and then connect it to your Visioair HD. It connects to the Visioair HD turning the blue connector clockwise. Connection to a suitable compressor:...
- Page 17 VISIOAIR HD, unroll the hose with the nozzle you need to carry out the work. Both the smart nozzle hose and the blind nozzle hose are 15 meters long. To rewind the hoses, press and hold the rewind button for the hose that has been used.
- Page 18 Use with a pneumatic tool: This connection is made using a low pressure hose. Connect the low pressure hose to your VISIOAIR HD. Connect the low pressure hose to the inlet connector of the pneumatic tool to be used.
- Page 19 Stop the compressor that is supplying compressed air to your VISIOAIR HD. Once stopped, activate the device that releases the compressed air left in the circuit. Disconnect the low pressure hose from the inlet connector of the pneumatic tool used.
- Page 20 Choosing the function to perform: The control panel allows you to choose the function you want to perform with the VISIOAIR HD. It is a mem- brane panel, so it is operated by pressing the icon for the chosen function. Each icon has a green led that turns on if that function has been chosen.
- Page 21 Stopping your VISIOAIR HD: Once the job is finished, deselect all the control panel functions and the compressor will turn off. Disconnect your VISIOAIR HD from the mains by turning the connector anti-clockwise and pulling it outwards as shown in the figure.
- Page 22 It is not advisable to place the machine on a pallet or similar. The machine must be on a completely flat and horizontal surface. The machine should never be placed in a horizontal position for transport. This could cause serious damage to the machine and prevent it working properly. visioair HD Duct cleaning system 21-26...
-
Page 23: Maintenance And Care
Keep the machine as clean as possible. Keep the equipment in a place protected from the weather. Carry out a periodic check of the filtering system of your VISIOAIR HD. The filtering system and separator are purged automatically. The filtering system includes a differential pressure switch in the upper part of the filter. -
Page 24: Troubleshooting Guide
No image appears A bad camera connection Connect the camera properly Page 8 Damaged smart nozzle Contact Tecai Innova S.L. Technical Services Page 24 Bad Visiogras connection Check that the Visiogras connections are cor- Page 8 rect... -
Page 25: Technical Specifications
Specifications VISIOAIR HD 220V / 50Hz 110V / 60Hz Power supply: 220V / 50Hz Compressed air supply: 800 litres/min (smart nozzle) 28.25 cfm 800 litres/min (rotating nozzle) 28.25 cfm Control: Manual electric-pneumatic with remote control Sound level: < 70 dB... -
Page 26: Guarantee Conditions
“TEINNOVA” reserves the right to overrule the applica- tion of the guarantee when there is no evidence of the limits established in section 1). TECAI INNOVA S.L. C/ Las Balsas 16-B, Pol. Ind. Cantabria. 26006 LOGROÑO (La Rioja), España. TEINNOVA reserves the right to make changes to the equipment without prior notice. -
Page 27: Declaration Of Conformity
Fax: +34 941 25 24 71 Web: www.teinnova.net MODEL: VISIOAIR HD TECAI INNOVA, SL, under its sole responsibility, certifies that the machine model described above complies with all the essential requirements of the following directives: Machines Directive 2006/42/EEC Electromagnetic Compatibility (EMC) Directive - 2014/30/EEC...
