TECAi coilbox User Manual

Cleaning of air conditioning coils
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
coilbox
Cleaning of air conditioning coils
user manual
ESP

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the coilbox and is the answer not in the manual?

Questions and answers

Related Manuals for TECAi coilbox

Summary of Contents for TECAi coilbox

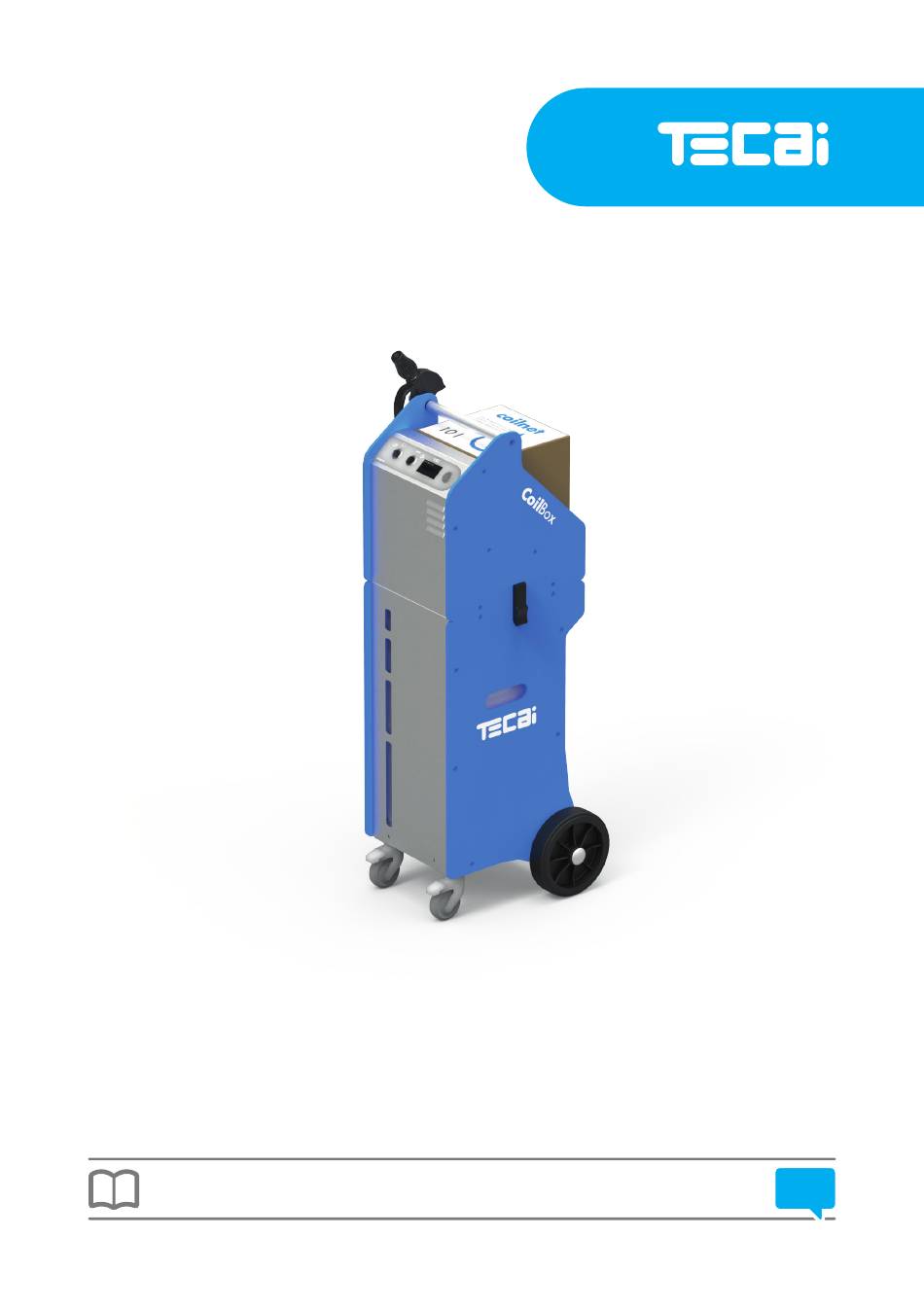

  • Page 1 Cleaning of air conditioning coils user manual...

  • Page 2: Technical Service

    We have all kinds of spare parts for your equipment, as well as related accessories. 941445056 941445056 This instruction manual is protected by copyright. We reserve all rights, especially the rights to produce, translate and prepare using electronic systems. coilbox 2-33 Cleaning of air conditioning coils...
  • Page 3 5-33 safety warnings 6-33 conditions of use 7-33 know your machine 8-33 control panel 9-33 accessories 10-33 operating instructions 14-33 use of chemicals 24-33 coilbox 3-33 Cleaning of air conditioning coils...
  • Page 4 25-33 maintenance and care 25-33 troubleshooting guide 27-33 technical specifications 28-33 guarantee conditions 32-33 declaration of conformity 33-33 coilbox 4-33 Cleaning of air conditioning coils...

  • Page 5: Symbols Used

    This symbol warns you of a situation that may cause damage to property, without causing injury, if the instructions given are not followed properly. IMPORTANT! This symbol alerts you to information about the best way to use the equipment avoiding any possible improper operation. coilbox 5-33 Cleaning of air conditioning coils...

  • Page 6: Safety Warnings

    Make sure all the electrical and liquid connections are correct before starting the equipment. Do not aim the jet from the lances at people. Make sure your COILBOX is placed on a flat and stable surface. Lock the front wheel brakes so the machine stays stable while operating.

  • Page 7: Conditions Of Use

    The COILBOX is a machine for the fast and effective cleaning of air conditioning coils in evaporators and condensers. Unless otherwise stated, the chem- Any other use is strictly prohibited ical product used should be that without the written permission of recommended by the manufac- the manufacturer.

  • Page 8: Know Your Machine

    10- Injection nozzle storage 4- Rear wheels 11- Water and chemical hose 5- Assembly lock 12- Quick connect valve 6- Chemical product 13- Power connector 7- Transport handle 14- Water connector COILBOX WATERBOX coilbox 8-33 Cleaning of air conditioning coils...

  • Page 9: Control Panel

    Water connection selector. Sets the machine in Stop mode, foam mode or rinse mode. Battery control panel. Machine on / off switch. coilbox 9-33 Cleaning of air conditioning coils...

  • Page 10: Accessories Included

    Lance handle. It comes as standard with your COILBOX. Code 330007681 Power cable An 8 meter long 1.5 cable, the electrical connection to the machine is through a COILBOX power supply specific connector. The connection to the mains is through a standard mains plug. Code 999330053 Foam nozzle Green nozzle specially designed for producing foam.
  • Page 11 A 60 cm lance specially for rinsing and foam production. It comes as stand- ard and fits into the COILBOX. Code AC3303300 Spiral hose Spiral hose. It is built into the back of your COILBOX. Code AC3303108 Battery 12V Lithium Battery...

  • Page 12: Optional Accessories

    COILBOX. Code AC6200003 Hose reel for mains water Hose reel which makes it possible to supply water to your COILBOX from a mains water outlet away from the cleaning area. The hose is 15 meters long. Code HE7300200...
  • Page 13 The magic flexible lance consists of a flexible rod that can bend to fit any angle and shape, it has a 90 injection nozzle. Code: AC3303326 Battery and external charger 12V lithium battery and external charger Code 1300LI12V coilbox 13-33 Cleaning of air conditioning coils...
  • Page 14 The COILBOX equipment consists of two separate parts: the COILBOX itself and the WATER- BOX. COILBOX: This is a module for the injection of a chemical product and water for rinsing, which has a connection for mains water. WATERBOX: This is a module with a water tank, it provides water to the COILBOX if there is no mains water available.

  • Page 15: Connection To Mains Power

    Connecting to the mains or using the battery: The COILBOX has a removable battery. It powers the equipment when it is switched on without mains power. When the equipment is connected to the mains, the battery charges. The battery lasts for more than 35 minutes of continuous use.
  • Page 16 Finally, put the plate back into its original position. To do this, you only need to fold up the cover and press it until you hear a "CLICK". CLICK! coilbox 16-33 Cleaning of air conditioning coils...
  • Page 17 Connection to mains water outlet: The COILBOX equipment has two options for water intake. It can be used with a mains water connection or with the tank called WATERBOX. With either option it is necessary to connect the COILBOX water inlet hose.
  • Page 18 Remove the nozzle cap from the Bag in Box as shown in the figure. Failure to remove this cap when making the con- nection between the Bag in Box and your COIL- BOX will result in damage to the machine. coilbox 18-33 Cleaning of air conditioning coils...
  • Page 19 Once the vacuum has been created, the chemical will be drawn in continuously. It is advisable to remove the bag in box when the machine is not in use. coilbox 19-33 Cleaning of air conditioning coils...
  • Page 20 Connecting the lance handle, the lance and the nozzle: Lance handle connection: Your COILBOX has a built in hose. The lance handle should be fitted to the end of this hose as shown in the figure. To allow liquid to flow, you must pull the handle’s trigger.
  • Page 21 Connecting the nozzle: The COILBOX has two nozzles as standard. They are stored in the back of your equipment. The green nozzle is specifically for foaming. The white nozzle is specifically for rinsing. coilbox 21-33 Cleaning of air conditioning coils...

  • Page 22: Function Selection

    Function selection: Your COILBOX has a control panel, which allows you to set the operating mode, as well as to select the water intake. Select this option if you are going to use your COILBOX with mains water.
  • Page 23 Switch off the COILBOX using the ON/OFF switch on the control panel. If you have connected your equipment to mains power, unplug it from the machine by pulling the yellow tab backwards and turning the connector anti-clockwise, as shown in the figure.
  • Page 24 COILNET is the chemical used by your COILBOX equipment during operation. It is espe- cially suited to the cleaning, disinfection and deodorising of air conditioning coils. Its 10 kg bag-in-box format makes transportation and handling clean and safe. It fits per- fectly inside your COILBOX equipment and replacing it is very simple.
  • Page 25 It is not advisable to place the machine on a pallet or similar. The machine must be on a completely flat and horizontal surface. The machine should never be placed in a horizontal position for transport. This could cause serious damage to the machine and prevent it working properly. coilbox 25-33 Cleaning of air conditioning coils...

  • Page 26: Maintenance And Care

    Keep the machine as clean as possible. Keep the equipment in a place protected from the effects of weather and at a temperature of between 0 and 40 Once you have finished using your COILBOX equipment, it is important to clean the equip- ment's liquid circuit by carrying out a rinsing operation. Storing the equipment with chemical in its internal piping can reduce the useful lifetime of the components.

  • Page 27: Troubleshooting Guide

    Check that the chemical level of the Bag-in- Box is correct Incorrect chemical Contact Tecai Innova SL Tecnical Service Page 26 concentration Internal pump not working Contact Tecai Innova SL Tecnical Service Page 26 The machine does not...

  • Page 28: Technical Specifications

    COILBOX/WATERBOX Specifications Power supply Using rechargeable battery Voltage 220 V / 110 V Power 110 W Outlet pressure 7 bar at 2 l/min Reloadable chemical 10 l Bag in box “WATERBOX” water tank 30 l modular. Stainless steel...

  • Page 29: Especificaciones Técnicas

    COILBOX Features 347 x 415 x 400 mm Dimensions 12,5 kg (without Bag-in-box) Weight coilbox 29-33 Cleaning of air conditioning coils...
  • Page 30 WATERBOX Features 436 x 422 x 730 mm Dimensiones 15 kg (empty) Weight coilbox 30-33 Cleaning of air conditioning coils...
  • Page 31 0 C to 30 C) -20 C to 50 C Discharging: Storage: -20 C to 60 C (recommended 0 C to 20 C) Sizes: 95 x 145 x 50 mm Weight: 900g Approx. coilbox 31-33 Cleaning of air conditioning coils...

  • Page 32: Guarantee Conditions

    1). TECAI INNOVA S.L. C/ Las Balsas 16-B, Pol. Ind. Cantabria. 26009 LOGROÑO (La Rioja), España.

  • Page 33: Declaration Of Conformity

    Fax: +34 941 25 24 71 Web: www.teinnova.net MODEL: COILBOX TECAI INNOVA, SL, under its sole responsibility, certifies that the machine model described above complies with all the essential requirements of the following directives: Machinery directive 2006/42/CEE Electromagnetic Compatibility (EMC) Directive - 2014/30/CEE...
