THIS TECHNICAL MANUAL HAS BEEN DEVELOPED FOR AND
INTENDED TO BE USED BY A QUALIFIED TECHNICIAN
WORKING FOR AN AUTHORIZED KI MOBILITY DEALER.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Tyke and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ki Mobility Tyke

Summary of Contents for Ki Mobility Tyke

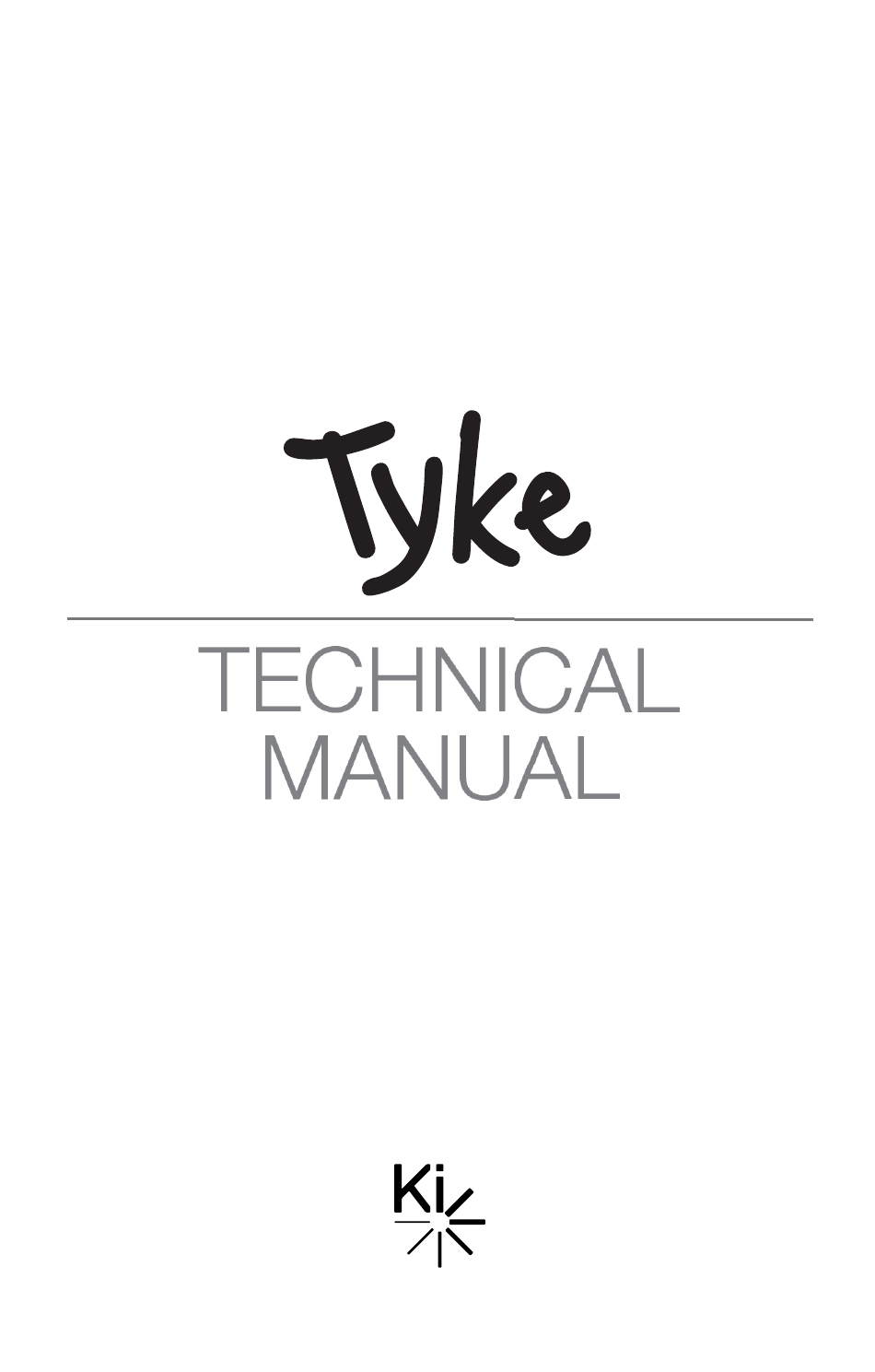

  • Page 1 THIS TECHNICAL MANUAL HAS BEEN DEVELOPED FOR AND INTENDED TO BE USED BY A QUALIFIED TECHNICIAN WORKING FOR AN AUTHORIZED KI MOBILITY DEALER.
  • Page 2 This technical manual is designed to aid in the different procedures that may be needed for the Tyke seating system. This technical manual does not replace, but aids the user instruction manual, adjustment guides and instructions. The procedures shown in this technical manual should only be performed by an Assistive Technology Practitioner (ATP) or clinical professional trained to do wheelchair repairs, adjustments and retrofits.

  • Page 3: Table Of Contents

    Table of Contents Tools........................ 3 Adapter Plate Direction and Center of Gravity..........4 Tyke Seating System Direction ............... 5 Replacing Rear Wheels ................... 7 Replacing Front Wheels .................. 7 Replacing Caster Fork ..................8 Replacing Swivel Lock ..................8 Replacing the Tilt Knob Assembly ..............9 Replacing the Tilt Mechanism.................

  • Page 4: Tools

    Tools Please see the list below to identify the tools needed throughout this tech manual. Always check tools to ensure the ends are not stripped and that the tool can perform it’s function properly without damaging any parts or hardware on the chair. Tools Needed •...

  • Page 5: Adapter Plate Direction And Center Of Gravity

    Adapter Plate Direction and Center of Gravity x:panda Facing Forward This activity requires a 6mm Allen wrench. 1. Place adapter plate in Position 1 if seat depth of x:panda is less than 9.75". 2. Place adapter plate in Position 2 if seat depth of x:panda is greater than 9.75". Screw Screw Locations...

  • Page 6: Tyke Seating System Direction

    Transit Hook Label A x:panda shape size infant may be mounted in a reverse (parent) or forward facing direction on a Tyke Size 1 mobility base. The direction of the Adapter Plate and Tilt Stop plate tilt must be reversed according to the drawings below.
  • Page 7 Tilt Stop Plate Adapter Plate Screw Locations Reposition Tilt Stop Plate as shown for Forward Configuration Test the Tyke 1 tilt mechanism to confirm the x:panda shape size 1 infant seating system will tilt approximately 35 degrees posterior and 0 degrees anterior.

  • Page 8: Replacing Rear Wheels

    Replacing Rear Wheels Rotate rear wheel until release clip faces upward. 1. Lock rear wheels. 2. Press release clip (A) down. 3. Pull rear wheel of the axle. Replacing Front Wheels 1. Place frame on it’s side. 2. Remove axle with Allen wrench. 3.

  • Page 9: Replacing Caster Fork

    Replacing Caster Fork 1. Remove the caster wheel. 2. Loosen and remove the caster fork mounting screw. 3. Replace caster fork and reinstall caster fork mounting screw. Replacing Swivel Lock 1. Remove caster wheel and caster fork. 2. Slide swivel lock (A) off the front end of the frame and replace. 3.

  • Page 10: Replacing The Tilt Knob Assembly

    Replacing the Tilt Knob Assembly 1. Using a sharpe edge, carefully pry up the cover cap. 2. Remove internal nut and washer retaining the tilt knob. 3. Remove knob and cable retainer. 4. Slide off cable retainer and cable the internal bushing. 5.

  • Page 11: Adjusting The Rear Suspension

    2. Use markings (A) on the frrame to confirm suspension settings are the same. Replacing the Wheel Lock 1. Turn the Tyke over and place sideways against an object such as a wall. 2. Remove the frame bolt and rear axle.

  • Page 12: Storage Tray

    Storage Tray 1. Center tray. Center tray requires no tools to install. Ventilator Mount (Pulmonetics LTV) 1. Open mounting hardware and mount vertically and in the center of the rear cross tube. If using a storage tray, make sure to center to ventilator mount.

  • Page 13: O2 Holder

    O2 Holder 1. Mount frame hardware to frame. 2. Mount adapter hardware to the frame hardware at desired vertical angle. 3. Mount O2 holder to adapter hardware and set height and position of the O2 holder.
  • Page 14 Ki Mobility 5201 Woodward Drive Stevens Point, Wisconsin 54481 715-254-0991 www.kimobility.com DCN1089.1...
