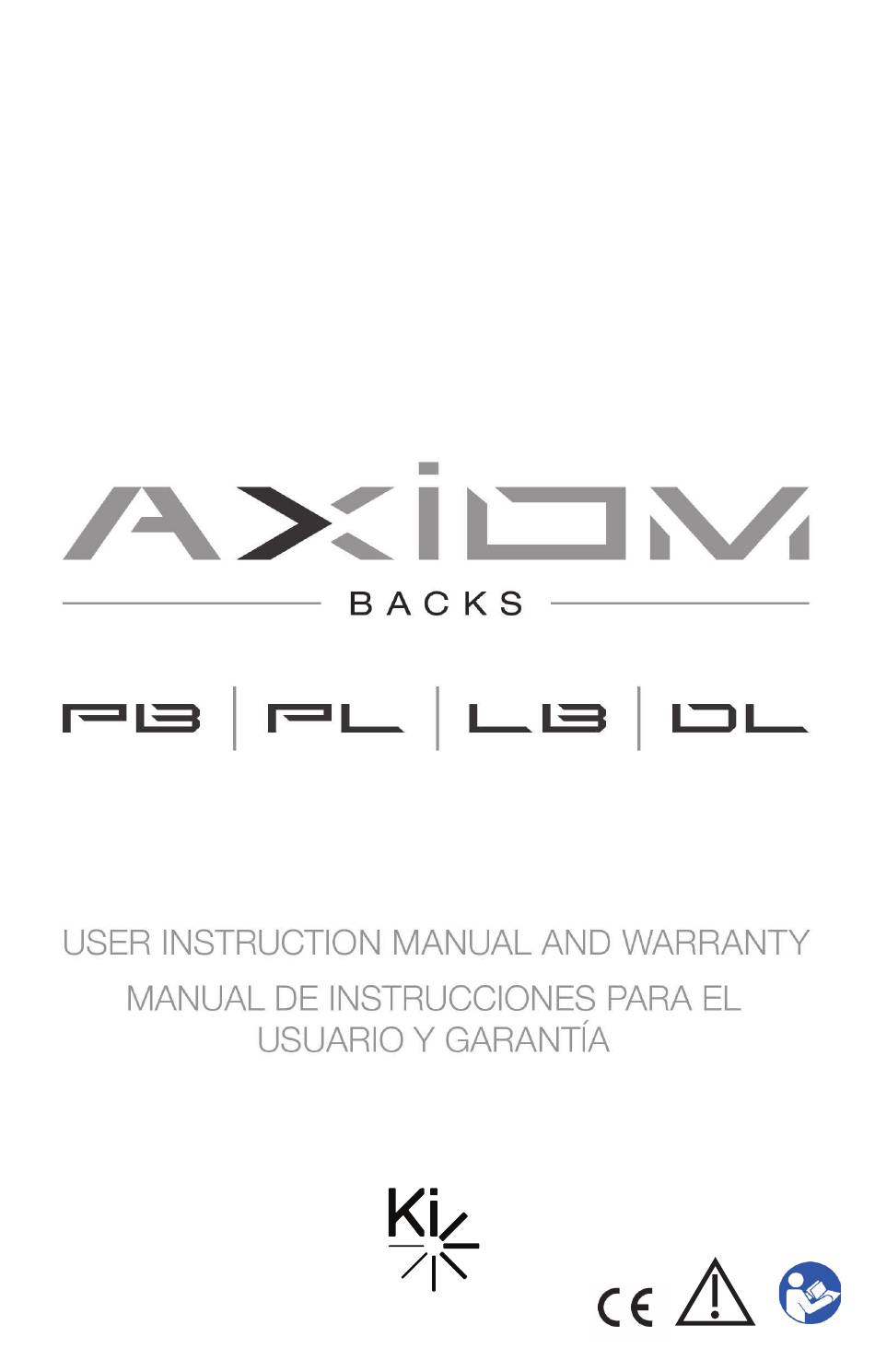

  • Page 1 2023-05-09...
  • Page 2 Ki Mobility recommends training by an Assistive Technology Professional (ATP) or other competent clinical or technical professional in the safe use of this product prior to use.
  • Page 3: Table Of Contents

    Set-Up, Adjustment and Care ............9 Detaching and Reattaching Backrest Assembly........9 Pushing or Lifting ................. 12 Axiom Back Transit Safety..............13 Maintenance ..................14 Cleaning....................15 Sanitizing....................16 Reassembling Your Axiom Back After Cleaning ........16 KI MOBILITY LIMITED WARRANTY..........17...
  • Page 4: Axiom Back Features

    Axiom Back Axiom Back Features Fig. 1 Cover Foam Base Shell Tall Posterior Posterior Lateral / Lateral Deep Lateral MAXIMUM USER WEIGHT: 300 lbs (136 kg)
  • Page 5: Intended Use

    Report any serious events and/or injuries to Ki Mobility and, if required by local regulation, the competent health authority where the user and/or other person legally reside.
  • Page 6: Symbol Glossary

    D. Symbol Glossary SYMBOL DEFINITION Indicates the medical device manufacturer. Date of manufacture (YEAR/MM/DD). If presented on packaging, medical device or in the instructions for use, this symbol indicates the need for the user to read and understand cautions or warnings to avoid damage or injury. Indicates the item is a medical device.
  • Page 7: Check Your Skin Daily

    WARNING: Do not use or install this Axiom Back without first reading and understanding this manual. Please contact your authorized Ki Mobility supplier or your clinician if you are unable to understand the Warnings and Instructions. Failure to do so could result in serious injury or death.
  • Page 8: Positioning Belts Or Harnesses

    Ki Mobility recommends the use of positioning belts. Positioning belts can reduce the risk of falling from your wheelchair. Positioning belts, such as pelvic positioning belts and anterior trunk harnesses and straps, are designed to assist, retain and support proper positioning and posture in the wheelchair.
  • Page 9: Protecting Your Axiom Back

    H. Protecting Your Axiom Back Avoid prolonged exposure to adverse environmental conditions. This may include excessive exposure to sunlight and temperatures, either hot or cold. This can result in the degradation of the performance of your Axiom Back. WARNING: Failure to protect your Axiom Back may lead to changes that can affect your skin integrity, resulting in serious injury or death.
  • Page 10: Set-Up, Adjustment And Care

    Set-Up, Adjustment and Care A. Detaching and Reattaching Backrest Assembly Identify the Hardware Type FTX - Not Removable BTX Removal 1. BTX - Remove safety lock pin (Fig.3:A). Fig. 3 2. Set latch mechanism to the release position (Fig. 4). Locked Released Fig.
  • Page 11 A. Detaching and Reattaching Backrest Assembly (Continued) 3. Pull forward and remove with the lower slot coming out first. See Fig. 5. Fig. 5 BTX Reinstall 1. Reinstall the back. See Fig. 6. Fig. 6 2. Latch Test: Visually verify latch is locked (Fig. 4). Pull up and forward to assure the back is latched.
  • Page 12 A. Detaching and Reattaching Backrest Assembly (Continued) DEX Removal 1. Set latch mechanism to the release position (Fig. 8). Locked Released Fig. 8 2. Remove the back by lifting up the strap. See Fig. 9. Fig. 9 DEX Reinstall 1. Reinstall the back. See Fig. 10. Fig.
  • Page 13: Pushing Or Lifting

    A. Detaching and Reattaching Backrest Assembly (Continued) 2. Latch Test: Visually verify latch is locked (Fig. 8). Pull up to assure the back is latched. See Fig. 11. Fig. 11 B. Pushing or Lifting WARNING: Do not use the Axiom Back to lift or push the wheelchair. 1.
  • Page 14: Axiom Back Transit Safety

    C. Axiom Back Transit Safety The Axiom Back has been tested according to the dynamic test requirements of ANSI/RESNA WC-4, Section 20: Wheelchair seating systems for use in motor vehicles or ISO 16840-4 Wheelchair seating - Part 4: Seating systems for use in motor vehicles. A complete system of wheelchair frame, seating, wheelchair tie-down and occupant restraint systems and a properly equipped motor vehicle, that have all complied with the standards mentioned in this section, should be in place before using an Axiom Back in a wheelchair that is used as a seat in a motor...
  • Page 15: Maintenance

    WARNING: If you find any abnormalities, such as the foam breaking down or damage to the hardware or fasteners, discontinue the use of this product immediately and consult with your Authorized Ki Mobility Supplier. Failure to do so can affect your skin integrity, resulting in serious injury or death.
  • Page 16: Cleaning

    E. Cleaning 1. Axiom Back Cover NOTE: Drying with heat may cause shrinking that affects the covers fit and function. ® a. Remove the cover from Axiom Back by detaching the Velcro . Unzip the zipper on the bottom of the cover. b.
  • Page 17: Sanitizing

    F. Sanitizing Sanitizing step should be done in addition to regular cleaning: a. Remove and launder cover according to steps 1a., 1b., and 1c. above. b. Machine wash cover only in hot water (60°C). c. Drip and tumble dry on No Heat. d.
  • Page 18: Ki Mobility Limited Warranty

    This warranty does not apply to punctures, tears, or burns. B. For 6 Months Ki Mobility warrants the cushion to be free from defects in materials and workmanship for a period of 6 months. This limited warranty applies to: 1. Removable covers For a period of 6 months from the date of purchase, provided normal use, should a defect in materials or workmanship occur, Ki Mobility will, at its option, repair or replace it without charge.
  • Page 19 2023-05-09...
  • Page 20 Ki Mobility aconseja capacitarse con un profesional de tecnologías asistivas (ATP) u otro profesional clínico o técnico competente en la seguridad de esta silla antes de su uso.
  • Page 21 Desenganchar y reinsertar del conjunto del espaldar ......27 Empujar o levantar ................30 Seguridad del espaldar Axiom durante el viaje........31 Manutención ..................32 Limpieza....................33 Desinfección ..................34 Rearmado de su espaldar Axiom después de limpiarlo......34 GARANTÍA LIMITADA DE KI MOBILITY .......... 35...
  • Page 22: Características Del Espaldar Axiom

    Espaldar Axiom Características del espaldar Axiom Fig. 1 Funda Base de Gomaespuma Armazón Medio Alto Bajo Posterior Posterior Lateral / Lateral Lateral Profundo PESO MÁXIMO DEL USUARIO: 300 lbs (136 kg)
  • Page 23: Uso Previsto

    Informe de cualquier evento grave o lesión a Ki Mobility y, si así lo exige la normativa local, a la autoridad sanitaria competente del lugar donde reside legalmente el usuario u otra persona.
  • Page 24: Glosario De Símbolos

    D. Glosario de símbolos SÍMBOLO DEFINICIÓN Indica al fabricante del dispositivo médico. Fecha de fabricación (YEAR/MM/DD). Si se presenta en el empaque, en el dispositivo médico o en las instrucciones de uso, este símbolo indica la necesidad de que el usuario lea y comprenda las precauciones o advertencias a fin de evitar daños o lesiones.
  • Page 25: Revise Su Piel Diariamente

    ADVERTENCIA: No utilice ni instale este espaldar Axiom sin primero leer y comprender el presente manual. Póngase en contacto con su proveedor autorizado de Ki Mobility o con su médico si no puede entender las Advertencias e Instrucciones. Si no lo hace, podría sufrir lesiones graves o la muerte.
  • Page 26: Cinturones O Arneses De Posicionamiento

    Ki Mobility recomienda el uso de cinturones de posicionamiento. Los cinturones de posicionamiento pueden reducir el riesgo de caerse de su silla de ruedas.
  • Page 27: Proteger Su Espaldar Axiom

    H. Proteger su espaldar Axiom Evite la exposición prolongada a condiciones ambientales adversas. Esto puede incluir una exposición excesiva a la luz solar y a temperaturas, ya sea frías o calientes. Esto puede dar como resultado la disminución del rendimiento de su espaldar Axiom. ADVERTENCIA: No proteger el espaldar Axiom puede provocar cambios capaces de afectar la integridad de su piel, lo que puede provocar lesiones graves o la muerte.
  • Page 28: Configuración, Regulación Y Cuidado

    Configuración, regulación y cuidado A. Desenganchar y reinsertar del conjunto del espaldar Identifique el tipo de pernos u otros elementos FTX - No Removible BTX Retire 1. Retire el pasador de bloqueo de seguridad (Fig. 3:A). Fig. 3 2. Coloque el mecanismo del pestillo en la posición de liberación (Fig. 4). Enganchado Liberación Fig.
  • Page 29 A. Desenganchar y reinsertar del conjunto del espaldar (Continuación) 3. Tire hacia adelante y quítelo de modo que la ranura inferior salga primero. Ver Fig. 5. Fig. 5 BTX Vuelva a instalar 1. Vuelva a instalar el espaldar. Ver Fig. 6. Fig.
  • Page 30 A. Desenganchar y reinsertar del conjunto del espaldar (Continuación) DEX Retire 1. Coloque el mecanismo del pestillo en la posición de liberación (Fig. 8). Enganchado Enganchado Liberación Fig. 8 2. Retire el espaldar levantando la correa. Ver Fig. 9. Fig. 9 DEX Vuelva a instalar 1.
  • Page 31: Empujar O Levantar

    A. Desenganchar y reinsertar del conjunto del espaldar (Continuación) 2. Prueba de pestillo: Verifique visualmente que el mecanismo del pestillo esta enganchado(Fig. 8). Tire hacia arriba y hacia adelante para asegurarse de que el espaldar esté enganchado. Ver Fig. 11. Fig.
  • Page 32: Seguridad Del Espaldar Axiom Durante El Viaje

    C. Seguridad del espaldar Axiom durante el viaje El espaldar Axiom se ha probado de acuerdo con los requisitos de pruebas dinámicas de ANSI/RESNA WC-4, Capítulo 20: Sistemas de asientos para sillas de ruedas para su uso en vehículos automotores o ISO 16840-4 Asientos para sillas de ruedas - Parte 4: Sistemas de asientos para uso en vehículos automotores.
  • Page 33: Manutención

    Ki Mobility autorizado. No hacerlo podría afectar la integridad de su piel, lo que puede provocar lesiones graves o la muerte.
  • Page 34: Limpieza

    E. Limpieza 1. Funda del espaldar Axiom NOTA: Secar con calor puede provocar un encogimiento que afecte el ajuste y función de la funda. ® a. Retire la funda del espaldar Axiom desprendiendo el Velcro . Abra la cremallera de la parte inferior de la funda.
  • Page 35: Desinfección

    F. Desinfección El paso de desinfección debe hacerse además de la limpieza regular: a. Retire y lave la funda de acuerdo con los pasos 1a. 1b., y 1c. anteriores. b. Lave la funda en lavarropas solo en agua caliente (60 °C). c.
  • Page 36: Garantía Limitada De Ki Mobility

    Durante un período de 6 meses a partir de la fecha de compra, siempre que se utilice normalmente, en caso de que se produzca un defecto en los materiales o la mano de obra, Ki Mobility, a su elección, la reparará o reemplazará sin cargo alguno. Esta garantía no se aplica a perforaciones, rasgaduras o quemaduras.
  • Page 37 Ki Mobility 5201 Woodward Drive Stevens Point, Wisconsin 54481 715-254-0991 Authorized EU Representative: Etac Supply Center AB Långgatan 12 33233 Anderstorp Sweden www.kimobility.com DCN0672.3...
