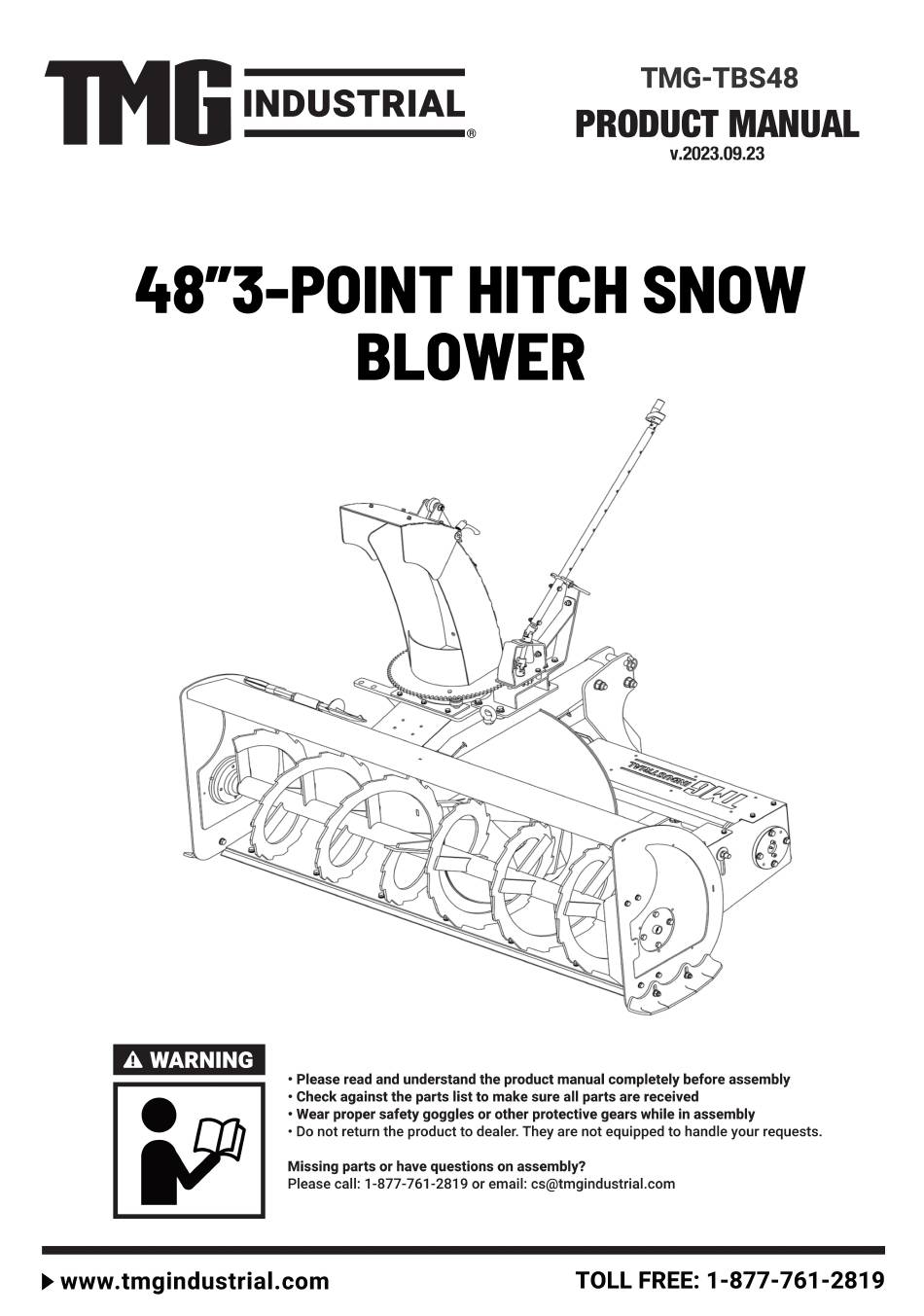

TMG -TBS48 Product Manual

48" 3-point hitch snow blower
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TMG-TBS48 and is the answer not in the manual?

Questions and answers

Related Manuals for TMG TMG-TBS48

Summary of Contents for TMG TMG-TBS48

  • Page 2: Table Of Contents

    TABLE OF CONTENTS SAFETY INSTRUCTIONS ............................2 SAFETY RULE ................................3 PARTS DESCRIPTION AND FUCTION ........................9 PRODUCTS SPECIFICATIONS ........................... 8 UNPACKING & ASSEMBLY ............................11 CONNECTING TRACTOR ............................16 LUBRICATION POINTS SUMMARY ......................... 18 OPERATING ESSENTIAS ............................21 OPERATING FINISH..............................22 MAINTENANCE SCHEDULE ............................

  • Page 3: Safety Instructions

    SAFETY INSTRUCTIONS Before operating the Snow Blower read the following safety instructions. Failure to comply with these warnings may result in serious injury or death. SAFETY DECALS 2/44 www.tmgindustrial.com Toll Free:1-877-761-2819...
  • Page 4 1/50 3/44 www.tmgindustrial.com Toll Free:1-877-761-2819...

  • Page 5: Safety Rule

    SAFETY RULE  WARNING Careful operation is your best assurance against an accident. All operators, no matter how much experience they may have, Should carefully read this manual and other related manuals before operating the power machine and this implement. - Thoroughly read and understand the “Safety Label”...
  • Page 6  SAFETY PRECAUTIONS FOR CHILDREN Tragedy can occur if the operator is not alert to the presence of children, Children generally are attracted to implements and their work Never assume children will remain where you last saw them. Keep children out of the work area and under the watchful eye of a responsible adult. Be alert and shut the implement and tractor down if children enter the work area.
  • Page 7  OPERATION Do not put hands or feet near, under or inside rotating parts. - Exercise extreme caution when operating on or crossing gravel drives, walks or roads. Stay alert for hidden hazards or traffic. Do not carry passengers. - Never tolerate bystanders in the working zone. Never use an accessory in the direction of by standers, it might throw gravel or debris that can hurt people or damage property.
  • Page 8  PRACTICE SAFE MAINTENANCE Understand procedure before doing work. Refer to the Operator’s Manual for additional information - Work on a level surface in a clean dry area that is well-lit. - Lower implement to the ground and follow all shutdown procedures before leaving the operator’s seat to Perform maintenance.
  • Page 9 Use Seat Belt and ROPS  Recommends the use of a CAB or roll-over-protective- structures (ROPS) and seat belt in almost all power machines. Combination of a CAB or ROPS and seat belt will reduce the risk of serious injury or death if the power machine should be upset.

  • Page 10: Parts Description And Fuction

    PARTS DESCRIPTION AND FUCTION 8. Push rod as-hand 2. Outfeed assembly 7. Handle as-hand 3. Pressboard assembly 9. Gearbox as-rear 4.Snow shovel assembly 1. Bucket body assembly 14. PTO Drive Shaft 12. Drive as-torque limiter 5. Tensioner as 6. Fan assembly 11.

  • Page 11: Products Specifications

    PRODUCTS SPECIFICATIONS 3-Point Tractor Snow Blower SNOWBLOWER TMG-TBS48 Shipping weight 707lbs(321kg) Operating weight 592lbs(268.7kg) DIMENSIONS Overall length 42.6in（1082mm） Overall width 51.2in（1300mm） Overall height 60in(1524mm) Cutting width 47.2 in (1200 mm) Cutting height 24.8in（630mm） Impeller diameter 20in（508mm） Impeller housing depth 7.87in（200mm）...
  • Page 12 Tractor hitch CAT1 Number of blades on impeller Chute rotation Manual Chute rotation degrees 360 degrees Discharge chute diameter 8.66 in（220mm） Adjustable chute deflector Adjustable skid shoes Replaceable cutting edge Hitch system Quick hitch system (ASABE) 11/44 www.tmgindustrial.com Toll Free:1-877-761-2819...

  • Page 13: Unpacking & Assembly

    UNPACKING & ASSEMBLY After unpacking, check the following components www.tmgindustrial.com www.tmgindustrial.com Toll Free:1-877-761-2819 Toll Free:1-877-761-2819 12/44...
  • Page 14 All numbers are not part numbers in the drawings. For correct part numbers, see explosive diagram. DESCRIPTION DESCRIPTION Bucket body assembly Full thread bolt Outfeed assembly Full thread bolt Push rod as-hand Plain washer Handle as-hand( rocker) Spring washer Handle as-hand( base) PTO Drive Shaft (with Clutch) Pad block Lower suspension quick change sleeves...
  • Page 15 1. Install the hand push rod (For controlling the angle of the top of the snow outlet) Installation steps: H1 (Cylinder body welding parts) and H2 (Push rod welding parts) has been assembled, So，The step1 Install the hand push rod on the snow outlet, and then install the handle (H3) on the manual cylinder welding, and then secure the Spacer sleeves (H4), Plain washers (H5), Full-thread hexagon bolts M12*70 (H7) and Locknuts M12(H6) on push rod welding parts (H1).
  • Page 16 2. Install the Plate as-stop Installation steps: 1. Install the discharge port on the snow blower, unscrew the bolt on the machine first, remove one of the Limit plate of snow funnel, align the discharge port with the bayonet of the snow blower, and fix the limit plate with Plain washers（C7）, Full-thread hexagon bolts M8*20 (C9) and Spring washers（C8）...
  • Page 17 3. Install the hand push rod Installation steps: Locknuts M8（G17）, Plain washers φ8（G19 ）and Full-thread hexagon bolts M8*40（ G23）. 1. I nstallation of hand push rod, when you receive the parcel, you need to install the push rod by yourself, the push rod will be fixed with 2.Importance: All bolts are locked in place without shaking.
  • Page 18 4. Install the hand push rod (Control of snow outlet left and right steering) Installation steps: 1. Attach the hand push rod, first install fix the base plate of the hand push rod respectively with Full-thread hexagon bolts (G30), Spring washers (G28), Plain washers (G27) and Backing block (G14) to secure the remaining two holes in the base plate.

  • Page 19: Connecting Tractor

    CONNECTING TRACTOR About the tractor attachment Note: This Snow Blower is featured with a hitch design compatible with CAT.I. It can be attached to both the front and rear of a tractor. Upper Hook-Up： Attach Top center link to the snow blower with Hitch pin-Upper (#7) and pin (#5). Lower Hook-Up：...
  • Page 20 CHECK BEFORE OPERATING Check before operating Before operating the machine, check the following: 1. Check that the SNOW BLOWER is properly attached to the tractor by inserting the safety latch. 2. Check that moving parts are free of any debris or tangled material. 3.

  • Page 21: Lubrication Points Summary

    LUBRICATION POINTS SUMMARY 4 lubrication points Gearbox oil - SAE 90, others - grease www.tmgindustrial.com Toll Free:1-877-761-2819 20/44...
  • Page 22 PTO INSTALLATION In some cases it will be necessary to shorten the PTO assembly to match your particular tractor. The following procedure should be used: 1.Check that the driveline is the correct length . The minimum coupling length (overlap) must be no less than 150mm (6 inches) in each work position. The driveline travel must still be about 25 mm (1 inch) in the maximum coupling (overlap) position .
  • Page 23 OPERATION 1.SNOW REMOVAL METHODS When removing snow, do not use the snow blower as a dozer blade to push snow. Let the snow blower work its way through deep drifts. If the speed of your tractor is too fast, the snow blower may become overloaded and clog.

  • Page 24: Operating Finish

    OPERATING FINISH WARNING: Provide adequate blocking before working under the snow blower when in the raised position. 1. Park the machine on dry, level ground. Turn ignition to OFF and remove the key. 2. Allow the engine to idle for 5 minutes to cool. 3.

  • Page 25: Maintenance Schedule

    MAINTENANCE SCHEDULE Perform maintenance procedures at time shown or hour interval, whichever comes first. Inspection unit list Inspection time Grease Gearbox Regular refueling Every 50 hours of Grease PTO shaft (if equipped) operation or weekly Every 50 hours of Check condition of bucket teeth operation or weekly Every 100 hours of Clean machine—remove any entangled material or debris build-...

  • Page 26: Troubleshooting

    TROUBLESHOOTING Problem Solution Operate at full throttle ( 540 PT0 rpm ) , check PTO speed and tractor engine Not Throwing Snow Shift transmission to a lower gear Discharge chute is plugged . Clear chute Excessive Vibration Discharge fan blade is bent or missing Gearbox Noisy Check oil level Auger is Not Turning...

  • Page 27: Exploded View & Parts List

    EXPLODED VIEW & PARTS LIST 1. Snow blower www.tmgindustrial.com Toll Free:1-877-761-2819 26/44...
  • Page 28 PARTS LIST PART NO. DESCRIPTION PART NO. DESCRIPTION Bucket body assembly Push rod as-hand Outfeed assembly Gearbox as-rear Pressboard assembly Stirring assembly Bearing block as-drive Snow shovel assembly shaft Tensioner as Drive as-torque limiter Fan assembly Roller chain Handle as-hand PTO Drive Shaft (with Clutch) www.tmgindustrial.com Toll Free:1-877-761-2819...
  • Page 29 2. Bucket body assembly www.tmgindustrial.com 28/44 Toll Free:1-877-761-2819...
  • Page 30 PARTS LIST PART NO. DESCRIPTION PART NO. DESCRIPTION Plain washers φ20 Hood weldment Blade Hexagon head bolts M20*120 skid plates Locknuts M20 Left side of suspension plate Full-thread hexagon bolts M20*50 Right side of suspension plate Plain washers 8 Suspension sleeve Full-thread hexagon bolts M8*20 Hitch pin-Upper Spring washers 8...
  • Page 31 3. Outfeed assembly PARTS LIST PART NO. DESCRIPTION PART NO. DESCRIPTION Large plain washers φ10 Welding parts of snow discharge cylinder Flap weldment Split pins 4*32 Back panel veneer HSCS-Countersunk M6*16 Plain washers φ6 Flap cover plate Install pin Locknuts M6 www.tmgindustrial.com 30/44 Toll Free:1-877-761-2819...
  • Page 32 4. Pressboard assembly PARTS LIST PART NO. DESCRIPTION PART NO. DESCRIPTION Press plate weldment Full-thread hexagon bolts M6*16 pulley Plain washers φ8 Large plain washers φ12 Spring washers φ8 Extra Large plain washer φ6 Full-thread hexagon bolts M8*20 Spring washers φ6 www.tmgindustrial.com 31/44 Toll Free:1-877-761-2819...
  • Page 33 5.Snow shovel assembly PARTS LIST PART NO. DESCRIPTION PART NO. DESCRIPTION Rubber T1 Locknuts M6 Rubber T2 Full-thread hexagon bolts M5*20 Plain washers φ5 www.tmgindustrial.com Toll Free:1-877-761-2819 33/44...
  • Page 34 6. Tensioner as PARTS LIST PART NO. DESCRIPTION PART NO. DESCRIPTION Tighten axle Plain washers φ16 Chain wheel Large plain washers φ16 Deep groove ball bearing 6004-2RS Hexagon Nuts M16 Elastic retaining ring 42A for holes Spring washers φ16 34/44 www.tmgindustrial.com Toll Free:1-877-761-2819...
  • Page 35 7. Fan assembly PARTS LIST PART NO. DESCRIPTION PART NO. DESCRIPTION Fan weldment Full-thread hexagon bolts M12*25 Fan gasket Spring washers φ8 Spring washers φ12 Full-thread hexagon bolts M8*20 35/44 www.tmgindustrial.com Toll Free:1-877-761-2819...
  • Page 36 8. Handle as-hand www.tmgindustrial.com Toll Free:1-877-761-2819 36/44...
  • Page 37 PARTS LIST PART NO. DESCRIPTION PART NO. DESCRIPTION Extra Large plain washers φ8 Handle mount welded Positioning sleeve Locknuts M8 Rotary spacer Welding of eyebolt Plain washers φ8 Link bar Gear Full-thread hexagon bolts M8*50 Hexagon socket screws Pinion clamp welding with flat point M6*10 Hexagon socket screws Cardan SQR.G14...
  • Page 38 8. Push rod as-hand PARTS LIST PART NO. DESCRIPTION PART NO. DESCRIPTION Cylinder body welding parts Plain washers φ12 Push rod welding parts Locknuts M12 Handle M10*1.25*25 Full-thread hexagon bolts M12*70 Spacer sleeves 38/44 www.tmgindustrial.com Toll Free:1-877-761-2819...
  • Page 39 PART NO. DESCRIPTION PART NO. DESCRIPTION Full-thread hexagon bolts M12*45 PTO Guard Plain washers φ12 Plain washers φ12 Locknuts M12 Spring washers φ12 Full-thread hexagon bolts Gear box KF038R100J0200 (TMG) M12*20 Welding of shield bottom plate www.tmgindustrial.com 39/44 Toll Free:1-877-761-2819...
  • Page 40 11.Stirring assembly PARTS LIST PART NO. DESCRIPTION PART NO. DESCRIPTION Stir up welding parts Chain wheel Agitating bearing seat Key 8*30 Stirring shaft end bushing Plain washers φ12 Deep groove ball bearing Spring washers φ12 Elastic retainer ring for hole 80A Full-thread hexagon bolts M12*30 www.tmgindustrial.com 40/44...
  • Page 41 12.Bearing block as-drive shaft PARTS LIST PART NO. DESCRIPTION PART NO. DESCRIPTION Drive shaft bearing seat Grease nipples M6 Plain washer φ12 Spring washers φ8 Hexagon socket head cap screws Full-thread hexagon bolts M12*40 M8*12 Locknuts M12 Deep groove ball bearing 6305-RZ 41/44 www.tmgindustrial.com Toll Free:1-877-761-2819...
  • Page 42 13. Drive as-torque limiter PARTS LIST PART NO. DESCRIPTION PART NO. DESCRIPTION Clutch drive shaft welding Full-thread hexagon bolts M6*35 Chain wheel Locknuts M6 Gearbox connecting sleeve Sprocket bushing Key 8*32 Rubber Deep groove ball bearing 61905- Grease nipple M8*1 Plain washer φ6 Elastic retainer ring for hole 42A 42/44...
  • Page 43 14. Roller chain PARTS LIST PART NO. DESCRIPTION Roller chain GB/T 1243-12A-1*86 www.tmgindustrial.com 43/44 Toll Free:1-877-761-2819...
  • Page 44 15. PTO Drive Shaft (with Clutch) PARTS LIST PART NO. DESCRIPTION PTO Drive Shaft (with Clutch) www.tmgindustrial.com Toll Free:1-877-761-2819 44/44...
