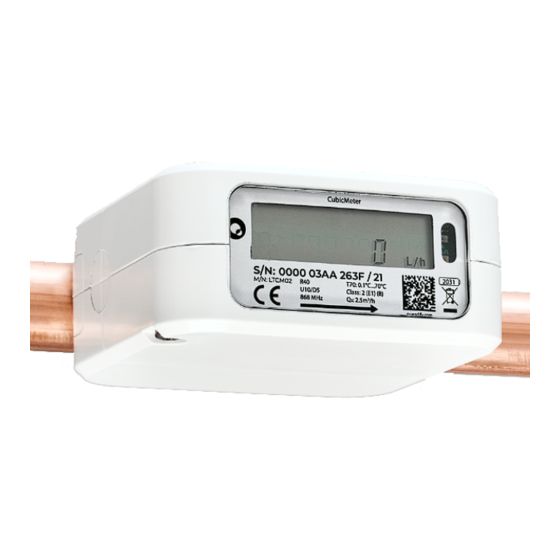

- Page 1 Manual & Datasheet CubicMeter LTCM02-X Non-invasive water meter & leakage detector Easy-to-install water and leak monitor. Alerts if water leaks are detected. Measures volume to increase awareness. One design for multiple pipes. No plumber required to install, with an average of two minutes to install.
-
Page 2: Table Of Contents
TABLE OF CONTENTS Thanks for choosing the CubicMeter..........3 INTRODUCTION............................. 4 PACKAGE CONTENTS............................4 Model versions..............................4 COMPATIBLE PIPE SETTINGS........................5 Plastic pipes version (black)..........................5 Metal pipes version (white)..........................5 INSTALLATION GUIDE...........................6 FUNCTIONAL WATER FLOW TEST........................7 ANTI-TAMPERING............................7 WIRELESS CONNECTION..........................8 DISPLAY................................ -
Page 3: Thanks For Choosing The Cubicmeter
AluPex, PEX, chromed and unchromed copper. This guide will help you get your CubicMeter up and running. Still stuck? Feel free to reach out to us at https://quandify.com/support for more information. Details are subject to change, check the latest version here. Page 3 of 11... -
Page 4: Introduction
INTRODUCTION PACKAGE CONTENTS 1x CubicMeter LTCM02-X ● 2x Small stainless steel pipe clamps ● 2x Large stainless steel pipe clamps ● 2x Tamper-Seal Covers ● 2x Tamper-Seal Stickers Pipe ⌀15-20 mm Pipe ⌀20-26 mm ● 1x “Remove to activate” sticker ●... -
Page 5: Compatible Pipe Settings
COMPATIBLE PIPE SETTINGS The CubicMeter exists in several models with different pipe type compatibility. Below is a list of currently compatible pipes per device version and its corresponding LCD identification name. Plastic pipes version (black) LCD code Compatible pipes Outer diameters Multi-layered PEX/Aluminum/PEX 16, 20 or 25... -
Page 6: Installation Guide
Make sure that the water pipes are not bent or damaged and do not contain any air bubbles. If the installation is not made correctly, Quandify cannot guarantee metering accuracy. -
Page 7: Functional Water Flow Test
FUNCTIONAL WATER FLOW TEST 1. When the proper pipe has been selected, open any water tap to get a steady water flow. 2. Check the LCD now shows a flow rate (l/h). 306 liters per hour with correct water flow direction 3. -
Page 8: Wireless Connection
fill in the form here: To activate LoRaWAN for remote data https://quandify.com/cm1-key-request-form/ collection and visualization through our cloud using your purchase receipt. services, create an account on the Quandify portal https://portal.quandify.com Link to protocol information: register your device(s). You will then also be https://quandify.com/wmbus-info. -
Page 9: Display
DISPLAY LCD CODE Description TAMPER Attempt to fraud or in other ways affect the meter's behavior. LEAK Possible medium leakage detected. BURST Possible large leakage detected. REVERSE Water is flowing through the meter in the wrong direction. Unable to detect water. May be due to the pipe not being filled with water, or a NO SENSING loosely installed meter. -
Page 10: Specifications
1 hour* Maximum flow rate (Q 3 125 l/h Small leak detection: >1-9 l/h** over several days (Only using Quandify platform) Medium leak detection: >10 l/h for at least 40 min Large leak detection: >1500 l/h for at least 5 min... -
Page 11: Maintenance & Service
If a unit is faulty, please contact your authorized distributor for further assistance. All service, including battery replacement must be performed by an authorized Quandify service center. Some configuration options can be performed via the meter’s built-in optical eye or LoRaWAN by authorized personnel.
