MANUAL & DATASHEET

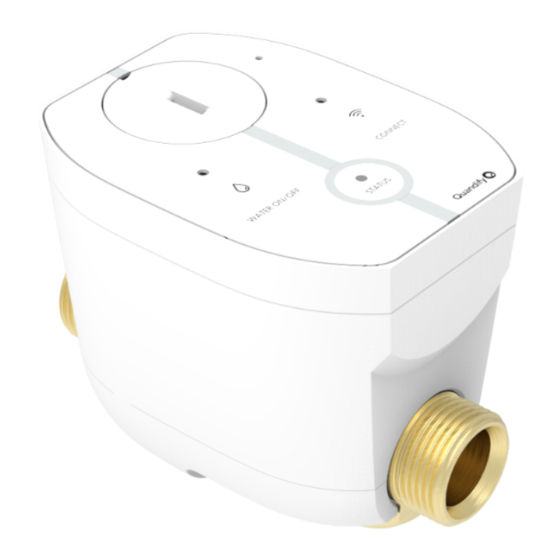

CubicSecure
LTCS01
Intelligent water shut-off device
CubicSecure is a water fault switch that protects against leaks by continuously
measuring water consumption, water pressure and temperature. The device
alarms for both micro-leakages and larger leaks. When the device detects a leak,
it automatically shuts off the water flow. The device can be installed in villas,
terraced houses and apartments

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CubicSecure LTCS01 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Quandify CubicSecure LTCS01

Summary of Contents for Quandify CubicSecure LTCS01

  • Page 1 MANUAL & DATASHEET CubicSecure LTCS01 Intelligent water shut-off device CubicSecure is a water fault switch that protects against leaks by continuously measuring water consumption, water pressure and temperature. The device alarms for both micro-leakages and larger leaks. When the device detects a leak, it automatically shuts off...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS TABLE OF CONTENTS Thank you for choosing the CubicSecure INSTALLATION INFORMATION PACKAGE CONTENTS MOUNTING INFORMATION MOUNTING STEPS SETUP Wi-Fi SETUP HOT/COLD WATER PAIRING LED INDICATIONS STATUS LED WATER ON/OFF LED CONNECT LED LEAKAGE ALARMS BUTTONS & INDICATIONS FUNCTION CHECK WATER SHUT-OFF CHECK MICRO-LEAKAGE DETECTION CHECK...

  • Page 3: Thank You For Choosing The Cubicsecure

    Thank you for choosing the CubicSecure CubicSecure measures your water flow in real time and detects water leaks immediately. The CubicSecure protects your home from damage caused by micro-leaks and broken water pipes. The compact design makes CubicSecure easy to install and fits in water cabinets. CubicSecure works completely on its own and does not need any connection to the internet.

  • Page 4: Mounting Information

    MOUNTING INFORMATION The CubicSecure must be installed by a plumber according to the Safe Water Installation industry regulations. Security systems such as residential sprinklers and emergency cooling of solid fuel boilers or similar must be connected before the device. If they are installed afterwards, they risk running out of water supply.

  • Page 5: Setup

    Wi-Fi network are required. Download and install the Quandify app from App Store or Google Play Store and follow the instructions. Details are subject to change, check the latest version here.

  • Page 6: Led Indications

    LED INDICATIONS STATUS LED MEANING ACTION PATTERN The device is not powered. Make sure the Check that the power source ⚫ device is connected to a power source. is working properly. WHITE The device is switched on and working ⚪ normally with no alarms.

  • Page 7: Connect Led

    CONNECT LED MEANING ACTION PATTERN Wi-Fi off and not configured. ⚫ WHITE Wi-Fi configured and connected to the ⚪ cloud. WHITE “ ” The device is in hotspot mode for Wi-Fi ⚪ flashing configuration using the app. YELLOW “ ” Ongoing pairing establishment between two ��...

  • Page 8: Buttons & Indications

    BUTTONS & INDICATIONS The picture on the left shows an open valve, a closed valve is shown on the right. MICRO-LEAKAGE DETECTION CHECK 1. Open a tap to simulate a very small leak. A dripping stream of water will 1. Manual valve switch suffice.

  • Page 9: Acknowledge Alarms

    ACKNOWLEDGE ALARMS FACTORY RESET Press the WATER ON/OFF button ● once to acknowledge and turn off the 1. Firstly, insert a paperclip into the hole alarm. on the reset button while plugging in Press the WATER ON/OFF button ● the power cable for 3 seconds. again to open the valve.

  • Page 10: Technical Data

    TECHNICAL DATA Area of use Villa, terraced house, apartment Environment Indoor, (not waterproof) Pipe connection G20 Eurocone external thread (DN20) Climate/Environment 5 °C ... 30 °C Storage -25 °C ... 55 °C Wireless frequency 2.4 GHz, (802.11bgn) Water temperature Cold and hot water (0.1°C … 70°C) Pressure PN10 Maximum pressure (15min)

  • Page 11: Maintenance, Warranty & Service

    If Quandify is responsible for a fault in the product, Quandify has the right to replace the product with either a new or repaired product. The liability period for replacement or repair of a product or spare part does not exceed the liability period for the original product.
