3.4.3 Voltage output transducers

Connect each transducer according to one of the methods below.
Which one you use depend on whether your signal is floating or not.
The two methods may of course be combined.

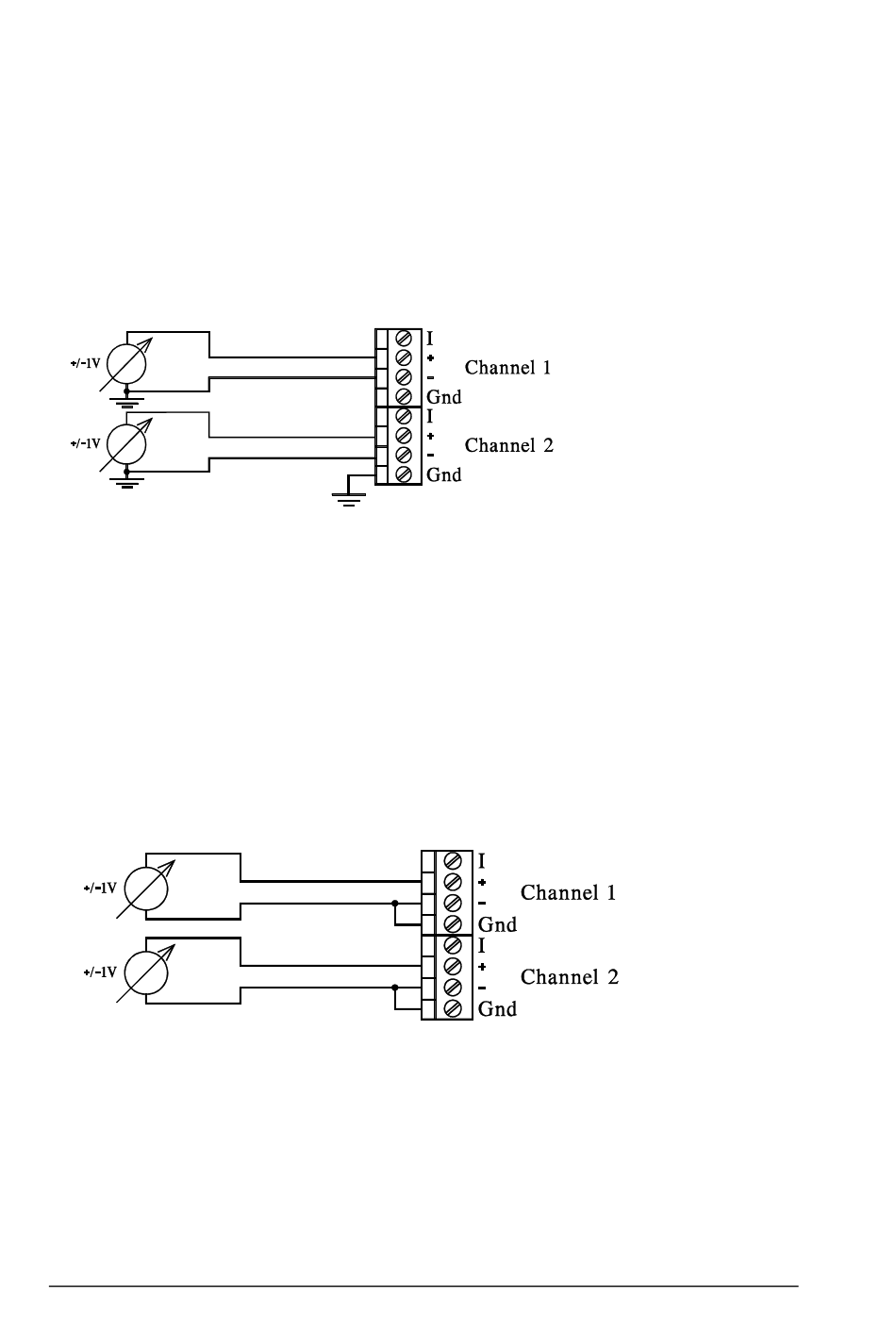

1) Connecting signals having a common ground point:
2) Connecting "floating" signals:
Page 16
INTAB Interface-Teknik AB, Sweden
Connect the sensor
common ( or ground ) to
"2100" ground at one of
the channels.
If you connect more
than one you will create
a "ground loop" which
may be detrimental to
your measurements.
("Gnd" for all channels
are really the same point
with several connections
!)
Each
individually
"floating" source
must be
referenced to
"2100" Gnd by
shorting "-" to
"Gnd" with a
piece of wire.
