What's in the box?
Battery
cover
♦
If any items are missing or damaged, contact our Customer Care Line immediately.
Never use damaged products!
♦
Need help? Get answers 24/7 at our website: www.uniden.com.
If You...
have a question or problem
need a replacement part or an
accessory
need special assistance due to a
disability
* During regular business hours, Central Standard Time; see our website for detailed business hours.
© 2011 Uniden America Corp.
Ft. Worth, Texas

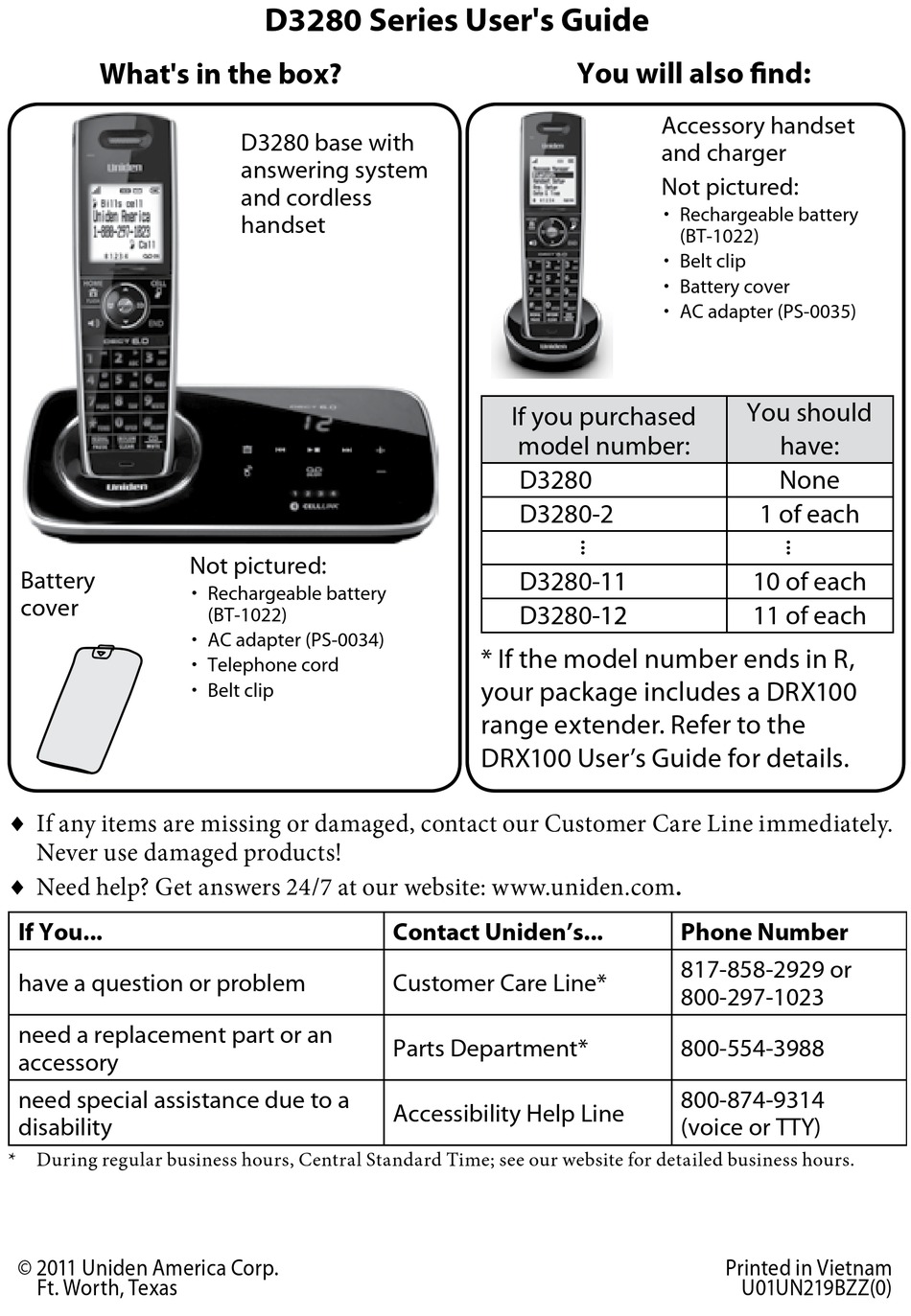

D3280 Series User's Guide

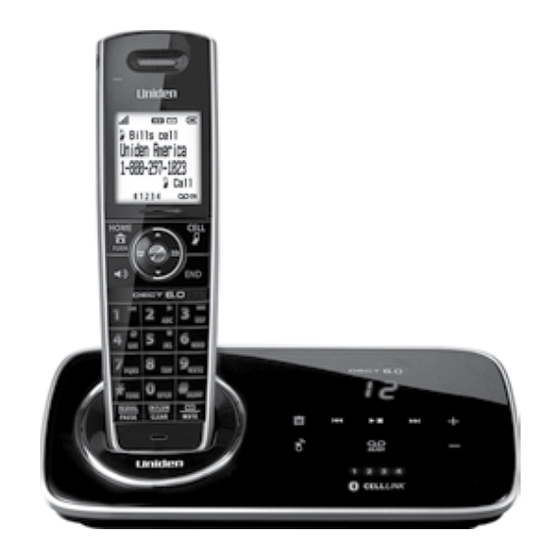

D3280 base with
answering system
and cordless
handset
Not pictured:
Rechargeable battery
(BT-1022)
AC adapter (PS-0034)
Telephone cord
Belt clip
If you purchased
model number:
D3280
D3280-2
D3280-11
D3280-12
* If the model number ends in R,
your package includes a DRX100
range extender. Refer to the
DRX100 User's Guide for details.
Contact Uniden's...
Customer Care Line*
Parts Department*
Accessibility Help Line
You will also find:
Accessory handset
and charger
Not pictured:
Rechargeable battery
(BT-1022)
Belt clip
Battery cover
AC adapter (PS-0035)
You should
-11
-12
Phone Number
817-858-2929 or
800-297-1023
800-554-3988
800-874-9314
(voice or TTY)
Printed in Vietnam
U01UN219BZZ(0)
have:
None
1 of each
10 of each
11 of each
Advertisement
Table of Contents
Related Manuals for Uniden D3280-2
Summary of Contents for Uniden D3280-2
- Page 1 If any items are missing or damaged, contact our Customer Care Line immediately. Never use damaged products! ♦ Need help? Get answers 24/7 at our website: www.uniden.com. If You... have a question or problem need a replacement part or an...
-
Page 2: Table Of Contents
There may be a remote risk of electric shock from lightning. ♦ Do not use the telephone to report a gas leak in the vicinity of the leak. ♦ Use only the power cord and batteries indicated in this manual. Do not dispose of batteries in a fire. -
Page 3: Getting Started
Charge all handsets completely (about 15 hours) before using. Connect the Telephone Cord Use the telephone cord to connect the jack on the base to a standard TEL LINE telephone wall jack. Test the Connection Pick up the handset and press . -
Page 4: Setting Up The Celllink™ Bluetooth™ Connection
Setting Up the CellLink™ Bluetooth™ Connection The new D3280 with CellLink technology can connect with mobile phones that support the Bluetooth V2.0 handsfree profile. Visit Uniden.com or contact customer service for a detailed list of tested mobile phones. ♦ If you are not certain of the profiles supported by your Bluetooth phone or if you have difficulty pairing your phone to the D3280, see the manual that came with your phone. -
Page 5: Parts Of The Base
Dial the number you want to call, then press hear a dial tone or ringing, but the handset display says Talk. Make sure the call connects and you can hear clearly. (When you’re finished, press to hang up.) ♦ The D3280 remembers the pairing information for your cellular; if it loses connection with your phone for any reason (e.g., the cell phone travels out of range, runs out of charge, etc.), the D3280 can automatically reconnect the next time your phone becomes available. -
Page 6: Parts Of The Handset
In standby: open the menu. menu/select In the menu or any list: select the highlighted item. In standby: start a telephone call using a paired Bluetooth phone. cell While a paired phone is ringing: answer the incoming call. ... -
Page 7: Reading The Display
In any menu or list: move the cursor down one line. sPeakeR Switch a normal call to the speakerphone (and back). In standby: start a telephone call on your land line (get a dial tone). Home/FlasH While the land line is ringing: answer the incoming call. ... -
Page 8: Using The Handset Menu
Icon What it means T-coil mode is on (see p. 8). The battery is 1) full, 2) half charged, 3) getting low or 4) empty. Privacy Mode is on: no other handset can join the call. Bluetooth device number linked to the D3280. 1 2 3 4 [Aa] [aA] Enter 1) capital or 2) lower case letters (see p. - Page 9 Menu Option What it does Turn on personal ring so you can assign a special ring tone Personal Ring to people in your phonebook. With Caller ID, this handset uses the assigned tone when the person calls. Have this handset answer a call when you pick it up from AutoTalk the cradle (without pressing any buttons).
-
Page 10: Using Your Phone
To... move the cursor left move the cursor right erase the character at the cursor erase the entire entry enter a blank space switch between upper and lower case letters rotate through the punctuation and symbols USING YOUR PHONE This section explains the most common functions on the phone. To... -
Page 11: Finding A Lost Handset
* If you turn the ringer all the way down, that particular ringer turns off. Using the Caller ID and Redial Lists Caller ID (CID) is a service available from your telephone provider that shows the phone number (and sometimes the caller’s name) of incoming calls. Contact your telephone provider for more information. -
Page 12: Redial List
Caller ID list The phone saves the information for the last 50 incoming calls (both landline and CellLink calls) to the CID list. An asterisk ( * ) marks any calls received since the last time you checked the record details. All handsets share the same CID list so only one handset can access ... -
Page 13: Using Call Waiting
Using Call Waiting ♦ Call Waiting, a service available from your telephone provider, lets you receive calls while you are on another call. Caller ID on Call Waiting (CIDCW) service displays Caller ID information for a waiting call. ♦ If you get a Call Waiting call, the phone sounds a tone and displays any CID information received from the waiting call. - Page 14 To... open the phonebook scroll through the entries jump to entries that start with a certain letter dial the current entry review the current entry’s details save this cellular phonebook entry to the home phonebook edit the current entry delete the current entry close the phonebook Adding Phonebook Entries (Home only) With the phone in standby, open the phonebook.
-
Page 15: Using Special Features
USING SPECIAL FEATURES Silent Mode You can silence the ringers on the base and all handsets for a specific period of time; the answering system answers any incoming calls without playing anything through the speaker. With the phone in standby, press and hold # on any handset. The phone prompts you to select the number of hours silent mode. -
Page 16: Multihandset Features
Choose this... To... Edit this entry. The phone will prompt you to edit the name & Edit phone number. Delete Erase this entry from the list & allow calls from this number. Multihandset Features To use the features in this section, you need at least 2 handsets. ♦... -
Page 17: Chain Dialing
call. Privacy mode turns off automatically when you hang up; you can also turn it off by pressing menu/select Intercom ♦ Whenever the phone is in standby, you can make an intercom call between handsets without using the phone line. ♦... -
Page 18: Using The Answering System
When you select Voice Access number if you have not yet set one up (see p. 9). If you have already set one up, your phone will dial it. After you listen to your messages, the message icon turns off. If it doesn’t, you can reset it: With the phone in standby, open the menu and select VMWI Reset, then select Yes. -
Page 19: Accessing The Answering System
To... Follow these steps: Open the menu with the phone in standby. Select then Record Press menu/select record a "Record greeting" before speaking. personal menu/select Press greeting new greeting. To keep the greeting, press inteRcom/cleaR Open the menu with the phone in standby. Select switch then Greeting... - Page 20 To... From the base Press Play/stoP. play new The system announces the number of new & old messages, messages then plays each new message (followed by the day and time) in the order it was received. After the new messages play, the system plays the old messages.
-
Page 21: Using The System While You're Away From Home
Play message Play message Skip message Skip message Delete message Delete message Possible solutions Check the telephone cord connection. Disconnect the base AC adapter for a few minutes; then reconnect it. Move the handset closer to the base. ... - Page 22 If you use a telecoil hearing aid, turn on T-coil mode (see p. 8). the line If you have any service that uses the phone line, add a DSL or telephone line filter (see p. 23). Caller ID problems No handsets display Caller ID information.
-
Page 23: Resetting Handsets
To get a line filter, contact your service provider or look in an electronics store. Plug the filter into the telephone wall jack and plug the base into the filter. Make a test call to make sure the noise is gone. -
Page 24: Registering Handsets
California to cause birth defects or other reproductive harm. Wash hands after handling. Uniden works to reduce lead content in our products & accessories. Compliance Information FCC Part 68 Information This equipment complies with Part 68 of the FCC rules and the requirements adopted by the ACTA. -
Page 25: Fcc Part 15 Information
Also, you will be advised of your right to file a complaint with the FCC if you believe it is necessary. The telephone company may make changes in its facilities, equipment, operations or procedures that could affect the operation of the equipment. -
Page 26: 1-Year Limited Warranty
RATION ("Uniden") ELEMENTS OF WARRANTY: Uniden warrants, for one year, to the original retail owner, this Uniden Product to be free from defects in materi- als and craftsmanship with only the limitations or exclusions set out below. WARRANTY DURATION: This warranty to...
