Parts Location - Teac C-3RX Service Manual

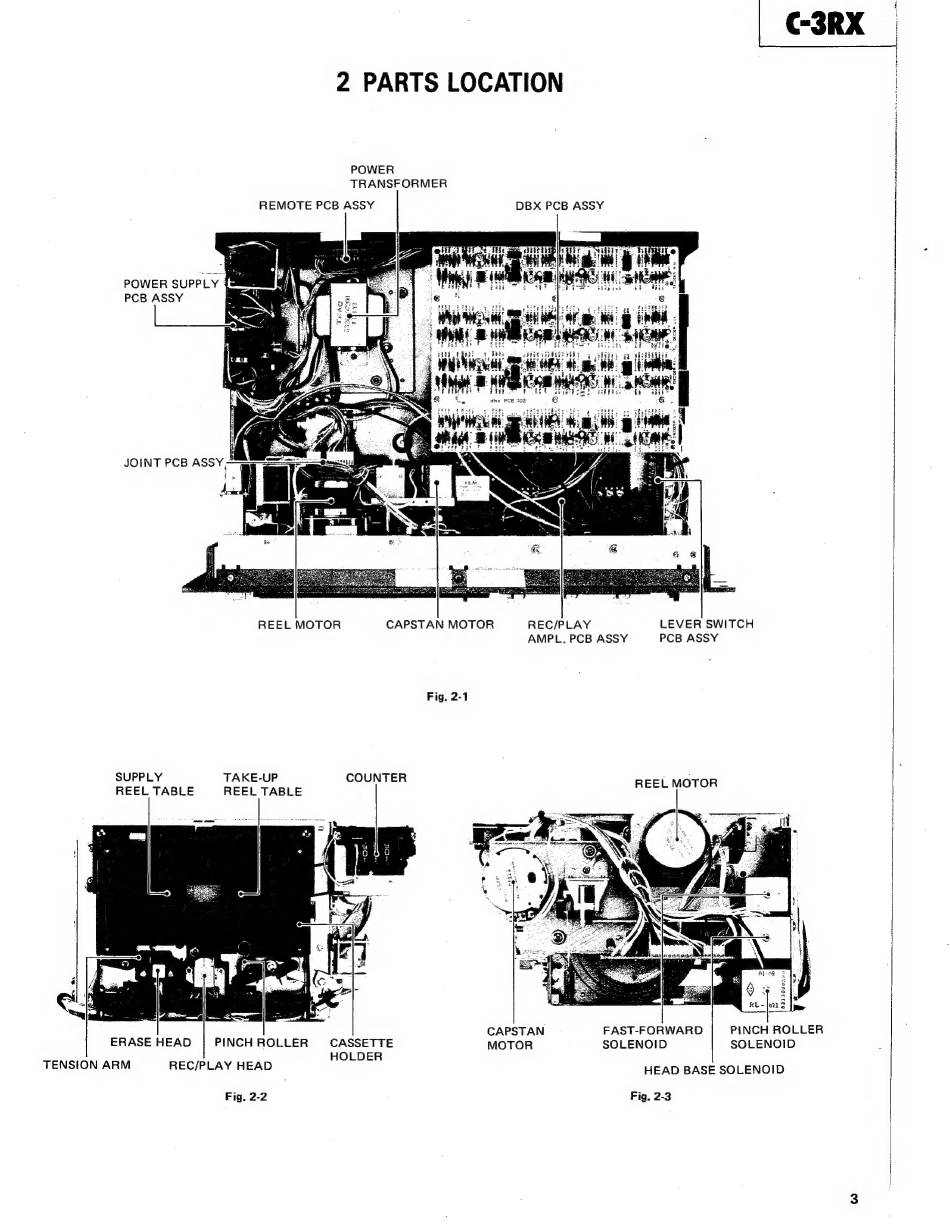

2 PARTS LOCATION
POWER
TRANSFORMER
REMOTE PCB ASSY DBX PCB ASSY
POWER SUPPL
PCB ASSY
JOINT PCB ASSY =
i
REEL MOTOR CAPSTAN MOTOR REC/PLAY LEVER SWITCH
AMPL. PCB ASSY PCB ASSY
Fig. 2-1
SUPPLY TAKE-UP COUNTER REEL MOTOR
REEL TABLE REEL TABLE
CAPSTAN FAST-FORWARD PINCH ROLLER
ERASE HEAD PINCH ROLLER CASSETTE MOTOR SOLENOID SOLENOID
HOLDER
Fig. 2-2 Fig. 2-3
