Safety lever
Blank cassette
( T-1556
0.1 mm to 0.3 mm clearance
Actuator
Safety lever Bent tip of
switch bracket
Fig. 4-7

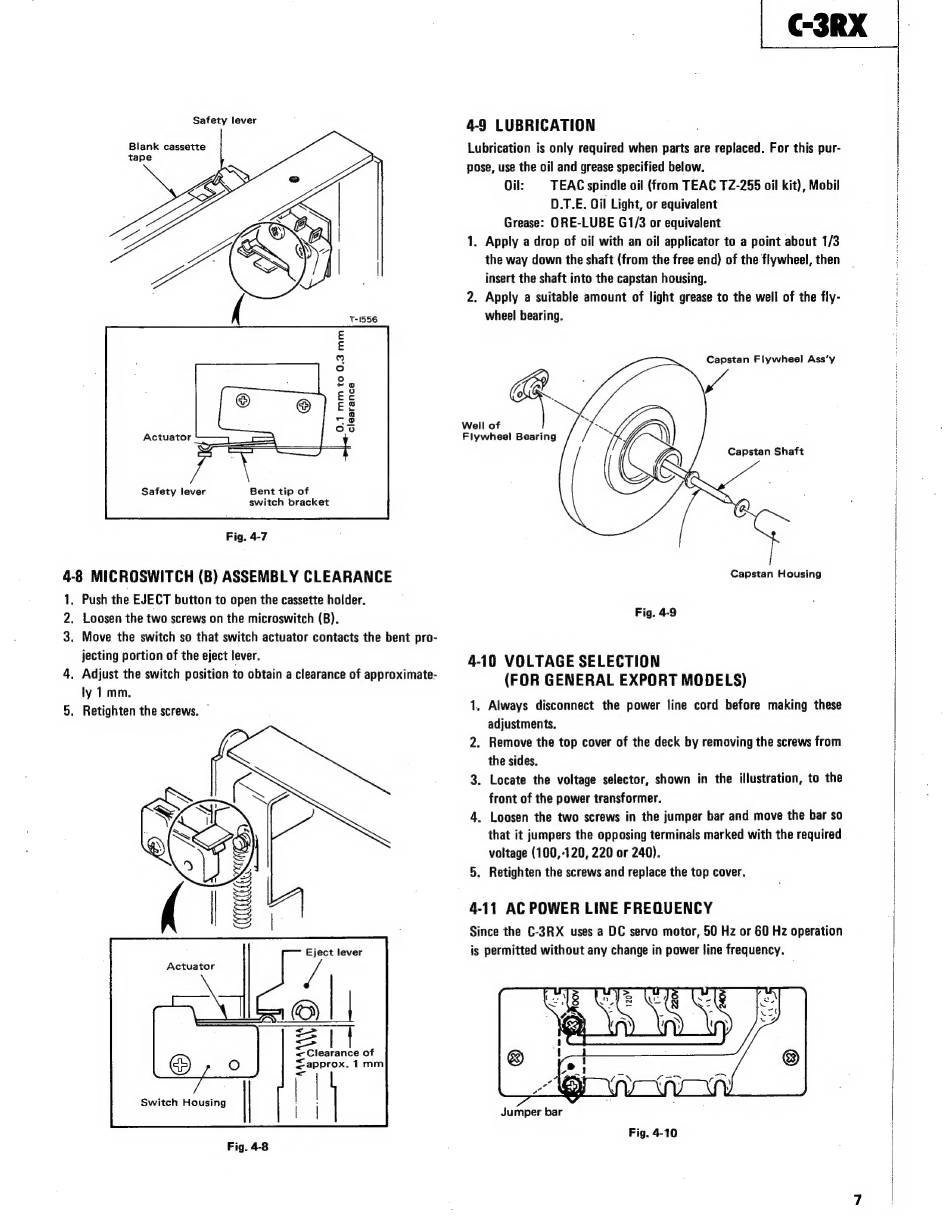

4-8 MICROSWITCH (B) ASSEMBLY CLEARANCE
1.
2.
3.
Push the EJECT button to open the cassette holder.
Loosen the two screws on the microswitch (B).
Move the switch so that switch actuator contacts the bent pro-
jecting portion of the eject lever.
. Adjust the switch position to obtain a clearance of approximate-
ly 1 mm.
Retighten the screws. —
Actuator
earance of
rox. 7mm
Fig. 4-8
C-3RX
4-9 LUBRICATION :
Lubrication is only required when parts are replaced. For this pur-
pose, use the oil and grease specified below.
Oil: TEAC spindle oil (from TEAC TZ-255 oil kit), Mobil
D.T.E. Oil Light, or equivalent
Grease: ORE-LUBE G1/3 or equivalent
1. Apply a drop of oil with an oil applicator to a point about 1/3
the way down the shaft (from the free end) of the flywheel, then _
insert the shaft into the capstan housing.
2. Apply a suitable amount of light grease to the well of the fly-
wheel bearing.
Capstan Flywheel Ass'y
Well of
Flywheel Bearing
Capstan Shaft
Capstan Housing
Fig. 4-9
4-10 VOLTAGE SELECTION
(FOR GENERAL EXPORT MODELS)
1. Always disconnect the power line cord before making these
adjustments.
2. Remove the top cover of the deck by removing the screws from
the sides.
3. Locate the voltage selector, shown in the illustration, to the
front of the power transformer.
4. Loosen the two screws in the jumper bar and move the bar so
that it jumpers the opposing terminals marked with the required
voltage (100,-120, 220 or 240).
5. Retighten the screws and replace the top cover.
4-11 AC POWER LINE FREQUENCY
Since the C-3RX uses a DC servo motor, 50 Hz or 60 Hz operation
is permitted without any change in power line frequency.
Jumper bar
Fig. 4-10
