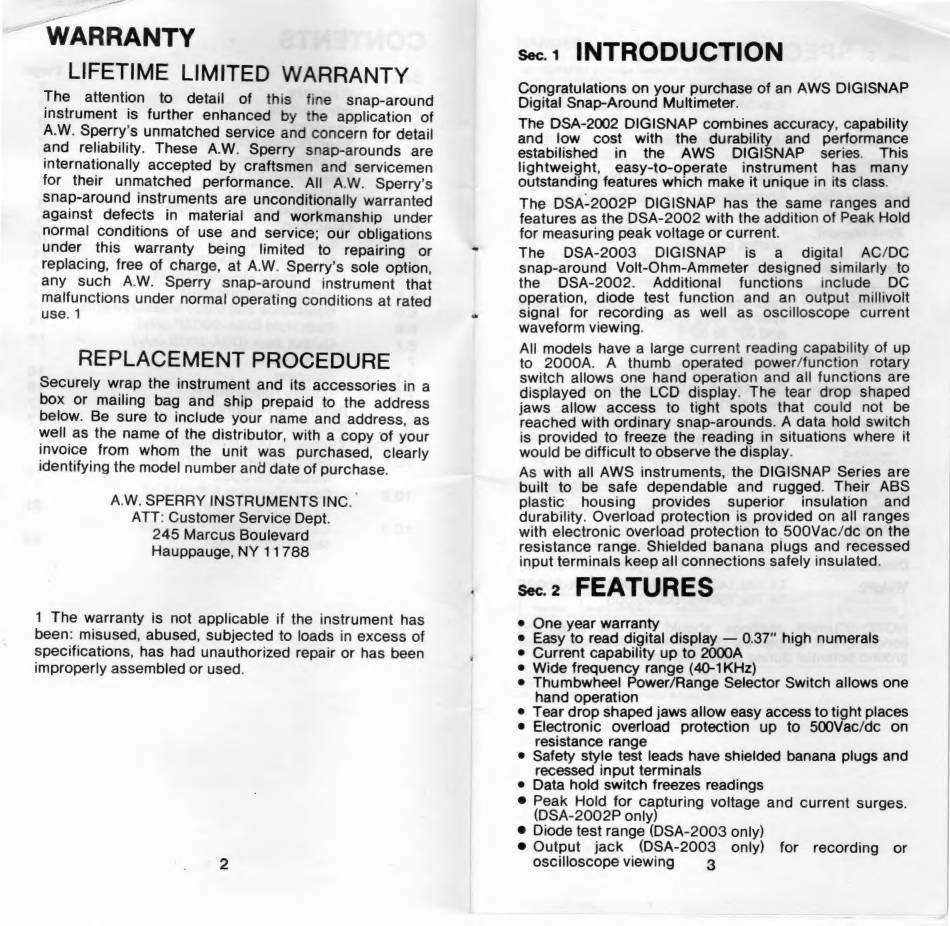

WARRANTY
LIFETIME
LIMITED WARRANTY
A.W. SPERRY INSTRUMENTS INC.
ATT: Customer Service Dept.
245 Marcus Boulevard
Hauppauge, NY 11788
1 The warranty is not applicable if the instrument has
been: misused, abused, subjected to loads in excess of
specifications, has had unauthorized repair or has been
improperly assembled or used.
se.1 INTRODUCTION
Congratulations on your purchase of an AWS DIGISNAP
Digital Snap-Around Multimeter.
The DSA-2002 DIGISNAP combines accuracy, capability
and low cost with the durability and performance
estabilished in the AWS DIGISNAP series. This
lightweight, easy-to-operate instrument has many
outstanding features which make it unique in its class.
The DSA-2002P DIGISNAP has the same ranges and
features as the DSA-2002 with the addition of Peak Hold
for measuring peak voltage or current.
The DSA-2003 DIGISNAP is a_ digital AC/DC
snap-around Volt-Ohm-Ammeter designed similarly to
the DSA-2002. Additional functions include DC
operation, diode test function and an output millivolt
signal for recording as well as oscilloscope current
waveform viewing.
All models have a large current reading capability of up
to 2000A. A thumb operated power/function rotary
switch allows one hand operation and all functions are
displayed on the LCD display. The tear drop shaped
jaws allow access to tight spots that could not be
reached with ordinary snap-arounds. A data hold switch
is provided to freeze the reading in situations where it
would be difficult to observe the display.
As with all AWS instruments, the DIGISNAP Series are
built to be safe dependable and rugged. Their ABS
plastic housing provides superior insulation and
durability. Overload protection is provided on all ranges
with electronic overload protection to 500Vac/dc on the
resistance range. Shielded banana plugs and recessed
input terminals keep all connections safely insulated.
sec.2 FEATURES
e@ One year warranty
e Easy to read digital display — 0.37" high numerals
e Current capability up to 2000A
e Wide frequency range (40-1KHz)
@ Thumbwheel Power/Range Selector Switch allows one
hand operation
e Tear drop shaped jaws allow easy access to tight places
e Electronic overload protection up to 500Vac/dc on
resistance range
© Safety style test leads have shielded banana plugs and
recessed input terminals
e Data hold switch freezes readings
@ Peak Hold for capturing voltage and current surges.
(DSA-2002P only)
® Diode test range (DSA-2003 only)
® Output jack (DSA-2003 only) for recording or
oscilloscope viewing 3
