Horizon Educational FCJJ-44 Assembly Manual

Micro-Fuel cell Science Kit
ASSEMBLY GUIDE
Model No.: FCJJ-44
Warning
To avoid the risk of property damage, serious injury or
death:
1. Read carefully and fully understand the instructions
before assembling this kit.
2. Keep small children and animals away, because this
kit contains small parts that could be swallowed.
Micro-Fuel Cell Science kit

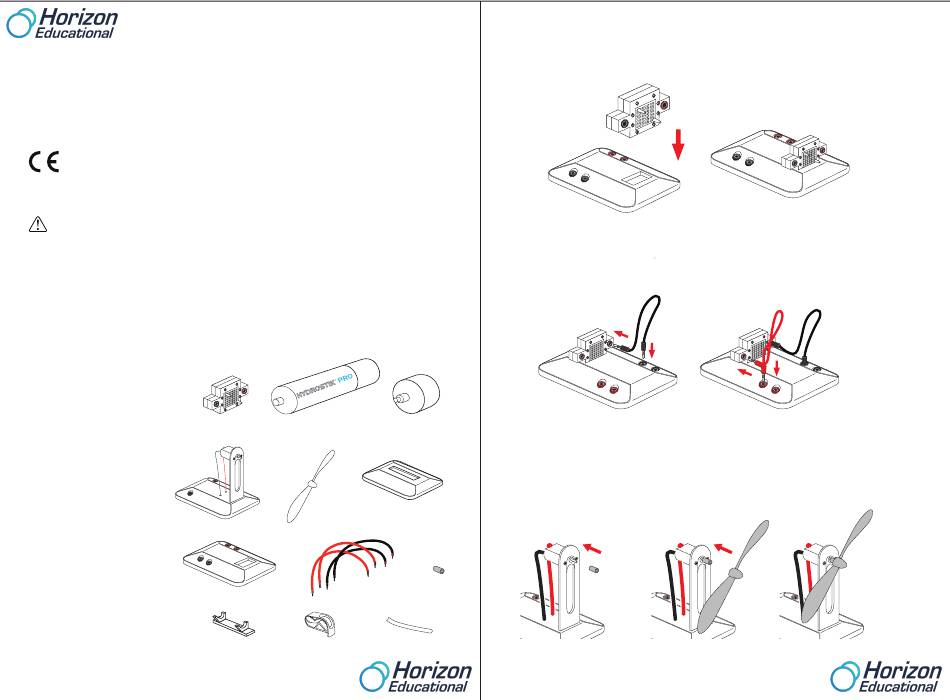

List of Component
a. Micro-fuel cell
b. HYDROSTIK PRO (hydrogen storage)
c. Pressure regulator
d. Fan module
e. Fan blade
f. HYDROSTIK PRO base
g. Micro-fuel cell base
h. Wires
i. Fan blade adapter
d
j. HYDROSTIK PRO support
k. Clamp
l. Silicon tubes
You will also need the following items
(not included in this kit):
- HYDROFILL PRO for charging
the HYDROSTIK PRO
- Scissors
3. This kit is intended only for use by persons 14 years old
and up, and only under the supervision of adults who
have read and understood the instructions in this user
manual.
4. When assembling this kit, tools may be used. Extra
care should be taken to avoid personal injury.
5. Some parts are small and fragile: please be careful
when handling and connecting parts to avoid breakage.
Handle all parts and components with care.
6. Do not attempt to use any part, item, or component
provided in this kit for any other purpose than what is
instructed in this manual. Do not attempt to disassemble
any part, item or component in this kit.
7. Remove the HYDROSTIK PRO from the pressure
regulator immediately after use.
a b
e
g
h
j k
Preparing the micro-fuel cell module
a. Insert the PEM fuel cell (a) into its slot on the base (g).
Make sure the fuel cell fits well in its base.
b. Use the short black & red wires to connect the fuel cell to its base as shown below.
you respect the color code when you plug each wire into the corresponding socket.
c
Preparing the fan module
a. Connect the adapter (i) to the motor axis. Insert the fan blade (e) onto the adapter.
Make sure the connection is tight.
f
i
l
Make sure
