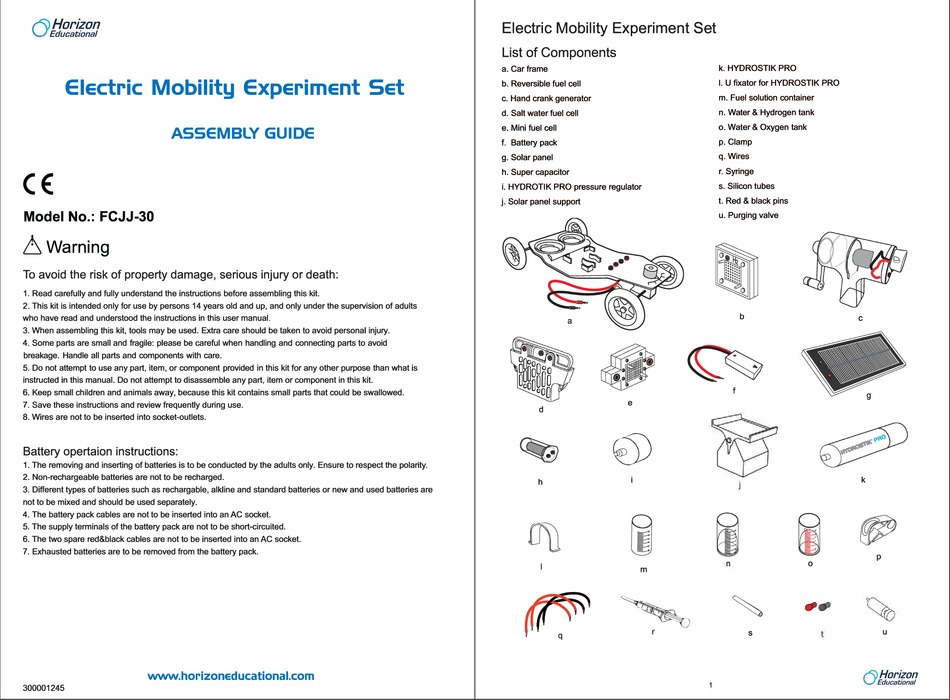

Electric Mobility Experiment Set
ASSEMBLY GUIDE
CE
Model No.: FCJJ-30
6
Warning
To avoid the risk of property damage, serious injury or death:
1. Read carefully and fully understand the instructions before assembling this kit.
2. This kit is intended only for use by persons 14 years old and up, and only under the supervision of adults
who have read and understood the instructions in this user manual.
3. When assembling this kit, tools may be used. Extra care should be taken to avoid personal injury.
4. Some parts are small and fragile: please be careful when handling and connecting parts to avoid
breakage. Handle all parts and components with care.
5. Do not attempt to use any part, item, or component provided in this kit for any other purpose than what is
instructed in this manual. Do not attempt to disassemble any part, item or component in this kit.
6. Keep small children and animals away, because this kit contains small parts that could be swallowed.
7. Save these instructions and review frequently during use.
8. Wires are not to be inserted into socket-outlets.
Battery opertaion instructions:
1. The removing and inserting of batteries is to be conducted by the adults only. Ensure to respect the polarity.
2. Non-rechargeable batteries are not to be recharged.
3. Different types of batteries such as rechargable, alkline and standard batteries or new and used batteries are
not to be mixed and should be used separately.
4. The battery pack cables are not to be inserted into an AC socket.
5. The supply terminals of the battery pack are not to be short-circuited.
6. The two spare red&black cables are not to be inserted into an AC socket.
7. Exhausted batteries are to be removed from the battery pack.
www.horizoneducational.com
300001245
Electric Mobility Experiment Set
List of Components
a. Car frame
b. Reversible fuel cell
c. Hand crank generator
d. Salt water fuel cell
e. Mini fuel cell
f. Battery pack
g. Solar panel
h. Super capacitor
i. HYDROTIK PRO pressure regulator
j. Solar panel support
e
d
@
�
h
Dtl
00
"
m
,.
�
k. HYDROSTIK PRO
I. U fixator for HYDROSTIK PRO
m. Fuel solution container
n. Water & Hydrogen tank
o. Water & Oxygen tank
p. Clamp
q. Wires
r. Syringe
s. Silicon tubes
t. Red & black pins
u. Purging valve
b
C
k
�
p
0
�
u
s
