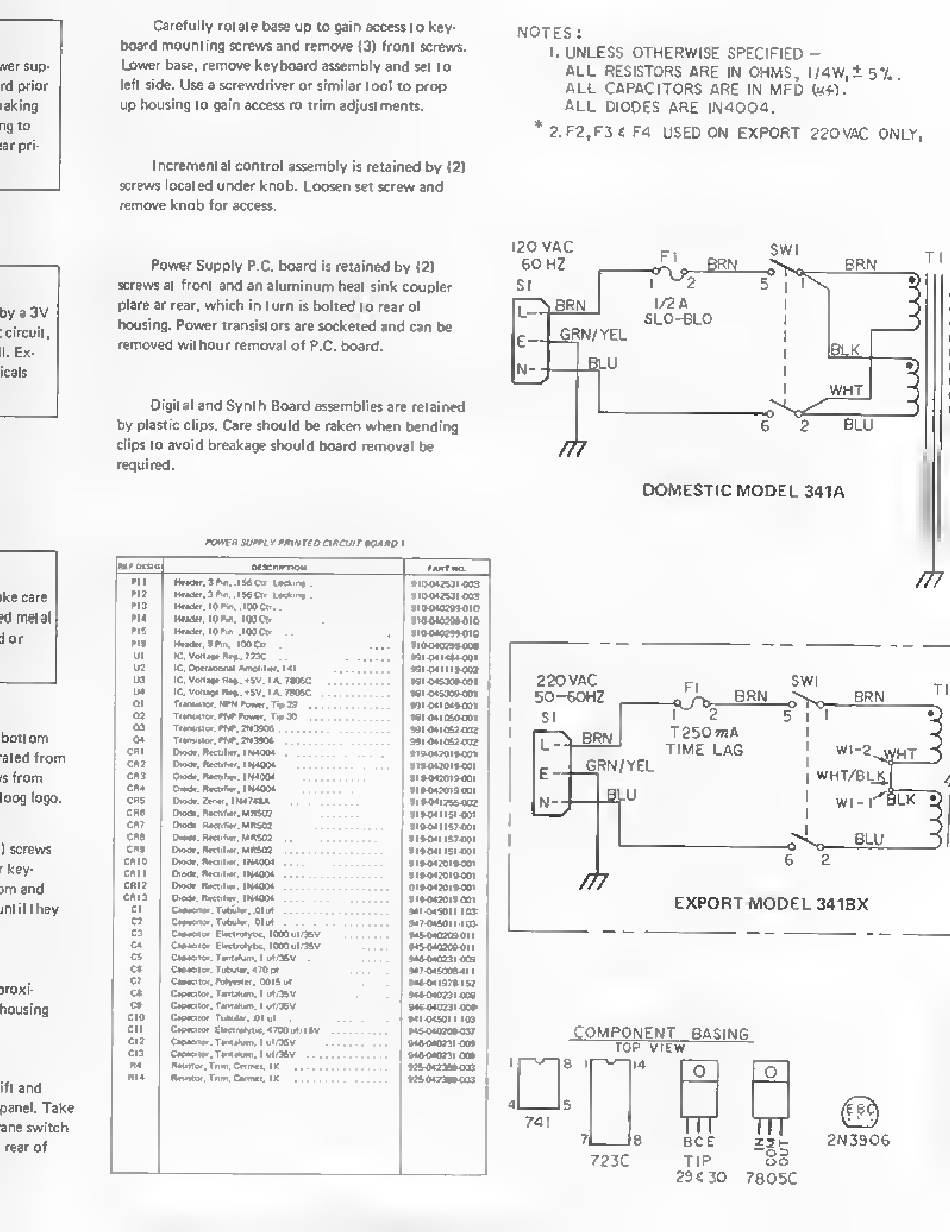

Moog Source Technical Service Information page 3

Carefully rotate base up to gain access to key¬
board mounting screws and remove (3) front screws
Lower base, remove keyboard assembly and set to
left side. Use a screwdriver or similar tool to prop
up housing to gain access to trim adjustments.
NOTES
1. UNLESS OTHERWISE SPECIFIED -
ALL RESISTORS ARE IN OHMS, l/4W,± 57..
ALL CAPACITORS ARE IN MFD (u*).
ALL DIODES ARE IN4004.
2. F2,F3*F4 USED ON EXPORT 220VAC ONLY,
Incremental control assembly is retained by 12)
screws located under knob. Loosen set screw and
remove knob for access.
Power Supply P.C. board is retained by (2)
screws at front and an aluminum heat sink coupler
plate at rear, which in turn is bolted to rear of
housing. Power transistors are socketed and can be
removed without removal of P.C. board.
iRN/YEL
WHT
Digital and Synth Board assemblies are retained
by plastic clips. Care should be taken when bending
clips to avoid breakage should board removal be
required.
DOMESTIC MODEL 341A
potvfn
sum
y
no oocm
r board
MMdt..3Pwi..lS«0 iMfcmfl
MMdrf. 3 Pwi. 1S6 O LodUr*
MMdtf. lOPm. .1000 .
MMdrf.IOPWi.TOOO
HMdrf. TOPWi. .1000.
?care
metal
220 VAC
50-60HZ
T250*7?A
