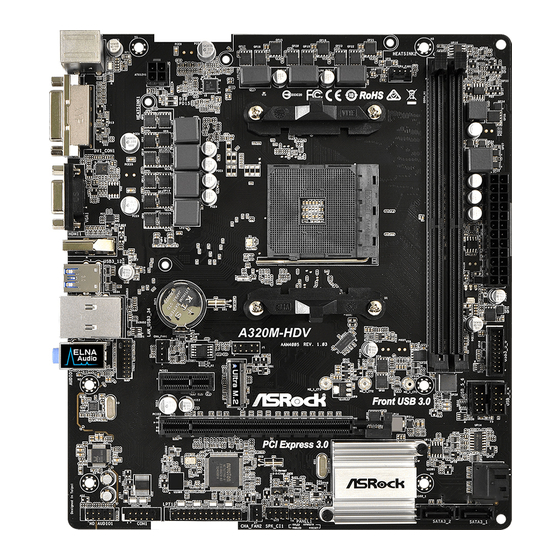

ASROCK A320M-HDV Manual
  1. Manuals
  2. Brands
  3. ASROCK Manuals
  4. Motherboard
  5. A320M-HDV
  6. Manual

ASROCK A320M-HDV Manual

Hide thumbs Also See for A320M-HDV:
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A320M-HDV and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ASROCK A320M-HDV

Summary of Contents for ASROCK A320M-HDV

  • Page 2 (including damages for loss of profits, loss of business, loss of data, interruption of business and the like), even if ASRock has been advised of the possibility of such damages arising from any defect or error in the documentation or product.
  • Page 3 If you require assistance please call ASRock Tel : +886-2-28965588 ext.123 (Standard International call charges apply) The terms HDMI™...

  • Page 4: Table Of Contents

    Expansion Slots (PCI Express Slots) Jumpers Setup Onboard Headers and Connectors M.2_SSD (NGFF) Module Installation Guide Chapter 3 Software and Utilities Operation Installing Drivers ASRock Live Update & APP Shop 3.2.1 UI Overview 3.2.2 Apps 3.2.3 BIOS & Drivers 3.2.4 Setting...
  • Page 5 Chapter 4 UEFI SETUP UTILITY Introduction 4.1.1 UEFI Menu Bar 4.1.2 Navigation Keys Main Screen OC Tweaker Screen Advanced Screen 4.4.1 CPU Configuration 4.4.2 North Bridge Configuration 4.4.3 South Bridge Configuration 4.4.4 Storage Configuration 4.4.5 Super IO Configuration 4.4.6 ACPI Configuration 4.4.7 Trusted Computing Tools Hardware Health Event Monitoring Screen...

  • Page 6: Chapter 1 Introduction

    If you require technical support related to this motherboard, please visit our website for specific information about the model you are using. You may find the latest VGA cards and CPU support list on ASRock’s website as well. ASRock website http://www.asrock.com.

  • Page 7: Specifications

    • AMD 7 Gen A-Series APUs support DDR4 2133 ECC & non-ECC, un-buffered memory* * Please refer to Memory Support List on ASRock’s website for more information. (http://www.asrock.com/) * Please refer to page 23 for DDR4 UDIMM maximum frequency support.
  • Page 8 AB350M-HDV/A320M-HDV/A320M-DGS • Supports Triple Monitor • Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz • Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz • Supports D-Sub with max. resolution up to 2048x1536 @ 60Hz • Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and...
  • Page 9 Gen3 x4 (32 Gb/s) (with Ryzen Series CPU) or Gen3 x2 (16 Gb/s) (with A-Series APU)* * Supports NVMe SSD as boot disks * Supports ASRock U.2 Kit Connector • 1 x Print Port Header • 1 x COM Port Header • 1 x TPM Header...
  • Page 10 • CPU/Chassis Fan multi-speed control • CASE OPEN detection • Voltage monitoring: +12V, +5V, +3.3V, Vcore • Microsoft® Windows® 10 64-bit * For the updated Windows® 10 driver, please visit ASRock’s website for details: http://www.asrock.com Certifica- • FCC, CE, WHQL tions • ErP/EuP ready (ErP/EuP ready power supply is required)

  • Page 11: Motherboard Layout

    1.3 Motherboard Layout AB350M-HDV / A320M-HDV: USB 2.0 T: USB1 B: USB2 CPU_FAN1 RoHS ATX12V HDMI1 USB 3.0 T: USB1 B: USB2 USB 3.0 T: USB3 B: USB4 CMOS Battery CHA_FAN1 BIOS TPMS1 PCIE1 Front USB 3.0 PCIE2 PCI Express 3.0...
  • Page 12 AB350M-HDV/A320M-HDV/A320M-DGS A320M-DGS: USB 2.0 T: USB1 B: USB2 CPU_FAN1 RoHS ATX12V USB 3.0 T: USB1 B: USB2 USB 3.0 T: USB3 B: USB4 CMOS Battery A320M-DGS CHA_FAN1 BIOS TPMS1 PCIE1 Front USB 3.0 PCIE2 PCI Express 3.0 AUDIO CODEC Promontory...
  • Page 13 No. Description ATX 12V Power Connector (ATX12V1) CPU Fan Connector (CPU_FAN1) 2 x 288-pin DDR4 DIMM Slots (DDR4_A1, DDR4_A2) ATX Power Connector (ATXPWR1) USB 3.0 Header (USB3_5_6) USB 2.0 Header (USB_3_4) USB 2.0 Header (USB_5_6) SATA3 Connector (SATA3_3) SATA3 Connector (SATA3_4) SATA3 Connector (SATA3_1) SATA3 Connector (SATA3_2) Clear CMOS Jumper (CLRCMOS1)

  • Page 14: I/O Panel

    AB350M-HDV/A320M-HDV/A320M-DGS 1.4 I/O Panel AB350M-HDV/A320M-HDV: No. Description No. Description USB 2.0 Ports (USB12) USB 3.0 Ports (USB3_12) LAN RJ-45 Port* HDMI Port Line In (Light Blue)** D-Sub Port Front Speaker (Lime)** DVI-D Port (DVI_CON1) Microphone (Pink)** PS/2 Mouse/Keyboard Port USB 3.0 Ports (USB3_34)
  • Page 15 A320M-DGS: No. Description No. Description USB 2.0 Ports (USB12) USB 3.0 Ports (USB3_34) LAN RJ-45 Port* USB 3.0 Ports (USB3_12) Line In (Light Blue)** DVI-D Port (DVI_CON1) Front Speaker (Lime)** PS/2 Mouse/Keyboard Port Microphone (Pink)** * There are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications. ACT/LINK LED SPEED LED LAN Port...
  • Page 16 AB350M-HDV/A320M-HDV/A320M-DGS ** To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi- channel audio feature through the audio driver. Please set Speaker Configuration to “7.1 Speaker”in the Realtek HD Audio Manager.

  • Page 17: Chapter 2 Installation

    Chapter 2 Installation This is a Micro ATX form factor motherboard. Before you install the motherboard, study the configuration of your chassis to ensure that the motherboard fits into it. Pre-installation Precautions Take note of the following precautions before you install motherboard components or change any motherboard settings.

  • Page 18: Installing The Cpu

    AB350M-HDV/A320M-HDV/A320M-DGS 2.1 Installing the CPU Unplug all power cables before installing the CPU.

  • Page 20: Installing The Cpu Fan And Heatsink

    AB350M-HDV/A320M-HDV/A320M-DGS 2.2 Installing the CPU Fan and Heatsink After you install the CPU into this motherboard, it is necessary to install a larger heatsink and cooling fan to dissipate heat. You also need to spray thermal grease between the CPU and the heatsink to improve heat dissipation. Make sure that the CPU and the heatsink are securely fastened and in good contact with each other.
  • Page 21 4-pin FAN cable...
  • Page 22 AB350M-HDV/A320M-HDV/A320M-DGS Installing the AM4 Box Cooler SR2...
  • Page 24 AB350M-HDV/A320M-HDV/A320M-DGS 4-pin FAN cable...
  • Page 25 Installing the AM4 Box Cooler SR3...
  • Page 26 AB350M-HDV/A320M-HDV/A320M-DGS...
  • Page 27 4-pin FAN cable USB 2.0 Header Please note that this connector is the interface to the LED control board on the SR3, it requires the AMD utility "SR3 Settings Software" to control the LED. *The diagram shown here are for reference only. Please refer to page 28 for the orientation of USB Header.

  • Page 28: Installing Memory Modules (Dimm)

    AB350M-HDV/A320M-HDV/A320M-DGS 2.3 Installing Memory Modules (DIMM) This motherboard provides two 288-pin DDR4 (Double Data Rate 4) DIMM slots, and supports Dual Channel Memory Technology. 1. For dual channel configuration, you always need to install identical (the same brand, speed, size and chip-type) DDR4 DIMM pairs.
  • Page 29 The DIMM only fits in one correct orientation. It will cause permanent damage to the motherboard and the DIMM if you force the DIMM into the slot at incorrect orientation.

  • Page 30: Expansion Slots (Pci Express Slots)

    AB350M-HDV/A320M-HDV/A320M-DGS 2.4 Expansion Slots (PCI Express Slots) There are 2 PCI Express slots on the motherboard. Before installing an expansion card, please make sure that the power supply is switched off or the power cord is unplugged. Please read the documentation of the expansion card and make necessary hardware settings for the card before you start the installation.

  • Page 31: Jumpers Setup

    2.5 Jumpers Setup The illustration shows how jumpers are setup. When the jumper cap is placed on the pins, the jumper is “Short”. If no jumper cap is placed on the pins, the jumper is “Open”. The illustration shows a 3-pin jumper whose pin1 and pin2 are “Short” when a jumper cap is placed on these 2 pins.

  • Page 32: Onboard Headers And Connectors

    AB350M-HDV/A320M-HDV/A320M-DGS 2.6 Onboard Headers and Connectors Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these headers and connectors. Placing jumper caps over the headers and connectors will cause permanent damage to the motherboard. System Panel Header...
  • Page 33 Chassis Intrusion and Please connect the SPEAKER DUMMY Speaker Header chassis intrusion and the DUMMY (7-pin SPK_CI1) chassis speaker to this (see p.6, 7, No. 14) header. SIGNAL DUMMY Serial ATA3 Connectors These four SATA3 (SATA3_1: connectors support SATA see p.6, 7, No. 10) data cables for internal (SATA3_2: storage devices with up to...
  • Page 34 AB350M-HDV/A320M-HDV/A320M-DGS 1. High Definition Audio supports Jack Sensing, but the panel wire on the chassis must support HDA to function correctly. Please follow the instructions in our manual and chassis manual to install your system. 2. If you use an AC’97 audio panel, please install it to the front panel audio header by the steps below: A.
  • Page 35 ATX 12V Power Please connect an ATX 12V Connector power supply to this connector. (4-pin ATX12V1) (see p.6, 7, No. 1) Serial Port Header This COM1 header RRXD1 DDTR#1 DDSR#1 (9-pin COM1) supports a serial port CCTS#1 (see p.6, 7, No. 17) module.

  • Page 36: M.2_Ssd (Ngff) Module Installation Guide

    AB350M-HDV/A320M-HDV/A320M-DGS 2.7 M.2_SSD (NGFF) Module Installation Guide The M.2, also known as the Next Generation Form Factor (NGFF), is a small size and versatile card edge connector that aims to replace mPCIe and mSATA. The Ultra M.2 Socket (M2_1) supports SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Ryzen CPU) or Gen3 x2 (16 Gb/s) (with A-Series APU) Installing the M.2_SSD (NGFF) Module...
  • Page 37 Step 3 Move the standoff based on the module type and length. The standoff is placed at the nut location D by default. Skip Step 3 and 4 and go straight to Step 5 if you are going to use the default nut. Otherwise, release the standoff by hand.
  • Page 38 AB350M-HDV/A320M-HDV/A320M-DGS Step 6 Tighten the screw with a screwdriver to secure the module into place. Please do not overtighten the screw NUT2 NUT1 as this might damage the module.
  • Page 39 SanDisk SATA Sandisk Z400s-SD8SNAT-128G-1122 SanDisk SATA SanDisk-SD6SN1M-128G Transcend SATA Transcend TS256GMTS800-256GB V-Color SATA V-Color 120G V-Color SATA V-Color 240G SATA WD GREEN WDS240G1G0B-00RC30 For the latest updates of M.2_SSD (NFGG) module support list, please visit our website for details: http://www.asrock.com...

  • Page 40: Chapter 3 Software And Utilities Operation

    AB350M-HDV/A320M-HDV/A320M-DGS Chapter 3 Software and Utilities Operation 3.1 Installing Drivers The Support CD that comes with the motherboard contains necessary drivers and useful utilities that enhance the motherboard’s features. Running The Support CD To begin using the support CD, insert the CD into your CD-ROM drive. The CD automatically displays the Main Menu if “AUTORUN”...

  • Page 41: Asrock Live Update & App Shop

    Double-click on your desktop to access ASRock Live Update & APP Shop utility. *You need to be connected to the Internet to download apps from the ASRock Live Update & APP Shop. 3.2.1 UI Overview Category Panel Hot News...

  • Page 42: Apps

    AB350M-HDV/A320M-HDV/A320M-DGS 3.2.2 Apps When the "Apps" tab is selected, you will see all the available apps on screen for you to download. Installing an App Step 1 Find the app you want to install. The most recommended app appears on the left side of the screen. The other various apps are shown on the right.
  • Page 43 Step 3 If you want to install the app, click on the red icon to start downloading. Step 4 When installation completes, you can find the green "Installed" icon appears on the upper right corner. To uninstall it, simply click on the trash can icon *The trash icon may not appear for certain apps.
  • Page 44 AB350M-HDV/A320M-HDV/A320M-DGS Upgrading an App You can only upgrade the apps you have already installed. When there is an available new version for your app, you will find the mark of "New Version" appears below the installed app icon. Step 1 Click on the app icon to see more details.

  • Page 45: Bios & Drivers

    3.2.3 BIOS & Drivers Installing BIOS or Drivers When the "BIOS & Drivers" tab is selected, you will see a list of recommended or critical updates for the BIOS or drivers. Please update them all soon. Step 1 Please check the item information before update. Click on to see more details.

  • Page 46: Setting

    AB350M-HDV/A320M-HDV/A320M-DGS 3.2.4 Setting In the "Setting" page, you can change the language, select the server location, and determine if you want to automatically run the ASRock Live Update & APP Shop on Windows startup.

  • Page 47: Chapter 4 Uefi Setup Utility

    Chapter 4 UEFI SETUP UTILITY 4.1 Introduction This section explains how to use the UEFI SETUP UTILITY to configure your system. You may run the UEFI SETUP UTILITY by pressing <F2> or <Del> right after you power on the computer, otherwise, the Power-On-Self-Test (POST) will continue with its test routines.

  • Page 48: Navigation Keys

    AB350M-HDV/A320M-HDV/A320M-DGS 4.1.2 Navigation Keys Use < > key or < > key to choose among the selections on the menu bar, and use < > key or < > key to move the cursor up or down to select items, then press <Enter>...

  • Page 49: Main Screen

    4.2 Main Screen When you enter the UEFI SETUP UTILITY, the Main screen will appear and display the system overview.

  • Page 50: Oc Tweaker Screen

    AB350M-HDV/A320M-HDV/A320M-DGS 4.3 OC Tweaker Screen In the OC Tweaker screen, you can set up overclocking features. Because the UEFI software is constantly being updated, the following UEFI setup screens and descriptions are for reference purpose only, and they may not exactly match what you see on your screen.

  • Page 51: Advanced Screen

    4.4 Advanced Screen In this section, you may set the configurations for the following items: CPU Configuration, North Bridge Configuration, South Bridge Configuration, Storage- Configuration, Super IO Configuration, ACPI Configuration, USB Configuration and Trusted Computing. Setting wrong values in this section may cause the system to malfunction. UEFI Configuration Active Page on Entry Select the default page when entering the UEFI setup utility.

  • Page 52: Cpu Configuration

    AB350M-HDV/A320M-HDV/A320M-DGS 4.4.1 CPU Configuration Cool 'n' Quiet Use this item to enable or disable AMD’s Cool ‘n’ Quiet technology. The default value is [Enabled]. Configuration options: [Enabled] and [Disabled]. If you install ® Windows OS and want to enable this function, please set this item to [Enabled].

  • Page 53: North Bridge Configuration

    4.4.2 North Bridge Configuration IOMMU Use this to enable or disable IOMMU. The default value of this feature is [Disabled]. Share Memory Configure the size of memory that is allocated to the integrated graphics processor when the system boots up.

  • Page 54: South Bridge Configuration

    AB350M-HDV/A320M-HDV/A320M-DGS 4.4.3 South Bridge Configuration Onboard HD Audio Enable/disable onboard HD audio. Set to Auto to enable onboard HD audio and automatically disable it when a sound card is installed. Front Panel Enable/disable front panel HD audio. Deep Sleep Configure deep sleep mode for power saving when the computer is shut down.

  • Page 55: Storage Configuration

    4.4.4 Storage Configuration SATA Controller(s) Enable/disable the SATA controllers. SATA Mode AHCI: Supports new features that improve performance. RAID: Combine multiple disk drives into a logical unit.

  • Page 56: Super Io Configuration

    AB350M-HDV/A320M-HDV/A320M-DGS 4.4.5 Super IO Configuration Serial Port Enable or disable the Serial port. Serial Port Address Select the address of the Serial port. Parallel Port Enable or disable the Parallel port. Change Settings Select the address of the Parallel port.

  • Page 57: Acpi Configuration

    4.4.6 ACPI Configuration Suspend to RAM It is recommended to select auto for ACPI S3 power saving. ACPI HPET Table Enable the High Precision Event Timer for better performance and to pass WHQL tests. PS/2 Keyboard Power On Allow the system to be waked up by a PS/2 Keyboard. PCIE Devices Power On Allow the system to be waked up by a PCIE device and enable wake on LAN.

  • Page 58: Trusted Computing

    AB350M-HDV/A320M-HDV/A320M-DGS 4.4.7 Trusted Computing Security Device Support Enable to activate Trusted Platform Module (TPM) security for your hard disk drives.

  • Page 59: Tools

    Save UEFI files in your USB storage device and run Instant Flash to update your UEFI. Internet Flash - DHCP (Auto IP), Auto ASRock Internet Flash downloads and updates the latest UEFI firmware version from our servers for you. Please setup network configuration before using Internet Flash.
  • Page 60 AB350M-HDV/A320M-HDV/A320M-DGS Network Configuration Use this to configure internet connection settings for Internet Flash. Internet Setting Enable or disable sound effects in the setup utility. UEFI Download Server Select a server to download the UEFI firmware.

  • Page 61: Hardware Health Event Monitoring Screen

    4.6 Hardware Health Event Monitoring Screen This section allows you to monitor the status of the hardware on your system, including the parameters of the CPU temperature, motherboard temperature, fan speed and voltage. CPU Fan 1 Setting Select a fan mode for CPU Fan 1, or choose Customize to set 5 CPU temperatures and assign a respective fan speed for each temperature.

  • Page 62: Security Screen

    AB350M-HDV/A320M-HDV/A320M-DGS 4.7 Security Screen In this section you may set or change the supervisor/user password for the system. You may also clear the user password. Supervisor Password Set or change the password for the administrator account. Only the administrator has authority to change the settings in the UEFI Setup Utility. Leave it blank and press enter to remove the password.

  • Page 63: Boot Screen

    4.8 Boot Screen This section displays the available devices on your system for you to configure the boot settings and the boot priority. Fast Boot Fast Boot minimizes your computer's boot time. In fast mode you may not boot from an USB storage device. Boot From Onboard LAN Allow the system to be waked up by the onboard LAN.
  • Page 64 AB350M-HDV/A320M-HDV/A320M-DGS AddOn ROM Display Enable AddOn ROM Display to see the AddOn ROM messages or configure the AddOn ROM if you've enabled Full Screen Logo. Disable for faster boot speed. CSM (Compatibility Support Module) Enable to launch the Compatibility Support Module. Please do not disable unless you’re running a WHCK test.

  • Page 65: Exit Screen

    4.9 Exit Screen Save Changes and Exit When you select this option the following message, “Save configuration changes and exit setup?” will pop out. Select [OK] to save changes and exit the UEFI SETUP UTILITY. Discard Changes and Exit When you select this option the following message, “Discard changes and exit setup?”...
  • Page 66 AB350M-HDV/A320M-HDV/A320M-DGS Contact Information If you need to contact ASRock or want to know more about ASRock, you’re welcome to visit ASRock’s website at http://www.asrock.com; or you may contact your dealer for further information. For technical questions, please submit a support request form at http://www.asrock.com/support/tsd.asp...
