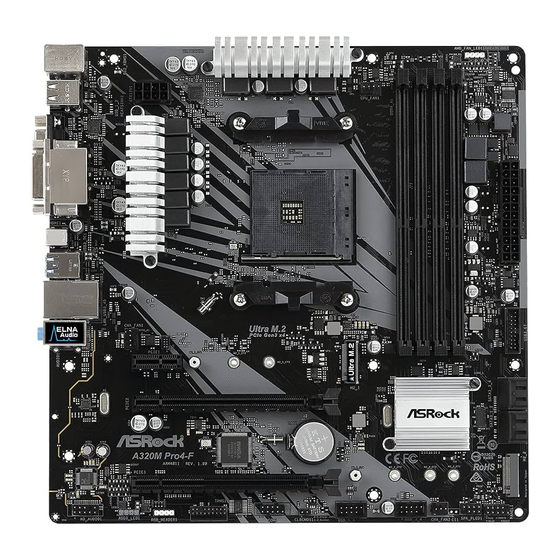

AsRock A320M Pro4-F
o cerca il tuo prodotto tra le
migliori offerte di Schede Madri

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A320M Pro4-F and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ASROCK A320M Pro4-F

  • Page 1 Questo manuale d’istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per AsRock A320M Pro4-F o cerca il tuo prodotto tra le migliori offerte di Schede Madri...
  • Page 2 (including damages for loss of profits, loss of business, loss of data, interruption of business and the like), even if ASRock has been advised of the possibility of such damages arising from any defect or error in the documentation or product.
  • Page 3 If you require assistance please call ASRock Tel : +886-2-28965588 ext.123 (Standard International call charges apply) The terms HDMI®...
  • Page 4: Table Of Contents

    Contents Chapter 1 Introduction Package Contents Specifications Motherboard Layout I/O Panel Chapter 2 Installation Installing the CPU Installing the CPU Fan and Heatsink Installing Memory Modules (DIMM) Expansion Slots (PCI Express Slots) Jumpers Setup Onboard Headers and Connectors CrossFireX and Quad CrossFireX Operation Guide (For AB350M Pro4-F Only) 2.7.1 Installing Two CrossFireX...
  • Page 5 3.2.2 Using A-Tuning ASRock Live Update & APP Shop 3.3.1 UI Overview 3.3.2 Apps 3.3.3 BIOS & Drivers 3.3.4 Setting ASRock RGB LED Chapter 4 UEFI SETUP UTILITY Introduction 4.1.1 UEFI Menu Bar 4.1.2 Navigation Keys Main Screen OC Tweaker Screen Advanced Screen 4.4.1 CPU Configuration...
  • Page 6 Hardware Health Event Monitoring Screen Security Screen Boot Screen Exit Screen...
  • Page 7: Chapter 1 Introduction

    If you require technical support related to this motherboard, please visit our website for specific information about the model you are using. You may find the latest VGA cards and CPU support list on ASRock’s website as well. ASRock website http://www.asrock.com.
  • Page 8: Specifications

    * For Ryzen Series CPUs (Raven Ridge), ECC is only supported with PRO CPUs. * Please refer to Memory Support List on ASRock’s website for more information. (http://www.asrock.com/) * Please refer to page 22 for the table for AMD non-XMP mem- ory frequency support.
  • Page 9 AB350M Pro4-F A320M Pro4-F AMD Ryzen series CPUs (Summit Ridge and Pinnacle Ridge) Expansion Slot • 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)* (AB350M • 1 x PCI Express 2.0 x16 Slot (PCIE3: x4 mode) AMD 7...
  • Page 10 * The Max shared memory 16GB requires 32GB system memory installed. • Three graphics output options: D-Sub, DVI-D and HDMI • Supports Triple Monitor • Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz • Supports DVI-D with max.
  • Page 11 • 1 x M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module** ** Supports NVMe SSD as boot disks (M2_1 only) ** Supports ASRock U.2 Kit Connector • 1 x COM Port Header • 1 x TPM Header • 1 x Power LED and Speaker Header...
  • Page 12 • ErP/EuP ready (ErP/EuP ready power supply is required) * For detailed product information, please visit our website: http://www.asrock.com Please realize that there is a certain risk involved with overclocking, including adjust- ing the setting in the BIOS, applying Untied Overclocking Technology, or using third- party overclocking tools.
  • Page 13: Motherboard Layout

    AB350M Pro4-F A320M Pro4-F 1.3 Motherboard Layout AMD_FAN_LED1 USB 2.0 T: USB1 CPU_FAN1 B: USB2 ATX12V1 USB 3.1 Gen1 T: USB2 B: USB3 USB 3.1 Gen1 T: USB4 B: USB5 Ultra M.2 CHA_FAN1 PCIe Gen3 x4 PCIE1 M2_1_CT1 M2_1_CT2 M2_1_CT3...
  • Page 14 No. Description ATX 12V Power Connector (ATX12V1) CPU Fan Connector (CPU_FAN1) 2 x 288-pin DDR4 DIMM Slots (DDR4_A1, DDR4_B1) 2 x 288-pin DDR4 DIMM Slots (DDR4_A2, DDR4_B2) AMD Fan LED Header (AMD_FAN_LED1) ATX Power Connector (ATXPWR1) USB 3.1 Gen1 Header (USB3_67) AMD LED Fan USB Header (USB_7) (for AB350M Pro4-F only) SATA3 Connector (SATA3_3) SATA3 Connector (SATA3_4)
  • Page 15: I/O Panel

    AB350M Pro4-F A320M Pro4-F 1.4 I/O Panel No. Description No. Description PS/2 Mouse Port USB 3.1 Gen1 Ports (USB3_23) DVI-D Port USB 3.1 Gen1 Type-C Port (USB3_TC1) LAN RJ-45 Port* HDMI Port Line In (Light Blue) D-Sub Port Front Speaker (Lime) USB 2.0 Ports (USB_1_2)**...
  • Page 16: Chapter 2 Installation

    Chapter 2 Installation This is a Micro ATX form factor motherboard. Before you install the motherboard, study the configuration of your chassis to ensure that the motherboard fits into it. Pre-installation Precautions Take note of the following precautions before you install motherboard components or change any motherboard settings.
  • Page 17: Installing The Cpu

    AB350M Pro4-F A320M Pro4-F 2.1 Installing the CPU Unplug all power cables before installing the CPU.
  • Page 19: Installing The Cpu Fan And Heatsink

    AB350M Pro4-F A320M Pro4-F 2.2 Installing the CPU Fan and Heatsink After you install the CPU into this motherboard, it is necessary to install a larger heatsink and cooling fan to dissipate heat. You also need to spray thermal grease between the CPU and the heatsink to improve heat dissipation.
  • Page 21 AB350M Pro4-F A320M Pro4-F Installing the AM4 Box Cooler SR2...
  • Page 23 AB350M Pro4-F A320M Pro4-F 4-pin FAN cable RGB LED Cable +12V *The diagram shown here are for reference only. Please refer to page 31 for the orientation of AMD Fan LED Header (AMD_FAN_LED1).
  • Page 24 Installing the AM4 Box Cooler SR3...
  • Page 25 AB350M Pro4-F A320M Pro4-F...
  • Page 26 4-pin FAN cable...
  • Page 27 +12V Please note that only one cable should be used at a time in this step. If you select AMD_FAN_LED1, please install ASRock utility "ASRock RGB LED". If you select USB connector, please install AMD utility "SR3 Settings Software". *The diagram shown here are for reference only. Please refer to page 31 for the orientation of AMD Fan...
  • Page 28: Installing Memory Modules (Dimm)

    2.3 Installing Memory Modules (DIMM) This motherboard provides four 288-pin DDR4 (Double Data Rate 4) DIMM slots, and supports Dual Channel Memory Technology. 1. For dual channel configuration, you always need to install identical (the same brand, speed, size and chip-type) DDR4 DIMM pairs. 2.
  • Page 29 AB350M Pro4-F A320M Pro4-F Ryzen Series CPUs (Summit Ridge): UDIMM Memory Slot Frequency (Mhz) 2667 2667 2667 2667 2667 SR/DR SR/DR 2667 SR/DR SR/DR SR/DR SR/DR 2133-2400 Ryzen Series CPUs (Raven Ridge): UDIMM Memory Slot Frequency (Mhz) 2933 2667 2667...
  • Page 30 The DIMM only fits in one correct orientation. It will cause permanent damage to the motherboard and the DIMM if you force the DIMM into the slot at incorrect orientation.
  • Page 31: Expansion Slots (Pci Express Slots)

    AB350M Pro4-F A320M Pro4-F 2.4 Expansion Slots (PCI Express Slots) There are 3 PCI Express slots on the motherboard. Before installing an expansion card, please make sure that the power supply is switched off or the power cord is unplugged. Please read the documentation of the expansion card and make necessary hardware settings for the card before you start the installation.
  • Page 32: Jumpers Setup

    2.5 Jumpers Setup The illustration shows how jumpers are setup. When the jumper cap is placed on the pins, the jumper is “Short”. If no jumper cap is placed on the pins, the jumper is “Open”. Clear CMOS Jumper Short: Clear CMOS (CLRCMOS1) Open: Default 2-pin Jumper...
  • Page 33: Onboard Headers And Connectors

    AB350M Pro4-F A320M Pro4-F 2.6 Onboard Headers and Connectors Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these headers and connectors. Placing jumper caps over the headers and connectors will cause permanent damage to the motherboard.
  • Page 34 Power LED and Speaker Please connect the SPEAKER DUMMY Header chassis power LED and DUMMY (7-pin SPK_PLED1) the chassis speaker to this (see p.7, No. 14) header. PLED+ PLED+ PLED- Serial ATA3 Connectors These four SATA3 (SATA3_1: connectors support SATA see p.7, No.
  • Page 35 AB350M Pro4-F A320M Pro4-F USB 3.1 Gen1 Header There is one header on Vbus Vbus Vbus IntA_PB_SSRX- (19-pin USB3_67) this motherboard. Each IntA_PA_SSRX- IntA_PB_SSRX+ IntA_PA_SSRX+ (see p.7, No. 7) USB 3.1 Gen1 header can IntA_PB_SSTX- IntA_PA_SSTX- IntA_PB_SSTX+ support two ports.
  • Page 36 CPU Fan Connector This motherboard pro- FAN_SPEED FAN_VOLTAGE_CONTROL (4-pin CPU_FAN1) vides a 4-Pin CPU fan FAN_SPEED_CONTROL (see p.7, No. 2) (Quiet Fan) connector. If you plan to connect a 3-Pin CPU fan, please connect it to Pin 1-3. ATX Power Connector This motherboard pro- (24-pin ATXPWR1) vides a 24-pin ATX power...
  • Page 37 AB350M Pro4-F A320M Pro4-F RGB LED Header RGB LED header is used to con- (4-pin RGB_HEADER1) nect RGB LED extension cable 12V G R (see p.7, No. 21) which allows users to choose from various LED lighting ef- fects. Caution: Never install the RGB LED cable in the wrong orienta- tion;...
  • Page 38: Tm Operation Guide

    2.7 CrossFireX and Quad CrossFireX Operation Guide (For AB350M Pro4-F Only) This motherboard supports CrossFireX and Quad CrossFireX that allows you to install up to two identical PCI Express x16 graphics cards. 1. You should only use identical CrossFireX -ready graphics cards that are AMD certified.
  • Page 39 AB350M Pro4-F A320M Pro4-F Step 3 Connect a VGA cable or a DVI cable to the monitor connector or the DVI connec- tor of the graphics card that is inserted to PCIE2 slot.
  • Page 40: Driver Installation And Setup

    2.7.2 Driver Installation and Setup Step 1 Power on your computer and boot into OS. Step 2 Remove the AMD drivers if you have any VGA drivers installed in your system. The Catalyst Uninstaller is an optional download. We recommend using this utility to uninstall any previously installed Catalyst drivers prior to installation.
  • Page 41 AB350M Pro4-F A320M Pro4-F 2.8 M.2_SSD (NGFF) Module Installation Guide (M2_1) The M.2, also known as the Next Generation Form Factor (NGFF), is a small size and versatile card edge connector that aims to replace mPCIe and mSATA. The Ultra M.2 Socket (M2_1) supports type 2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32...
  • Page 42 Step 3 Move the standoff based on the module type and length. The standoff is placed at the nut location C by default. Skip Step 3 and 4 and go straight to Step 5 if you are going to use the default nut. Otherwise, release the standoff by hand.
  • Page 43 AB350M Pro4-F A320M Pro4-F Step 6 Tighten the screw with a screwdriver to secure the module into place. Please do not overtighten the screw as this might damage the module. NUT2 NUT1 M.2_SSD (NGFF) Module Support List Vendor Interface Intel...
  • Page 44: M.2_Ssd (Ngff) Module Installation Guide (M2_2)

    2.9 M.2_SSD (NGFF) Module Installation Guide (M2_2) The M.2, also known as the Next Generation Form Factor (NGFF), is a small size and versatile card edge connector that aims to replace mPCIe and mSATA. The M.2 Socket (M2_2) supports type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module. * M2_2 and SATA3_3 share lanes.
  • Page 45 AB350M Pro4-F A320M Pro4-F Step 3 Move the standoff based on the module type and length. The standoff is placed at the nut location D by default. Skip Step 3 and 4 and go straight to Step 5 if you are going to use the default nut.
  • Page 46 SATA Transcend TS256GMTS800-256GB Transcend SATA Transcend TS64GMTS400-64GB V-Color SATA V-Color 120G V-Color SATA V-Color 240G SATA WD BLUE WDS100T1B0B-00AS40 SATA WD GREEN WDS240G1G0B-00RC30 For the latest updates of M.2_SSD (NFGG) module support list, please visit our website for details: http://www.asrock.com...
  • Page 47: Chapter 3 Software And Utilities Operation

    AB350M Pro4-F A320M Pro4-F Chapter 3 Software and Utilities Operation 3.1 Installing Drivers The Support CD that comes with the motherboard contains necessary drivers and useful utilities that enhance the motherboard’s features. Running The Support CD To begin using the support CD, insert the CD into your CD-ROM drive. The CD automatically displays the Main Menu if “AUTORUN”...
  • Page 48: A-Tuning

    3.2 A-Tuning A-Tuning is ASRock’s multi purpose software suite with a new interface, more new features and improved utilities. 3.2.1 Installing A-Tuning A-Tuning can be downloaded from ASRock Live Update & APP Shop. After the installation, you will find the icon “A-Tuning“ on your desktop. Double-click the “A- Tuning“...
  • Page 49 AB350M Pro4-F A320M Pro4-F OC Tweaker Configurations for overclocking the system. System Info View information about the system. *The System Browser tab may not appear for certain models.
  • Page 50 Configure up to five different fan speeds using the graph. The fans will automatically shift to the next speed level when the assigned temperature is met. Settings Configure ASRock A-Tuning. Click to select "Auto run at Windows Startup" if you want A-Tuning to be launched when you start up the Windows operating system.
  • Page 51: Asrock Live Update & App Shop

    Double-click on your desktop to access ASRock Live Update & APP Shop utility. *You need to be connected to the Internet to download apps from the ASRock Live Update & APP Shop. 3.3.1 UI Overview Category Panel Hot News...
  • Page 52: Apps

    3.3.2 Apps When the "Apps" tab is selected, you will see all the available apps on screen for you to download. Installing an App Step 1 Find the app you want to install. The most recommended app appears on the left side of the screen. The other various apps are shown on the right.
  • Page 53 AB350M Pro4-F A320M Pro4-F Step 3 If you want to install the app, click on the red icon to start downloading. Step 4 When installation completes, you can find the green "Installed" icon appears on the upper right corner. To uninstall it, simply click on the trash can icon...
  • Page 54 Upgrading an App You can only upgrade the apps you have already installed. When there is an available new version for your app, you will find the mark of "New Version" appears below the installed app icon. Step 1 Click on the app icon to see more details. Step 2 Click on the yellow icon to start upgrading.
  • Page 55: Bios & Drivers

    AB350M Pro4-F A320M Pro4-F 3.3.3 BIOS & Drivers Installing BIOS or Drivers When the "BIOS & Drivers" tab is selected, you will see a list of recommended or critical updates for the BIOS or drivers. Please update them all soon.
  • Page 56: Setting

    3.3.4 Setting In the "Setting" page, you can change the language, select the server location, and determine if you want to automatically run the ASRock Live Update & APP Shop on Windows startup.
  • Page 57: Asrock Rgb Led

    A320M Pro4-F 3.4 ASRock RGB LED ASRock RGB LED is a lighting control utility specifically designed for unique individuals with sophisticated tastes to build their own stylish colorful lighting system. Simply by connecting the LED strip, you can customize various lighting schemes and patterns, including Static, Breathing, Strobe, Cycling, Music, Wave and more.
  • Page 58 Connecting the Addressable RGB LED Strip Connect your Addressable RGB LED strip to the Addressable LED Header (ADDR_LED1) on the motherboard. ADDR_LED1 DO_ADDR VOUT 1. Never install the RGB LED cable in the wrong orientation; otherwise, the cable may be damaged. 2.
  • Page 59 ASRock RGB LED Utility Now you can adjust the RGB LED color through the ASRock RGB LED utility. Download this utility from the ASRock Live Update & APP Shop and start coloring your PC style your way! Drag the tab to customize your preference.
  • Page 60: Chapter 4 Uefi Setup Utility

    Chapter 4 UEFI SETUP UTILITY 4.1 Introduction This section explains how to use the UEFI SETUP UTILITY to configure your system. You may run the UEFI SETUP UTILITY by pressing <F2> or <Del> right after you power on the computer, otherwise, the Power-On-Self-Test (POST) will continue with its test routines.
  • Page 61: Navigation Keys

    AB350M Pro4-F A320M Pro4-F 4.1.2 Navigation Keys Use < > key or < > key to choose among the selections on the menu bar, and use < > key or < > key to move the cursor up or down to select items, then press <Enter>...
  • Page 62: Main Screen

    4.2 Main Screen When you enter the UEFI SETUP UTILITY, the Main screen will appear and display the system overview.
  • Page 63: Oc Tweaker Screen

    AB350M Pro4-F A320M Pro4-F 4.3 OC Tweaker Screen In the OC Tweaker screen, you can set up overclocking features. Because the UEFI software is constantly being updated, the following UEFI setup screens and descriptions are for reference purpose only, and they may not exactly match what you see on your screen.
  • Page 64 DRAM Timing Configuration DRAM Frequency If [Auto] is selected, the motherboard will detect the memory module(s) inserted and assign the appropriate frequency automatically. AM4 Advance Boot Training Set TR4 Advance boot training to [Auto] to increase compatibility. Voltage Configuration Vcore Offset Voltage Use this to select Vcore Offset Voltage.
  • Page 65: Advanced Screen

    AB350M Pro4-F A320M Pro4-F 4.4 Advanced Screen In this section, you may set the configurations for the following items: CPU Configuration, North Bridge Configuration, South Bridge Configuration, Storage- Configuration, Super IO Configuration, ACPI Configuration, Trusted Computing , AMD CBS and AMD PBS.
  • Page 66: Cpu Configuration

    4.4.1 CPU Configuration Cool 'n' Quiet Use this item to enable or disable AMD’s Cool ‘n’ Quiet technology. The default value is ® [Enabled]. Configuration options: [Enabled] and [Disabled]. If you install Windows OS and want to enable this function, please set this item to [Enabled]. Please note that enabling this function may reduce CPU voltage and memory frequency, and lead to system stability or compatibility issue with some memory modules or power supplies.
  • Page 67: North Bridge Configuration

    AB350M Pro4-F A320M Pro4-F 4.4.2 North Bridge Configuration SR-IOV Support Enable/disable the SR-IOV (Single Root IO Virtualization Support) if the system has SR-IOV capable PCIe devices.
  • Page 68: South Bridge Configuration

    4.4.3 South Bridge Configuration Onboard HD Audio Enable/disable onboard HD audio. Set to Auto to enable onboard HD audio and automatically disable it when a sound card is installed. Front Panel Enable/disable front panel HD audio. Deep Sleep Configure deep sleep mode for power saving when the computer is shut down. Restore on AC/Power Loss Select the power state after a power failure.
  • Page 69: Storage Configuration

    AB350M Pro4-F A320M Pro4-F 4.4.4 Storage Configuration SATA Controller(s) Enable/disable the SATA controllers. SATA Mode AHCI: Supports new features that improve performance. RAID: Combine multiple disk drives into a logical unit. SATA Hot Plug Enable/disable the SATA Hot Plug function.
  • Page 70: Super Io Configuration

    4.4.5 Super IO Configuration Serial Port Enable or disable the Serial port. Serial Port Address Select the address of the Serial port.
  • Page 71: Acpi Configuration

    AB350M Pro4-F A320M Pro4-F 4.4.6 ACPI Configuration Suspend to RAM It is recommended to select auto for ACPI S3 power saving. ACPI HPET Table Enable the High Precision Event Timer for better performance and to pass WHQL tests. PS/2 Keyboard Power On Allow the system to be waked up by a PS/2 Keyboard.
  • Page 72: Trusted Computing

    4.4.7 Trusted Computing Security Device Support Enable to activate Trusted Platform Module (TPM) security for your hard disk drives.
  • Page 73: Amd Cbs

    AB350M Pro4-F A320M Pro4-F 4.4.8 AMD CBS Zen Common Options RedirectForReturnDis From a workaround for GCC/C000005 issue for XV Core on CZ A0, setting MSRC001_1029 Decode Configuration (DE_CFG) bit 14 [DecfgNoRdrctForReturns] to 1. L2 TLB Associativity 0 - L2 TLB ways [11:8] are fully associative. 1 - =L2 TLB ways [11:8] are 4K-only.
  • Page 74 Opcache Control Enables or disables the Opcache. OC Mode OC1 - 16 cores/3.6GHz on 1.3375V OC2 - 8 cores/3.7GHz on 1.369V OC3 - 4 cores/3.75GHz on 1.374V\nMax Stress - 16 cores/3.8GHz on 1.400V SEV-ES ASID Space Limit SEV VMs using ASIDs below the SEV-ES ASID Space Limit must enable the SEV-ES feature. The valid values for this field are from 0x1 (1) - 0x10 (16).
  • Page 75 AB350M Pro4-F A320M Pro4-F GMI encryption control GMI encryption control Control GMI link encryption xGMI encryption control Control xGMI link encryption CC6 memory region encryption Control whether or not the CC6 save/restore memory is encrypted Location of private memory regions Controls whether or not the private memory regions (PSP, SMU and CC6) are at the top of DRAM or distributed.
  • Page 76 UMC Common Options DDR4 Common Options DRAM Controller Configuration DRAM Controller Configuration DRAM Power Options Cmd2T Select between 1T and 2T mode on ADDR/CMD Gear Down Mode Configure the Gear Down Mode. CAD Bus Configuration CAD Bus Timing User Controls Setup time on CAD bus signals to Auto or Manual CAD Bus Drive Strength User Controls Drive Strength on CAD bus signals to Auto or Manual...
  • Page 77 AB350M Pro4-F A320M Pro4-F DRAM Memory Mapping Chipselect Interleaving Interleave memory blocks across the DRAM chip selects for node 0. BankGroupSwap Configure the BankGroupSwap. BankGroupSwapAlt Configure BankGroupSwapAlt. Address Hash Bank Configure the bank address hashing. Address Hash CS Configure the CS address hashing.
  • Page 78 Determinism Slider [Auto] Use default performance determinism settings cTDP Control [Auto] Use the fused cTDP. [Manual] User can set customized cTDP. Fan Control [Auto] Use the default fan controller settings. [Manual] User can set customized fan controller settings. Disable PSI. ACS Enable Enable ACS.
  • Page 79 AB350M Pro4-F A320M Pro4-F SATA Controller Disable or enable OnChip SATA controller Sata RAS Support Disable or enable Sata RAS Support Sata Disabled AHCI Prefetch Function Configure the Sata Disabled AHCI Prefetch function. Aggresive SATA Device Sleep Port 0 Configure the Aggresive SATA Device Sleep Port 0.
  • Page 80 Chipselect Interleaving Interleave memory blocks across the DRAM chip selects for node 0. BankGroupSwap Configure the BankGroupSwap. BankGroupSwapAlt Configure the BankGroupSwapAlt. Address Hash Bank Configure the bank address hashing. Address Hash CS Configure the CS address hashing. NVDIMM Memory MBIST MBIST Enable Configure the Memory MBIST.
  • Page 81: Amd Pbs

    AB350M Pro4-F A320M Pro4-F 4.4.9 AMD PBS The AMD PBS menu accesses AMD specific features.
  • Page 82: Tools

    4.5 Tools RGB LED ASRock RGB LED allows you to adjust the RGB LED color to your liking. Easy RAID Installer Easy RAID Installer helps you to copy the RAID driver from the support CD to your USB storage device. After copying the drivers please change the SATA mode to RAID, then you can start installing the operating system in RAID mode.
  • Page 83 Save UEFI files in your USB storage device and run Instant Flash to update your UEFI. Internet Flash - DHCP (Auto IP), Auto ASRock Internet Flash downloads and updates the latest UEFI firmware version from our servers for you. Please setup network configuration before using Internet Flash.
  • Page 84 4.6 Hardware Health Event Monitoring Screen This section allows you to monitor the status of the hardware on your system, including the parameters of the CPU temperature, motherboard temperature, fan speed and voltage. CPU Fan 1 Setting Select a fan mode for CPU Fan 1, or choose Customize to set 5 CPU temperatures and assign a respective fan speed for each temperature.
  • Page 85 AB350M Pro4-F A320M Pro4-F 4.7 Security Screen In this section you may set or change the supervisor/user password for the system. You may also clear the user password. Supervisor Password Set or change the password for the administrator account. Only the administrator has authority to change the settings in the UEFI Setup Utility.
  • Page 86 4.8 Boot Screen This section displays the available devices on your system for you to configure the boot settings and the boot priority. Fast Boot Fast Boot minimizes your computer's boot time. In fast mode you may not boot from an USB storage device. Boot From Onboard LAN Allow the system to be waked up by the onboard LAN.
  • Page 87 AB350M Pro4-F A320M Pro4-F AddOn ROM Display Enable AddOn ROM Display to see the AddOn ROM messages or configure the AddOn ROM if you've enabled Full Screen Logo. Disable for faster boot speed. Above 4G Decoding Enable or disable 64bit capable Devices to be decoded in Above 4G Address Space (only if the system supports 64 bit PCI decoding).
  • Page 88 4.9 Exit Screen Save Changes and Exit When you select this option the following message, “Save configuration changes and exit setup?” will pop out. Select [OK] to save changes and exit the UEFI SETUP UTILITY. Discard Changes and Exit When you select this option the following message, “Discard changes and exit setup?”...
  • Page 89 Contact Information If you need to contact ASRock or want to know more about ASRock, you’re welcome to visit ASRock’s website at http://www.asrock.com; or you may contact your dealer for further information. For technical questions, please submit a support request form at https://event.asrock.com/tsd.asp...
  • Page 90 13848 Magnolia Ave, Chino, CA91710 Phone/Fax No: +1-909-590-8308/+1-909-590-1026 hereby declares that the product Product Name : Motherboard AB350M Pro4-F / A320M Pro4-F Model Number : Conforms to the following speci cations: FCC Part 15, Subpart B, Unintentional Radiators Supplementary Information: is device complies with part 15 of the FCC Rules.
  • Page 91 EU Declaration of Conformity For the following equipment: Motherboard (Product Name) AB350M Pro4-F / A320M Pro4-F / ASRock (Model Designation / Trade Name) ASRock Incorporation (Manufacturer Name) 2F., No.37, Sec. 2, Jhongyang S. Rd., Beitou District, Taipei City 112, Taiwan (R.O.C.) (Manufacturer Address) EMC —Directive 2014/30/EU (from April 20th, 2016)
