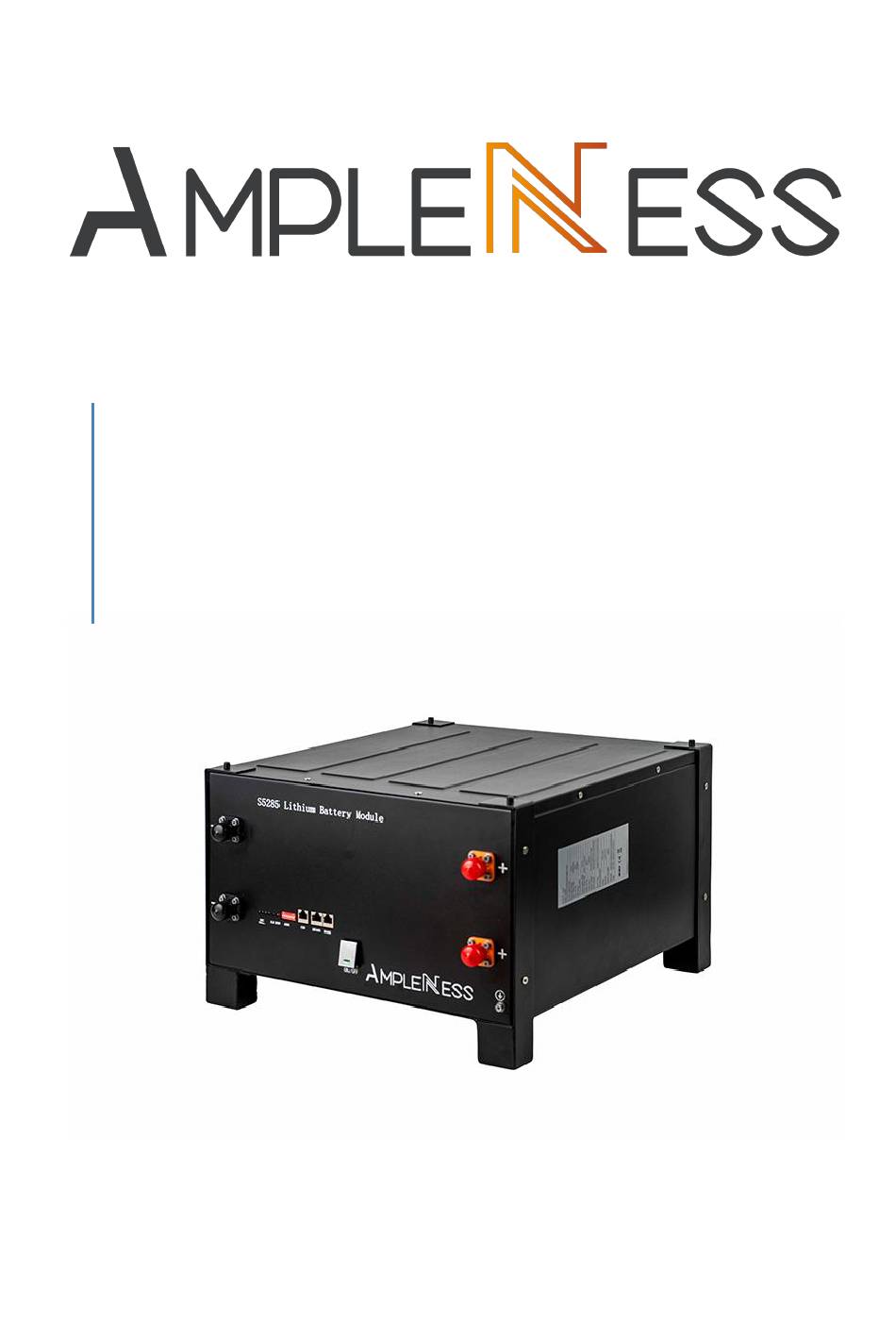

- Page 1 User Manual of Storage Lithium Battery S5285...
-
Page 2: Table Of Contents
AMPLENESS Lithium Battery S5285 User Manual Manual Instruction The Energy Storage Batteries System provides the energy storage for PV users and backup power support for the important electrical equipment. The battery system can store excessive power generated by PV system at daytime, and can utilize the stored energy (if necessary) to... -
Page 3: Security Disclaimer
2. Precautions for Safe Use We feel quite thankful that you choose AMPLENESS products. In order to enable you to use and maintain it in a better way, please kind read this user manual carefully before use. - Page 4 AMPLENESS Lithium Battery S5285 User Manual Please lift and put it down gently to avoid hurting feet or damage to product during transportation and installation. Please keep battery away from the flammable objects and heat sources. Please don’t drop any sundries into battery during installation. Otherwise, it may cause ...
- Page 5 AMPLENESS Lithium Battery S5285 User Manual If the battery pack leaks electrolyte, avoid contact with the leaking liquid or gas. Electrolyte is corrosive and contact may cause skin irritation and chemical burns. If one is exposed to the leaked substance, do these actions: Inhalation: Evacuate the contaminated area, and seek medical attention immediately.
-
Page 6: Product Introduction
AMPLENESS Lithium Battery S5285 User Manual 3. Product Introduction AMPLENESS S5285 battery is composed of lithium iron phosphate cells in series. The built-in BMS battery management system can manage and monitor battery information, including voltage, current and temperature. In addition, the BMS can also balance the charge and discharge of the battery to extend the cycle life. -
Page 7: Specification
AMPLENESS Lithium Battery S5285 User Manual 4. Specification 4.1 Battery Specification ITEM S5285 Battery Type LiFePo4 Mount Type Rack Mounted Nominal Voltage (V) 51.2 Capacity (Ah) Nominal Energy (KWh) 4.35 Operating Voltage (V) 44.8~58.4 Max Charge Current (A) Charging Current (A) - Page 8 AMPLENESS Lithium Battery S5285 User Manual 4.2 Product Size 4.3 Product Panel Description...
- Page 9 AMPLENESS Lithium Battery S5285 User Manual 4.4 Battery Management System (BMS protection board) Function Function Name connect the positive electrode of external device Positive electrode Negative electrode connect the negative electrode of external device Capacity indicator, alarm Indicate working status, battery capacity...
-
Page 10: Installation
AMPLENESS Lithium Battery S5285 User Manual 4.4.3 Temperature Protection Function Charging low/over-temperature protection Discharging low/over-temperature protection charging, system starts charging discharging, system starts discharging temperature protection and stops charging if temperature protection and stops supplying the battery temperature is over protection... - Page 11 AMPLENESS Lithium Battery S5285 User Manual The installed location should not be access by pet and children. No flammable or explosive materials nearby, at least 2.5m far away from combustible. Minimal dust and dirt in the area. ...
- Page 12 AMPLENESS Lithium Battery S5285 User Manual NOTICE Make sure that the cross-sectional area of charging cables is 25 to 35 mm NOTICE A breaker between battery and inverter was recommended to install, and the breaker’s min. current should be over 150 A or following with local regulations.
- Page 13 AMPLENESS Lithium Battery S5285 User Manual 5.6 Safety Instruments When dealing with the battery, following safety gears should be equipped. Installers must meet the relevant requirements of IEC 60364 or the domestic legislation and other relevant international standards. Insulated glove...
- Page 14 AMPLENESS Lithium Battery S5285 User Manual Please unscrew the screw at the ground hole on front panel, install the ground terminal on the screw and tighten it with a screwdriver. The other end of ground wire is connected to the nearby bracket, and the whole is connected to a reliable ground point.
- Page 15 AMPLENESS Lithium Battery S5285 User Manual 5.10.5 Communication wire connection A single battery: just select the corresponding interface according to the communication protocol of inverter. Multiple batteries: the host and the slave batteries communicate in cascade mode, one of them is the host, and the rest are slave batteries. Then, the corresponding port can be connected to the host battery according to the communication protocol of inverter.
-
Page 16: Communication Settings
AMPLENESS Lithium Battery S5285 User Manual 6. Communication Settings The product is designed with communication interfaces like the RS485 and CAN, and the battery status can be easily obtained or the internal parameters can be modified through the master computer. -
Page 17: Abnormal Conditions And Fault Handling
AMPLENESS Lithium Battery S5285 User Manual 7. Abnormal Conditions and Fault Handling 7.1 Fault and abnormal phenomenon handling Fault Phenomenon Fault Causes Handling Method Please check whether DC input switch is closed, check whether DC input fault No DC input voltage... - Page 18 AMPLENESS Lithium Battery S5285 User Manual 4) Reverse charging is prohibited The battery must be connected according to the installation instructions. Reverse charging is prohibited and short circuit is prohibited in the positive and negative electrodes of the battery to avoid the battery pack failure and damage.
-
Page 19: Maintenance And Recycling
AMPLENESS Lithium Battery S5285 User Manual 10. Maintenance and Recycling Frequent maintenance is required in order to ensure the continuous and normal operation of battery, and recycling of old equipment is also required in order to settle the environmental protection issues. -
Page 20: Legal Statement
AMPLENESS Lithium Battery S5285 User Manual Legal statement The copyright of the manual belongs to SUZHOU AMPLE ESS CO., LTD.. Any unit, company or individuals is not allowed to extract, copy and translate it in any way without the written permission of copyright owner. Otherwise, infringement must be investigated.
