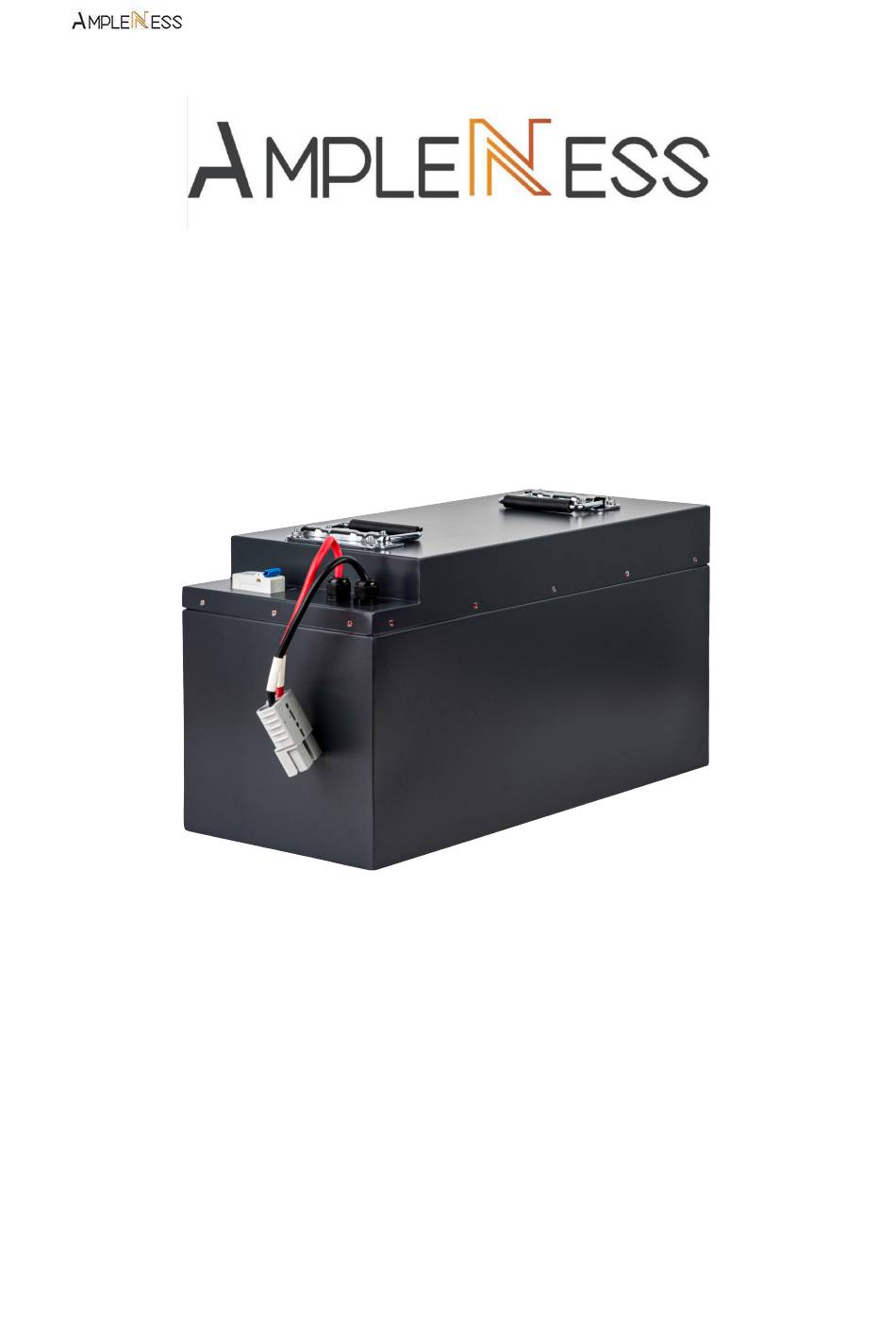

- Page 1 User’s Manual of Household Battery system User’s Manual of Household Battery system Rev：R1 2022 年 4 月...
-
Page 2: Table Of Contents
User’s Manual of Household Battery system User’s Manual of Household Battery system 目录 Chapter 1 Safety Needs & Environmental Protection ......3 1.1 Preface ..........................3 1.2 Safety Disclaimer ......................3 1.3 Safety Signs Description ....................3 1.4 Environmental Protection ....................5 Chapter 2 Product appearance description ........ -
Page 3: Preface
User’s Manual of Household Battery system Chapter 1 Safety Precautions & Environmental Protection 1.1 Preface We feel quite thankful that you can choose the household green battery system of Suzhou Ample Ess Co., Ltd.. In order to enable you to use and maintain it in better way, please kind read this user’s manual carefully before use. -
Page 4: Chapter 1 Safety Needs & Environmental Protection
User’s Manual of Household Battery system temperature Discharg -10℃-55℃ Relative humidit ≤90% Physical dimension [490mm(L)×220mm(W)×270mm(H)]±2mm Caution: Due to the danger caused by failure to operate as requirements, people may get moderate injury or minor injury, and product may be damaged. Danger: Due to the danger caused by failure to operate as requirements, it may cause fire, serious personal injury, or even death. - Page 5 User’s Manual of Household Battery system 2. Please ensure that the power is off before wiring, otherwise there will be a danger of electric shock or fire disaster. 3. The installed cables must meet requirements, and the parts of power distribution must comply with the safety regulations;...
-
Page 6: Environmental Protection
3. Please use the dry powder extinguisher and disconnect all the switches if the system catches fire. 1.4 Environmental Protection Suzhou AmplenEss Co., Ltd. always pays attention to the protection of the environment, and we strictly abide by the relevant environmental protection policies. This product... -
Page 7: Chapter 2 Product Appearance Description
As this product uses lithium iron phosphate batteries, please ensure to comply with local regulations for related disposal. Chapter 2 Product Appearance Description 2 . 1 Product Model Descriptio S2675 25.6V 75Ah Dimensio L*W*H= [490mm(L)×220mm(W)×270mm(H)]±2mm Appearance Descriptio... -
Page 8: Chapter 3 Technical Specifications
User’s Manual of Household Battery system Chapter 3 Technical Specification Type Parameters Nominal input voltage 29.2V Input Voltage Range ChargingInput 29.2V≤U≤33V （DC ） Input Current ＜25A Input power ＜640W Nominal Output Voltage 25.6V Output Voltage Range 22.4V＜U＜29.2V Output Current ＜50A System Output Output Power ＜1280w... - Page 9 User’s Manual of Household Battery system Maximum weight ≤35±2Kg...
-
Page 10: Chapter 4 Working Principle
User’s Manual of Household Battery system Chapter 4 -Operating Principl 4 . 1 Block Diagram of System Battery System Pack DC switch Positive electrode Negative electrode 4 . 2 Working Mode Description 4.2.1 Power Supply of Battery System (Home use) After the mains power stops supplying, the standby power is started. -
Page 11: Chapter 5 Exception Handling
User’s Manual of Household Battery system Caution: because of the characteristics of system, it will stably output power within 5-10 seconds after starting; please turn on the system first before connecting to the inverter. Power off: Turn off the switch button on the upper panel, and then the working indicator light is gone out, and the system is powered off. -
Page 12: Chapter 6 Maintenance And Recycling
User’s Manual of Household Battery system System faul Operating error Please disconnect the load, turn off switch and restart it. Chapter 6 Maintenance & Recycling In order to ensure the continuous normal operation and the environmental protection issues of battery system, it is required to do maintenance regularly and recycling the old equipment. 6 . -
Page 13: Chapter 7 Package
User’s Manual of Household Battery system output voltage, etc. are in conformity with the order. If there is an abnormality or the content does not match, please contact the dealer as soon as possible. Battery system: 1 set Product manual: 1 copy...
