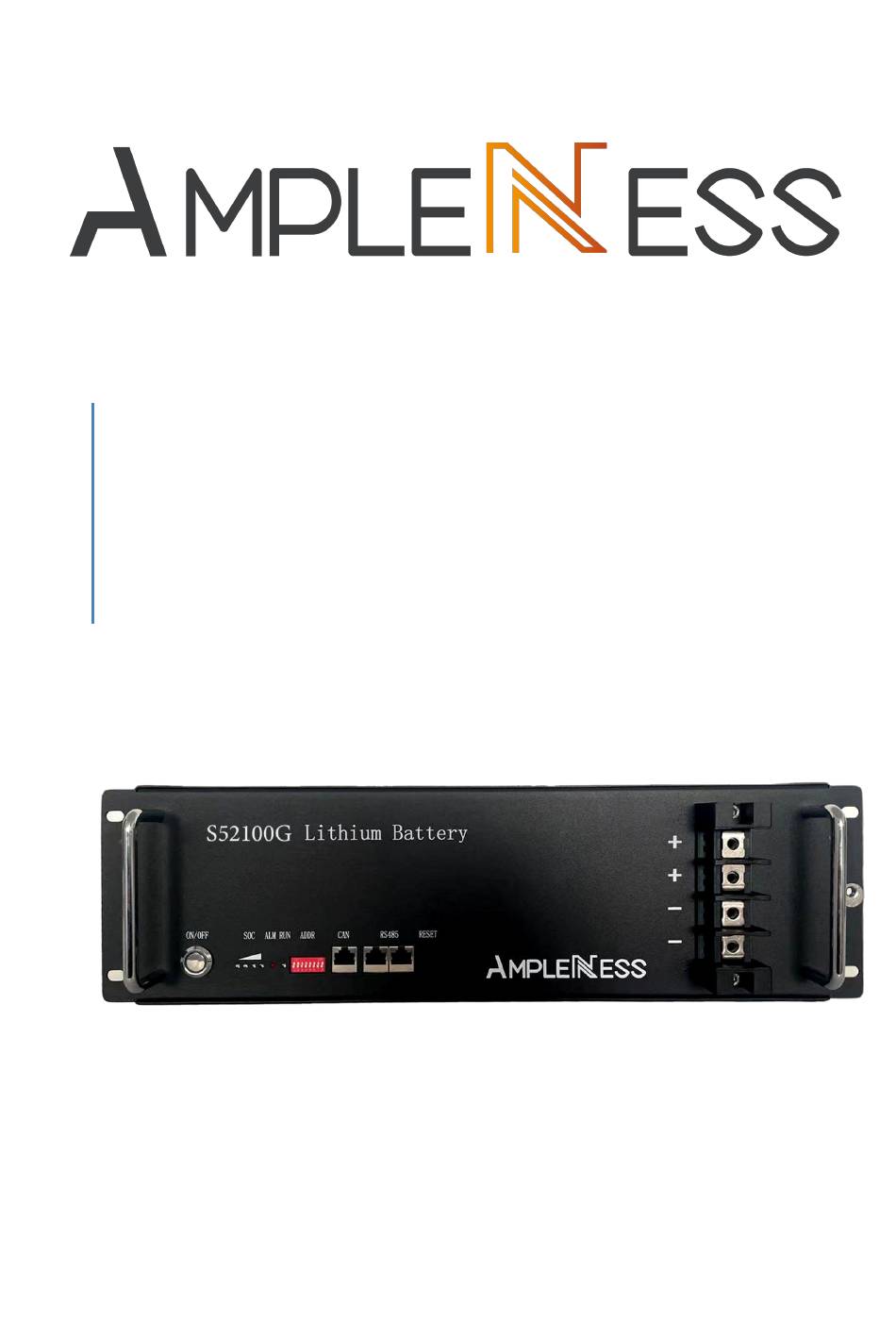

- Page 1 User Manual of Storage Lithium Battery S52100G...
-
Page 2: Table Of Contents
AMPLENESS Lithium Battery S52100G User Manual Manual Instruction The Energy Storage Batteries System provides the energy storage for PV users and backup power support for the important electrical equipment. The battery system can store excessive power generated by PV system at daytime, and can utilize the stored energy (if necessary) to... -
Page 3: Security Disclaimer
2. Precautions for Safe Use We feel quite thankful that you choose AMPLENESS products. In order to enable you to use and maintain it in a better way, please kind read this user manual carefully before use. - Page 4 AMPLENESS Lithium Battery S52100G User Manual Please lift and put it down gently to avoid hurting feet or damage to product during transportation and installation. Please keep battery away from the flammable objects and heat sources. Please don’t drop any sundries into battery during installation. Otherwise, it may cause ...
- Page 5 AMPLENESS Lithium Battery S52100G User Manual 2.7.1 Leaking batteries If the battery pack leaks electrolyte, avoid contact with the leaking liquid or gas. Electrolyte is corrosive and contact may cause skin irritation and chemical burns. If one is exposed to the leaked substance, do these actions: Inhalation: Evacuate the contaminated area, and seek medical attention immediately.
-
Page 6: Product Introduction
AMPLENESS Lithium Battery S52100G User Manual 3. Product Introduction AMPLENESS S52100G battery is composed of lithium iron phosphate cells in series. The built-in BMS battery management system can manage and monitor battery information, including voltage, current and temperature. In addition, the BMS can also balance the charge and discharge of the battery to extend the cycle life. -
Page 7: Specification
AMPLENESS Lithium Battery S52100G User Manual 4. Specification 4.1 Battery Specification ITEM S52100G Battery Type LiFePo4 Mount Type Rack Mounted Nominal Voltage (V) 51.2 Capacity (Ah) Nominal Energy (KWh) 5.12 Operating Voltage (V) 44.8~58.4 Max Charge Current (A) Charging Current (A) - Page 8 AMPLENESS Lithium Battery S52100G User Manual 4.2 Product Size 4.3 Product Panel Description...
- Page 9 AMPLENESS Lithium Battery S52100G User Manual Name Label Function Description Grounding Ground wire Power button. When switched to "ON", the system can be activated by the "SW" key or Power button ON/OFF external power supply; when switched to "OFF", the system is turned off.
- Page 10 AMPLENESS Lithium Battery S52100G User Manual 4.4.2 Current Protection Function Charging over-current protection Discharging over-current protection System stops charging if charging current is System stops discharging if discharging over the protection value. Protection is current over protection value. dismissed after a period of time. Please pay Protection is dismissed after a period of time.
-
Page 11: Installation
AMPLENESS Lithium Battery S52100G User Manual 5. Installation 5.1 Installation Location Make sure that the installation location meets the following conditions: The building is designed to withstand earthquakes, and the floor is flat and level. Far away from the sea to avoid salt water and humidity. - Page 12 AMPLENESS Lithium Battery S52100G User Manual 5.4 Tools To install the battery pack, those following tools are probably required: Phillips screwdriver Torque wrench Cable crimper Wire clamp Voltmeter Tape measure Drill Flat-head screwdriver In order to protect operator and installer’s safety, please select and use suitable tools and ...
- Page 13 AMPLENESS Lithium Battery S52100G User Manual In the process of unpacking, please pay attention to lift and put it down gently and protect its surface coating. The installing person should read technical document, check the list, confirm whether accessories are completed and intact according to Packing List at first after unpacking. If internal packages are damaged, please check it carefully and take records.
- Page 14 AMPLENESS Lithium Battery S52100G User Manual battery with the DC positive electrode of inverter by a red cable, and connect the negative electrode of battery with the DC negative electrode of inverter by a black cable. 5.9.5 Communication wire connection A single battery: just select the corresponding interface according to the communication protocol of inverter.
-
Page 15: Communication Settings
AMPLENESS Lithium Battery S52100G User Manual 5.9.7 Power-on test Please connect battery and inverter or DC switching power supply. Please check whether battery state is normal according to the indicator table: battery will be in charging mode if battery power is not full and inverter has successfully ... - Page 16 AMPLENESS Lithium Battery S52100G User Manual 6.1 RS485 interface Definition 1, 8 RS485-B 2, 7 RS485-A 3, 6 4, 5 The product has RS485 communication between battery packs, and baud rate is 19200bps. Please take reference for the above figure of communication interface definition.
-
Page 17: Abnormal Conditions And Fault Handling
AMPLENESS Lithium Battery S52100G User Manual 7. Abnormal Conditions and Fault Handling 7.1 Fault and abnormal phenomenon handling Fault Phenomenon Fault Causes Handling Method Please check whether DC input switch is closed, check whether DC input fault No DC input voltage... - Page 18 AMPLENESS Lithium Battery S52100G User Manual 4) Reverse charging is prohibited The battery must be connected according to the installation instructions. Reverse charging is prohibited and short circuit is prohibited in the positive and negative electrodes of the battery to avoid the battery pack failure and damage.
-
Page 19: Maintenance And Recycling
AMPLENESS Lithium Battery S52100G User Manual 10. Maintenance and Recycling Frequent maintenance is required in order to ensure the continuous and normal operation of battery, and recycling of old equipment is also required in order to settle the environmental protection issues. -
Page 20: Legal Statement
AMPLENESS Lithium Battery S52100G User Manual Legal statement The copyright of the manual belongs to SUZHOU AMPLE ESS CO., LTD.. Any unit, company or individuals is not allowed to extract, copy and translate it in any way without the written permission of copyright owner. Otherwise, infringement must be investigated.
