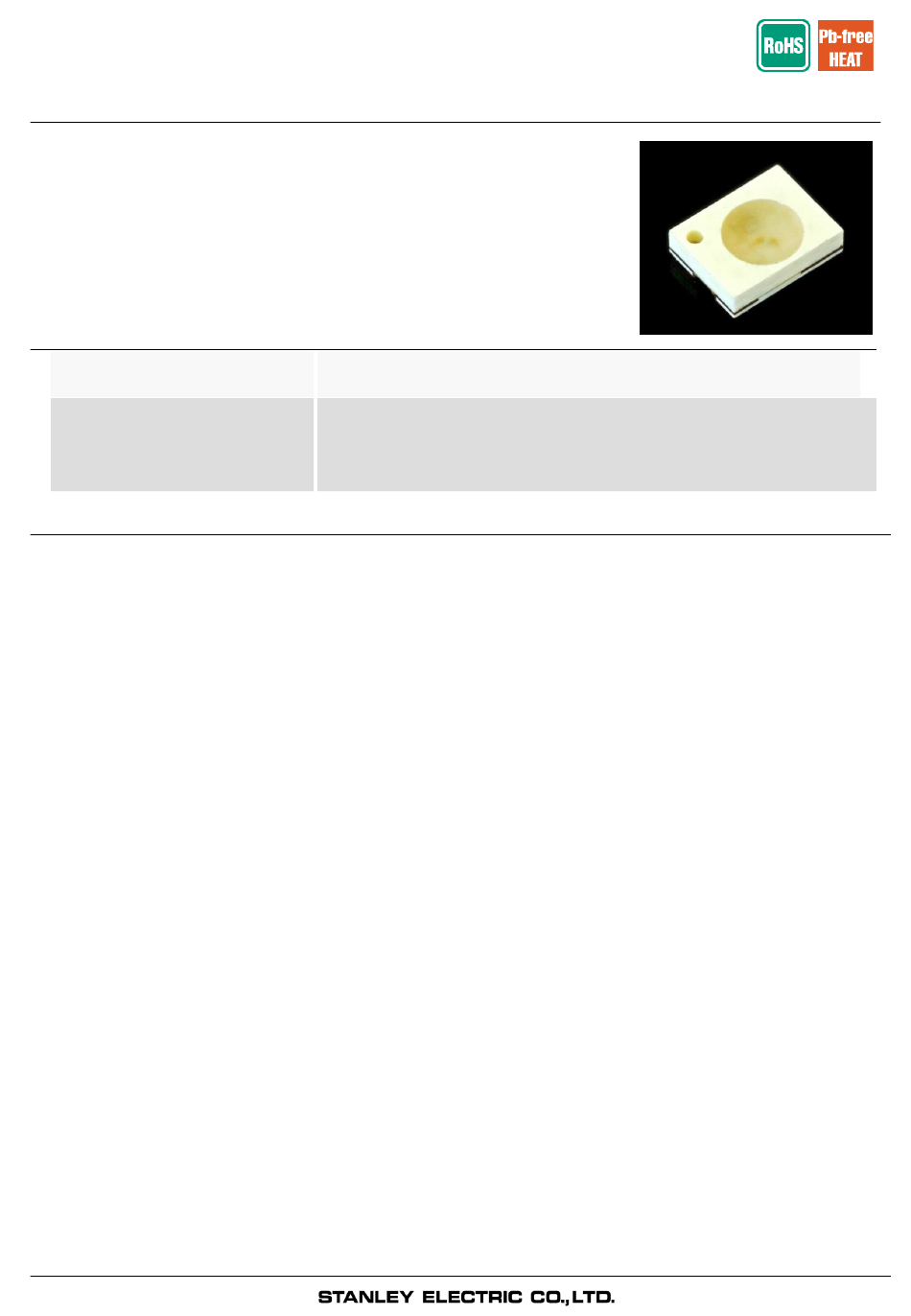

JUA1117AS-TR
Standard Product Reference Sheet
Features
Package
Outer Dimension 2.4 x 1.85 x 0.6mm ( L x W x H )
・Thinner package, Orange color emitting LED
Product features
・Lead–free soldering compatible
・RoHS compliant
Recommended Applications
・Amusement equipment, Home appliances, OA/FA equipment, Other general lighting use, etc.
Page : 1
2018.4.5

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JUA1117AS-TR and is the answer not in the manual?

Questions and answers

Related Manuals for Stanley Electric JUA1117AS-TR

Summary of Contents for Stanley Electric JUA1117AS-TR

  • Page 1 JUA1117AS-TR Standard Product Reference Sheet Features Package Outer Dimension 2.4 x 1.85 x 0.6mm ( L x W x H ) ・Thinner package, Orange color emitting LED Product features ・Lead–free soldering compatible ・RoHS compliant Recommended Applications ・Amusement equipment, Home appliances, OA/FA equipment, Other general lighting use, etc.

  • Page 2: Outline Dimensions

    Outline Dimensions JUA1117AS-TR Unit Weight :5.2mg Tolerance :±0.1mm PART NAME REMARKS QTY. ① LED Die AlGaInP ② Lamp Housing Glass fabric ③ Terminal Au Plating ④ Encapsulant Silicone Resin Recommended Pad Unit：mm Page : 2 2018.4.5...

  • Page 3: Specifications

    JUA1117AS-TR Specifications 【 Product Overview 】 Die Material AlGaInP Emitting Color Orange Resin Color( Emitting Area) Milky White 【 Absolute Maximum Ratings 】 (Ta=25℃) ITEM SYMBOL MAXIMUM RATINGS UNITS Power Dissipation Forward Current Repetitive Peak Forward Current "1ms,1/20duty" ΔI Derate Linearly from "60℃"...
  • Page 4 JUA1117AS-TR Specifications 【 Electro and Optical Characteristics 】 (Ta=25℃) ITEM SYMBOL CONDITIONS MIN. TYP. MAX. UNITS Forward Voltage = 20mA Reverse Current µA Luminous Intensity = 20mA 1,500 Note3 Φ Luminous Flux = 20mA λd Dominant Wavelength = 20mA Note4 Δθx...

  • Page 5: Technical Data

    JUA1117AS-TR Technical Data Wavelength vs. Relative Intensity Conditions: Ta = 25℃, I =20mA Wavelength: (nm) Spatial Distribution Conditions: Ta = 25℃, I =20mA x Direction y Direction -100 Relative Intensity: (%) Page : 5 2018.4.5...
  • Page 6 JUA1117AS-TR Technical Data Forward Voltage vs. Forward Current Ambient Temperature vs. Forward Voltage Condition : I = 20mA Condition : Ta = 25℃ Ambient Temp. : Ta (℃) Forward Voltage : V Forward Current vs. Relative Intensity Ambient Temperature vs. Relative Intensity...
  • Page 7 JUA1117AS-TR Technical Data Ambient Temperature vs. Power Dissipation Ambient Temperature vs. Maximum Forward Current Ambient Temp. : Ta(℃) Ambient Temp. : Ta(℃) Ambient Temperature vs. Maximum Forward Current Duty Ratio vs. Max. Forward Current Repetition Frequency : f ≧ 50Hz Condition: Ta = 25℃...
  • Page 8 JUA1117AS-TR Technical Data Pulse Width vs. Maximum Tolerable Peak Current Condition : Ta=25℃ ２ 1kHz 100Hz 50Hz 10kHz 10.0 100.0 1,000.0 10,000.0 100,000.0 Pulse Width : tw (μs) Page : 8 2018.4.5...
  • Page 9 Soldering condition JUA1117AS-TR 【Soldering Precaution】 (acc.to EIAJ-4701/300) Heat stress during soldering will influence the reliability of LEDs, however that effect will vary on heating method. Also, if components of varying shape are soldered together, it is recommended to set the soldering pad temperature according to the component most vulnerable to heat (e.g., surface mount LED).
  • Page 10 Soldering condition JUA1117AS-TR If soldering manually, Stanley recommends using a soldering iron equipped with temperature control. During the actual soldering process, make sure that the soldering iron never touches the LED itself, and avoid the LED's electrode heating temperature reaching above the heating temperature of the solder pad. All repairs must be performed only once in the same spot, and please avoid reusing components.

  • Page 11: Handling Precaution

    Handling Precaution JUA1117AS-TR 【 For Electric Static Discharge ( ESD) 】 This kind of LED lamp is highly sensitive to surge voltage generated by the On/Off status change and discharges of static electricity through frictions with synthetic materials, which may cause severe damage to the die or undermine its reliability.

  • Page 12: Other Precautions

    Handling Precaution JUA1117AS-TR 【 Other Precautions 】 Stanley LED Lamps have semiconductor characteristics and are designed to ensure high reliability. However, the performance may vary depending on usage conditions Absolute Maximum Ratings are set to prevent LED lamps from failing due to excess stress( temperature, current, voltage, etc.).
  • Page 13 Handling Precaution JUA1117AS-TR 【 Handling Precautions for Product Mounting 】 ＜Recommendation＞ 1. Picking up point with nozzle: Lamp housing of the product ( area) (Shown below) The picking up point should be within lamp housing portion, because the silicone resin used for the lens is soft.

  • Page 14: Packaging Specifications

    Packaging Specifications JUA1117AS-TR This product is baked (moisture removal) before packaging, and is shipped in moisture-proof packaging (as shown below) to minimize moisture absorption during transportation and storage. However, with regard to storing the products, Stanley recommends the use of dry-box under the following conditions is recommended. Moisture-proof bag as the packaging is made of anti-static material but packaging box is not.

  • Page 15: Packaging Specification

    Packaging Specification JUA1117AS-TR 【Moisture-proof Packaging Specification】 Fastener for re-storage after opening bag ① Customer's opening position Product Label Heat Sealing position (after product being put in) (Desiccant with indicator for moisture level is enclosed.) PART NAME MATELRIAL REMARKS Moisture-proof bag with ESD ①...
  • Page 16 Packaging Specifications JUA1117AS-TR 【 Packing box 】 (RoHS・ELV Compliant) Outline dimension Box Type Capacity of the box L × W × H (mm) 280 × 265 × 45 Type A 3 reels 310 × 235 × 265 Type B 15 reels 440 ×...

  • Page 17: Label Specification

    Packaging Specifications JUA1117AS-TR 【 Label Specification】 ( acc.to JIS-X0503(Code-39) Product label A. Parts number B. Bar-code for parts number C. Parts code (In-house identification code for each parts number) D. Packed parts quantity E. Bar-Code for packed parts quantity F. Lot number & Rank (refer to Lot Number Notational System for details ) G.
  • Page 18 Taping and Reel Specifications JUA1117AS-TR (acc.to JIS-C0806-03） 【Appearance】 Note "-TR" means cathode side of LEDs should be placed on the sprocket-hole side. Items Specifications Remarks Cover-tape shall be longer The end of cover-tape shall be Cover-tape than 320mm without carrier-tape held with adhesive tape.

  • Page 19: Mechanical Strength

    Taping and Reel Specifications JUA1117AS-TR (acc.to JIS-C0806-03） 【 Qty. per Reel】 4,000parts/reel Minimum Qty. per reel might be 500 parts when getting less than 4,000 parts. In such case, parts of 500-unit-qty. shall be packed in a reel and the qty. shall be identified on the label.

  • Page 20: Reel Dimensions

    Taping and Reel Specifications JUA1117AS-TR (acc.to JIS-C0806-03） Unit ：mm 【Taping Dimensions】 ① ② 【Reel Dimensions】 ③ PART NAME REMARKS ① Carrier-tape with ESD protection ② Cover-tape with ESD protection ③ Carrier-reel with ESD protection Page : 20 Page : 20...
  • Page 21 Lot Number Notational System JUA1117AS-TR ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ① - 1digit ： Production Location (Mark identify alphabet) ② - 1digit ： Production Year (Last digit of Production Year 2009→9,2010→0,2011→1,･･･) ③ - 2digits ： Production Month (Jan. to Sep. , should be 01,02,03,･････) ④...
  • Page 22 Correspondence to RoHS・ELV instruction JUA1117AS-TR This product is in compliance with RoHS・ELV. Prohibition substance and it's criteria value of RoHS・ELV are as follows. ・RoHS instruction …… Refer to following (1)～(6). ・ELV instruction ………. Refer to following (1)～(4). Substance Group Name...
  • Page 23 Reliability Testing Result JUA1117AS-TR 1. Reliability Testing Result Test Item Criteria Test Condition Duration Failure EIAJ ED-4701 Operating Life Ta=25℃ Maximum Rated Current 1,000h 0 /20 /100(101) High Temperature EIAJ ED-4701 Ta=85℃ Maximum Rated Current (※) 1,000h 0 /20 /100(101)
  • Page 24 JUA1117AS-TR Special Notice to Customers Using the Products and Technical Information Shown in This Data Sheet 1) The technical information shown in the data sheets are limited to the typical characteristics and circuit examples of the referenced products. It does not constitute the warranting of industrial property nor the granting of any license.
  • Page 25 Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: Stanley Electric JUA1117AS-TR...
