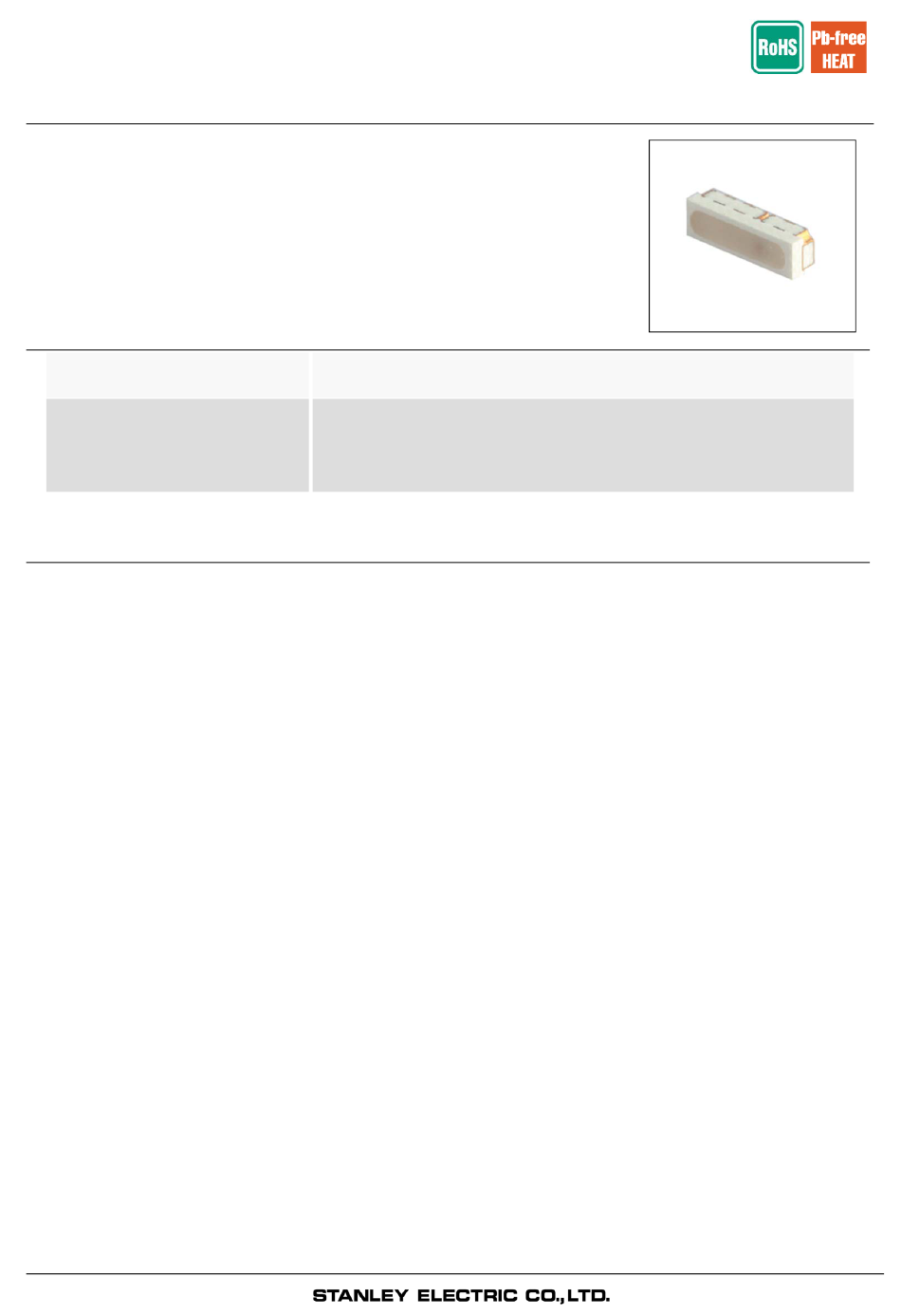

Standard Product Reference Sheet
Features
Package
Product features
Recommended Applications
Cellular Phone, Home Appliances, Amusement Equipment, Other General Applications
2013.2.11
3in1 Side Viewing (Right Angle) type
Out dimension 4.5 × 1.15 × 1.35mm ( L x W x H )
・ RGB tri-color emitting LED
・ Lead–free soldering compatible
・ RoHS compliant
ARGB1318FS-TM
Page : 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ARGB1318FS-TM and is the answer not in the manual?

Questions and answers

Related Manuals for Stanley Electric ARGB1318FS-TM

Summary of Contents for Stanley Electric ARGB1318FS-TM

  • Page 1 Standard Product Reference Sheet ARGB1318FS-TM Features 3in1 Side Viewing (Right Angle) type Package Out dimension 4.5 × 1.15 × 1.35mm ( L x W x H ) ・ RGB tri-color emitting LED Product features ・ Lead–free soldering compatible ・ RoHS compliant...

  • Page 2: Outline Dimensions

    Outline Dimensions ARGB1318FS-TM ： mm Unit ： 11.5mg Weight Tolerance ：± 0.2 SYMBOL PART NAME MATERIALS QTY. ① LED Die AlGaInP,InGaN ② Substrate Glass Fabrics ③ Encapsulant Silicone Resin Recommended Pad Unit ： mm Page : 2 2013.2.11...

  • Page 3: Specifications

    ARGB1318FS-TM Specifications 【 Product Overview 】 LED Die (1) LED Die (2) LED Die (3) Material AlGaInP InGaN InGaN Emitting Color GREEN BLUE Lens Color MILKY WHITE 【 Absolute Maximum Ratings 】 (Ta=25 ℃ ) ITEM SYMBOL LED Die (1)
  • Page 4 ARGB1318FS-TM Specifications 【 Electro-Optical Characteristics 】 (Ta=25 ℃ ) LED Die (1) ITEM SYMBOL CONDITIONS MIN. TYP. MAX. UNITS Forward Voltage = 23mA μ A － － Reverse Current = 5V － － Luminous Intensity = 23mA λ d －...
  • Page 5 ARGB1318FS-TM Specifications 【Sorting Chart for Chromaticity Coordinates】 Chromaticity coordinates is sorted out into the following chat. 0.45 0.40 0.35 0.30 0.25 0.20 0.20 0.25 0.30 0.35 0.40 Left Down Left Up Right Up Right Down RANK CONDITONS ｘ ｙ ｘ ｙ ｘ ｘ ｙ...
  • Page 6 Technical Data(LED Die 1: RED) ARGB1318FS-TM Wavelength vs. Relative Intensity Conditions : Ta=25℃ , I =20mA Wavelength : (nm) Spatial Distribution Conditions: Ta=25℃ , I =20mA x Direction y Direction -100 Relative Intensity : (%) Page : 6 2013.2.11...
  • Page 7 Technical Data(LED Die 1: RED) ARGB1318FS-TM Forward Voltage vs. Forward Current . Duty Cycle vs. Maximum Forward Current Condition: Ta = 25℃ Forward Voltage ： V Duty Ratio ： (%) Ambient Temperature vs. Relative Intensity Forward Current vs. Relative Intensity...
  • Page 8 Technical Data(LED Die 1: RED) ARGB1318FS-TM Ambient Temperature vs. Maximum Forward Current Ambient Temperature vs. Maximum Forward Current Repeatition Frequency：f≧50Hz Repeatition Frequency：f≧50Hz Duty= 5% Duty=10% Duty=20% Duty=50% Ambient Temperature ： Ta (℃) Ambient Temperature : Ta (℃) Pulse Width vs. Maximum Tolerable Peak Current Ambient Temperature vs.
  • Page 9 Technical Data(LED Die 2: GREEN) ARGB1318FS-TM Wavelength vs. Relative Intensity Conditions : Ta=25℃ , I =10mA Wavelength : (nm) Spatial Distribution Conditions : Ta=25℃ , I =20mA x Direction y Direction -100 Relative Intensity : (%) Page : 9 2013.2.11...
  • Page 10 Technical Data(LED Die 2: GREEN) ARGB1318FS-TM Forward Voltage vs. Forward Current . Duty Cycle vs. Maximum Forward Current Condition: Ta = 25℃ Forward Voltage ： V Duty Ratio ： (%) Ambient Temperature vs. Relative Intensity Forward Current vs. Relative Intensity...
  • Page 11 Technical Data(LED Die 2: GREEN) ARGB1318FS-TM Ambient Temperature vs. Maximum Forward Current Ambient Temperature vs. Maximum Forward Current Repeatition Frequency：f≧50Hz Repeatition Frequency：f≧50Hz Duty= 5% Duty=10% Duty=20% Duty=50% Ambient Temperature ： Ta (℃) Ambient Temperature : Ta (℃) Pulse Width vs. Maximum Tolerable Peak Current Ambient Temperature vs.
  • Page 12 Technical Data(LED Die 3: BLUE) ARGB1318FS-TM Wavelength vs. Relative Intensity Conditions : Ta=25℃ , I =10mA Wavelength: (nm) Spatial Distribution Conditions : Ta=25℃ , I =20mA x Direction y Direction -100 Relative Intensity : (%) Page : 12 2013.2.11...
  • Page 13 Technical Data(LED Die 3: BLUE) ARGB1318FS-TM Forward Voltage vs. Forward Current . Duty Cycle vs. Maximum Forward Current Condition: Ta = 25℃ Forward Voltage ： V Duty Ratio ： (%) Ambient Temperature vs. Relative Intensity Forward Current vs. Relative Intensity...
  • Page 14 Technical Data(LED Die 3: BLUE) ARGB1318FS-TM Ambient Temperature vs. Maximum Forward Current Ambient Temperature vs. Maximum Forward Current Repeatition Frequency：f≧50Hz Repeatition Frequency：f≧50Hz Duty= 5% Duty=10% Duty=20% Duty=50% Ambient Temperature ： Ta (℃) Ambient Temperature : Ta (℃) Pulse Width vs. Maximum Tolerable Peak Current Ambient Temperature vs.
  • Page 15 Technical Data(All LED emitting) ARGB1318FS-TM Wavelength vs. Relative Intensity Conditions : Ta = 25℃, I =20mA Wavelength : (nm) Spatial Distribution Conditions : Ta=25℃ , I =20mA x Direction y Direction -100 Relative Intensity : (%) Page 15 2013.2.1...

  • Page 16: Soldering Conditions

    Soldering conditions ARGB1318FS-TM 【Soldering Precaution】 (acc.to EIAJ-4701/300) 1. Heat stress during soldering will influence the reliability of LEDs, however that effect will vary with heating method. Also, if components with different shapes need to be mounted together, it is recommended to set the soldering pad temperature according to the component most vulnerable to heat stress (ex.
  • Page 17 Soldering conditions ARGB1318FS-TM 4. If soldering manually, Stanley recommends using a soldering iron equipped with temperature control. During the actual soldering process, make sure that the soldering iron never touches the LED itself, and avoid the LED's electrode heating temperature reaching above the heating temperature of the solder pad.

  • Page 18: Handling Precaution

    Handling Precaution ARGB1318FS-TM 【 For Electric Static Discharge ( ESD) 】 This kind of LED lamp is highly sensitive to surge voltage generated by the On/Off status change and discharges of static electricity through frictions with synthetic materials, which may cause severe damage to the die or undermine its reliability.
  • Page 19 Handling Precaution ARGB1318FS-TM 【 Other Precautions 】 1. Stanley LED Lamps have semiconductor characteristics and are designed to ensure high reliability. However, the performance may vary depending on usage conditions 2. Absolute Maximum Ratings are set to prevent LED lamps from failing due to excess stress( temperature, current, voltage, etc.).
  • Page 20 Handling Precaution ARGB1318FS-TM 【 Other Precautions for Product Mounting】 ＜Recommendation＞ Product pick up point : area of below figure Pick up point Load : Less than ５Ｎ (to avoid the product breaking) Load : Less than 5Ｎ Please adjust the load, the pick up point, the nozzle diameter etc. before mounting, because lamp housing might get destroyed due to overload and improper shape of nozzle.

  • Page 21: Packaging Specifications

    Packaging Specifications ARGB1318FS-TM This product is baked (moisture removal) before packaging, and is shipped in moisture-proof packaging (as shown below) to minimize moisture absorption during transportation and storage. However, with regard to storing the products, Stanley recommends the use of dry-box under the following conditions is recommended.
  • Page 22 Packaging Specifications ARGB1318FS-TM 1． Moisture-proof Bag Fastener for re-storage after opening bag. Customer's opening position. Product Label Heat Sealing position (after product being put in) Desiccant with indicator for moisture level is enclosed. SYMBOL PART NAME MATERIALS REMARKS Moisture-proof bag with ESD ①...
  • Page 23 Packaging Specifications ARGB1318FS-TM 【 Packing box 】 (RoHS・ELV Compliant) Box TYPE Outline dimension Capacity of the box L × W × H (mm) 280 × 265 × 45 Type A 3 reels 310 × 235 × 265 Type B 15 reels 440 ×...

  • Page 24: Label Specification

    Packaging Specifications ARGB1318FS-TM 【Label Specification】 ( acc.to JIS-X0503(Code-39)) Product Label A. Parts number B. Bar-code for parts number C. Parts code (In-house identification code for each parts number) D. Packed parts quantity E. Bar-Code for packed parts quantity F. Lot number & Rank (refer to Lot Number Notational System for details) G.
  • Page 25 Taping and Reel Specifications ARGB1318FS-TM (acc.to JIS-C0806） 【Appearance】 Items Specifications Remarks Cover-tape shall be longer The end of cover-tape shall be Cover-tape than 300mm without carrier-tape held with adhesive tape. Leader area Empty pocket shall be more than Please refer to the above figure Carrier-tape 25pieces.

  • Page 26: Mechanical Strength

    Taping and Reel Specifications ARGB1318FS-TM 【Qty. per Reel】 2,500 parts/reel （ Note1) Note1 Minimum Qty. per reel might be 500 parts when getting less than 2,500 parts. In such case, parts of 500-unit-qty. shall be packed in a reel and the qty. shall be identified on the label.
  • Page 27 Taping and Reel Specifications ARGB1318FS-TM (acc.to JIS-C0806） Unit :mm 【Taping Dimensions】 ① ② 【Reel Dimensions】 ③ SYMBOL PART NAME REMARKS ① Carrier-tape Conductive Grade ② Cover-tape Anti-Static Grade ③ Carrier-reel Conductive Grade Page : 27 2013.2.11...
  • Page 28 Lot Number Notational System ARGB1318FS-TM ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ① - 1digit ： Production Location (Mark identify alphabet) ② - 1digit ： Production Year (Last digit of Production Year 2009 → 9,2010 → 0,2011 → 1, ･･･ ) ③...
  • Page 29 Correspondence to ELV ・ RoHS instruction ARGB1318FS-TM This product is in compliance with RoHS・ELV. Prohibition substance and it's criteria value of RoHS・ELV are as follows. ・ ELV instruction ………. Refer to following (1) ～ (4). ・ RoHS instruction …… Refer to following (1) ～ (6).

  • Page 30: Reliability Test

    Reliability Test ARGB1318FS-TM Reliability Testing Result Test Item Applicable Standard Test Condition Duration Failure Operating Life EIAJ ED-4701 /100(101) Ta=25℃ =Maximum Rated Current 1,000h 0 / 20 High Temperature EIAJ ED-4701 /100(101) Ta=85℃ =Maximum Rated Current 1,000h 0 / 20 ※1...
  • Page 31 ARGB1318FS-TM Special Notice to Customers Using the Products and Technical Information Shown in This Data Sheet 1) The technical information shown in the data sheets are limited to the typical characteristics and circuit examples of the referenced products. It does not constitute the warranting of industrial property nor the granting of any license.
