Kenwood PureJuice Pro, JMP80 - Scroll Juicer Manual

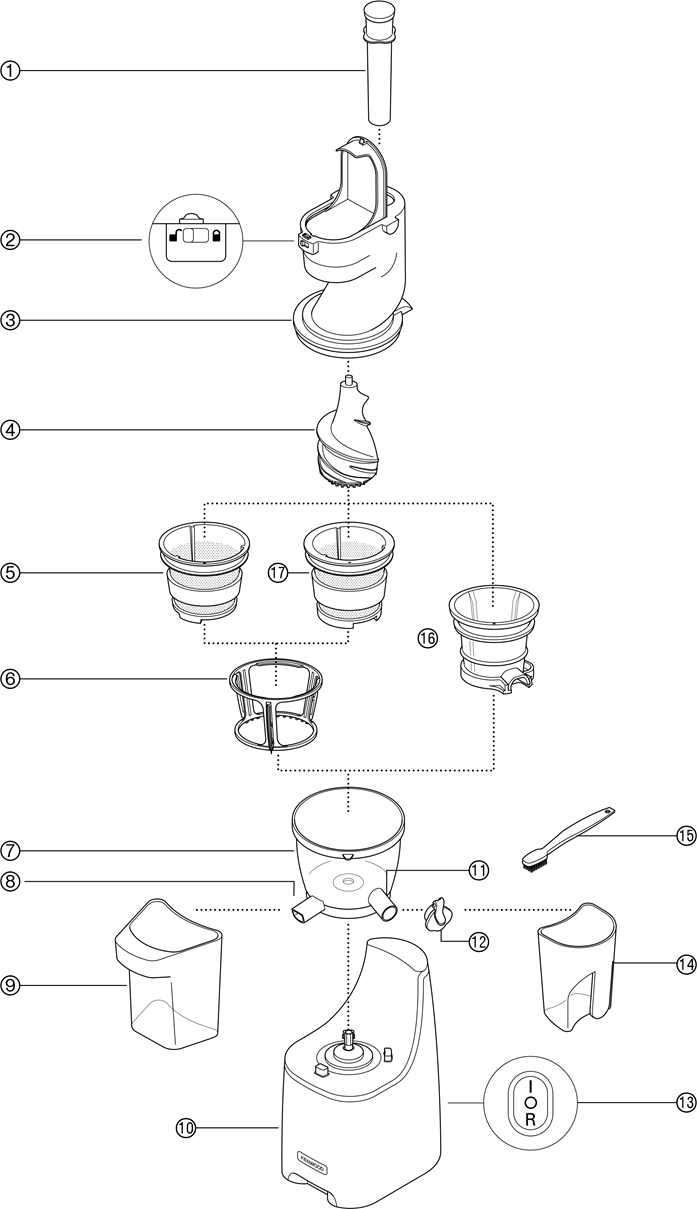

Key

Key

  1. pusher
  2. feed tube lid latch
  3. lid with feed tubes
  4. scroll
  5. filter basket (red dot)
  6. rotating wiper holder
  7. juicing bowl
  8. pulp spout
  9. pulp container
  10. power unit
  11. juice spout
  12. anti-drip stopper
  13. On/Off/Reverse switch
  14. juice jug
  15. cleaning brush
  16. sorbet attachment (if supplied)
  17. smoothie attachment (white dot) (if supplied)

Using your juicer

A->B

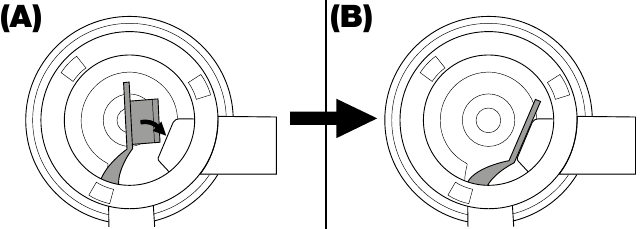

Using your juicer - Step 1
Fit the pulp stopper into the opening on the underside of the juicing bowl 7 and push in until secure.

C
Using your juicer - Step 2
Fit the juicing bowl 7 to the power unit by positioning the juice spout to the front.

D
Using your juicer - Step 3
Place the filter basket 5 into the wiper holder 6.

E
Using your juicer - Step 4
Lower the wiper holder assembly into the juicing bowl and align the red dot on the filter basket with the red dot on the bowl. Ensure that the filter basket is locked into place.

F
Using your juicer - Step 5
Place the scroll 4 into the filter basket, push down and turn slightly to secure. Note: the lid cannot be fitted if the scroll is not fully pushed down.

G->H

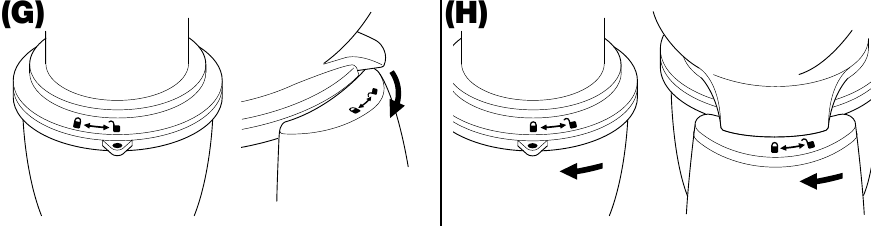

Using your juicer - Step 6
Fit the lid 3 onto the bowl by aligning the red dot on the lid with the red dot on the bowl. Then turn to lock in a clockwise direction.

I
Using your juicer - Step 7
Place the pulp container 9 under the pulp spout 8 and place the juice jug 14 under the juice spout 11. Ensure the anti-drip stopper 12 if fitted is in the open position before juicing.
Switch on 13 and feed the food items down.

Use either:

J
Using your juicer - Step 8
The small feed tube for small or thin food items and use the pusher to slowly push the food down.

Or

K

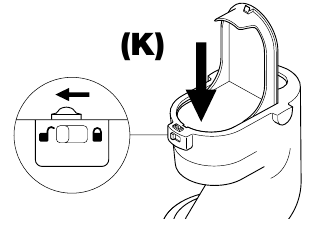

Using your juicer - Step 9
The larger feed tube. Open the feed tube lid by sliding the locking latch 2 to the open position . Long food items should be cut down to fit the feed tube.

  • Note: The wiper holder is designed to rotate during operation.
  • Use the recommended usage chart as a guide for juicing different fruits and vegetables.
  • To extract the maximum amount of juice, always push the food down slowly using the pusher. Do not use excessive force as the food should be pulled down by the scroll.
  • If the food becomes jammed in the feed tube or on the scroll and the juicer stops operating switch to the '' off position. Then press and hold the '' reverse button down until the food becomes dislodged. Once the food is released, you can start juicing again.
  • After adding the last piece of food, allow the juicer to run to help clear the juice from the juicing bowl. The time will vary depending on the fruit type and thickness of the juice extracted.

L
Using your juicer - Step 10
Switch off and wait until the final flow of juice has reduced to a few slow drips. Then place the anti-drip stopper bm in the closed position before removing the jug.
The anti-drip stopper can be left in the closed position if you want to mix different fruits and vegetables. Do not allow the juice to exceed the maximum capacity marked on the bowl when operating the juicer with the stopper closed as the juice may overflow.
Refer to the troubleshooting section if you experience any problems with the operation of the juicer.

Hints and tips

  • Wash all fruit and vegetable thoroughly before juicing.
  • To maximise juice extraction place small quantities at a time in the feed tube and push down slowly.
  • Hard foods are best juiced at room temperature.
  • You do not have to remove thin peels or skins. Only remove thick peels that you would not eat e.g. those of oranges, pineapples, melons and uncooked beetroots.
  • Use fresh fruit and vegetables as they contain more juice.
  • Remove stones from cherries, plums etc.
  • Vitamins disappear - the sooner you drink your juice, the more vitamins you will get.
  • If you need to store the juice for a few hours put it in the fridge. It will keep better if you add a few drops of lemon juice.

Health Recommendations

  • Do not drink more than three 230mls (8 fl.oz.) glasses of juice a day unless you are used to it.
  • Dilute juice for children with an equal amount of water.
  • Juice from dark green (broccoli, spinach etc.) or dark red (beetroot, red cabbage etc.) vegetables is extremely strong, so always dilute it.
  • Fruit juice is high in Fructose (fruit sugar), so people with diabetes or low blood sugar should avoid drinking too much.

Sorbet attachment (if supplied)

  • Allow frozen food items to thaw for at least 5 to 10 minutes before processing. (The time required for thawing will depend how long ingredients have been stored in the freezer).
  1. Assemble the parts as per 'using your juicer' section.
  2. Fit the sorbet attachment bq instead of the wiper holder 6 and filter basket 5.
  3. Ensure the anti-drip stopper bm is in the open position(I) before processing.
  4. After the last piece of food has been added allow the flow from the juicer to stop before switching the unit off.

Sorbet attachment hints and tips

  • Remove hard skins and seeds from ingredients before freezing.
  • Cut large fruit or vegetables to fit the feed tube before freezing. Freeze pieces in a single layer to prevent them from forming a solid mass.
  • Ingredients that have formed a solid mass during freezing, break up before processing.
  • Process cubes of frozen yoghurt with your chosen fruit to produce a creamy 'iced dessert'.
  • For best results pass the sorbet mix through the juicer a second time.

Smoothie attachment (if supplied)

  • The smoothie attachment is ideal for making drinks with a thicker consistency than juice and where you want to retain the pulp. It is also ideal to make coulis with fresh berries such as strawberries or raspberries.
  1. Assemble the parts as per 'using your juicer' section. Ensure the stopper on the underside of the smoothie attachment is correctly fitted.
  2. Fit the smoothie attachment br to the wiper holder 6 instead of the filter basket 5. Note: the smoothie attachment basket should only be used when making smoothie. To distinguish it from the juice filter basket 5 it has a 'white' alignment dot and a stopper on the underside.
  3. Ensure the anti-drip stopper(L) is in the closed position before processing. Do not allow the mix to exceed the maximum capacity marked on the bowl when operating with the stopper closed as the mix may overflow.
  4. Slowly feed all the ingredients including the liquid into the juicer and allow to run for 20 seconds to mix together.
  5. Once mixed open the anti-drip stopper to pour out the smoothie drink.

Smoothie attachment hints and tips

  • When making smoothies, add milk or other types of liquid between the ingredients.
  • Check the consistency through the juicing bowl and add more liquid if required.
  • Remove hard skins and seeds from ingredients before processing.
  • The seal from the bottom of the attachment can be removed for cleaning.
Fruit/Vegetable Preparation Hints and Tips
Apples Cut down to fit the feed tube. To maximise juice extraction hard foods are best juiced when at room temperature.
Carrots Cut down to fit the feed tube.
Pineapple Remove the leaves and stalks by slicing off the top and base. Remove the skin and cut into lengthwise pieces. To prevent the filter from clogging clean the filter after every large pineapple.
Seedless Grapes Remove stalks. Process small handfuls at a time to maximise juice extraction.
Tomatoes Cut down to fit the feed tube. A thick pulpy juice will be produced rather than a smooth juice.
Mangoes Remove tough skin and stones. The juice produced will be very thick.
Melons Remove tough skin.
Kiwi fruits Cut down to fit the feed tube.
Soft berries- (Raspberries, Blackberries etc.) Juice whole. Process small handfuls at a time to maximise juice extraction.
Harder berries- (Cranberries etc.)
Beetroot (Raw) Remove leaves and peel.
Leafy Vegetables- spinach, kale, wheatgrass etc. Wrap leaves into a bunch.
Celery Juice whole.
Cucumber Cut down to fit the feed tube.
Citrus fruits- Oranges Peel and remove white pith.
Fruit with stones or hard seeds (Nectarines, Plums, Cherries etc.) Remove the stones or hard seeds before juicing.
Pomegranates Open the fruit by scoring the outside skin and breaking apart. Submerge in a large bowl of cold water and remove the seeds from the pulp (this helps to separate the seeds as they will sink to the bottom of the bowl and the white pulp will float to the top).

Almond Milk

250g almonds (skinned)

500ml (boiling water)

Soak the almonds in boiling water for 1 hour before processing.

Care and cleaning

  • Always switch off, unplug and take the juicer apart before cleaning.
  • Some discolouration of parts may occur upon using ingredients such as carrot or leafy vegetables. Cleaning all parts immediately after each use will help to reduce stains.
  • Do not clean the pulp or filter outlet with a sharp pointed object such as the end of a knife as you will damage the bowl. Use the tip of the cleaning brush handle to clean the outlets.
  • Do not place any parts in the dishwasher.

power unit

  • Wipe with a damp cloth, then dry.
  • Do not immerse in water.

filter

  • To assist with removal of pulp and fibres, place the anti-drip stopper in the closed position. Switch the juicer on and pour approximately 300mls water down the feed tube. Operate the juicer for approximately 20 seconds, place the juice jug under the juice spout and open the stopper to allow the water to flow out.
  • Always clean the filter basket immediately after juicing.
  • Use the brush supplied to clean the filter. For best results, rinse under water and brush until clear.

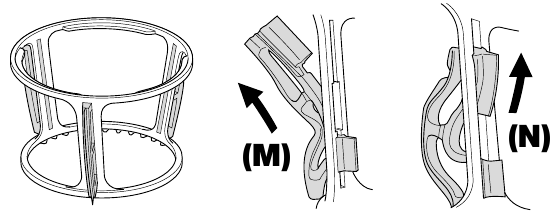

wiper holder (M->N)
Care and cleaning

  • The wipers in the filter holder can be removed for cleaning. To assemble, Insert the upper/lower wipers into the gap of the filter holder and secure. Ensure that the wipers are replaced and fitted correctly before assembling the juicer.

anti-drip stopper

  • The anti-drip stopper bm can be removed for cleaning.
  • After cleaning refit the stopper by pushing on until secure.

other parts

  • Wash by hand and dry.

Service & customer care

  • If you experience any problems with the operation of your appliance, before requesting assistance refer to the "troubleshooting guide" section in the manual or visit www.kenwoodworld.com.
  • Please note that your product is covered by a warranty, which complies with all legal provisions concerning any existing warranty and consumer rights in the country where the product was purchased.
  • If your Kenwood product malfunctions or you find any defects, please send it or bring it to an authorised KENWOOD Service Centre. To find up to date details of your nearest authorised KENWOOD Service centre visit www.kenwoodworld.com or the website specific to your Country.
  • Designed and engineered by Kenwood in the UK.
  • Made in China.

Troubleshooting guide

Problem Cause Solution
The juicer will not start/does not operate.
  • No power.
  • Juicing bowl not properly aligned on power unit or lid not locked correctly.
  • Make sure the appliance is plugged in.
  • Check that all parts are fitted correctly.
Lid cannot be fitted.
  • Scroll not located correctly.
  • Filter basket not correctly fitted to juice bowl.
  • Check that the scroll is fully pushed down and located correctly.
  • Check filter basket fitted correctly.
The juicer has stopped during normal operation.
  • Clogging in filter and scroll.
  • Food not cut into small enough pieces.
  • Press the reverse button for 3-5 seconds. Repeat the process 2-3 times until blockage cleared.
  • Do not attempt to open the lid by force.
  • Switch off, unplug and remove the lid. Check if any clogging. Remove food if necessary and continue juicing.
  • Juicer overloaded or overheated due to heavy load.
  • Switch off, unplug and take the juicer apart. Clear and reassemble the juicer.
  • Allow to cool for 30 minutes before restarting.
Juice is leaking from underneath the bowl.
  • Pulp stopper not fitted or has come loose during operation.
  • Check that the pulp outlet stopper is fitted correctly.
Juice does not exit juicing outlet.
  • Anti-drip stopper closed.
  • Remove stopper and allow juice to flow into juice container.
Too much pulp coming out in juice.
  • Filter or scroll clogging.
  • Very fibrous fruit/vegetable being processed.
  • Cut food, especially fibrous foods, into smaller pieces to avoid the fibres wrapping around the scroll.
  • For a smoother juice pour through a sieve after processing to remove excess pulp.
Wiper holder not rotating.
  • Filter or scroll not located correctly.
  • Check and ensure juicer assembled correctly.
There is a squeaking noise when juicing.
  • Friction between wiper holder and bowl.
  • Normal operation.
  • Do not operate the juicer empty.
Staining on juicing parts.
  • Natural colouring from food.
  • Rubbing with a cloth dipped in vegetable oil will help to remove discolouring.

Safety

  • Read these instructions carefully and retain for future reference.
  • Remove all packaging and any labels.
  • If the cord is damaged it must, for safety reasons, be replaced by KENWOOD or an authorised KENWOOD repairer.
  • Do not use the juicer if the filter is damaged.
  • Never put the power unit, cord or plug in water – you could get an electric shock.
  • Switch off and unplug:
    • before fitting or removing parts
    • before cleaning
    • after use.
  • Never use a damaged juicer. Get it checked or repaired: see 'Service and customer care'.
  • Only use the pusher supplied. Never put your fingers in the feed tube. Unplug and remove the lid before unblocking the feed tube.
  • Before removing the lid, switch off and wait for the filter to stop.
  • Do not over fill the feed tube or use excessive force to push the food down the feed tube – you could damage your juicer.
  • Do not process frozen fruit or vegetables. Allow to defrost before processing.
  • Do not process dried or hard ingredients such as grains, fruit with hard seeds or ice as they may damage the juicer.
  • Do not reprocess extracted pulp through the juicer as may cause the juicer to clog or stop operating.
  • Do not touch moving parts.
  • Do not use unauthorised attachments
  • The sorbet attachment is not suitable for processing ice cubes.
  • Never leave the juicer switched on unattended.
  • Children should be supervised to ensure that they do not play with the appliance.
  • This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.
  • Misuse of your appliance can result in injury.
  • Do not let the cord touch hot surfaces or hang down where a child could grab it.
  • Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
  • Only use the appliance for its intended domestic use.
    Kenwood will not accept any liability if the appliance is subject to improper use, or failure to comply with these instructions.

before plugging in

  • Make sure your electricity supply is the same as the one shown on the underside of the appliance.

  • THIS APPLIANCE MUST BE EARTHED.
  • This appliance conforms to EC Regulation 1935/2004 on materials and articles intended to come into contact with food.

before using for the first time
Wash the parts: see 'care and cleaning'.
