Summary of Contents for Sunsystem BB Q/S1 EXT Series
-
Page 2: Table Of Contents
INSTALL ATION and OPERATION MANUAL Table of contents: Instructions to installer 1.1. Requirements to water tank installation room Requirements for installation 1.2. Description of water tank 2.1. High efficiency insulation and outer casing 2.2. Water tank 2.3. Cathodic Corrosion Protection 2.4. -
Page 3: Instructions To Installer
• regulations and norms concerning the fitting of theinstallation with safety devices. • safety during installation - personal protective equipment Use only original SUNSYSTEM parts 1.1. Requirements to water tank installation room When choosing a room for tank installation observe the following requirements: •... -
Page 4: Description Of Water Tank

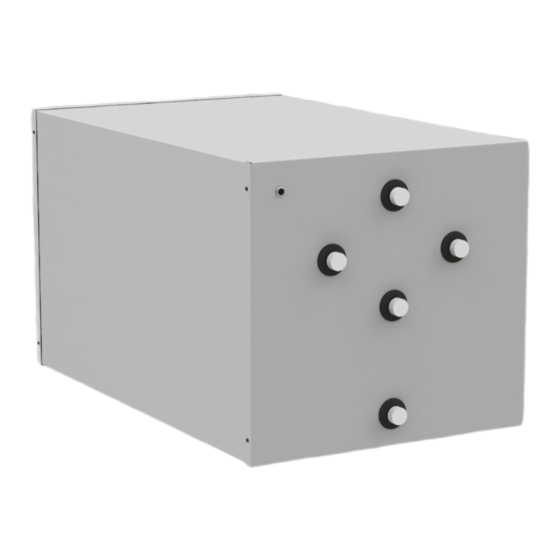

The quality of the insulation of a water heater is a key factor for its heat conservation capability and energy efficiency. All water heaters BB Q/S1 EXT series have a high efficiency insulation (DIN 4753, part 8) and outer casing of PVC with RAL. -
Page 5: Water Tank
INSTALL ATION and OPERATION MANUAL 2.3. Cathodic Corrosion Protection of Enamelled Steel tanks for domestic hot water (DIN 4753, part 6) Magnesium insulated anode - connection size and length: For correct functionality and safe usage, the anode protector has to be grounded. Water tank Anode connection Anode... -
Page 6: Connecting Of Safety Relief Valve To Water Tank
INSTALL ATION and OPERATION MANUAL 3. Connecting of safety relief valve to water tank Legend: Cold water inlet - water supply Check (return) valve Safety (relief) pressure valve Cold water inlet - water tank Stopcock (drainage) Stop (Shut-off) valves should never be installed between a safety (relief) valve and the tank. It is recommended once a year to check the operation of the safety valve. -
Page 7: Technical Parameters -Bb Q/S1 Ext
INSTALL ATION and OPERATION MANUAL 4. Technical parameters – Horizontal modifications BB Q/S1 EXT. 7 - BG... - Page 8 INSTALL ATION and OPERATION MANUAL 8 - BG...
-
Page 9: Transport And Packaging
INSTALL ATION and OPERATION MANUAL 5. TRANSPORT AND PACKAGING We recommend to transport the water tank to the installation site in its packaging placed on the pallet, and stretch foil. During transport and installation, depending on the weight, appropriate safety equipment must be used in accordance with Directive 2006/42/EC. - Page 10 INSTALL ATION and OPERATION MANUAL 6.3.. Claiming warranty Every customer who has purchased a water heater from NES Ltd., and who has good reasons to lay a warranty claim, shall proceed as follows: a) Immediately notify in writing: 1) The installer, or the company that has sold the water heater to him, or 2) The distributor firm, or 3) The commercial representative of NES Ltd.
-
Page 11: Recycling And Waste Disposal
INSTALL ATION and OPERATION MANUAL 7. RECYCLING AND WASTE DISPOSAL Submit all packaging material for recycling according to the local regulations and requirements. At the end of life cycle of each product its components are due to be disposed of in conformity with regulatory prescriptions.
