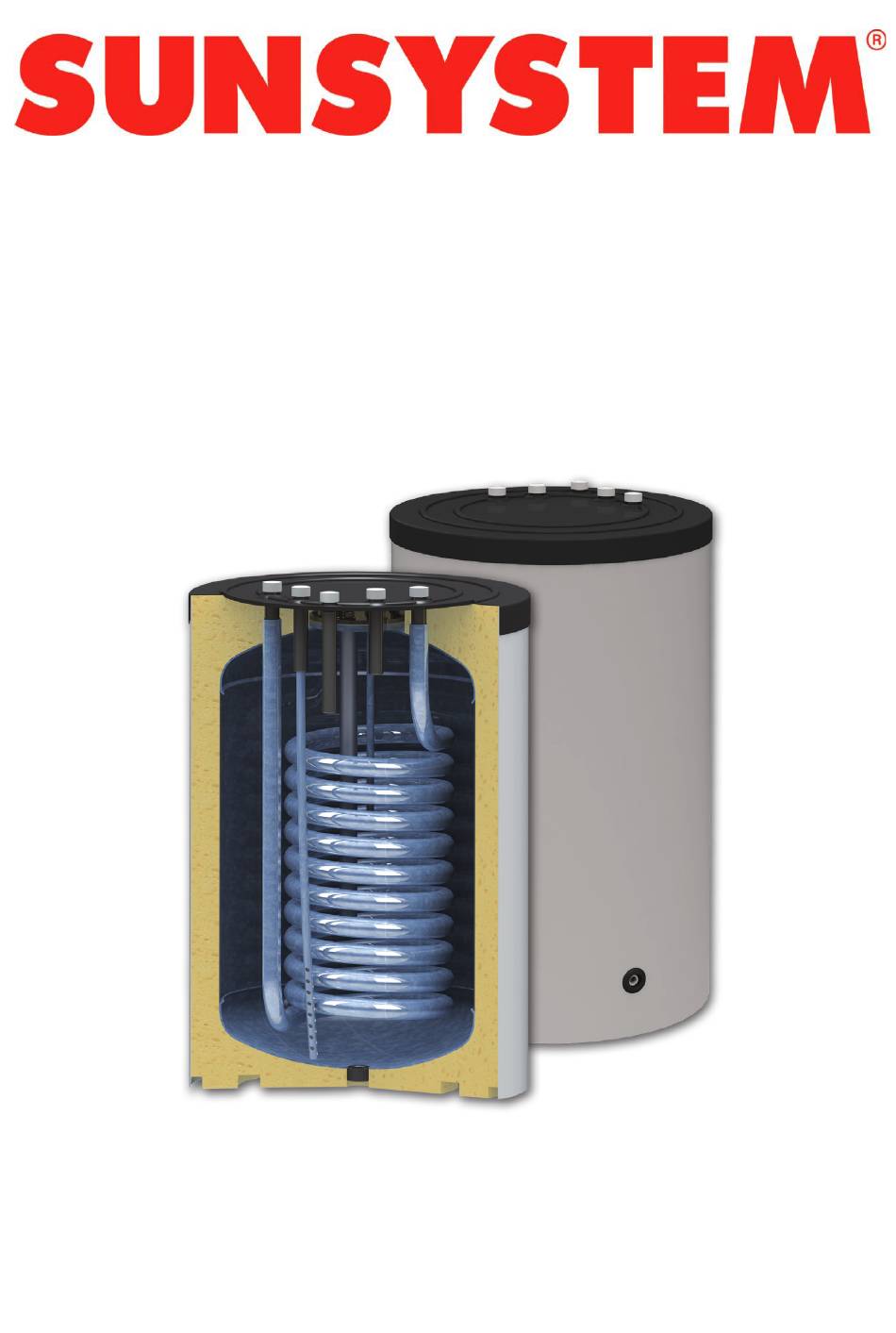

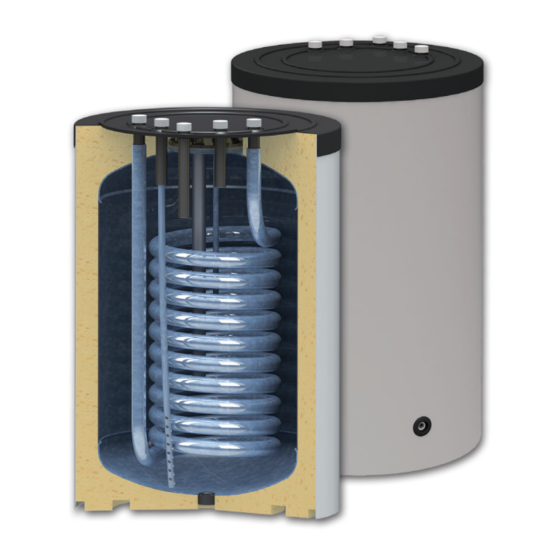

- Page 1 Solar Water Tanks SWUP EXT serie vertical 120, 150, 200 L INSTALLATION and OPERATION MANUAL Versie 0.2...
- Page 2 INSTALLATION and OPERATION MANUAL...
-
Page 3: Table Of Contents
INSTALLATION and OPERATION MANUAL Table of contents: INSTRUCTION TO INSTALLER ................4 DESCRIPTON ON WATER TANKS ................5 CONNECTING OF SAFETY RELIEF VALVE TO WATER TANK ........7 TECHNICAL PARAMETERS..................8 4.1. SWUP EXT - with one coil..................8 4.2. SWUP SLIM EXT - with one coil................10 TRANSPORT AND PACKING..................12 WARRANTY ......................12 RECYCLING AND WASTE DISPOSAL .............. -
Page 4: Instruction To Installer
INSTALLATION and OPERATION MANUAL the fitting of theinstallation with safety devices. • safety during installation - personal protective equipment Dear Customers, We strongly hope that the appliance Use only original parts you have bought from us will contribute to creating comfort at you homes and decreasing the energy expenditure. -
Page 5: Descripton On Water Tanks
All water tanks SWUP EXT series have a high efficiency insulation (DIN 4753, part 8) and outer casing of PVC with RAL RAL 9006. 2.2. Water tank... - Page 6 INSTALLATION and OPERATION MANUAL 2.4. Cathodic Corrosion Protection of anode protector must Enamelled Steel tanks for domestic hot be checked every 2 years. water (DIN 4753, part 6) Replace if necessary. Magnesium insulated anode - connection size and length Water tank Anode connection Anode...
-
Page 7: Connecting Of Safety Relief Valve To Water Tank
INSTALLATION and OPERATION MANUAL 3. CONNECTING OF SAFETY RELIEF VALVE TO WATER TANK Cold water inlet - water supply Check (return) valve Safety (relief) pressure valve Cold water inlet - water tank Stopcock (drainage) Stop (Shut-off) valves should never be installed between a ... -
Page 8: Technical Parameters
INSTALLATION and OPERATION MANUAL 4. TECHNICAL PARAMETERS 4.1. SWUP EXT - with one coil... - Page 9 INSTALLATION and OPERATION MANUAL SWUP EXT SWUP EXT SWUP EXT С Energy class Capacity Height / Min. vertical clearance 853/1050 1010/1170 1300/1500 Diameter D, mm Ø 600 Ø 600 Ø 600 Insulation 50 mm rigid PPU Oper. pressure / Max. temperature water tank bar/ 10/95 10/95...
-
Page 10: Swup Slim Ext - With One Coil
INSTALLATION and OPERATION MANUAL 4.2. SWUP SLIM EXT - with one coil. Di, ø D, ø... - Page 11 INSTALLATION and OPERATION MANUAL SWUP SLIM EXT SWUP SLIM EXT SWUP SLIM EXT С Energy class Capacity Height / Min. vertical clearance 930/1088 1070/1210 1340/1455 Diameter D, mm Ø 560 Ø 560 Ø 560 Insulation 50 mm rigid PPU Oper. pressure / Max. temperature water tank bar/ 10/95 10/95...
-
Page 12: Transport And Packing
INSTALLATION and OPERATION MANUAL termined, except for in case of noticeable . TRANSPORT AND PACKAGING defects at the moment of purchase, in which case the customer must make the We recommend to transport the water claim at the shop immediately after notic- tank to the installation site in its packaging ing the defect as it is provided for in the placed on the pallet, and stretch foil. - Page 13 INSTALLATION and OPERATION MANUAL tification number has been modified, re- without written authorization issued by moved or blurred, or cannot be expressly the Quality Department. The return pro- attested. cedure shall be according to RMA (Return c) Damages in the appearance of products Material Authorization).
-
Page 14: Recycling And Waste Disposal
INSTALLATION and OPERATION MANUAL The liability of NES Ltd. under 7. RECYCLING AND WASTE DISPOSAL this Warranty Certificate is limited to the abovementioned obligations and up to Submit all packaging material for recy- the sum in accordance with the purchase cling according to the local regulations receipt of the product to be claimed;... - Page 15 INSTALLATION and OPERATION MANUAL...
- Page 16 ISO 9001 BUREAU VERITAS Certification tel.: +359 700 17 343 www.burnit.bg...
