Summary of Contents for Sunsystem SWP Series

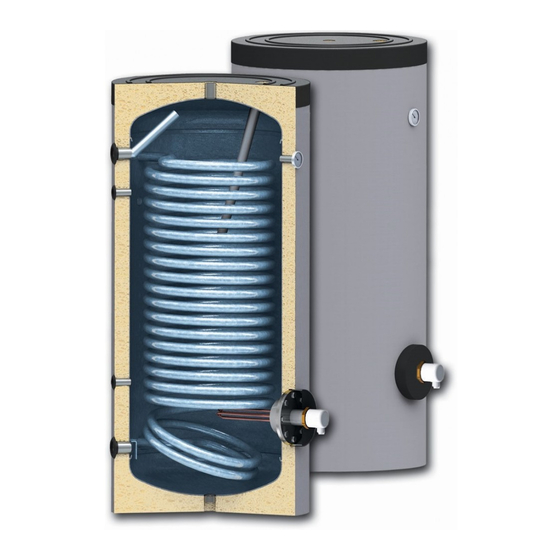

- Page 1 WATER HEATERS HEAT PUMP SYSTEMS serie 150, 200, 300, 400, 500 L SWP 2N with two coils SWP N with one coil SWP NL with one coil INSTALLATION and OPERATION MANUAL Version 0.3.3...
- Page 2 INSTALLATION and OPERATION MANUAL ТЕХНИЧЕСКИ ПАСПОРТ. ИНСТРУКЦИЯ за МОНТАЖ и ЕКСПЛОАТАЦИЯ...
-
Page 3: Table Of Contents
INSTALLATION and OPERATION MANUAL ТЕХНИЧЕСКИ ПАСПОРТ. ИНСТРУКЦИЯ за МОНТАЖ и ЕКСПЛОАТАЦИЯ TABLE OF CONTENTS INSTRUCTIONS TO INSTALLER ................4 1.1. Requirements to water tank installation room ............. 4 1.2. Requirements for installation. ................4 DESCRIPTION ON SWP ..................5 CONNECTING OF RELIEF VALVE TO WATER TANK ..........12 TECHNICAL PARAMETERS. -
Page 4: Instructions To Installer
INSTALLATION and OPERATION MANUAL ТЕХНИЧЕСКИ ПАСПОРТ. ИНСТРУКЦИЯ за МОНТАЖ и ЕКСПЛОАТАЦИЯ protective equipment Use only original SUNSYSTEM parts. Dear Customers, We strongly hope that the appliance 1.1. Requirements to SWP installation you have bought from us will contribute room to creating comfort at you homes and When choosing a room for tank installation decreasing the energy expenditure. -
Page 5: Description On Swp
The quality of the insulation of a water heater is a key factor for its heat conservation capability and energy efficiency. All water heaters SWP series have a high efficiency insulation (DIN 4753, part 8) and outer casing of PVC with RAL 9006. Water heaters for heat pump systems 2.2. - Page 6 INSTALLATION and OPERATION MANUAL ТЕХНИЧЕСКИ ПАСПОРТ. ИНСТРУКЦИЯ за МОНТАЖ и ЕКСПЛОАТАЦИЯ The connection of the electric heating element to the electric power supply must be done by a qualified electricians. When connect the heating element to the electric network, make sure that it is properly grounded.
- Page 7 INSTALLATION and OPERATION MANUAL ТЕХНИЧЕСКИ ПАСПОРТ. ИНСТРУКЦИЯ за МОНТАЖ и ЕКСПЛОАТАЦИЯ 2.4. Thermometer...
- Page 8 INSTALLATION and OPERATION MANUAL ТЕХНИЧЕСКИ ПАСПОРТ. ИНСТРУКЦИЯ за МОНТАЖ и ЕКСПЛОАТАЦИЯ 2.5. Cathodic Corrosion Protection of Anode must be checked every Enamelled Steel tanks for domestic hot two years. water (DIN 4753, part 6) Replace the anode when needed. Magnesium anode - connection Size and Length: Water tank Anode connection...
- Page 9 INSTALLATION and OPERATION MANUAL ТЕХНИЧЕСКИ ПАСПОРТ. ИНСТРУКЦИЯ за МОНТАЖ и ЕКСПЛОАТАЦИЯ 2.7.Thermostat (option). sheme 1 The thermostat may be adjusted by the TECHNICAL CHARACTERISTICS Temperature range – regulation- 0°C ÷ user within the range 30°С ÷ 80°С, and the 90°C; thermal protection would go off in case limit - 90°C ÷ 110°C; the water reaches 95°С. Tolerance This is an adjustable double THERMOSTAT Regulation ± 5k, which is designed to regulate the water limit –...
- Page 10 INSTALLATION and OPERATION MANUAL ТЕХНИЧЕСКИ ПАСПОРТ. ИНСТРУКЦИЯ за МОНТАЖ и ЕКСПЛОАТАЦИЯ C-1LIM.:0,5A/250V~; C2LIM.:10(2,5)A/250V~; Terminal – circuit breaker or switch-on contacts. Switch-on action – 2B. Place of installation – normal. Type of wire – M20 x 1.5. WARNING ! installation operations, ...
- Page 11 INSTALLATION and OPERATION MANUAL ТЕХНИЧЕСКИ ПАСПОРТ. ИНСТРУКЦИЯ за МОНТАЖ и ЕКСПЛОАТАЦИЯ NOTE: See Scheme 6. TEMPERATURE ADJUSTMENT To close the front part, the cartridge (see Scheme 8) opening must align with the coupling of the adjustment knob. A – Reset button (only for TLSC) B –...
-
Page 12: Connecting Of Relief Valve To Water Tank
INSTALLATION and OPERATION MANUAL ТЕХНИЧЕСКИ ПАСПОРТ. ИНСТРУКЦИЯ за МОНТАЖ и ЕКСПЛОАТАЦИЯ 3. CONNECTING OF SAFETY RELIEF VALVE TO WATER TANK Cold water inlet - water supply Check (return) valve Safety (relief) pressure valve Cold water inlet - water tank Stopcock (drainage) Stop (Shut-off) valves should never be installed between a ... - Page 13 INSTALLATION and OPERATION MANUAL ТЕХНИЧЕСКИ ПАСПОРТ. ИНСТРУКЦИЯ за МОНТАЖ и ЕКСПЛОАТАЦИЯ...
-
Page 14: Technical Parameters
INSTALLATION and OPERATION MANUAL ТЕХНИЧЕСКИ ПАСПОРТ. ИНСТРУКЦИЯ за МОНТАЖ и ЕКСПЛОАТАЦИЯ 4. TECHNICAL PARAMETERS to serie SWP 4.1. SWP NL - with one coil... - Page 15 INSTALLATION and OPERATION MANUAL ТЕХНИЧЕСКИ ПАСПОРТ. ИНСТРУКЦИЯ за МОНТАЖ и ЕКСПЛОАТАЦИЯ SWP NL SWP NL SWP NL Capacity Height 1695 1669 1895 Diameter D, mm Ø 610 Ø 710 Ø 710 Insulation 50 mm rigid PU Operating pressure/Maximum temperature bar/ 10/95 10/95 10/95 Test pressure Electric heating (optional) кW 1 x (4.5)
-
Page 16: Swp N - With One Coil
INSTALLATION and OPERATION MANUAL ТЕХНИЧЕСКИ ПАСПОРТ. ИНСТРУКЦИЯ за МОНТАЖ и ЕКСПЛОАТАЦИЯ 4.2. SWP N - with one coil... - Page 17 INSTALLATION and OPERATION MANUAL ТЕХНИЧЕСКИ ПАСПОРТ. ИНСТРУКЦИЯ за МОНТАЖ и ЕКСПЛОАТАЦИЯ SWP N SWP N SWP N SWP N SWP N Capacity Height 1070 1340 1420 1470 1720 Diameter D, mm Ø 560 Ø 560 Ø 650 Ø 750 Ø 750 Insulation 50 mm rigid PU Operating pressure/Maximum temperature bar/ 10/95...
-
Page 18: Swp 2N - With Two Coils
INSTALLATION and OPERATION MANUAL ТЕХНИЧЕСКИ ПАСПОРТ. ИНСТРУКЦИЯ за МОНТАЖ и ЕКСПЛОАТАЦИЯ 4.3. SWP 2N - with two coils... - Page 19 INSTALLATION and OPERATION MANUAL ТЕХНИЧЕСКИ ПАСПОРТ. ИНСТРУКЦИЯ за МОНТАЖ и ЕКСПЛОАТАЦИЯ SWP 2N SWP 2N SWP 2N Capacity Height 1420 1490 1720 Diameter D, mm Ø 660 Ø 750 Ø 750 Insulation 50 mm rigid PU Operating pressure/Maximum temperature bar/ 10/95 10/95 10/95 Test pressure Electric heating (optional) кW 1 x (4.5)
-
Page 20: Transport And Packaging
INSTALLATION and OPERATION MANUAL ТЕХНИЧЕСКИ ПАСПОРТ. ИНСТРУКЦИЯ за МОНТАЖ и ЕКСПЛОАТАЦИЯ safety equipment must be used in 5. TRANSPORT AND PACKAGING accordance with Directive 2006/42/EC. When transporting items weighing more We recommend to transport the water than 30 kg, the use of pallet jack, fork tank to the installation site in its packaging truck or other hoisting devices is a must. - Page 21 INSTALLATION and OPERATION MANUAL ТЕХНИЧЕСКИ ПАСПОРТ. ИНСТРУКЦИЯ за МОНТАЖ и ЕКСПЛОАТАЦИЯ 5) Freeze, flood, natural disasters or third For this purpose the claimant shall fill out party actions as well as any interventions a claim form; the latter shall be accompa- into normal functioning conditions of wa- nied by the document proving the pur- ter heaters and the control of NES Ltd. chase of the water heater (invoice) with The customer as well should monitor the the date of purchase in it.
- Page 22 INSTALLATION and OPERATION MANUAL ТЕХНИЧЕСКИ ПАСПОРТ. ИНСТРУКЦИЯ за МОНТАЖ и ЕКСПЛОАТАЦИЯ changes in installation conditions which cate is excluded. are reasons for the claim without prior written consent of the Technical Depart- ment. 6.4. Limitation of liability а) NES Ltd. is not liable before the customer, neither directly nor indirectly, for any non-fulfillment or delay at apply- ing the warranty obligations which might...
-
Page 23: Recycling
INSTALLATION and OPERATION MANUAL ТЕХНИЧЕСКИ ПАСПОРТ. ИНСТРУКЦИЯ за МОНТАЖ и ЕКСПЛОАТАЦИЯ 7. RECYCLING AND WASTE DISPOSAL Submit all packaging material for recy- cling according to the local regulations and requirements. At the end of life cycle of each product its components are due to be disposed of in conformity with regulatory prescriptions. - Page 24 ISO 9001 BUREAU VERITAS Certification tel.: +359 700 17 343 www.burnit.bg...
