Shuttle DS50U Series Quick Manual

DS50U Series Quick Guide
More information on this product can be found at: https://bit.ly/DS50USERIES
更多本產品資訊，請蒞臨：https://bit.ly/DS50USERIES
Weitere Informationen zu diesem Produkt finden Sie unter: https://bit.ly/DS50USERIES
Pour plus d'informations sur ce produit, visitez: https://bit.ly/DS50USERIES

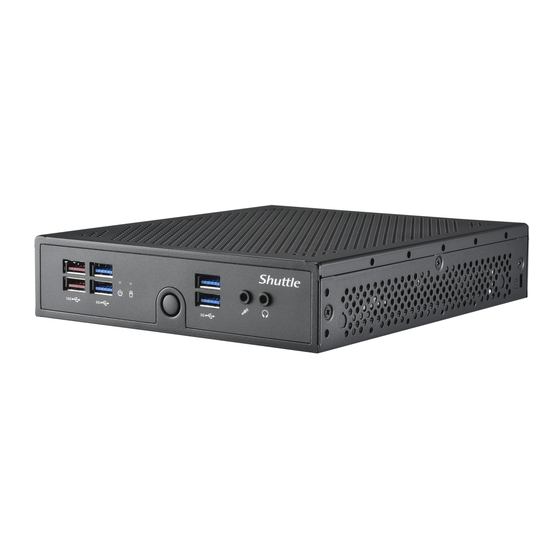

Product Overview
產品外觀 \ Produktübersicht \ Présentation du produit \ Resumen del producto \ 製品概要 \ Обзор продукта \ 产品外观
1 2 4
3 5
18 17 8 11
16 9 10
硬體安裝 \ Hardware Installation \ Installation du matériel \ Instalación de hardware
Hardware Installation
ハードウェアのインストール \ Установка оборудования \ 硬件安装
A. Begin Installation
For safety reasons, please ensure
!
that the power cord is disconnected
before opening the case.
1. As shown, unscrew the four screws
of the chassis cover and remove the
cover.
The product's colour and specifications may vary from the actually shipped product.
L
B. HDD or SSD Installation
1. As shown, remove the rack.
3. Connect the Serial ATA and power cable to the HDD or SSD.
4. Install the HDD or SSD & bracket in the chassis.
d
c
d
c
d
b
53R-DS50U3-2001
快速安裝指南 Kurzanleitung Guide rapide Guía rápida クイックガイド Kраткое руководство 快速安装指南
Puede encontrar más información sobre este producto en: https://bit.ly/DS50USERIES
本製品の詳細な情報については、次のURL より確認頂けます。https://bit.ly/DS50USERIES
Для получения дополнительной информации об этом продукте перейдите
по ссылке: https://bit.ly/DS50USERIES
更多本产品信息，请访问：http://bit.ly/DS50USERIES
1. USB 3.2 Gen 2 Ports
2 6
2. USB 3.2 Gen 1 Ports
3. Power LED
4. Hard Disk Drive LED
5. Power Button
6. MIC-in
7. Headphones
8. HDMI Port
9. DisplayPort
7
10. COM Port (RS232/RS422/RS485)
12 13 14 18
(BIOS Setting)
11. USB 2.0 Ports
12. Giga LAN Port
13. 2.5Giga LAN Port
14. Power Jack (DC IN)
15. COM/VGA Port (RS232 only) (Option)
16. Connector for WLAN antenna
17. External Power SW & Clear CMOS
®
18. Kensington Lock Hole
15 16
a
c
2. Mount the HDD or SSD into the bracket
with four screws.
b
2.5 inch
HDD/SSD Slot
a
Serial ATA and
power cable
C. Memory Module Installation
This motherboard does only support 1.1 V DDR5 SO-DIMM memory modules.
!
1. Locate the SO-DIMM and paste the thermal pad
(50*15 mm) on the motherboard, which can
effectively reduce its temperature.
2. Install the 1st memory module into the DIMMA1 slot.
Thermal Pad (50*15 mm)
3. Gently insert the module into the slot
in a 45-degree angle.
b
D. M.2 Device Installation
b
 Notice for M.2 slots: When CN3 is occupied by
NVME device, CN2 only support SATA interface.
CN3
M.2 2280 M key slot
(for PCIE or WWN04/PCIe Gen4x4)
DS50U only support one NVME device.
!
E. Complete
1. Please replace and affix the case
cover with four screws. Turn your
DS50U upside down.
2. Connect the power cord.
3. Complete.
a
Please press the "Del" key while booting to enter BIOS. Here, please load the optimised BIOS settings.
!
Operation Position: Please make sure to use either the supplied feet or the VESA mount.
Safety Information
Incorrectly replacing the battery may damage this computer. Replace only with the same or equivalent as recommended by Shuttle.
!
Dispose of used batteries in accordance with the laws of your country.
更換電池方式錯誤可能會損壞本電腦以及引發爆炸、火災或其他危險。
僅能依Shuttle的建議,以相同或同等的電池更換。請根據您所在國家/地區的法律規定處理廢電池。
Das unkorrekte Austauschen der Batterie kann diesen Computer beschädigen. Ersetzen Sie die Batterie nur durch den gleichen Typ oder ein
gleichwertiges, von Shuttle empfohlenes Modell. Entsorgen Sie gebrauchte Batterien gemäß den gesetzlichen Vorschriften in Ihrem Land.
Ne pas replacer correctement la pile peut endommager l'ordinateur. Remplacez-la uniquement par un modèle identique ou un équivalent
comme recommandé par Shuttle. Éliminez les piles usagées conformément à la législation en vigueur dans votre pays.
La sustitución incorrecta de la batería puede dañar este equipo. Sustituya la batería únicamente por una igual o equivalente recomendada
por Shuttle. Elimine las pilas usadas de acuerdo con los requisitos legales de su país.
バッテリを間違ってセットすると、このコンピュータが損傷する原因となります。交換する際は、Shuttle が推奨するバッテリと同じものまたは
同等のものだけを使用するようにしてください。使用済みのバッテリーは、お住みの国の法律に従って処分してください。
Неправильная замена батареи может привести к повреждению компьютера. Батарея должна соответствовать стандарту производителя
Shuttle или быть идентичной предыдущей. Утилизируйте использованные батареи в соответствии с законодательством вашей страны.
更换电池方式错误可能会损坏本电脑。仅能依 Shuttle 的建议,以相同或同等的电池更换。请根据您所在国家/地区的法律规定处理废电池。
注意: 允许产品使用的最高环境温度为 40℃。
注意: 仅适用于在非热带气候条件下安全使用,
在热带气候条件下使用时, 可能有安全隐患。
注意: 仅适用于海拔 2000m 以下安全使用,
在海拔 2000m 以上使用时, 可能有安全隐患。
All bundled parts, power cord included, shall not be used without this product.
電源ケーブル等、すべての付属品は本機以外ではご使用になれません。
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
This device meets the requirements for the EU conformity in accordance to the currently valid EU directives.
Dieses Produkt erfüllt die Anforderungen für die EU-Konformität entsprechend der aktuell geltenden EU-Richtlinien.
Ce produit répond aux exigences de la conformité UE suivant les directives européennes actuellement en vigueur.
4. Align the notch of the memory module with
DIMMB1
(Top)
DIMMA1
(Bottom)
5. Carefully push down the memory module
6. Install the 2nd memory module into the
a
45-degree
angle
1. Locate the M.2 key slots on the motherboard.
CN2
M.2 2280 M key slot
2. Install the M.2 device into the M.2 slot and secure
(for PCIE or SATA SSD/PCIe Gen4x4)
with the screw.
b
DC-IN
安全資訊 \ Sicherheitshinweise \ Informations de sécurité \ Información de seguridad
安全に関する情報 \ Информация о безопасности \ 安全信息
2000m
the one of the relevant memory slot.
SO-DIMM slot
Notch
Cutout
until it snaps into the locking mechanism
and put the mylar back in place.
DIMMB1 slot (proceed with steps B3 to
B5) and paste the thermal pad, as shown.
DIMMB1 (Top)
Thermal Pad (60*20 mm)
Latch Latch
 M.2 2280 M key slot
b
a
Slope angle
Thermal Pad (70*20 mm)
Pasting a thermal pad on the M.2 SSD
!
can effectively reduce its temperature.
a
c
f
d
e
WA RNI NG
THIS PRODUCT CONTAINS A BUTTON BATTERY
If swallowed, a lithium button battery can cause severe or fatal
injuries within 2 hours.
Keep batteries out of reach of children.
If you think batteries may have been swallowed or placed
inside any part of the body, seek immediate medical attention.
