- Page 1 SMART MOTOR DEVICES https://www.smd.ee DC brush motor controller BMD-20DIN manual BMD.20.DIN.001 2019...
- Page 2 User manual 1. Product designation Controller BMD-20DIN is an electronic device to operate and control DC brush motors with maximum voltage 24VDC and power under 480W. The controller is designed to control speed, direction, smooth start and stop of brush motors. BMD-20DIN provides the function of precise adjustable motor overcurrent protection.

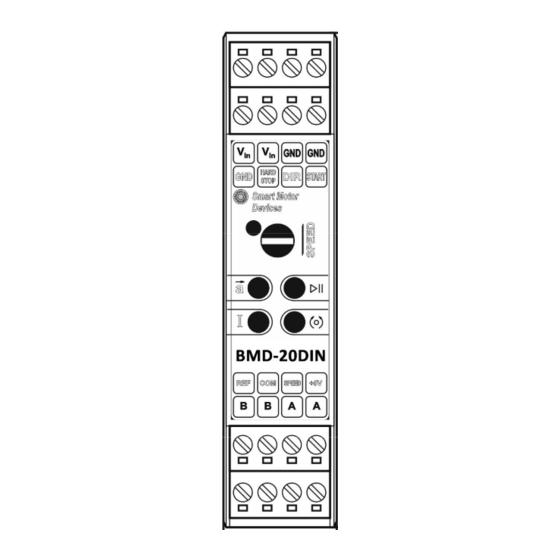

- Page 3 User manual 3. Construction and control elements BMD-20DIN is designed as a circuit plate with electronics elements, installed on a plate and covered with a plastic case. Besides electronic components, there are indicating and control elements and connection terminals on the board: terminal screws for power supply, motor windings and control circuit connection;...
- Page 4 BMD-20DIN DC brush motor controller User manual 1) Make sure the power supply is turned off. Please, wire just when power is off. 2) Select input signals logic (refer to the section 7). 3) Connect the motor to the controller terminals A and B.
- Page 5 To reset the emergency mode, reset the power supply of the controller. 7. Input signals logic The controller BMD-20DIN provides few options for processing of input signals START/STOP and DIR. Jumpers for selection of the necessary options are located on the electronic board under the case of the controller.
- Page 6 (HARD_STOP) Short circuit in a motor phase Testing version of firmware 9. Delivery in complete sets DC brush motor controller BMD-20DIN 1 pcs 10. Warranty Any repair or modifications are performed by the manufacturer or an authorized company. The manufacturer guarantees the failure-free operation of the controller for 12 months since date of sale when the operation conditions are satisfied.
