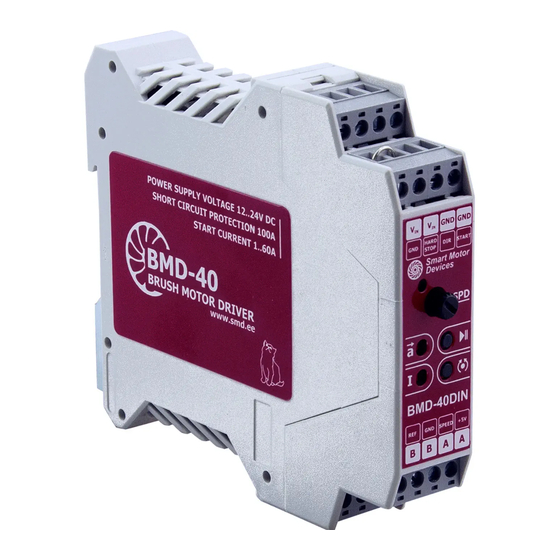

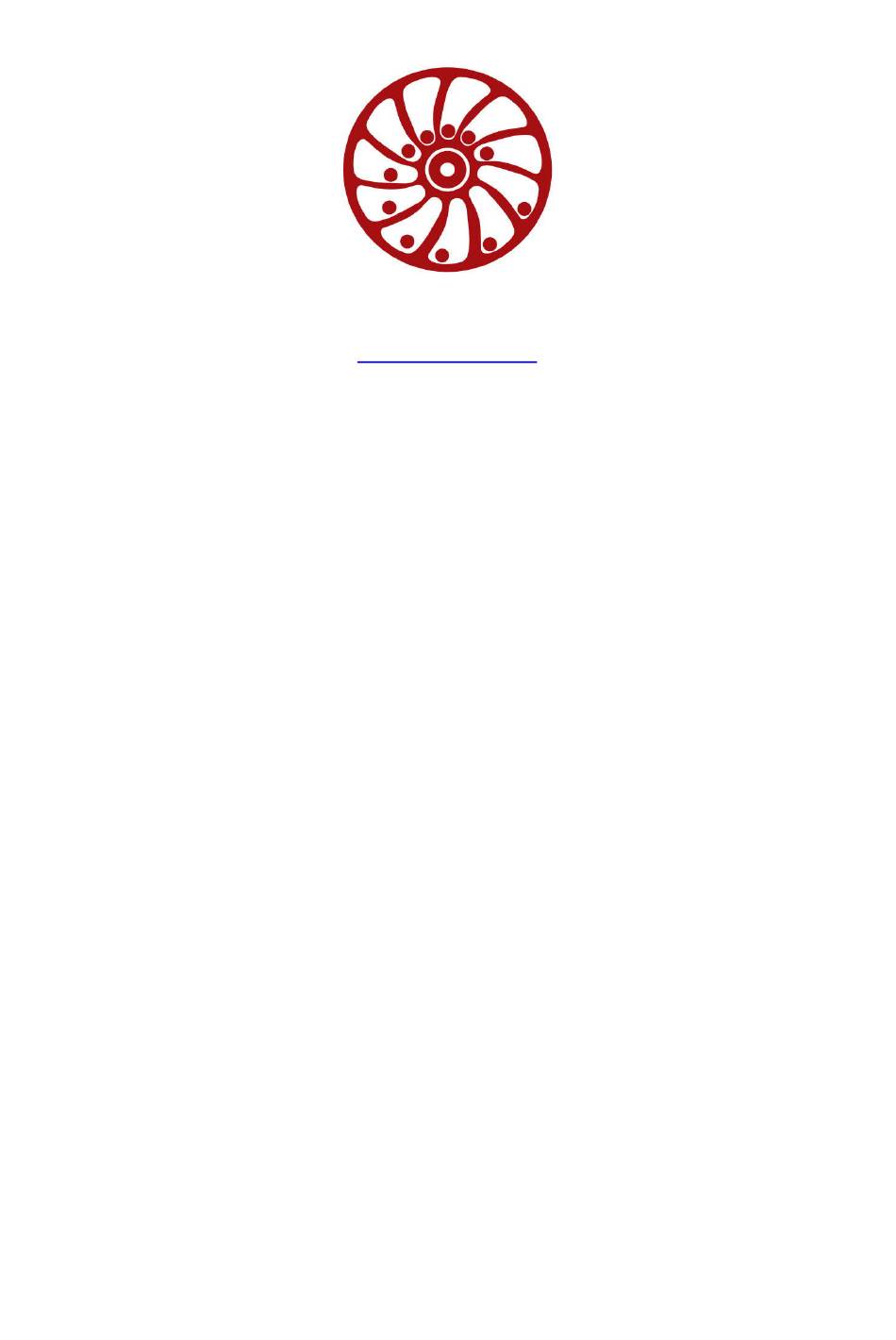

- Page 1 SMART MOTOR DEVICES https://www.smd.ee DC brush motor controller BMD-40DIN manual BMD.40.DIN.002 2019...
- Page 2 User manual 1. Product designation Controller BMD-40DIN is an electronic device to operate and control DC brush motors with maximum voltage 24VDC and power under 960W. The controller is designed to control speed, direction, smooth start and stop of brush motors. BMD-40DIN provides the function of precise adjustable motor overcurrent protection.
- Page 3 User manual 3. Construction and control elements BMD-40DIN is designed as a circuit plate with electronics elements, installed on a plate and covered with a plastic case. Besides electronic components, there are indicating and control elements and connection terminals on the board: terminal screws for power supply, motor windings and control circuit connection;...
- Page 4 BMD-40DIN DC brush motor controller User manual 1) Make sure the power supply is turned off. Please, wire just when power is off. 2) Select input signals logic (refer to the section 7). 3) Connect the motor to the controller terminals A and B.
- Page 5 To reset the emergency mode, reset the power supply of the controller. 7. Input signals logic The controller BMD-40DIN provides few options for processing of input signals START/STOP and DIR. Jumpers for selection of the necessary options are located on the electronic board under the case of the controller.
- Page 6 Testing version of firmware Internal brake circuit overheating 9. Delivery in complete sets DC brush motor controller BMD-40DIN 1 pcs 10. Manufacturer information Smart Motor Devices adheres to the line of continuous development and reserves the right to make changes and improvements in the design and software of the product without prior notice.
