- Page 1 SMART MOTOR DEVICES https://www.smd.ee DC brush motor controller BMD-5DIN manual BMD.05.DIN.001 2023...
- Page 2 User manual 1. Product designation Controller BMD-5DIN is an electronic device to operate and control DC brush motors with maximum voltage 24 VDC and power under 120 W. The controller is designed to control speed, direction, smooth start and stop of DC brush motors. BMD-5DIN provides the function of precise adjustable motor overcurrent protection.

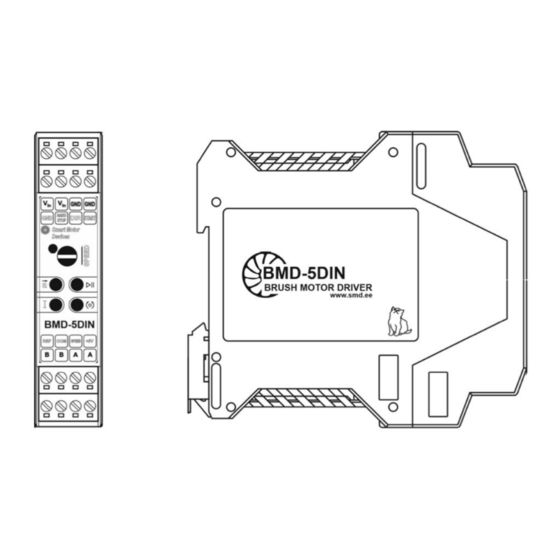

- Page 3 User manual 3. Construction and control elements BMD-5DIN is designed as a circuit plate with electronics elements, installed on a plate and covered with a plastic case. Besides electronic components, there are indicating and control elements and connection terminals on the board: terminal screws for power supply, motor windings and control circuit connection;...
- Page 4 BMD-5DIN DC brush motor controller User manual 1) Make sure the power supply is turned off. Please, wire just when power is off. 2) Select input signals logic and voltage range for the analog speed regulation signal (refer to the section 7).
- Page 5 7. Setting input signals operation logic and voltage range for analog speed control signal The controller BMD-5DIN provides few options for processing of input signals START/STOP and DIR and 2 options for analog voltage signal. Jumpers for selection of the necessary options are located on the electronic board under the case of the controller.
- Page 6 Short circuit in a motor phase Testing version of firmware 9. Delivery in complete sets DC brush motor controller BMD-5DIN 1 pcs 10. Manufacturer information Smart Motor Devices adheres to the line of continuous development and reserves the right to make changes and improvements in the design and software of the product without prior notice.
