Williams 96 Series Installation Instructions

96 & 97 LED SERIES
INSTALLATION INSTRUCTIONS
WARNING:
This product must be installed in accordance with the applicable
■
installation code by a person familiar with the construction and
operation of the product and the hazards involved.
Make sure all electrical power is turned off while installing the fixture.
■
This luminaire must be adequately grounded for protection against
■
shock hazards and to assure proper operation.
Disconnect power before servicing.
■
TABLE OF CONTENTS
FIXTURE DETAIL ................................................................................................. 1
WIRING DIAGRAM.............................................................................................2
FIXTURE DETAIL
ENSURE THE LENS IS PROPERLY SEATED AND CENTERED IN THE GASKETED GROOVE PRIOR TO CLOSING THE LATCHES. FAILURE TO DO SO
CAN RESULT IN DAMAGING THE LENS, LEADING TO LENS FAILURES THAT ARE NOT COVERED UNDER WARRANTY.

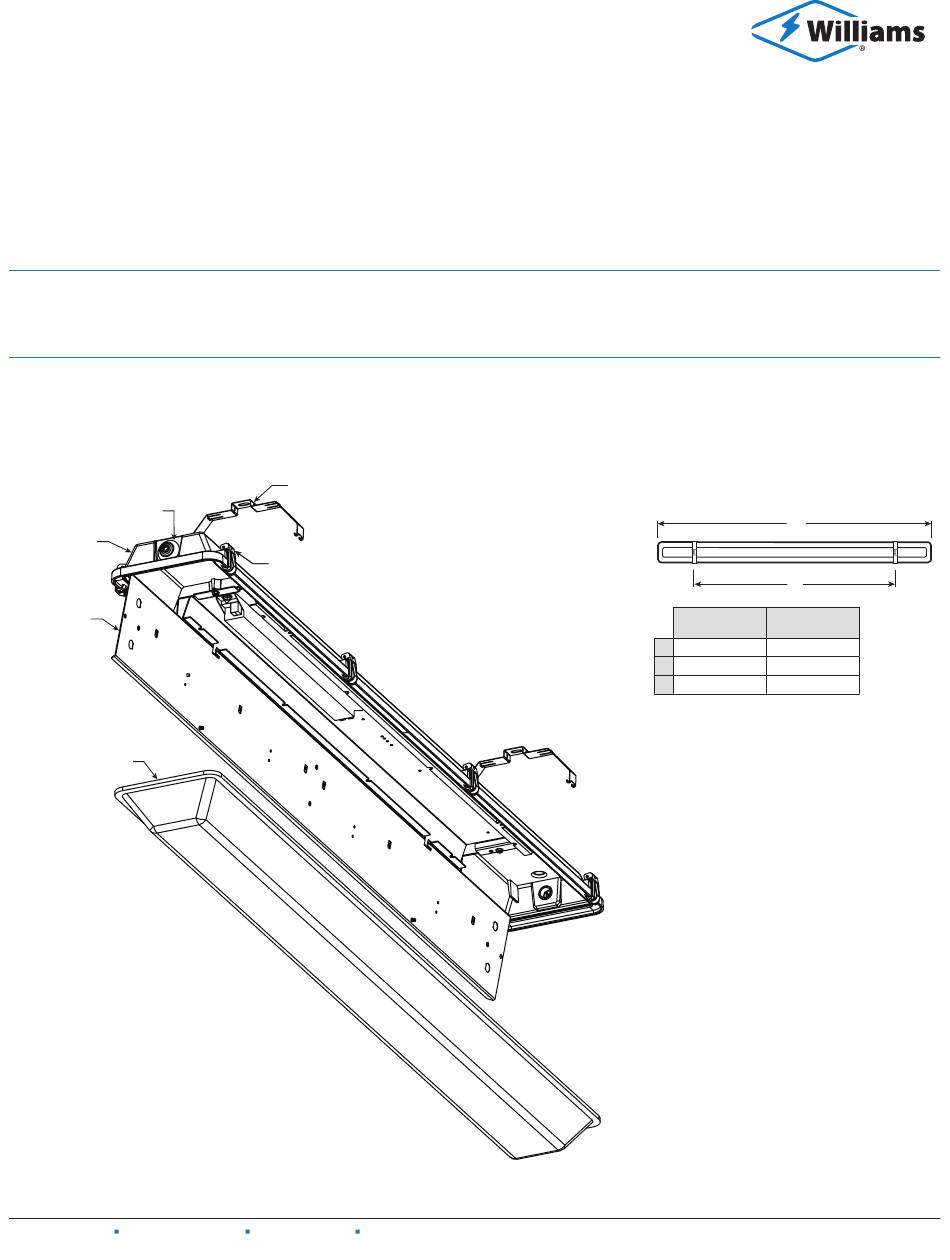

Note: Use the illustrations below when assembling or disassembling the fixture. (96, 4' shown)
End plug
Fiberglass housing
Wireway cover
Lens
H.E. Williams, Inc. Carthage, Missouri
Information contained herein is subject to change without notice.
Mounting bracket
Latch
www.hew.com 417-358-4065
REV.12/20/23.JL
LEDs are ESD (Electro Static Discharge) sensitive devices that can be
■
easily damaged if the proper ESD mitigating steps are not taken.
LEDs are very sensitive to mechanical damage. Caution must be taken
■
to avoid damage to the LEDs.
ESD or mechanical damage voids all warranties.
■
Suitable for wet locations.
■
INSTALLATION ...................................................................................................2
BACKVIEW
2'
4'
8'
A
B
OVERALL MOUNTING
LENGTH (A) DISTANCE (B)
27-5/8" 12"- 17" OC
51-7/8" 30"- 42" OC
100-1/4" 48"- 80" OC
PN #49090174
Page 1 of 2
