Williams 8DR LED Series Installation Instructions

8DR LED SERIES
INSTALLATION INSTRUCTIONS
WARNING:
This product must be installed in accordance with the applicable
■
installation code by a person familiar with the construction and
operation of the product and the hazards involved.
Make sure all electrical power is turned off while installing the fixture.
■
This luminaire must be adequately grounded for protection against
■
shock hazards and to assure proper operation.
TABLE OF CONTENTS
MOUNTING PAN INSTALLATION .................................................................. 1
ELECTRICAL CONNECTIONS .......................................................................2
DRIVER BOX INSTALLATION ........................................................................ 3
MOUNTING PAN INSTALLATION
Step 1: NEW CONSTRUCTION: Pre-attach the specified mounting
hardware to the fixture pan. See FIGURES 1.1 - 1.3.
REMODEL: With the expandable bar hangers removed, maneuver
the receiver bracket assembly up through the ceiling cutout.
Once in the ceiling, reinstall the bar hangers, then position the
receiver bracket assembly 2" from the ceiling opening. Expand
the universal bar hangers until they stop against the ceiling joists
(both sides), then use a hammer to tap the nailer tabs into the
joists. See FIGURE 1.4.

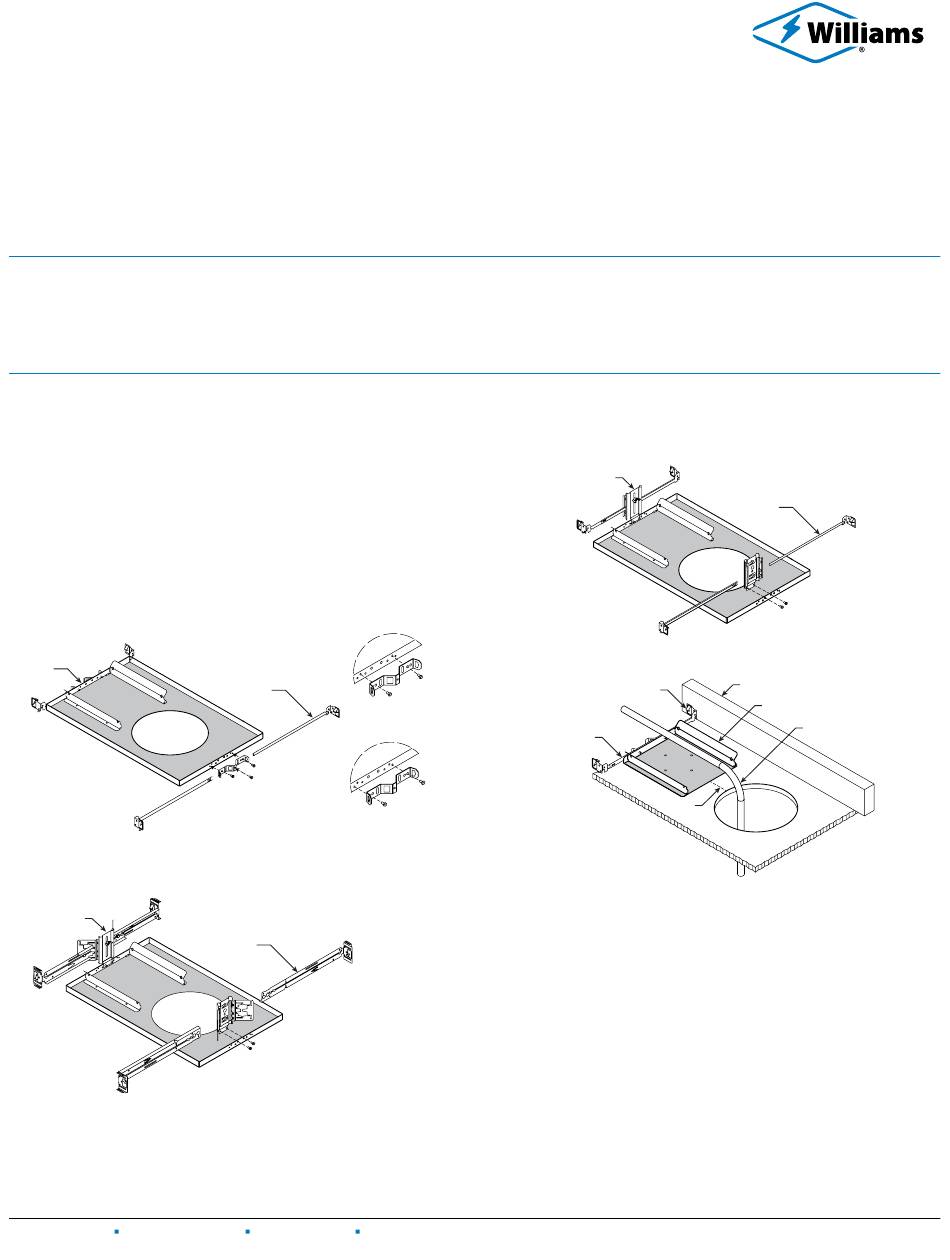

FIG. 1.1 2-Position fixed pan bracket
F1: Universal bar hanger, shown | F2: T-bar clip hanger
Fixed pan
bracket
FIG. 1.2 Adjustable butterfly pan bracket
BA1: Butterfly bracket only | BA2: Heavy-duty universal bar hanger, shown
Butterfly bracket
H.E. Williams, Inc. Carthage, Missouri
Information contained herein is subject to change without notice.
Universal
bar hanger
High position for
1-11/16" T-bar grid
Low position for
wood joist ceiling
and 1-1/2" T-bar grid
Heavy-duty
universal
bar hanger
www.hew.com 417-358-4065
Disconnect power before servicing.
■
LEDs are ESD (Electro Static Discharge) sensitive devices that can be
■
easily damaged if the proper ESD mitigating steps are not taken.
LEDs are very sensitive to mechanical damage. Caution must be taken
■
to avoid damage to the LEDs.
ESD or mechanical damage voids all warranties.
■
SCA TRIM INSTALLATION ............................................................................. 3
DOWNLIGHT INSERT INSTALLATION ........................................................ 4
FIG. 1.3 Adjustable caterpillar pan bracket
CA1: Universal bar hanger, shown | CA2: T-bar clip hanger
FIG. 1.4
Expandable
bar hangers
MOUNTING PAN INSTALLATION CONTINUED ON NEXT PAGE
REV.09/14/18JJ
Caterpillar
bracket
Universal
bar hanger
Ceiling joist
Nailer tab
2"
Receiver bracket assembly
Flex conduit
PN #49091089
Page 1 of 4
