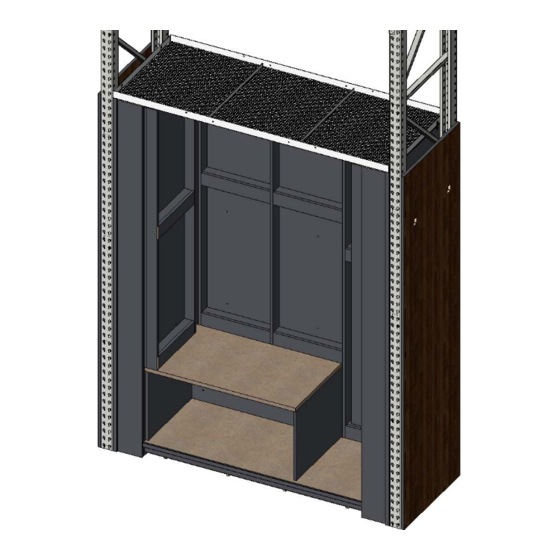

- Page 1 L0642552 LOWE'S ITEM #: F247330 28" X 72" ALLEN AND ROTH V2 ENDCAP - DEPARTMENT: WALLS & COMMACK WINDOWS INSTALLATION AND ASSEMBLY INSTRUCTIONS Page 1 of 7 A47560-IS-552 Rev.: 9/11/2015...
- Page 2 28" X 72" ALLEN AND ROTH V2 ENDCAP - COMMACK PART NUMBER DESCRIPTION A47560-87-006 BACK LEFT FRAME 73"ID BAY X 96"H A47560-87-002 LEFT SIDE FRAME 28"ID A47560-87-008 BACK RIGHT FRAME 73" ID BAY X 96"H A47560-87-003 RIGHT SIDE FRAME 28"ID A47560-87-009 DIFFUSER FRAME 28"X73"...
- Page 3 28" X 72" ALLEN AND ROTH V2 ENDCAP - COMMACK Step 1 Step 2 Set the Diffuser Frame on top of the Wall Frame Unfold the Wall Frame Assemblies, slide into 73" bay and attach the Side Wall to the bay upright using Assembly and attach to the Wall Frame Tabs using (6) 1/4-20 x 3/4"...
- Page 4 28" X 72" ALLEN AND ROTH V2 ENDCAP - COMMACK Step 3 Step 4 Install Extender Assemblies in Bay. Extenders will set Lift the Back and Side Boards up into the top Wall Frame Channel and drop down with the rear against Back and Side Walls.
- Page 5 28" X 72" ALLEN AND ROTH V2 ENDCAP - COMMACK Step 5 Step 6 Slide the Base Insert into and attach the Side Wall Set the Back Insert against the Back Wall and right side Extender and secure using (9) #10 x 1-1/2 Screws. to the bay upright using (3) 1/4-20 x 1-3/4"...
- Page 6 28" X 72" ALLEN AND ROTH V2 ENDCAP - COMMACK Step 7 Step 8 Install Eggcrate Diffusers in Diffuser Frame. Left Side: set the Side Insert on top of the Base Cabinet flush at the front and attach to the Side Wall using (6) #10 x 3/4"...
- Page 7 28" X 72" ALLEN AND ROTH V2 ENDCAP - COMMACK Step 9 Attach the Outside Panels to the outside of the bay upright using (3) 1/4-20 x 1-3/4" Screws and (3) Threaded Rack Anchors for each Panel. Page 7 of 7 A47560-IS-552 Rev.: 9/11/2015...
