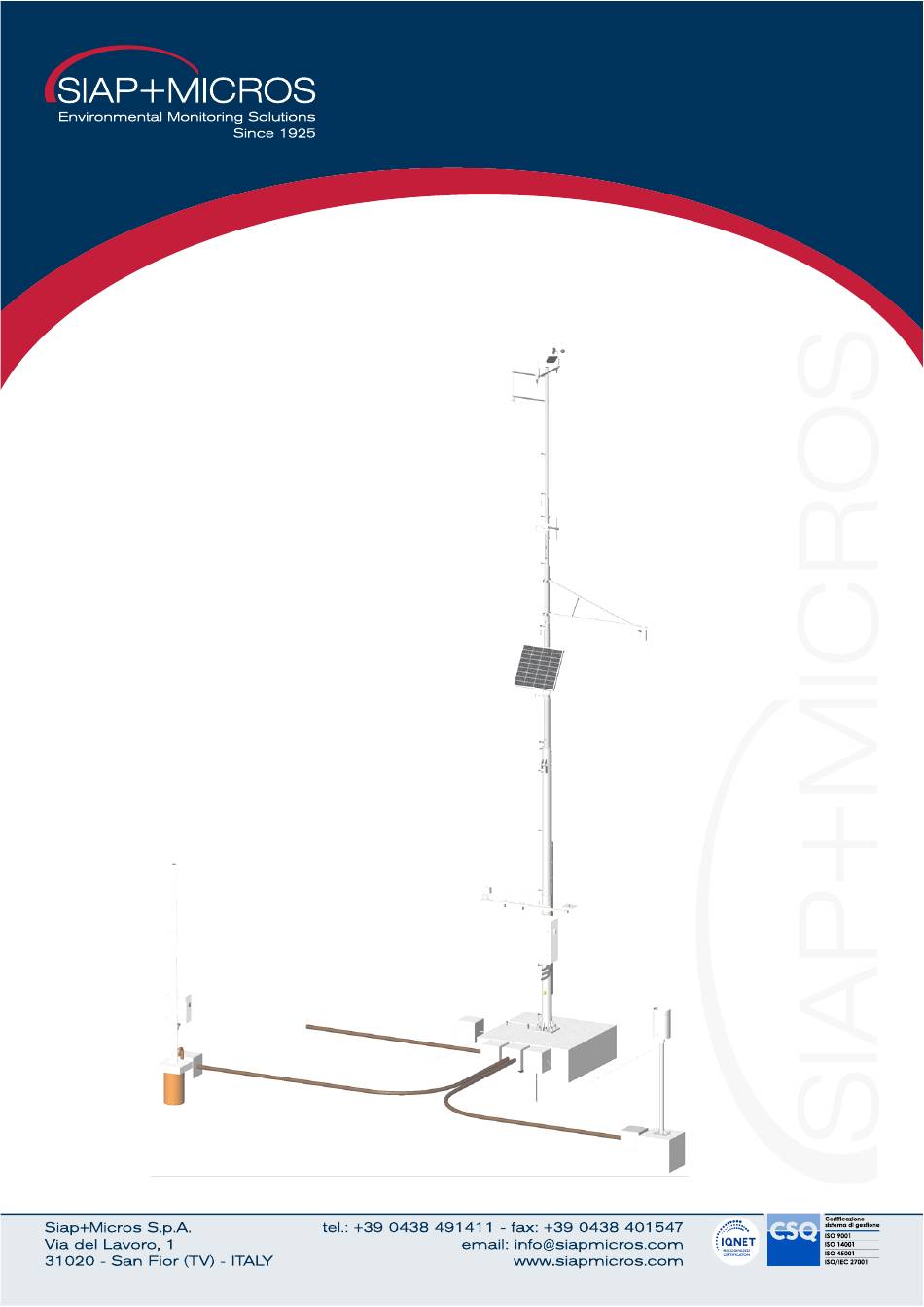

- Page 1 PalB10 10m height lowerable mast Installation manual and user’s guide User Manual Vers. 00...
-
Page 2: Table Of Contents
User’s Manual p099-di PalB10.docx Index List of materials ............................. 3 1.1 PalB10 ..............................3 Preparation for installation ........................5 2.1 Civil works (plinth) for PalB10 ....................... 5 2.2 PalB10 ..............................5 2.3 Transducers, cables ..........................6 Mechanic parts assembly ........................7 3.1 PalB10 weather mast.......................... -
Page 3: List Of Materials
User’s Manual p099-di PalB10.docx 1 List of materials 1.1 PalB10 PalB10 elements: Element 1 Features: square base 300x200mm, diameter 152mm, total height 2015mm Element 2a Features: diameter 133mm, total height 2235mm, tiltable head Element 2b Features: diameter 133mm, outline 65x42x5.5mm, total height 2030mm Element 3 Features: diameter 102mm / 89mm, total height 1970mm 27/02/2023... - Page 4 User’s Manual p099-di PalB10.docx Element 4 Features: diameter 76mm / 60mm, total height 2250mm Element 5 Features: diameter 48mm, total height 2250mm Element 6 Features: cross-section 100x50x6mm, total height 1980mm 27/02/2023 Pag.4 Vers. 00...
-
Page 5: Preparation For Installation
Siap+Micros can not therefore be held responsible for any structural failure or malfunction of the station caused by misinterpretation and / or arbitrary choices do not conform to those indicated in this manual. -
Page 6: Transducers, Cables
User’s Manual p099-di PalB10.docx 2.3 Transducers, cables All the sensors, or different electronic devices, directly attached to the mast or by brackets must be wired putting the cables into the right holes already placed onto the mast and making them getting off at the base of the mast itself, next to the three ø38mm holes just below the data logger in the inner of a conduit. -
Page 7: Mechanic Parts Assembly
User’s Manual p099-di PalB10.docx 3 Mechanic parts assembly Indication of the phases for mechanic and electric mounting of the different parts of the station 3.1 PalB10 weather mast Materials : Tools: size 27 wrench for M18 hexagonal head Act : unscrew M18 eight nuts used for clogging the upper spacer plate. - Page 8 User’s Manual p099-di PalB10.docx Once you do this, then strongly tighten up the upper nuts. Screw also the remaining eight M18 nuts (counterlock). Materials: PalB10 element 2 (2a and 2b) n° 6 M10x20 grub screws Tools: size 5 Allen key for M10 grub screws, levelling gauge Act : put element 2 (2a and 2b elements are already assembled) into the base.
- Page 9 User’s Manual p099-di PalB10.docx Materials : TE M16x230 screw with hole, M16 nut and M1 flat washer, safety lock Tools : spanner size 24 for M16 hexagonal screw Act : for a safe tiltable mast phase, in the provision you’ll find a screw (M16x230) with a hole for the key lock.
-
Page 10: Anemometer
User’s Manual p099-di PalB10.docx Materials : PalB10 element 6 TE M10x35 n° 6 screws, M10 flat washer Tools : spanner size 17 for M10 hexagonal screw Act : fasten element n°6 on the extension of the previously installed rocker arm (element 2b) with six M10 screws and relative washers. - Page 11 User’s Manual p099-di PalB10.docx Materials : anemometer transducer for wind speed and direction Tools : spanner size 13 for M8 hexagonal screw Act : insert and fasten transducers to the brackets, as shown in the picture. Fastening operation is made acting on two M8 nuts, placed in the opposite side from the clevis.
-
Page 12: Directional Antenna
User’s Manual p099-di PalB10.docx 3.3 Directional antenna Depending on the type of the antenna to install, ensure his correct orientation at the suitable height to avoid any obstacles near the station. The antenna can be installed in the last 3 meters of the pole (items 4 and 5) in the vicinity of one of the holes used for the passage of the cable inside the pole. - Page 13 User’s Manual p099-di PalB10.docx Materials : connecting cable for transducer TNU08 Tools : Act : make the cable pass through the inside of the bracket, leaving the end with screw connector on the opposite side of the mast. Insert the opposite side of the cable in the right hole on mast and make it going down next to the three ø38mm holes in the base.
-
Page 14: Photovoltaic Panel
User’s Manual p099-di PalB10.docx 3.5 Photovoltaic panel Photovoltaic panel orientation must be executed towards sun direction, towards South in the northern hemisphere, North in the southern one. Photovoltaic panel must be fasten to the mast on element 3, at about 5,5m height. Materials : photovoltaic panel complete with cable Tools :... -
Page 15: Video Camera
User’s Manual p099-di PalB10.docx 3.6 Video camera Video camera is equipped with a swivel that allows it to rotate on two axis, and then to easily frame the involved zone. For any other information concerning installation, please refer to the proper user’s guide of device. -
Page 16: Devices On A 2M Height Bracket
User’s Manual p099-di PalB10.docx 3.7 Devices on a 2m height bracket At 2m height, mast presents a bracket for transducers and devices. Each device has its own fixed position with rings or M8 screws. Fastening of brackets and devices, must be done in the correct order shown below. Materials: transducer bracket placed at 2m height Tools :... -
Page 17: Data Logger Cabinet
User’s Manual p099-di PalB10.docx Materials : transducers’ bracket at 2m height complete with cables and transducers screws and M8 nuts with washers Tools : spanner size 13 for M8hexagonal screw Act : insert cables in the right entry hole placed in PalB10, paying attention to make them going down towards the three holes in the lower position. - Page 18 User’s Manual p099-di PalB10.docx Materials : data logger cabinet complete with brackets Tools : spanner size 13 for M8 hexagonal screw Act : secure data logger cabinet to the plate using four M8 nuts. Materials : conduits Tools : Act : pass the cables coming out from ø38 holes at the mast base into the conduits and insert them in relative cable glands placed on the bottom of the data logger box.
-
Page 19: Palb10 Tilting
User’s Manual p099-di PalB10.docx 4 PalB10 tilting PalB10 is a mast 10m height equipped with junction at 4m height that allows its tilting to make easier reaching transducers and/or devices placed at different height. In the picture below (1:100 scaling) you can see the schema for distances and overall dimensions of moving parts during tilting phase. - Page 20 User’s Manual p099-di PalB10.docx Materials : snap-hook rope Tools : Act : secure snap-hook to ring “1”. Make the rope pass in ring “2” bundling it to mast. Materials : Tools : Act : remove safety screws installed on mast (see chapter 3.1). ATTENTION: from this very moment the tilting part of the mast is held in position and controlled only by the rope.
-
Page 21: Revision History
Date Updates 03/07/2012 Current version of the document.. All the information content in this document are the current available at the printing phase. Siap+Micros S.p.A. reserve the rights to change the specifications without any advance notice. 27/02/2023 Pag.21 Vers. 00...
