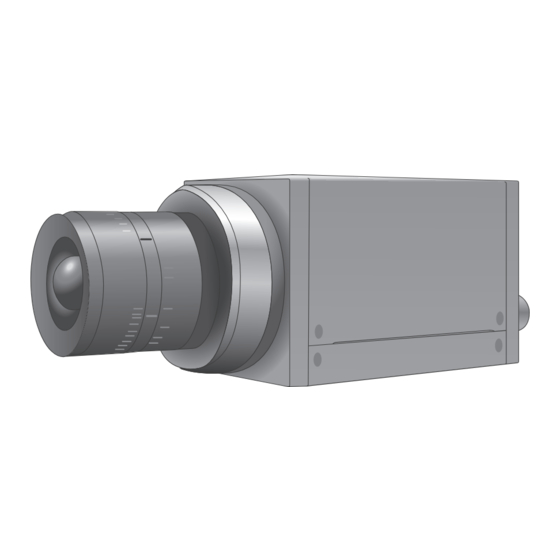

Digital high speed camera
HAS - U1 / HAS - U2
Hardware settings user manual
This manual provides safety and installation instructions.
Please read this manual thoroughly before using.
Important safety instructions
List of included items
Parts names
Setting up procedures
C o nne c ting to
o ptio nal ac c e sso r ie s
Using USB3.0 hub
Product specifications
Support information
３
４
５
６
９
10
11
11
Advertisement
Related Manuals for Ditect HAS-U1
Summary of Contents for Ditect HAS-U1

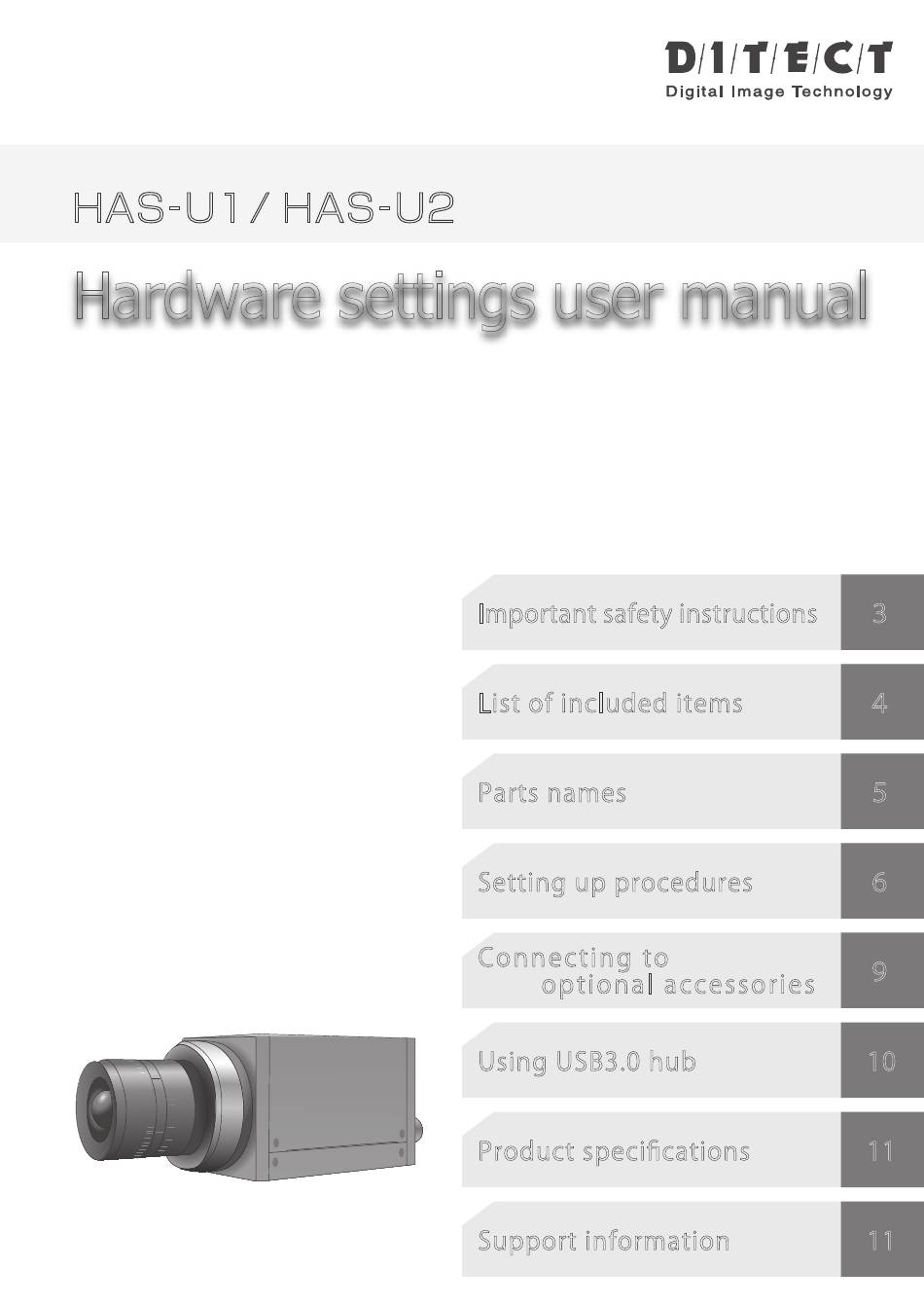

- Page 1 Digital high speed camera HAS - U1 / HAS - U2 Hardware settings user manual This manual provides safety and installation instructions. Please read this manual thoroughly before using. Important safety instructions ３ List of included items ４ Parts names ５ Setting up procedures ６ C o nne c ting to ９ o ptio nal ac c e sso r ie s Using USB3.0 hub Product specifications Support information...
-
Page 3: Table Of Contents
Table of contents Important safety instructions ３ List of included items ４ Parts names ５ Setting up procedures ６ Connecting to optional accessories ９ Using USB3.0 hub Product specifications Support information Introduction Thank you very much for your purchase. Please read this manual thoroughly before installation and operation, and keep this manual for future reference. Important safety instructions Do not handle plug or appliance with wet hands. Do not plug or unplug the cable when the camera is turned on. If your device needs repair, please contact our technical support center. Do not disassemble or modify HAS-U1・ HAS-U2. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. ３... -
Page 4: List Of Included Items
List of included items ※ １ Camera body ７ Branch connector ２ USB3.0 cable ※ ８ BNC cable ３ Sync master cable ※ ９ External sync cable ※ ※ ４ Trigger button 10 High brightness LED strobe ※ ※ ５ USB3.0 hub ※ 11 Sync trigger cable for U1 and U2 ６ Software CD = optional accessory ※ ※ ※ １ Camera body ２ USB3.0 cable ３ Sync master cable ４ Trigger button （FST-SYNC-MST-1 ) ※ ※ ※ ５ USB3.0 hub ６ Software CD ７ Branch connector 8 BNC cable ※ ９ External sync cable 10 High brightness 11 Sync trigger cable for LED strobe U1 and U2 ... -
Page 5: Parts Names
Parts names １ Top and Front Lock screw Ｃ- mount ２ Bottom Tripod mount ３ Re a r USB3.0 port STATUS LED EXT I / O port POWER LED AUＸ port ５... -
Page 6: Setting Up Procedures
Setting up procedures How to connect camera directly to your PC. １ When connecting the camera to a PC directly, ２ Make sure that the camera is firmly attached please attach Ｃ-mount lens and remove the to a tripod. lens cover. ３ When it is necessary to use an external trigger and / or to synchronize with LED lights, please use a sync trigger cable for U1 and U2. Sync master cable U1 and U2 Connect USB3.0 cable (Standard - A) to your PC. ４ ５ Connect USB3.0 cable (microB) to the camera. ６... - Page 7 ６ Run the installed application. ※For further assistance please read the software manual. Connecting with multiple cameras. ※ Example of two-camera setup. Connecting with USB3.0 cables Connecting with USB3.0 cables U S B cable USB3.0 hub USB3.0 hub A C adapter A C adapter Trigger button Sync trigger cable for U1 and U2 Slave camera Master camera BNC cable ７...
- Page 8 Connecting with multiple cameras. ※ Example of four-camera setup. Connecting with USB3.0 cables Connecting with USB3.0 cables ① ① U SB cable ② ② ③ ③ USB3.0 hub USB3.0 hub Trigger button A C adapter A C adapter ① ① Master camera ② ② ③ ③ U1,U2 用同期 Sync trigger cable for Slave camera Slave camera U1 and U2 Slave camera Slave camera Slave camera Slave camera BNC cable BNC ...
-
Page 9: Connecting To Optional Accessories
Using external device as the master. Example : How to record at the frequency of a pulse generator. U SB cable Trigger button Slave camera Basic voltage setting should be３ ． ３Ｖ. Pulse generator (Master) ※ Warning Sync trigger cable for U1,U2 用同期 Make sure to connect BNC cable U1 and U2 after the command settings. BNC cable Connecting with optional accessories. High brightness LED strobe Trigger button LED exposure dial switch Ｆ Slide Input logical setting switch down Connection with external device SYNC TRIG Sync master cable 同期 External sync cable ９... -
Page 10: Using Usb3.0 Hub
Using USB3.0 hub When using , be sure to follow the instructions below. USB3.0 hub Otherwise, it may lead to problems with the camera or USB3.0 hub. ① Remove all the cameras connected to hub. USB3.0 ② Remove from your PC. USB3.0 Remove the USB cable or Remove the USB cable turn the switch off. from your PC. -
Page 11: Product Specifications
Sensitivity 7.5V / lux . s Power supply USB bus power Power supply USB bus power 12 pin 12 pin Electric requirement Under 4.5W Electric requirement Under 4.5W Weight Approx. 210g Weight Approx. 210g Size ×44 ×81.5 Size ×44 ×81.5 Support information Please contact our local office for software updates and customized options as well as other inquiries. DITECT corporation 150-0036 1-8 Nampeidai cho, Shibuya ku, Tokyo 150-0036, Japan ： +81-3-5457-1212 E-mail ： support@ditect.co.jp ： https://www.ditect.co.jp/... - Page 12 Digital high speed camera HAS - U1/ HAS - U2 Hardware settings user manual Rev1.0.4...
