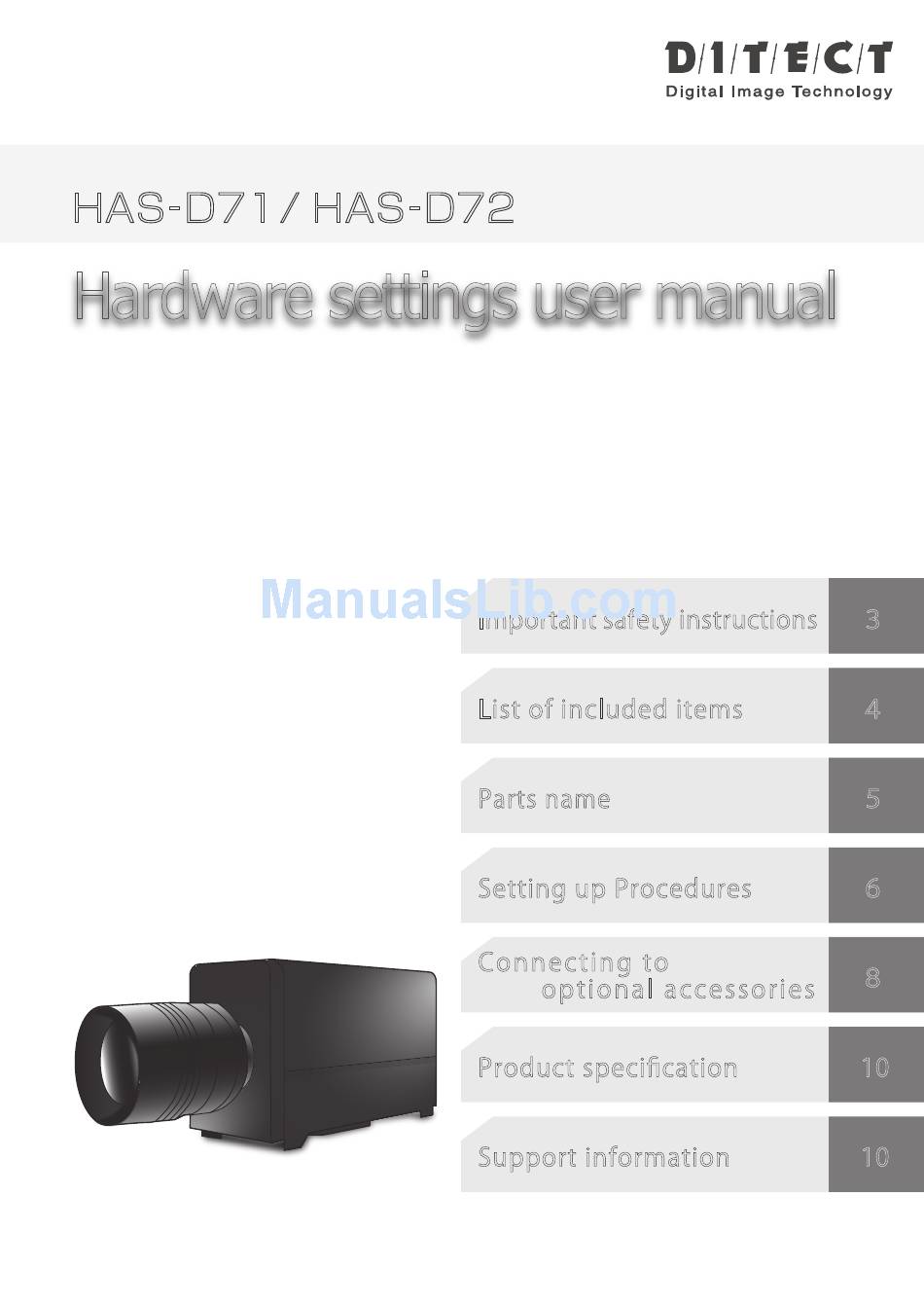

High sensitivity / High speed cameras
HAS - D71 / HAS - D72
Hardware settings user manual
This manual provides safety installation instructions.
Please read this manual thoroughly before using.
Important safety instructions
List of included items
Parts name
Setting up Procedures
Conne cting to
opt ional ac cessor ies
Product specification
Support information
３
４
５
６
８
10
10
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Ditect HAS-D71
Summary of Contents for Ditect HAS-D71
- Page 1 High sensitivity / High speed cameras HAS - D71 / HAS - D72 Hardware settings user manual This manual provides safety installation instructions. Please read this manual thoroughly before using. Important safety instructions ３ List of included items ４ Parts name ５...
-
Page 3: Table Of Contents
When plugging or unplugging the cable, ensure that AC power is turned off. If your device needs repair, please contact our technical support center. Do not disassemble or modify HAS-D71・ HAS-D72. This device complies with part 15 of the FCC Rules. Operation is subject to the following... -
Page 4: List Of Included Items
List of included items １ Camera body ６ Software CD ※ ２ AC Power cable ７ Sync slave cable ※ ３ USB3.0 cable ８ External sync cable ４ Sync master cable ※ ９ Battery ※ ※ ５ Trigger button 10 Hight brightness LED strobe ※ = optional accessory ※ １ Camera body ２... -
Page 5: Parts Name
９ Battery 10 Hight brightness LED strobe ※ ※ Parts name Air vents Tripod mount Ｃ- mount １ Front ２ Bottom Lokscrew Cooling fan （optional） power port USB3.0 port ３ Top ４ Rear ５... -
Page 6: Setting Up Procedures
Setting up procedures １ Attach C-mount lens and remove the lens cover ２ Make sure that the camera is firmly attached to a tripod. ３ Connect USB3.0 cable (Standard - B) to the camera. ４ Connect USB3.0 cable (standard - A) to your PC. ６... - Page 7 ５ Connect power cable to the camera. ６ Run the installed application. For further assistance, Please read the software manual. ※ ７ When it is necessary to use an external trigger and / or to synchronize with LED lights, Please use a sync trigger cable. Sync master cable AC power cable ７...
-
Page 8: Connecting To Optional Accessories
Connecting to optional accessories １ Trigger button ２ High brightness LED strobe ３ Battery Strobe port Trigger button port ４ Sync slave cable ( more than 2 pairs ) Sync master cable Master camera Master camera AC power cable Sync slave cable Slave camera Slave camera AC power cable... -
Page 9: Timing Chart
５ External sync cable Sync master cable AC Power cable External Sync cable Timing chart Trigger button CN3 SYNC CN2 TRIG 1 / 8 cycle CN3 SYNC CN2 TRIG 4usec The relationship between sync signal and exposure CN3 SYNC open Exposure ・The exposure ends when HAS - D71 finishes receiving the SYNC signal. -
Page 10: Product Specifications
Product specifications HAS - D71 H A S - D 7 1 M H A S - D 7 1 C Resolution F P F Comera Type Mono Color 640 x 480 8000fps Sensor CMOS 640 x 240 16000fps Effective resolution 640 x 480 640 x 116 30000fps... - Page 12 High sensitivity / High speed cameras HAS - D71 / HAS - D72 Hardware settings user manual Rev1.0.2...
