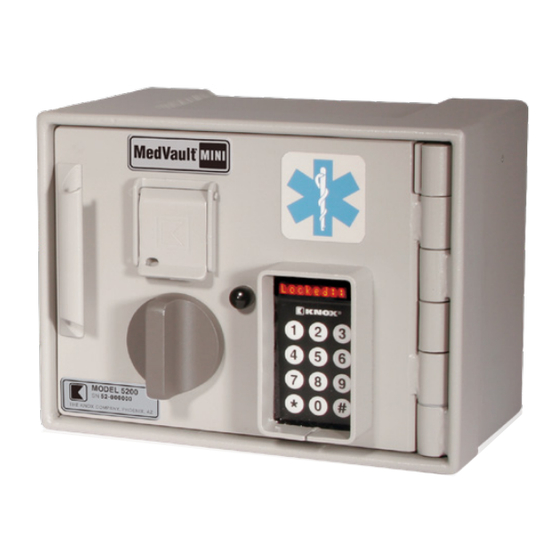

Knox MEDVAULT Hardware Installation Manual
Small capacity – narcotics locker
Hide thumbs
Also See for MEDVAULT:
- Hardware installation manual (12 pages) ,
- Installation manual (12 pages)
Related Manuals for Knox MEDVAULT
Summary of Contents for Knox MEDVAULT
- Page 1 MEDVAULT ® SMALL CAPACITY – NARCOTICS LOCKER HAR DWAR E I N S TALL ATIO N G U I D E 1601 W. DEER VALLEY ROAD, PHOENIX, AZ 85027 800-704-0889 KNOXBOX.COM OPE-MVHDWR-0475-B...
- Page 2 HARDWARE INSTALLATION GUIDE Copyright ® 2023 by The Knox Company. All rights reserved. The Knox Company, the Knox logo, and all other Knox Company product or service names are registered trademarks or trademarks of the Knox Company. RESTRICTED RIGHTS LEGEND U.S.
-
Page 3: Table Of Contents
MEDVAULT SMALL CAPACITY ® HARDWARE INSTALLATION GUIDE CONTENTS INSTALLING THE MEDVAULT® UNIT ......................4 Installing Hardware ..........................5 Mounting Options ........................... 5 Installing Electronics ..........................6 SPECIFICATIONS ............................7 CONTACTING ELECTRONIC SUPPORT ...................... 8 Removing the Door ..........................8 Attaching the Door ..........................9 INDEX ................................ -
Page 4: Installing The Medvault® Unit
When determining the mounting location, confirm there is adequate THOROUGHLY READ ALL space to open and close the MedVault® door. Allow a minimum of 1 inch INSTALL INSTRUCTIONS above the door for room to remove the door from the MedVault. For PRIOR TO MOUNTING. -
Page 5: Installing Hardware
6. Make sure the mounting holes do not interfere with any component inside the box Do not mount anything to the MedVault® door 8. Do not use a hammer to fit the unit in place (doing so may warp the unit) 9. -
Page 6: Installing Electronics
4. Connect the black wire in the ten-foot (10’) cable to a battery ground 5. Connect the red wire to a 12-volt power source (Note: the MedVault can be connected to switched power, to conserve power when turned off but will not receive updates) 6. -
Page 7: Specifications
If the electronics fail or the vehicle loses power, the unit can ONLY be opened using the Override Manual Key manual override key. For security purposes, the manual override key is shipped separate from the unit. If you did not receive your manual override key, contact Knox immediately. ELECTRONICS Temperature Range -20°... -
Page 8: Contacting Electronic Support
HARDWARE INSTALLATION GUIDE CONTACTING TECHNICAL SUPPORT If an issue is encountered that is not addressed in this guide, please call Knox Tech Support at (800) 704-0889. Our technicians will review your issues and attempt to resolve them over the phone. -
Page 9: Attaching The Door
5. Install the hinge lock security screws and fingertip tighten 6. Use the Knox security screw removal bit to further tighten the security screws (DO NOT OVERTIGHTEN) 7. Use a screwdriver to open the door wire cover 8. -
Page 10: Index
1 6 0 1 W . D E E R VA L L E Y R D . P H O E N I X , A Z 8 5 0 2 7 8 0 0 -7 0 4 - 0 8 8 9 K N O X B O X . C O M PA G E 1 0 ©Knox Company. All rights reserved. OPE-MVHDWR-0475-B... - Page 11 1 6 0 1 W . D E E R VA L L E Y R D . P H O E N I X , A Z 8 5 0 2 7 8 0 0 -7 0 4 - 0 8 8 9 K N O X B O X . C O M PA G E 1 1 ©Knox Company. All rights reserved. OPE-MVHDWR-0475-B...
