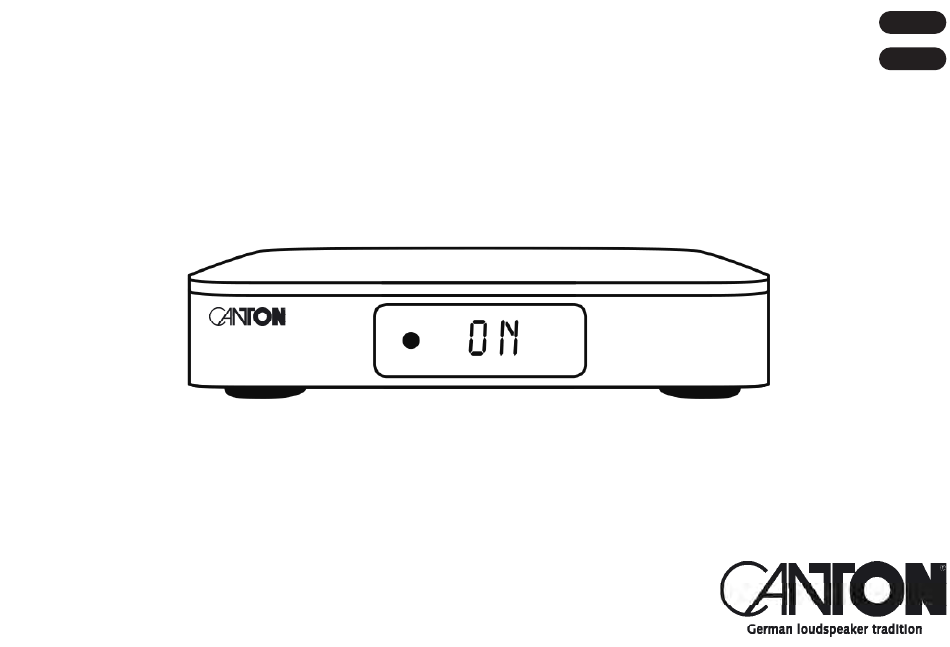

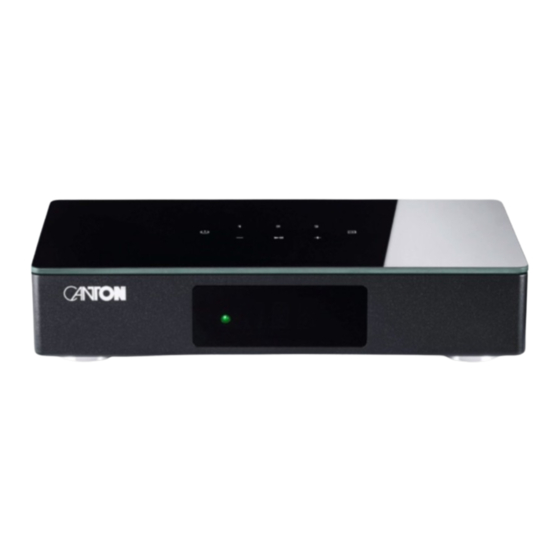

  • Page 1 Smart Connect 5.1 BEDIENUNGSANLEITUNG Deutsch OPERATING INSTRUCTIONS English...
  • Page 2 Thank you very much for choosing this Canton product. You can now look forward to countless hours filled with excellent sound. If you have any questions or need further information, please do not hesitate to contact us! Service-Telefon: 06083 / 287-87 Service E-Mail: service@canton.de...

  • Page 3: Table Of Contents

    Content Important safety instructions .................................Page 77 Unpacking ......................................Page 81 Setting up the remote control.................................Page 81 Connection terminal....................................Page 82 Touch keys ......................................Page 84 Remote control .......................................Page 85 LED indications ......................................Page 86 Display indications ....................................Page 86 Using Chromecast built-in ..................................Page 89 Google Assistant ....................................Page 90 Using Spotify Connect ...................................Page 91 Automatic Updates ....................................Page 91 Playback via Bluetooth®...
  • Page 4 – IR Menu [IRM]................................... Page 103 – IR Learn [IRL] ..................................Page 103 – Direct Input Learn [DIL] ................................Page 104 – IR Clear [CLR] ..................................Page 105 – HDMI CEC [CEC] ..................................Page 106 – Standby Mode [STB] .................................. Page 107 –...
  • Page 5 – Speaker Config [SPC] ................................. Page 120 – Speaker Mapping [SPM] ................................Page 123 6. System Info [INF] ..................................Page 125 – Firmware Info [FWI] .................................. Page 126 – Network Info [NWI] ................................... Page 127 Trouble shooting ..................................... Page 128 Technical data ....................................
  • Page 6 Safety instructions Please observe the safety instructions when choosing the correct location for your Smart Connect 5.1 and when maintaining and operating it! The user is responsible for the proper handling of the pre-amplifier. Canton cannot accept any responsibility for damage or accidents caused by improper installation or connection.

  • Page 7: Important Safety Instructions

    English Important safety instruction CAUTION CAUTION CAUTION Risk of electric shock Danger of explosion! Danger of life! Do not open! CAUTION: CAUTION: CAUTION: To reduce the rist of fire and electric shock, Replaceable lithium batteries! Do not ingest battery. Chemical burn hazard. do not open the device.
  • Page 8 English Strong temperature fluctuations lead to condensation (water droplets) in the device. Wait until the moisture has evaporated (at least three hours). Do not place objects filled with liquids (such as vases) on the device. Do not place an open fire, such as lit candles, on or near the device. Do not place the device near heat sources such as radiators, heat accumulators, stoves or other devices (including amplifiers) that generate heat.
  • Page 9 English Do not exert force on operating elements, connections and lines. The device may only be operated with the voltage and frequency specified on the device or the type plate. Do not insert any objects or body parts into the openings of the device. Live parts inside the housing could be touched and/or damaged. This can lead to short circuits, electric shocks and fire.
  • Page 10 English If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention. Take care of your environment when disposing of the battery. Batteries must be disposed of at a battery collection point. Do not expose batteries to high temperatures, such as direct sunlight, fire or the like.

  • Page 11: Unpacking

    Connect 5.1 using the optionally available remote control. Place the Smart Connect 5.1 in the desired location and connect it to the power input using the power cord. Make sure that your TV is plugged in. If you want to connect your Connect to the WiFi network, please make sure your WiFi router is active and has a connection to the Internet.

  • Page 12: Connection Terminal

    ETHERNET (LAN) For the connection with a network router via ethernet cable (RJ45 Socket, 8-pole). SERVICE CONNECTOR Used for the Canton customer service only (USB A Socket, covered, no audio, no charging). HDMI Input - HD1 / HD2 / HD3 ®...
  • Page 13 English Note: The physical inputs have the following default designations, which you can match to the connected source (except for BT and NET) at any time (see chapter Inputconfiguration [INP]): Phys. Input Name (display indication) HDMI1 HDMI2 HDMI3 COA / COAX1 COAX1 COA / COAX2 COAX2...

  • Page 14: Touch Keys

    English Touch Keys Device control: Toggles power status between On and Standby Power: Preset 1-3: Preset keys for direct access of previously stored and Spotify playlists Input: Toggles through the inputs Increase main volume Plus: Minus: Decrease main volume Play/Pause: Play/Pause function for Chromecast built-in, Spotify Connect and Bluetooth wireless technology...

  • Page 15: Remote Control

    English Remote Control (optional) Note: Every Canton Smart remote that comes is included with Canton Smart loudspeakers can be used to control the Smart Connect 5.1. The Canton Smart remote is available at www.canton.de. Power Toggles system status (on/standby) Mute...

  • Page 16: Led Indications

    English LED Indications The LED indicates the following conditions: • LED off (not illuminated) Pre-amplifier disconnected from the mains • LED shining red Pre-amplifier in standby mode • LED flashing green quickly Pre-amplifier is booting • LED shining green Pre-amplifier is active (network connected) ------------------------------------------------------------------------------------------------------------- •...
  • Page 17 English LED Display The Connect 5.1 has a multifunctional LED display build in the front of the Connect 5.1 which will light up for 5 seconds when receiving a command. The most important indications and their meanings are listed below: Operation Display Meaning...
  • Page 18 Usage of Spotify Connect Networking WIF / CON Network (WiFi) connected Networking WIF / DIS Network (WiFi) disconnected Networking ETH / CON Network (ethernet) connected Networking ETH / DIS Network (ethernet) disconnected Networking NET / SET Smart Connect 5.1 ready for network setup...

  • Page 19: Using Chromecast Built-In

    Connect 5.1. Therefore your (mobile) device and the Connect 5.1 must be connected to the same network. Please do as follows: Power up your Smart Connect 5.1 and start your (mobile) device. The WiFi and Bluetooth® function must be activated on your (mobile) device. If the Connect 5.1 has been disconnected from the mains please wait with the procedure until the display indicates [NET] followed by [SET].

  • Page 20: Google Assistant

    In order to play back music that you have stored locally on your (mobile) device via the Smart Connect 5.1 using Chromecast built-in, you can use the manufacturer's own playback app. If the music app of the manufacturer does not support Chromecast built-in for audio, you can alternatively use a freely available app (such as the app "AllCast"...

  • Page 21: Using Spotify Connect

    Automatic Updates After being connected to a network and getting access to the Canton Update Server via the Internet, the Connect 5.1 automatically performs firmware updates. Each time the Connect 5.1 is connected to the mains, and at regular intervals (also in standby) it searches for a firmware update and installs it, if available.

  • Page 22: Playback Via Bluetooth® Wireless Technology

    Select Smart Connect 5.1xxxx as playback device. Note: If you assigned a name to your Smart Connect 5.1 during the setup process (e.g. Living Room), this name will be listed here. The connection established automatically after confirmation and will be indicated with [BT-] followed by [CON] in the display.

  • Page 23: Preset

    Open a previously created playlist in the app "Spotify" on your (mobile) device and start the playback. Please select Spotify Connect (not Chromecast built-in) as connection type to the Smart Connect 5.1. To "store" a playlist press and hold the corresponding preset button 1, 2 or 3 on your remote until the corresponding number P1, P2 or P3 is shown in the LED display and the display stopped flashing.

  • Page 24: Menu Structure And Navigation

    Overview Most settings of the Smart Connect 5.1 are included into the main menu. This main menu is controlled with the touch keys on the top side of the Smart Connect 5.1. The main menu is displayed by the OSD (On-Screen Display) on your TV screen. The LED display in the pre-amplifier shows the respective function in the form of an abbreviation or as scroll text when the menu is activated.

  • Page 25: Speaker Setup [Sps]

    English 1. Speaker Setup [SPS] The first item in the main menu is the Speaker Setup. Here you can make sound-relevant settings relating to the connected speakers. This Speaker Setup includes the menu items: •Channel Level [CHL] •Distance [DST] •Compression [DRC] •Voice Clarity [VOI] •Equalization [EQ] •Xover Small Speakers [XOV]...

  • Page 26: Distance [Dst]

    English Use the "+" resp. the "–" key to adjust the volume level. Press the input select key " " to jump back to the item list. To select a different speaker, use the "+" resp. the "–" key. The speaker selected in the list of speakers plays back the test tone. At your listening position, all speakers should have approximately the same volume level.

  • Page 27: Compression [Drc]

    English Compression [DRC] Dynamic Range Control (DRC) is a setting option created by Dolby Laboratories. When activated, the dynamic range of encoded data streams can be automatically reduced, which also reduces differences in volume. This makes it possible to enhance quiet tones and suppress loud ones.

  • Page 28: Equalization [Eq]

    Equalization [EQ] In this menu you can adjust the frequency response of the loudspeakers that are connected to the Smart Connect 5.1 to match the room con- dition. You can choose between 3 EQ-settings for each speaker resp. each pair of speakers. A free position in the room is the factory setting.

  • Page 29: Subwoofer Setup [Sub]

    English Subwoofer Setup [SUB] In this menu you can adjust the phase of a connected subwoofer and activate different Sub Stereo Modes [SSM] and adjust the crossover frequency between a subwoofer and the front speakers. This menu item is only available if a subwoofer (Smart or Analog) is activated in the Speakerconfiguration menu.

  • Page 30: Stereo Sub Xover [Ssx]

    English Use the "+" resp. the "–" key to select the desired function: Off [OFF] means that the bass signals are played through the front speakers Front Left and Front Right. Parallel [PAR] means that the subwoofer plays the bass signals additionally to the front speakers Xover [XOV] means that the bass signals below the set crossover frequency Stereo Sub Xover are played through the subwoofer Confirm and exit the menu item by pressing the "M"...

  • Page 31: Room Height [Rhe]

    English Room Height [RHE] To get an optimal spatial impression (3D sound) during the playback of Dolby Atmos® bitstreams, the setting of the room height is necessary. The room height can be set up to 9.90m in 0.1m steps, with 2.5m being the factory setting. To set the room height please do the following: To enter the menu, press and hold the input select key "...

  • Page 32: System Setup [Sys]

    English 2. System Setup [SYS] The second item in the main menu is the System Setup. It contains the following menu items: •Sleep Timer [SLP] •IR Menu [IRM] –IR Learn [IRL] –Direct Input Learn [DIL] –IR Clear [RES] •HDMI CEC [CEC] •Standby Mode [STB]...
  • Page 33 Please press the desired function on the touch control panel of the Connect 5.1. Note: The IR codes of TV remote can be assigned to all buttons of the optionally available Canton Smart remote alike. "Press the new button" will be shown on the screen with the name of the selected key (e.g. "Volume +") below. The display indicates the selected function as well (e.g.
  • Page 34 English Notes: •The “On/Standby” key has a dual function. Press it once and the display shows [ON] which allows the "on" function to be programmed. If the key on is pressed twice in quick sequence, the display shows [STB] and the "Standby" function can be learned.
  • Page 35 If you do not want to assign a button to input BPD [HD1] you can select the next input by using the "+" resp. the "–" key. Note: When using the optionally available Canton Smart remote please use the " " button to select the next resp. the " " button for the previous input.
  • Page 36 •In order to avoid conflicts when controlling the Smart Connect 5.1, the “Volume +/–“, “Mute” and “Power” buttons on the TV remote control should not be learned through the IR learn function of the pre-amplifier when using the CEC function. Delete the...
  • Page 37 This is the operation mode with the lowest standby power consumption. All the other modes Network, LSB, Auto, and Manual provide an automatic power up function for all wirelessly connected speakers when powering up the Smart Connect 5.1 (Master Device).
  • Page 38 English Input Configuration [INP] As the factory settings all physically available inputs are already assigned with a source name. Therefore, the LED display and the screen do not show the name of the (physical) input, but the source name of a (possible) source device. You can change the name assigned to an input to suit your source device in the menu Input Config [INP].
  • Page 39 English Analog Gain [OFS] With this function you can adjust the signal gain of the analogue Line input [AUX] relating to that of the digital source(s) in a range from -6dB to +6dB. You may use this function to balance the volume levels. 6dB doubles (+6dB) resp. halfs (-6dB) the output gain of your playback source.
  • Page 40 English Lipsync [LIP] The processing of video data in the TV or a videoprojector usually takes longer than the audio signal processing. Lipsync [LIP] allows you to take corrective action when the sound out of the Connect 5.1 is not lip-synchronous with the image on the TV. The delay of the audio signal can be set max.
  • Page 41 English Playmode [PLM] In this menu you can activate additional playmodes that can then be used and selected in addition to the 3 standard playmodes Stereo, Movie and Music with the PM button on the optionally available Smart remote. These playmodes are: •...
  • Page 42 English Display Setup [UI] The menu Display Setup includes all functions for the display in the front and the On-Screen menu. Language [LAN] With this option you can change the On-Screen menu (OSD) language from German to English and backwards. To change the language please proceed as follows: To enter the menu, press the "M"...
  • Page 43 Factory Reset [RES] With this function you can reset the Smart Connect 5.1 to its factory settings. In case the Connect 5.1 has a mailfunction or does not connect to a network anymore, please perform such a reset and repeat the installation process before you contact the customer support.
  • Page 44 At this menu the connection way of the WiFi module is set. The module can be connected Wireless [WLA] (default) or Wired [ETH] using the Ethernet port of the Smart Connect 5.1. To change the connection way from wireless to wired or contrary, please do the following: To enter the menu, press and hold the input select key "...
  • Page 45 [BT] In this menu you can set all features relating to the Bluetooth ® wireless technology module integrated in the Smart Connect 5.1. The Bluetooth menu includes four submenus, as follows: Pair Mode [BTP] This menu allows you to set whether the Connect 5.1 sends a pairing request to (mobile) devices permanently [AUT], or whether this function is disabled [MAN] to avoid unwanted pairing processes with (mobile) devices.
  • Page 46 English To change the setting please proceed as follows: To enter the menu, press and hold the input select key " " for at least 3 seconds. Use the "+" resp. the "–" key to select the menu item Wireless Setup [WIS] and confirm with the "Play/Pause" button " ". Select the first menu item Bluetooth [BT] and confirm with the "Play/Pause"...
  • Page 47 If there is no app or one that does not support background operation, playback will not start. BT Reset [BRE] This function is to reset all Bluetooth wireless technology related settings and paired devices stored on the Smart Connect 5.1. ® Caution: ALL settings related to the Bluetooth ®...
  • Page 48 English "Please Wait". After the reset procedure, the Connect 5.1exits the menu and goes into normal mode. Transmission Power [TXP] The wireless audio module of the Connect 5.1 is by default set to 25% of the maximum transmission power [ECO], according to -6dB. In most cases this is completely adequate for a stable and non-interrupted wireless connection with Smart speakers and/or a Smart subwoofer in the same room.
  • Page 49 The fifth item of the Main menu is the Output Setup [OPS] which is used to set up both the speaker availability and speaker type, as well as the way the speakers are connected to the Smart Connect 5.1 - wired or wireless. It contains the two items: •...
  • Page 50 (e.g. front left and right), the center speaker and the subwoo- fer. By default the Connect 5.1 has 2.0 Smart speaker configuration. Setups from 2.0 up to 7.1.4 are possible using Canton Smart speakers, with maximal 6 speakers connected 0°...
  • Page 51 English • (7) Top Rear left and right [TR]: They reproduce the Dolby Atmos signals as well. To Figure 1: Home cinema setup ® get an even more detailed spatial impression (3D Sound) you can use two additional upfiring speakers or ceiling speakers . The upfiring speakers (Dolby Atmos Enabled ®...
  • Page 52 • Smart [SMT]: This type refers to speakers of the Canton Smart series. You can connect the audio signal wirelessly or wired (using a signal cable).The control commands (On/Standby state, volume, etc.) are always send wirelessly to the speakers. When using a Smart speaker the selection of the size and crossovers happens automatically.
  • Page 53 Speaker Mapping [SPM] The Speaker Mapping [SPM] allows you to set up the connection between the Smart Connect 5.1 and the speakers. Only speakers that have been activated in the Speaker Config menu [SPC] can be connected. The connection can be wireless or wired. Maximal 6 speakers can be connected analogue using an RCA-cable and 8 Smart speaker can be connected wirelessly.
  • Page 54 After a few seconds a successful wireless pairing will be indicated with Wireless(CON) behind the selected speaker on the screen. The newly paired Smart speakers shows [CON] in its display. From now on the displays of the Smart Connect 5.1 and the paired Smart speaker are in sync and show the selected speaker.
  • Page 55 English Notes: If the speaker pairing failed and "Wireless pairing failed" is shown in the info bar on top of the menu please repeat steps 7 to 10 and verify that… a) ...the selected Smart speaker has been disconnected from the mains for at least 30 seconds. b) ...not more then 20 seconds have been passed between pressing the "Play/Pause"...
  • Page 56 English Firmware Info [FWI] This feature helps you to check and verify the firmware installed on the Smart Connect 5.1. Before doing a service request, please check and note the indicated version numbers. The listed items have the following meanings: •...
  • Page 57 Note: • The IP address and frequency band of the WiFi module (WiFi band) can only be displayed after the Smart Connect 5.1 is connected to your network via WiFi or network cable. If the Connect 5.1 is connected via network cable, it is not possible to display the SSID.
  • Page 58 English Troubleshooting Please find attached an overview of the most common problems. If you have further questions, please contact your Canton dealer, contact our service hotline at Tel. + 49 (0) 6083 287-0 or send us an e-mail to: info@canton.de...
  • Page 59 English Problem Possible cause Solution The Connect 5.1 does 1. The standby function is factory set to Network 1. In order to automacially turn on, the standby function not turn on automati- [NSB]. The system must be turned on manually. must be switched to Auto [AUT].
  • Page 60 English Problem Possible cause Solution The speaker connec- 1. The signal cable from the source device to the 1. Use a shorter and/or higher quality (better shielded) signal ted to the Connect 5.1 analoque input [AUX] of the Connect 5.1 is too cable.
  • Page 61 English Problem Possible cause Solution The input [BT] cannot 1. The function BT Select [BTS] is activated and 1. Deactivate the function BT Select [BTS] in order to select the be selected via the the Connect 5.1 switches the source automatically input [BT] manually.
  • Page 62 English Problem Possible cause Solution Playback of a (mobile) 1. The automatic playback function AutoPlay [APL] 1. If this function is unwanted, set AutoPlay [APL] to OFF. device starts automati- is activated. cally when the Connect 5.1 is switched on. Pairing of Smart (wire- 1.
  • Page 63 English Problem Possible cause Solution The Connect 5.1 1. This can happen if the function Input Select 1.1 Make sure that no signal is present at any other input unintentionally chan- [SEL] is set to [AUT] and the currently selected during playback at the analoque input [AUX] or that a device is switched on at the optical and coaxial ges the input.
  • Page 64 English Problem Possible cause Solution A (slave)speaker 1. The slave speaker is operated without the 1. Turn on the Connect 5.1. shows [WLS] in the Connect 5.1. display. 2. The (slave-) speaker is not paired anymore. 2. Pair the (slave-) speaker with the Connect 5.1 according to chapter Speaker Config [SPC] / Speaker Mapping [SPM].
  • Page 65 English Technical Data Smart Connect 5.1 Power supply – Operating voltage 100 – 240V~ – Operating frequency 50 / 60Hz – Power consumption ECO Standby 0,45 W – Power consumption NSB Standby WLAN [WIF] ca. 1,94W (Factory setting) – Power consumption NSB Standby LAN [ETH] ca. 7,2W –...
  • Page 66 EU – Declaration of Conformity marking We, the manufacturer / importer Canton Elektronik GmbH + Co. KG • Neugasse 21–23 • 61276 Weilrod • Germany confirm and declare in sole responsibility that the product Smart Connect 5.1 (Dolby Atmos® enabled pre-amplifier with several signal in- and outputs, RF Audio Transmitter, WiFi and Ethernet connections, Bluetooth®...
  • Page 67 Information on the “Intended Use”: Information about the CE marking: The Smart Connect 5.1 is designed for indoor use and Electrical and electronic devices placed on the market within the must not be used outdoors or in a wet environment.
  • Page 68 Bauteilen innerhalb der Garantiezeit. Dies gilt für alle Lautsprecher, die bei einem autorisierten Canton Fachhändler gekauft wurden. Wenden Sie sich im Schadensfall bitte an ihn oder direkt an den Canton Service. WARRANTY Above and beyond the legally prescribed warranty period Canton offers a guarantee of 5 years on all its passive loudspeakers.
  • Page 69 Bluetooth SIG, ® connect/third-party-licenses. Inc. and any use of such marks by Canton is under license. Other trademarks and trade names are those of their respective owners. ® The terms HDMI and HDMI Google, Google Home,...
  • Page 70 Bei Fragen oder Anregungen wenden Sie sich bitte an unseren Kundenservice: For further questions, please do not hesitate to contact our Customer Service: Canton Elektronik GmbH + Co. KG Neugasse 21 – 23 61276 Weilrod, Germany Tel. +49 (0)6083 287-87 info@canton.de...
