INSTALL GUIDE
CONTROL CONTACT

Advertisement

loading
Need help?

Need help?

Do you have a question about the CONTROL CONTACT and is the answer not in the manual?

Questions and answers

Related Manuals for Synapse CONTROL CONTACT

Summary of Contents for Synapse CONTROL CONTACT

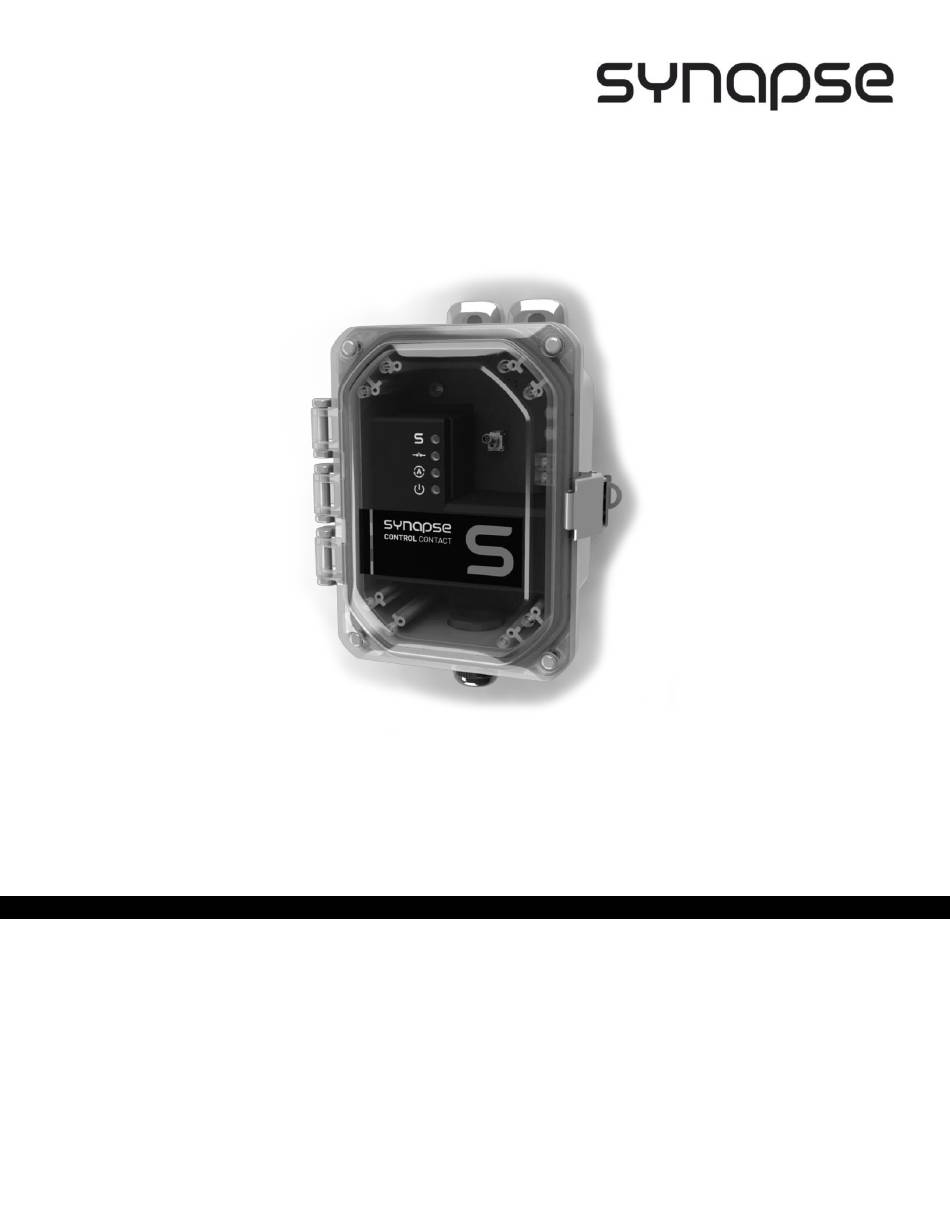

  • Page 1 INSTALL GUIDE CONTROL CONTACT...

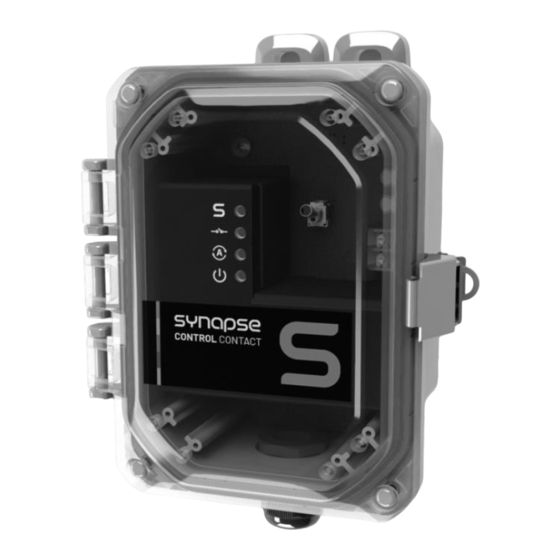

  • Page 2 Part Number: CONTROL-CNTC-101 DESCRIPTION The Control-Contact provides wireless control of 120 VAC and 24VAC/VDC circuits via an on-board relay. SPECIFICATIONS Input power: 120VAC or 24VAC +/-10%, 50/60Hz or 24VDC +/- 10%; 3W maximum. Dimensions: 7.1” L x 5.1” W x 4.8” H (180mm x 129mm x 122mm) Environment: -40C to +70C, 10 to 95% RH, non-condensing Load Power: 120VAC or 24VAC +/-10%, 50/60Hz or 24VDC +/- 10%...

  • Page 3: Installation Instructions

    Final installed unit should also be mounted with open space on 2 or more sides. Select a suitable installation location for the Control Contact (e.g., close to the load that will be controlled) Mount the Control Contact using the brackets included.
  • Page 4 THERE ARE 3 WAYS TO POWER THE CONTROL CONTACT, SELECT THE BEST OPTION FOR YOUR APPLICATION NOTE- The power connections are inputs ONLY and are exclusive. Do not connect AC and DC to the device. • POWER OPTION 1: 120VAC •...
  • Page 5 SWITCHING LOADS- CHOOSE FROM THE FOLLOWING: NOTE: The relay in this device does not latch. If the device loses power, connections will default to the “normal” state. The normally open terminal will be open to common, and normally closed terminal will be closed to common. Please ensure you wire this power-loss default to the safest state possible.
  • Page 6 FINAL STEPS Replace the wiring cover Reinstall the metal bracket, ensure the wires are properly routed under the bracket notches and tighten the two bottom screws, torque to 20 in-lbs. Tighten the cable gland Tighten the cable gland over the cable/wires and torque to 40-70 in-lbs, depending on the cable diameter and harness. to ensure the enclosure is properly sealed.
  • Page 7 REGULATORY INFORMATION AND CERTIFICATIONS RF Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance of 20cm between the radiator and your body. This transmitter must not be co- located or operating in conjunction with any other antenna or transmitter.
