Airfree P60 / P80 / P125
n Manual
n
Instruction Manual
Airfree P60 / P80 / P125

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P125 and is the answer not in the manual?

Questions and answers

Summary of Contents for Airfree P125

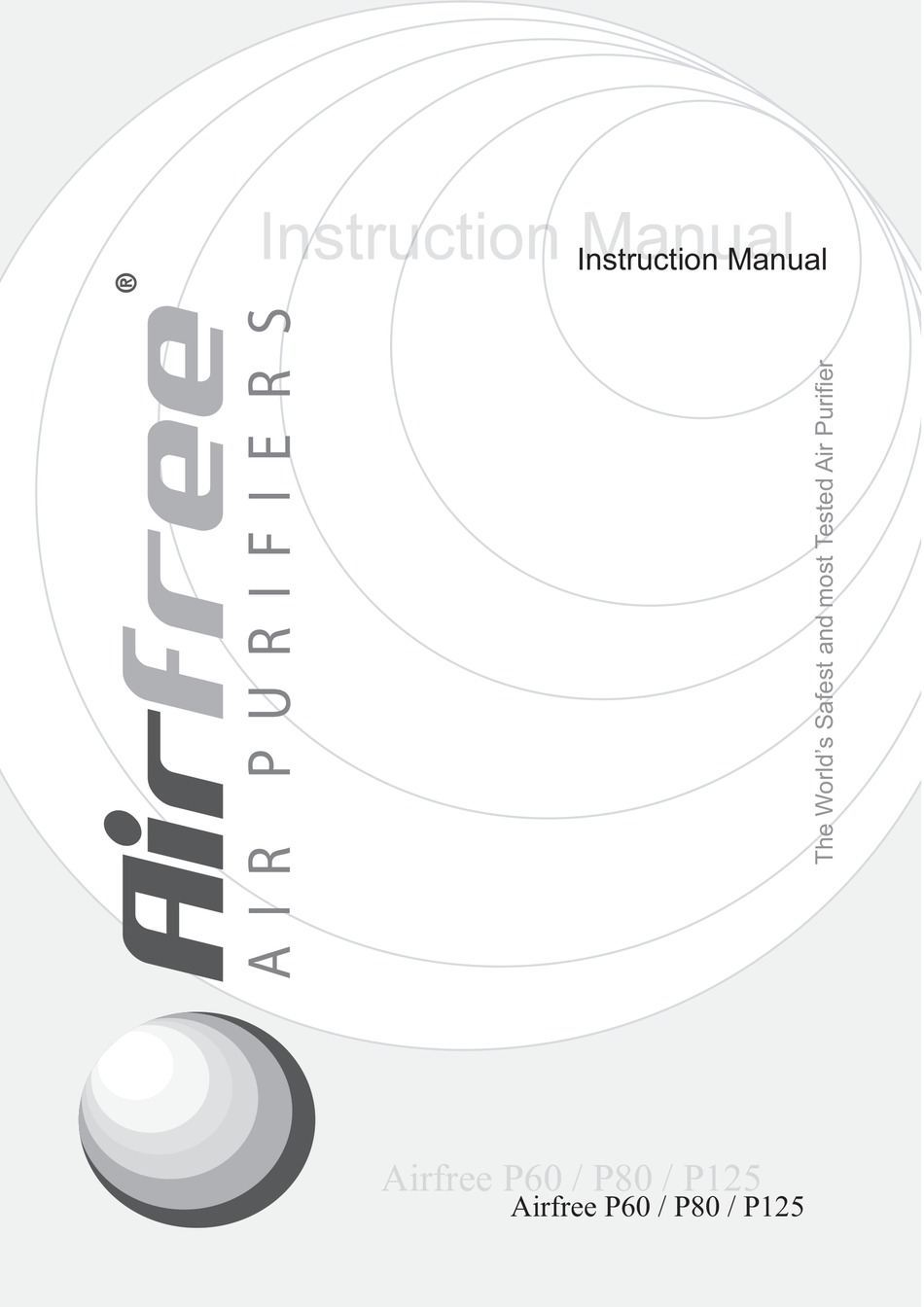

  • Page 1 Airfree P60 / P80 / P125 n Manual Instruction Manual Airfree P60 / P80 / P125...
  • Page 2 Congratulations for having purchased your Airfree. Airfree air purifi ers are manufactured under license of US Patent 5,874,050, and many other patents pending worldwide. Airfree was designed with most advanced American and German technologies, to drastically destroy indoor airborne micro- organisms and reduce ozone.
  • Page 3: Table Of Contents

    Safety Instructions The invisible Enemies Applications Airfree and Mould Technical Characteristics Airfree Description Installing and Connecting How does Airfree work? Maintenance Airfree’s Independent and Effi ciency Tests FAQ - Frequently Asked Questions Warranty Index...
  • Page 4: Safety Instructions

    Please read and save these instruction Before plugging in Airfree slightly shake it to check for any loose parts in its interior caused by unusual transportation event. If loose parts are noticed, please return the unit to the retailer. Do not place your Airfree in direct contact with water and liquids which may pose electric shock hazard and damage to the unit itself.
  • Page 5 Any attempt to open or tamper Airfree will void this warranty. To clean Airfree, unplug it from the electric outlet and use a dry cloth to wipe off its surface. Do not attempt to open Airfree to clean it inside.
  • Page 6: The Invisible Enemies

    (some of them already resistant to the most power- ful chemicals and poisons), bacteria, viruses, the fi ne dust mite excrements and skeletons containing powerful allergens and hazardous fungus, and the seasonal pollens. Airfree can safely and silently destroy those allergens The Invisible Enemies...
  • Page 7: Applications

    Airfree can reduce some odors like “mildew smell” and other organic odors. Kitchens and Pantries The reduction of airborne fungi and spores in areas protected by Airfree helps prevent mildew on food. Video, fi lms, slides, sound and optical equipment...
  • Page 8 The use of Airfree in guest rooms shows concern on behalf of the hotel to its guests well being. The use of Airfree can contribute to a higher oc- cupancy rate and may provide a good line of defense in case of lawsuits.
  • Page 9 Food and Drug Administration, recommends not to use any equipment directly or indirectly generating ozone in Hospitals or where the patients are present. Airfree is proven to reduce ozone levels in 26%, every time air passes through its ceramic core. Viruses, Bacteria, Fungus and Germs...
  • Page 10: Airfree And Mould

    3 - Clean mould infected items and surfaces, since they are a con- tinuous source of new spores. It is important to stress that Airfree will not destroy or remove mould from an infected item or surface. Those surfaces must be cleaned manually.
  • Page 11: Technical Characteristics

    Model Capacity 2119 cu.ft (60m³) Inside Temperature 392°F (200°C) Electric Consumption Voltage 220V - 240V Totally Silent Noise 2.4 lbs (1,09 Kg) Weight height: 10.4in (26.5 cm) Dimensions diameter: 8.4in (21.5 cm) Technical Characteristics P-60 P-80 2825 cu.ft (80m³) 392°F (200°C) 220V - 240V Totally Silent 2.4 lbs (1,09 Kg)
  • Page 12: Airfree Description

    7- Anti-Stress Light Dimmer The Airfree’s anti-stress light has a esthetic effect and may be relaxing. It is pos- sible to adjust the light intensity using the dimmer at Airfree’s base. The light does not intervene or has any relation with Airfree’s patented sterilisation core functioning.
  • Page 13: Installing And Connecting

    Connecting Plug power cord to the nearest outlet. Make sure the surface is dry (never place Airfree on wet fl oor or immerge in water) Make sure side blue led is on. Switch on dimmer (Available in Airfree P125,P80,P60) and the anti-stress light should glow from the top lid (1).
  • Page 14: How Does Airfree Work? Maintenance

    The heat inside the ceramic core forces sterilised air out to the heat exchanger causing air convection, which generates negative pressure underneath the ceramic core, so contaminated air is “sucked” in at Airfree bottom air inlets in a continuous and silent thus effi cient air fl ow.
  • Page 15: Airfree's Independent And Effi Ciency Tests

    Lisbon/Portugal november 12 to december 10, 2004 INETI* Lisbon/Portugal march 19 to april 30, 2001 Above and other tests can be seen at our web site www.airfree.com * Certifi ed by ISO 17025 Airfree Independent and Effi ciency Tests Local...
  • Page 16: Faq - Frequently Asked Questions

    5. What is Airfree’s air cleaning capacity? Airfree P125 was designed for rooms up to 550 sq. ft. (51 m²) or 4415 cu.ft (125m³); Airfree P80 was designed for rooms up to 344.4 sq. ft. (32m²) or 2825 cu. ft. (80 m³);...
  • Page 17 Asked Questions 6. Can I install Airfree in my walking closet ? Yes, as long as it has at least 330cu.ft (10m³)*. Airfree should not be placed under shelves or its effi ciency will be reduced. * as reference 330cu.ft (10m³) is approximately 7’x7’...
  • Page 18 fi lters the air. The main reason why CADR is not designed for Airfree is because Aifree does not fi lter but destroys microorganisms instead, CADR only applies to volume of fi ltered air delivered by an air cleaner as stated above.
  • Page 19 23. Does Airfree need fi lter replacement? 24. Does Airfree consume a lot of energy? No. Airfree’s consumption is just 50 Watts for P125, 48 Watts for P80 and 45 Watts for P60. 25 - Does Airfree anti-stress light interfere with Airfree sterilising function? No.
  • Page 20: Warranty

    To be eligible for the warranty, please register at www.airfree.com or complete your warranty card at the time of purchase and mail it to the distributor. To obtain warranty service, please send the product sales receipt or proof of Purchase, and a check or money order for €10 payable to the distribu-...
  • Page 21 Phone Number. ( Purchase Date Store Name: Invoice Number: In order to obtain full warranty terms and conditions as stated above please fi ll in and return Warranty Certifi cate to Authorised Airfree distributor. You may also register your warranty at www.airfree.com...
  • Page 24 AIRFREE PRODUCTS Tel.: 351 - 213 156 222 Web: www.airfree.com Mail: info@airfree.com...
