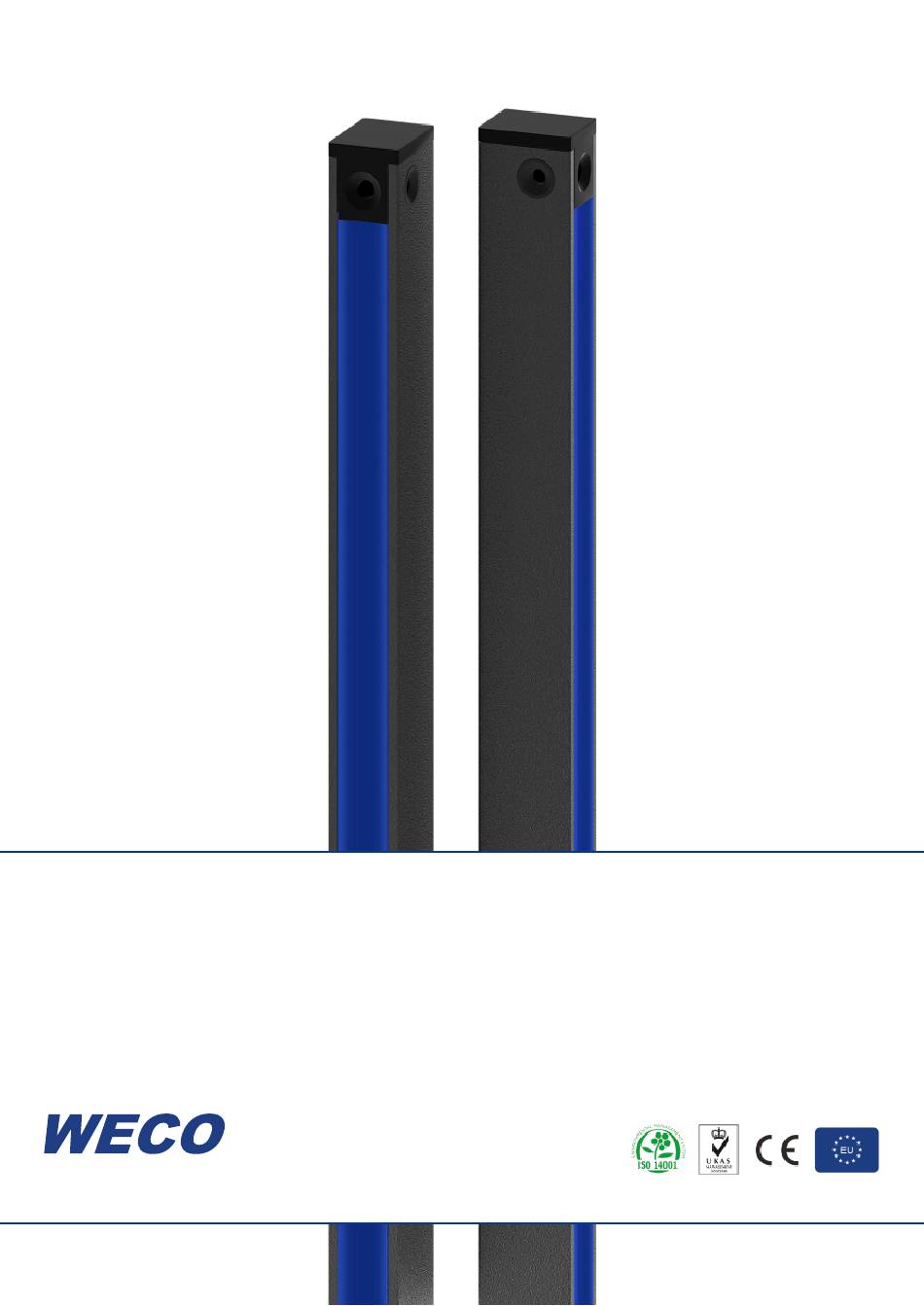

- Page 1 DOOR DETECTOR CDZ SERIES 03.G5.CDZ.174.PNC USER MANUAL Version UM.G5.CDZ.07L22...
- Page 2 INSTALLATION INSTRUCTIONS Securely fix the transmitter and receiver to the car/car doors through the fixing holes with the bolts provided. Ensure that both the receiver and the transmitter are at the same level. Connect the cables from the receiver and the transmitter to the input terminals of the door controller.
- Page 3 NOTES AND ADVICE · Keep connection cables away from high voltage and/or high current wires. · Keep connection cables away from door motor and door drive. · Avoid direct sunlight or other infrared ingress to the receiver (RX). · Prior to power-on, clean the lenses with a soft, damp cloth. ·...
- Page 4 OUTPUT DEFINITION AND WIRING 15-30VDC (red) Output (green) 0V (blue) Load Synchro (yellow) 15-30VDC 0VDC 0VDC Yellow (sync) Green (output) Red (24V+) Blue (0V-) Door operator interface PACKING LIST ITEMS Cables 2 cables Please check if anything is missing Transmitter (TX) 1 piece from the packing list.
