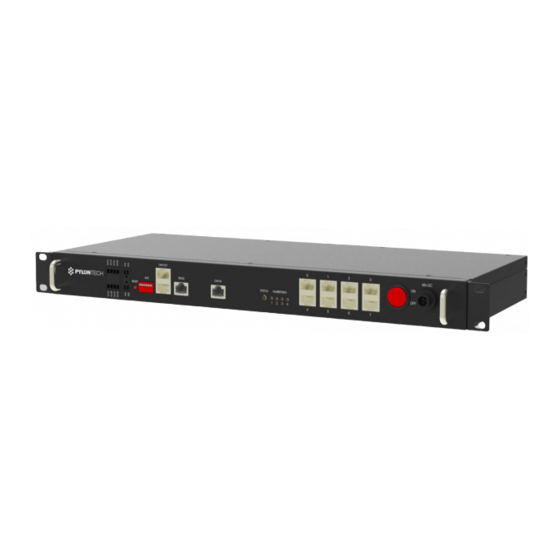

Communication HUB
LV-HUB Product Manual
With US-C/US5000/UP5000
Information Version: V1.0
No. 73, Lane 887, ZuChongzhi Road, Zhangjiang Hi-Tech Park
Pudong, Shanghai 201203, China Zip Code: 201203
Pylon Technologies Co., Ltd.
Email:
service@pylontech.com.cn
Website:
http://www.pylontech.com.cn
Tel: 021-51317699
Fax: 021-51317698
Advertisement
Table of Contents
Related Manuals for Pylon Technologies LV-HUB
Summary of Contents for Pylon Technologies LV-HUB
- Page 1 Communication HUB LV-HUB Product Manual With US-C/US5000/UP5000 Information Version: V1.0 Pylon Technologies Co., Ltd. No. 73, Lane 887, ZuChongzhi Road, Zhangjiang Hi-Tech Park Pudong, Shanghai 201203, China Zip Code: 201203 Tel: 021-51317699 Fax: 021-51317698 Email: service@pylontech.com.cn Website: http://www.pylontech.com.cn...
- Page 2 Catalog 1. Introduction ..............................1 2. Specifications..............................1 3. Equipment Interface Instruction ........................2 4. Communication Cable Deployment ......................3 4.1 Wiring diagram .............................4 4.2 Communication Cable definition ......................4 4.3 Communication Cable wiring sequence ....................5 5. Trouble shooting .............................6...
- Page 3 1. Introduction LV-Hub is the CAN communication hub for multiple 48V battery groups in parallel connection. US2000C/US3000C/US5000/UP5000 This manual is specified for connection with batteries. 2. Specifications Item Parameter Operating voltage range 48 Vdc Communication CAN/RS485 interface System Consumption Size...
- Page 4 Please see LED Indicators Instructions. Only uses 0~5. Please see LED Indicators 9~16 RJ45 0; 1; 2; 3; 4; 5; 6; 7. Instructions. Switch ON/OFF Turns the LV-HUB ON/OFF. Power supply: take 48VDC power from outside (from AC/DC adaptor). 48VDC input 48V DC...
- Page 5 1. Each communication HUB connects max 6 battery piles. 2. Each battery pile can configure max 16 US2000C/US3000C/UP5000/US5000. 3. When using US2000C/US3000C/UP5000/US5000, the multiple group connection under RS485 communication DONOT require a LV-HUB. The wiring diagram please refer to the corresponding battery model operation manual.
- Page 6 4 are standard Ethernet cable (8 pin direct-pin cable). 2. Cable ○ 3 is to connect LV-HUB and first master battery, the first 3 pins on the port of battery side should be NULL, or use WI0SCAN30RJ1 cable inside external cable kits.
- Page 7 6) Change the dip switch of ONLY the master battery in group1 to 0100. 7) Then connect communication cable between LV-HUB and master battery in group 1(using proprietary RJ cable with PIN 1-3 null). Use that specific cable, otherwise, communication...
- Page 8 8) Then turn ON LV-HUB. You will hear the LV HUB Beep. Then all the groups connected shall be shown on the LED. 9) Then connect the LV-HUB to the inverter with the correct pinout at both battery side and inverter side.
