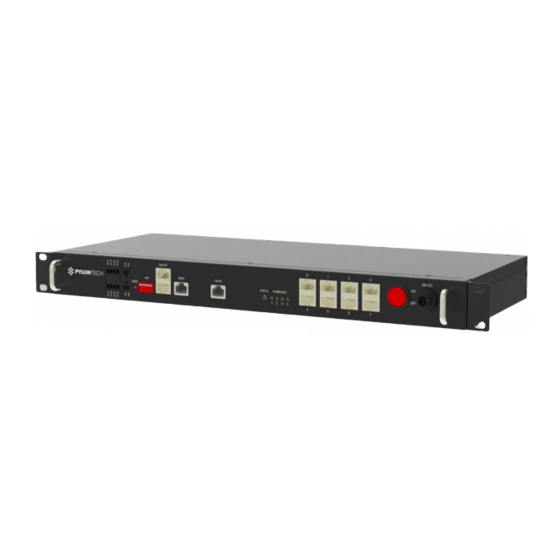

Communication HUB
LV-HUB Product Manual
Information Version: 2.2
No. 73, Lane 887, ZuChongzhi Road, Zhangjiang Hi-Tech Park
Pudong, Shanghai 201203, China Zip Code: 201203
1 / 14
Pylon Technologies Co., Ltd.
Email:
service@pylontech.com.cn
Website:
http://www.pylontech.com.cn
Tel: 021-51317699
Fax: 021-51317698
18BISV0501

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LV-Hub and is the answer not in the manual?

Questions and answers

Related Manuals for Pylon Technologies LV-Hub

Summary of Contents for Pylon Technologies LV-Hub

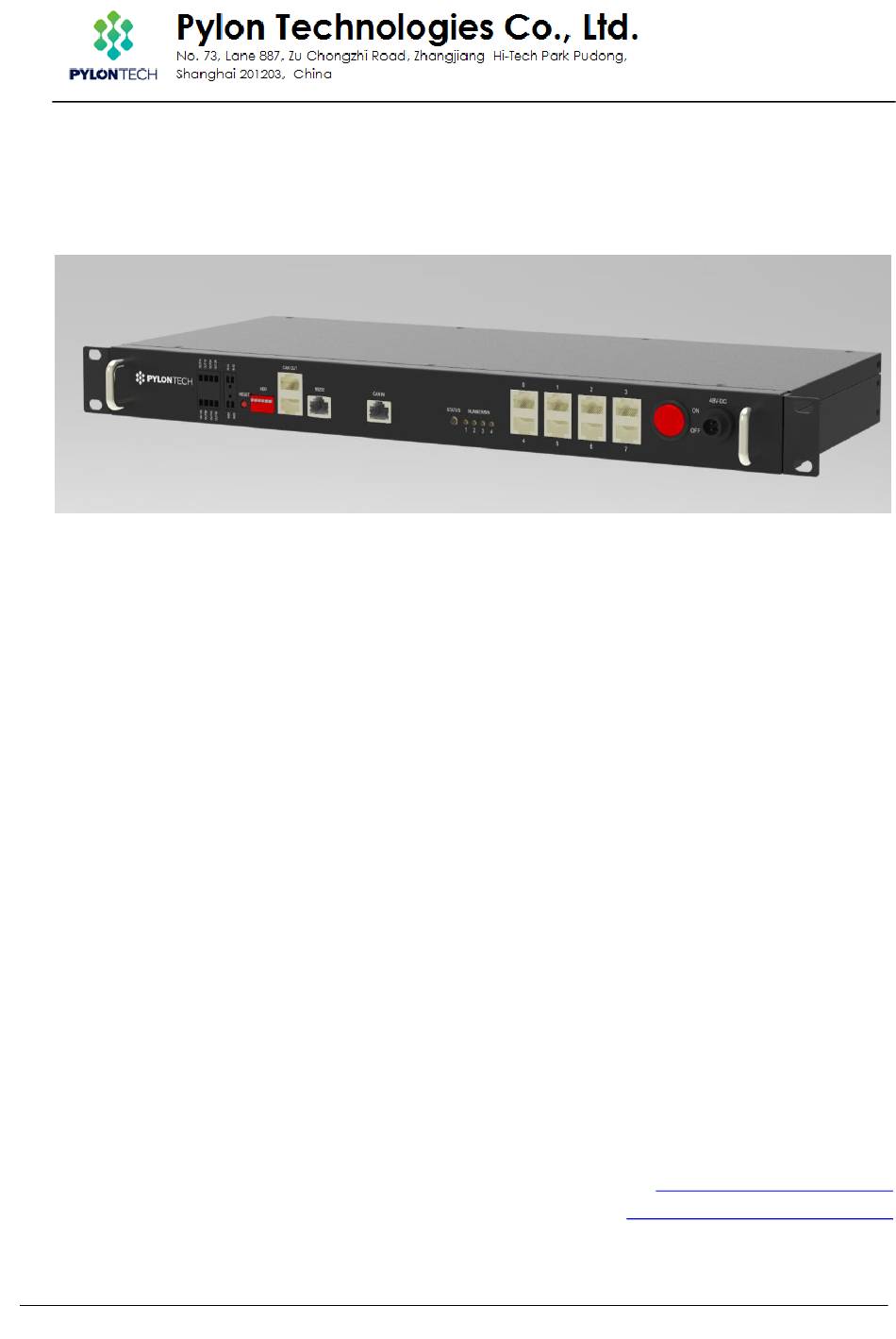

  • Page 1 Communication HUB LV-HUB Product Manual Information Version: 2.2 Pylon Technologies Co., Ltd. No. 73, Lane 887, ZuChongzhi Road, Zhangjiang Hi-Tech Park Pudong, Shanghai 201203, China Zip Code: 201203 Tel: 021-51317699 Fax: 021-51317698 Email: service@pylontech.com.cn Website: http://www.pylontech.com.cn 1 / 14 18BISV0501...

  • Page 2: Table Of Contents

    This manual introduces LV-Hub from Pylontech. LV-Hub is a communication hub for US2000/US3000 Lithium-Ion Phosphate Battery storage system. Please read this manual before you install the battery and follow the instruction carefully during the installation process. CONTENT INTRODUCTION ............................ 3 LV-HUB-A ..............................

  • Page 3: Introduction

    1. Introduction LV-Hub is the CAN/RS485 communication hub for multiple 48V battery groups in parallel connection. Fit Description: US2000 / US3000 / US2000C / US3000C / UP5000 / US5000. 2. LV-Hub-A Item Parameter Operating voltage range 48 Vdc Communication CAN/RS485...

  • Page 4: Ports

    9~16 RJ45 0; 1; 2; 3; 4; 5; 6; 7. Only uses 0~5. Please see 3.2. Switch ON/OFF Turns the LV-HUB ON/OFF. Power supply: take 48VDC power from outside (from AC/DC adaptor). 48VDC input 48V DC 4 / 14 18BISV0501...

  • Page 5: Definition Of Rj45 Port Pin

    2.2 Definition of RJ45 Port Pin CAN OUT RS485 RS232 Pin CANH CANL RS485A RS485B 2.3 LED Indicators Instructions ● Only the HUB is turned ON, it lights once. No battery connected or at least one group is off line. Status When battery group is reduced it will alarm (in red), but ●...

  • Page 6: Operation

    3.2 Cables Connection for US2000/US3000 under RS485 or CANBUS. 3.2.1 Cables Connection for RS485 Each battery group can configure maximum 8pcs US2000B Plus or 8pcs US3000.  LV-Hub-A configures maximum 5 group batteries.  RS485 communication needn’t additional cable and power just a simple hub is enough. ...

  • Page 7: Cables Connection For Can (Single Hub)

    3.2.2 Cables Connection for CAN (single HUB) Each battery group can configure maximum 8pcs US2000B Plus or 8pcs US3000.  LV-Hub-A configures maximum 5 group batteries.  When each battery group’s current is >120A, this battery group must configure 2 pair ...

  • Page 8: Cables Connection For Us2000C/Us3000C/Up5000 Under Canbus

    3.3 Cables Connection for US2000C/US3000C/UP5000 under CANBUS Note: The cable connection for RS485 do not require a LV-HUB. The specific cable connection way please refer to the related battery operation manual. Connect power cable first: 1) each pair of cable hold max 100A constant current. Connect enough pairs of cable based on calculation of system current.

  • Page 9: Cables Connection For Multiple Hubs Under Canbus

    3.4 Cables Connection for Multiple HUBs under CANBUS. In above picture, all communication cable connect in between shall be 8 pin direct-pin cable. 9 / 14 18BISV0501...

  • Page 10: Annex 1: Cables Connection For Us2000/Us3000 Under Rs485

    Annex 1: Cables Connection for US2000/US3000 under RS485 10 / 14 18BISV0501...

  • Page 11: Annex 2: Cables Connection For Us2000/Us3000 Under Can

    Annex 2: Cables Connection for US2000/US3000 under CAN 11 / 14 18BISV0501...

  • Page 12: Annex 3: Cables Connection For Can (Multi Hub)

    Annex 3: Cables Connection for CAN (multi HUB) 12 / 14 18BISV0501...

  • Page 13: Annex 4: Cables Connection For Us2000C/Us3000C/Up5000 Under Canbus

    Annex 4: Cables Connection for US2000C/US3000C/UP5000 under CANBUS 13 / 14 18BISV0501...
  • Page 14 Pylon Technologies Co., Ltd. No. 73, Lane 887, ZuChongzhi Road, Zhangjiang Hi-Tech Park Pudong, Shanghai 201203, China +86-21-51317699 | +86-21-51317698 service@pylontech.com.cn www.pylontech.com.cn 14 / 14 18BISV0501...
