Communication HUB
LV-HUB Product Manual
Information Version: 2.1
Pylon Technologies Co., Ltd.
No. 73, Lane 887, ZuChongzhi Road, Zhangjiang Hi-Tech Park
Pudong, Shanghai 201203, China Zip Code: 201203
Tel: 021-51317699
Fax: 021-51317698
Email:
service@pylontech.com.cn
Website:
http://www.pylontech.com.cn
1 / 12
18BISV0501
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Pylon Technologies LV-HUB Series
Summary of Contents for Pylon Technologies LV-HUB Series
- Page 1 Communication HUB LV-HUB Product Manual Information Version: 2.1 Pylon Technologies Co., Ltd. No. 73, Lane 887, ZuChongzhi Road, Zhangjiang Hi-Tech Park Pudong, Shanghai 201203, China Zip Code: 201203 Tel: 021-51317699 Fax: 021-51317698 Email: service@pylontech.com.cn Website: http://www.pylontech.com.cn 1 / 12 18BISV0501...
-
Page 2: Table Of Contents
This manual introduces LV-Hub from Pylontech. LV-Hub is a communication hub for US2000/US3000 Lithium-Ion Phosphate Battery storage system. Please read this manual before you install the battery and follow the instruction carefully during the installation process. CONTENT 1. INTRODUCTION ..........................3 2. -
Page 3: Introduction

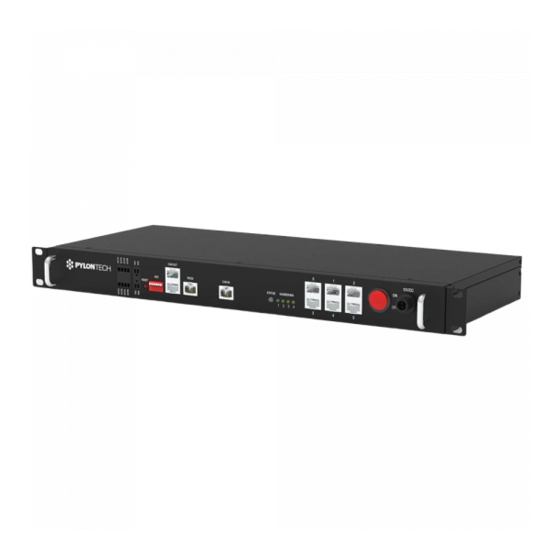

1. Introduction LV-Hub is the CAN/RS485 communication hub for multiple 48V battery groups in parallel connection. Fit Description: US2000 / US3000 / Phantom-SA / US1800. 2. LV-Hub-A Item Parameter Operating voltage range 48 Vdc Communication CAN/RS485 interface System Consumption Size 442*150*44mm Protection degree IP20... -
Page 4: Ports
2.1 Ports: Part Silk-screen Function Dry signal Function reserve Press 2 seconds and then system will Reset Switch RESET Button restart. Dip 6: Dip switch 1 - 6 Up：CAN OUT terminal resistance 120Ω Down：0Ω CAN output port (only upper port is for RJ45 CAN OUT using)；... -
Page 5: Definition Of Rj45 Port Pin
2.2 Definition of RJ45 Port Pin CAN OUT RS485 RS232 Pin CANH CANL RS485A RS485B 2.3 LED Indicators Instructions Only the HUB is turned ON, it lights once. ● No battery connected or at least one group is off line. Status ●... -
Page 6: Operation
3. Operation 3.1 Protocol CAN-Bus-protocol-PYLON-low-voltage-V1.2-20180408 CAN: or above. RS485-protocol-pylon-low-voltage-V3.1-20180408 RS485: or above. 3.2 Cables Connection 3.2.1 Cables Connection for RS485 Each battery group can configure maximum 8pcs US2000B Plus or 8pcs US3000. ⚫ LV-Hub-A configures maximum 5 group batteries. ⚫ RS485 communication needn’t additional cable and power just a simple hub is enough. -
Page 7: Cables Connection For Can (Single Hub)
When each battery group’s current is >120A, this battery group must configure 2 pair ⚫ external power cables like the diagram. The details of ADD Switch setting also can see the menu of battery. ⚫ 3.2.2 Cables Connection for CAN (single HUB) Each battery group can configure maximum 8pcs US2000B Plus or 8pcs US3000. -
Page 8: Cables Connection For Can (Multi Hub)
3.2.3 Cables Connection for CAN (multi HUB) 8 / 12 18BISV0501... -
Page 9: Annex 1: Cables Connection For Rs485
Annex 1: Cables Connection for RS485 9 / 12 18BISV0501... -
Page 10: Annex 2: Cables Connection For Can
Annex 2: Cables Connection for CAN 10 / 12 18BISV0501... -
Page 11: Annex 3: Cables Connection For Can (Multi Hub)
Annex 3: Cables Connection for CAN (multi HUB) 11 / 12 18BISV0501... - Page 12 Pylon Technologies Co., Ltd. No. 73, Lane 887, ZuChongzhi Road, Zhangjiang Hi-Tech Park Pudong, Shanghai 201203, China +86-21-51317699 | +86-21-51317698 service@pylontech.com.cn www.pylontech.com.cn 12 / 12 18BISV0501...
