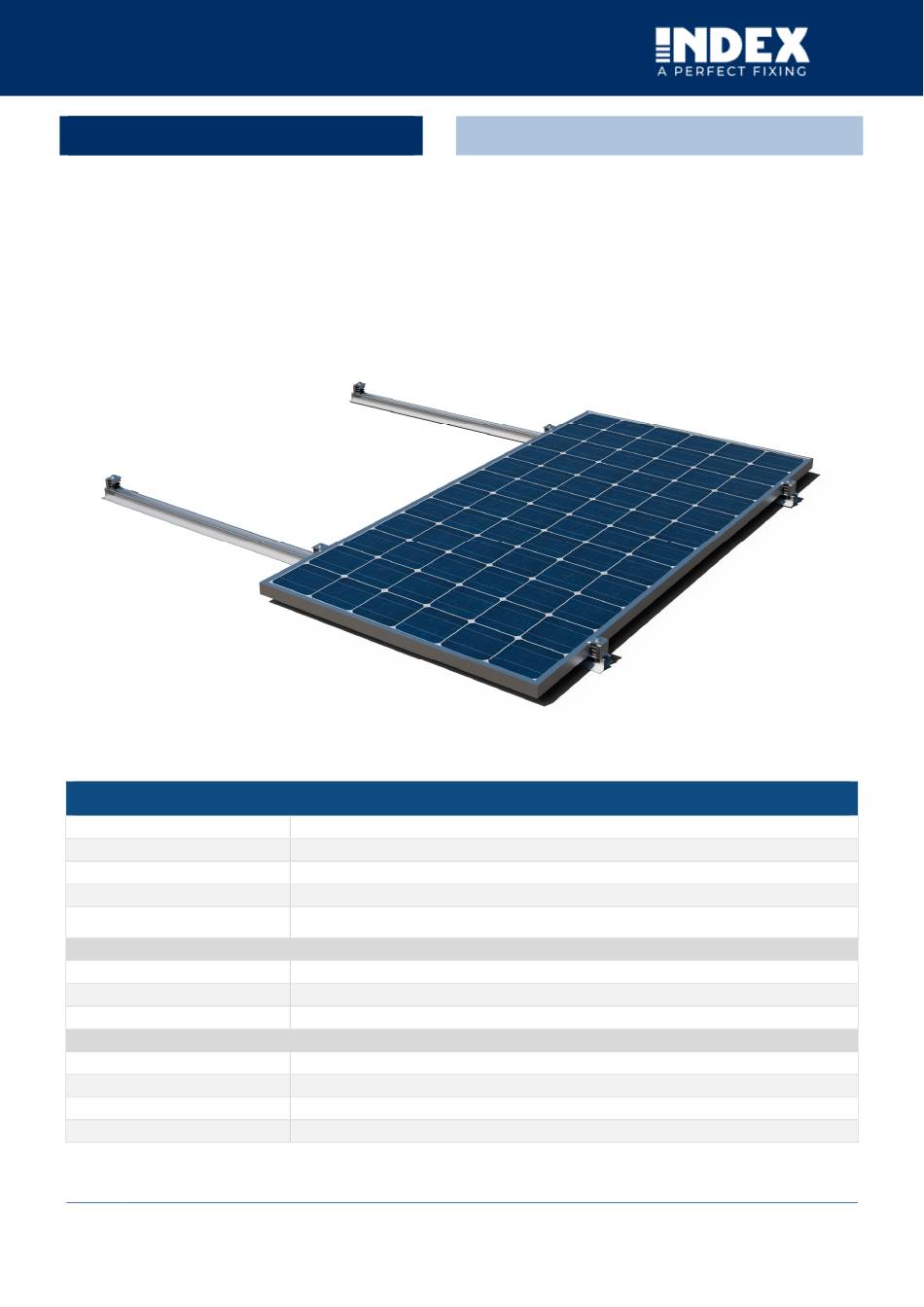

SC-PSA INSTALLATION MANUAL
SC-PSA
1. CHARACTERISTICS
Description:
System inclination:
System orientation:
System materials:
Warranty:
Compatible solar panels:
Solar panels type:
Solar panels orientation:
Solar panel size:
Application area:
Application area:
Roof slope:
Wind load:
Snow load:
Ref.
FTA_GS_M_SC-PSA-en
Coplanar mounting system on winged aluminium profile in discontinuous format
Coplanar mounting with parallel installation to the roof surface.
Facing SOUTH, EAST OR WEST depending on the roof orientation.
Aluminium, stainless steel and EPDM
Until 10 years depending on environmental conditions (excluding environments exposed to hydrogen
sulphide). The warranty is only valid if the complete SC-PSD is used.
Solar panels with frame height between 30mm and 40mm.
Mounting orientation of portrait (vertical) panels.
Adaptable to standard market sizes.
Sloping roofs.
Installation on pitched roofs, slope between 10° and 60°.
Up to 240 km/h. The structure and fixing must be calculated according to local and roof conditions.
Up to 2 kN/m². The structure and fixing must be calculated according to local and roof conditions.
Rev: 0
23/06/23
SYSTEM DESCRIPTION
Coplanar mounting system with PSA-A "winged aluminium
profile", for the installation of solar panels.
.
1 of 10

Advertisement

loading

Related Manuals for Index SC-PSA

Summary of Contents for Index SC-PSA

  • Page 1 SC-PSA INSTALLATION MANUAL SC-PSA SYSTEM DESCRIPTION Coplanar mounting system with PSA-A “winged aluminium profile”, for the installation of solar panels. 1. CHARACTERISTICS Description: Coplanar mounting system on winged aluminium profile in discontinuous format System inclination: Coplanar mounting with parallel installation to the roof surface.
  • Page 2 SC-PSA INSTALLATION MANUAL 2. COMPONENTS KFR-SC PGS-A TU-RXA2 GM-A PSA-UN PSA-A 2.1 Components: Clamp and gauges for mounting solar panels Lateral position clamp Intermediate position clamp Option 1: Quick clamp Option 2: Simple clamp Option 1: Quick clamp Option 2: Simple clamp 2.2 Components: Profiles, joints and guides for supporting structures...

  • Page 3: Examples Of Application

    SC-PSA INSTALLATION MANUAL 3. TYPES OF FIXINGS METAL SHEET TAC-N / TAC-B ARENI RE-TE SANDWICH PANEL Atlantis/Bimetal thin sheet screw Self-drilling screw Watertight trebol rivet. 4. EXAMPLES OF APPLICATION Example: Sandwich panel roof / Fixing with thin sheet screew Ref.
  • Page 4 SC-PSA INSTALLATION MANUAL 5. INSTALLATION MANUAL Coplanar mounting system with PSA-A SC-PSA “Winged aluminium profile” Read these installation instructions before starting installation and familiarise yourself with the system component. Installation must only be carried out by qualified and experienced personnel.

  • Page 5: Installation Process

    SC-PSA INSTALLATION MANUAL INSTALLATION PROCESS: STEP 1.- Consult installation drawing Consult the installation drawing on the roof, where the distribution of the modules is defined as well as the structures that support them and their fixing points. A. Plan view of SC-PSD system with horizontal module orientation (landscape type).
  • Page 6 SC-PSA INSTALLATION MANUAL STEP 2.- Perform layout on the roof Lay out on the roof the fixing points of each structure, checking the viability of the installation of each one depending on the chosen fixing system and the characteristics of the roof.
  • Page 7 SC-PSA INSTALLATION MANUAL C. Pre-install the PSA-A profiles by sticking the base onto the butylene tape and fix them with the thin sheet screws. For the installation of the thin sheet screws use an electric screwdriver equipped with hexagon socket SW-8, an...
  • Page 8 SC-PSA INSTALLATION MANUAL E. Fix the PSA-UN joint to the first PSA-A profile by installing 2 self-drilling stainless steel screws ABEI5519. The screws must be installed in the lower part of the profile, at a distance between 50 and 70mm from the end of the profile.
  • Page 9 SC-PSA INSTALLATION MANUAL G. Option 2, If a connection acting as an expansion joint is required: Insert the protruding part of the PSA-A joint PSA-UN into the second PSE-C profile, leaving a gap between the ends of the two profiles of between 4 and 6 mm, in this case the screws are not installed to allow longitudinal displacements between the two profiles.
  • Page 10 SC-PSA INSTALLATION MANUAL Type of clamp depending on its position: A. Intermediate clamp  The intermediate clamp is used when passing from one module to another within the same row, fixing both panels to the structure. This assembly is carried out by means of the screw included in the clamp. A tightening torque of 14 Nm must be applied.
